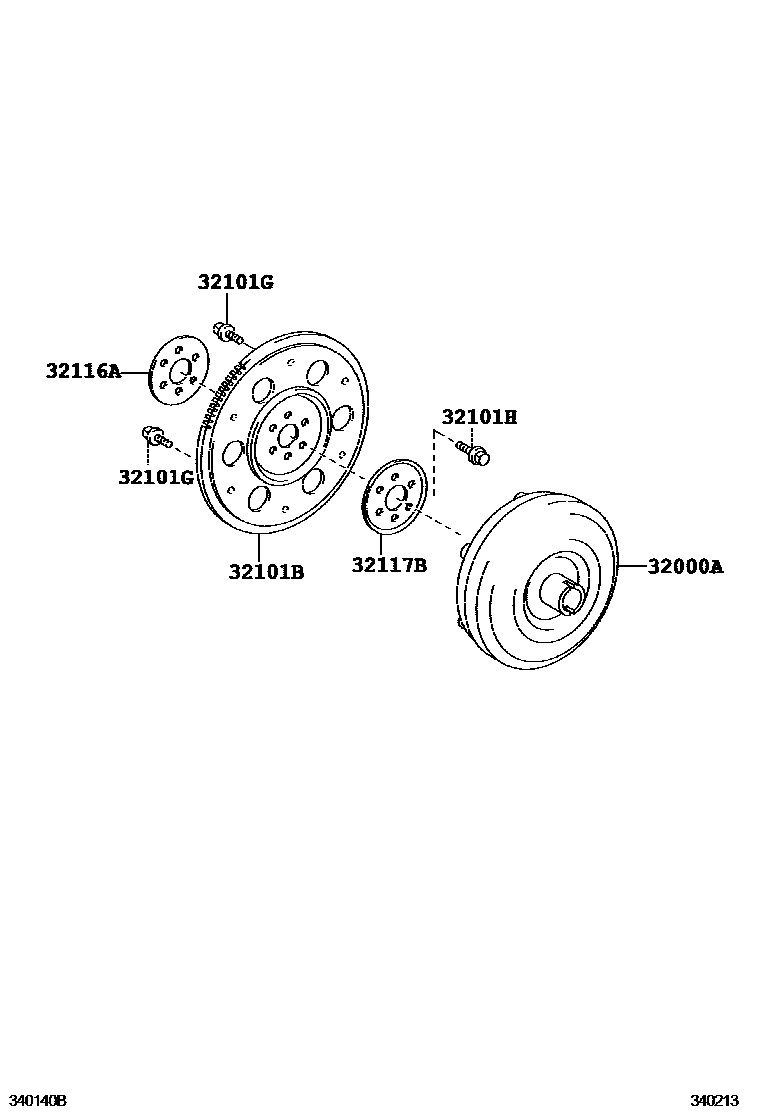

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12410iNZE141..CVFC200910-201204

sub32000-12411

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNZE141..CVFC200910

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNZE141..CVFC200910

*8-1.25PX12-8.4,BLACK

main90119-08498iNZE141..CVFC200910

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNZE141..CVFC200910

(J)

main90105-A0022iNZE141..CVFC200910-201003

(L)

sub90105-10048

32116ASPACER, DRIVE PLATE, FRONT

main32116-52030iNZE141..CVFC200910

32117BSPACER, DRIVE PLATE, REAR

main32117-52030iNZE141..CVFC200910

6 parts on this diagram · 1 diagram in section
