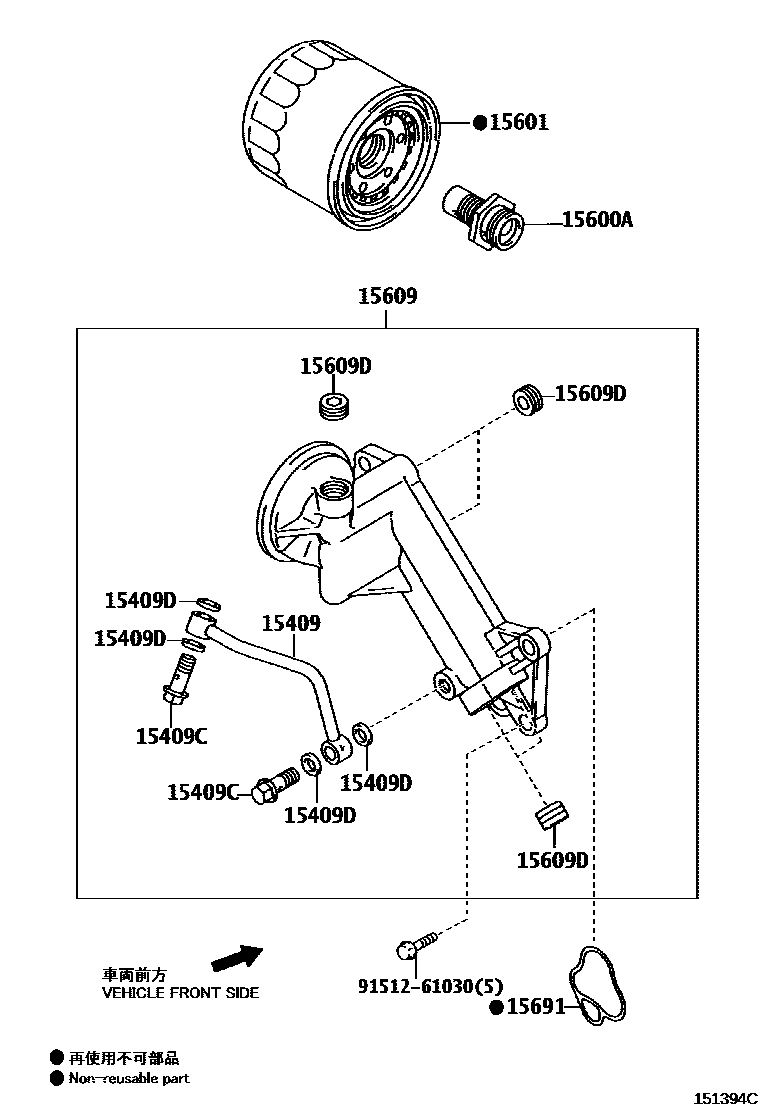

OIL FILTER

0001 1 0002 1 0003 1 0004 1

15409PIPE OR HOSE, OIL FILTER OUTLET

main15431-64030i2C..CE140200708-201007

15409CBOLT, UNION(FOR OIL FILTER OUTLET PIPE)

main90401-10031×2i2C..CE140200708-201007

15409DGASKET(FOR OIL FILTER OUTLET PIPE)

main90430-10035×4i2C..CE140200708-201007

15600AUNION(FOR OIL FILTER)

main15116-54021i2C..CE140201007

main90402-28004i1ZZFE..ZZE142..5F201007-201311

main90904-04002i1ZZFE..ZZE142..4FC201007-201311

main90904-04004i1NZFE..NZE141..N200704-200810

15601FILTER SUB-ASSY, OIL

main90915-10003i1ZZFE..ZZE142..LHD..GEN200708-201007

sub90915-10009

main90915-30003i2C..CE140200708-201007

15609BRACKET SUB-ASSY, OIL FILTER

main15608-64042i2C..CE140200708-201007

main15609-37040i1ZRFE,2ZRFE..ZRE14#201007-201310

main15609-37041i1ZRFE,2ZRFE..ZRE14#201310

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×2i1ZRFE..ZRE141;2ZRFE..ZRE142..4FC;2ZRFE..ZRE142..6F..GLI..GCC201007

main90344-53002×5i2C..CE140201007

15691GASKET, OIL FILTER

main15691-64041i2C..CE140200708-201007

9151261030

main91512-61030

9 parts on this diagram · 4 diagrams in section
