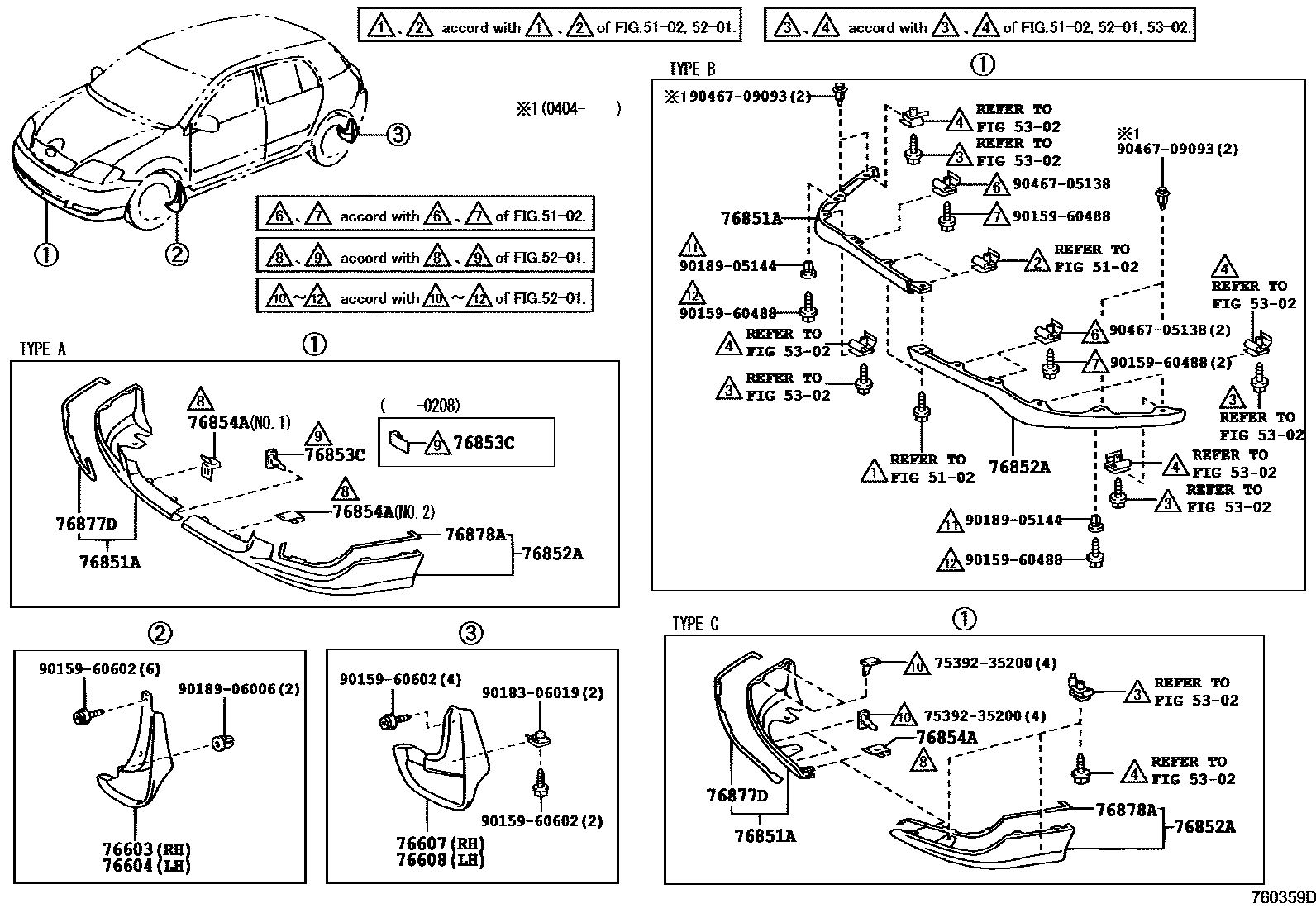

MUDGUARD & SPOILER

0001 1 0002 1 0003 1 0004 1

5102

5302

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-02080iCE120,NZE120..(20D,GLI,XLI)..PKN200202-200507

main76621-12200-A1iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

SUPER WHITE 2,040

main76621-12200-A4iNZE121..ATM..GLI;ZZE122..(GLI,ULT,XLI)..(ARL,GCC)200404-200708

WHITE PEARL CS.,073

main76621-12200-B1iZZE122..GCC;NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..(GLI,ULT,XLI)..(ARL,GEN)200008-200404

SILVER ME.,199

main76621-12200-B2iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

SILVER ME.GR.,1D9

main76621-12200-B3iCE120,NZE120,ZZE12#..LHD..GEN200008-200708

SILVER M.M.,1E7

main76621-12200-B4iZZE122..ULT200110-200404

GRAY M.M.,1C3

main76621-12200-B5iZZE122..ULT200404-200702

SILVER ME.,1C0

main76621-12200-C0iZZE122;NZE12#,ZZE121..GEN200008-200110

BLACK ME,205

main76621-12200-C1iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

BLACK MC.,209

main76621-12200-D0iZZE122..GLI,ULT,XLI;CE120,NZE12#,ZZE121..GEN200008-200708

SUPER RED II,3E5

main76621-12200-D1iZZE122..ULT200110-200404

RED M.M.,3N8

main76621-12200-D2iCE120,NZE120,ZZE12#..LHD..GEN200008-200404

BORDEAUX MC.,3P2

main76621-12200-D5iZZE122..ULT200404-200702

DK. RED M.M.,3Q3

main76621-12200-E3iZZE122..SED..GCC200507-200509

LIMITED(G.C.C.),BEIGE ME.,4M9

main76621-12200-G0iZZE122..ULT200110-200404

DARK GREEN MC.,6R4

main76621-12200-G2iZZE122..ULT200404-200702

DK.GREEN M.M.,6S3

main76621-12200-H0iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200209

TURQUOISE M.M.,769

main76621-12200-J0iZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121..GEN;ZZE122..RHD..(GLI,ULT,XLI)200008-200708

DK.BLUE M.M.,8P4

main76621-12200-J2iZZE122..ULT200110-200404

GRAYISH BLUE M.M.,8Q3

main76621-12200-J4iZZE122..ULT200110-200404

DK.BLUE,8Q4

main76621-12200-J6iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200404-200708

LT.BLUE ME.,8Q6

main76621-12200-J7iZZE122..ULT200404-200702

LT.BLUE M.M.,8S1

main76621-12200-K0iZZE122..WG..XLI200110-200404

DARK PURPLE MC.,946

main76621-12210iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

BLACK

main76621-12210iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200708

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-02080iCE120,NZE120..(20D,GLI,XLI)..PKN200202-200507

main76622-12200-A1iZZE122..GLI,ULT,XLI;CE120,NZE12#,ZZE121..GEN200008-200708

SUPER WHITE 2,040

main76622-12200-A4iNZE121..ATM..GLI;ZZE122..(GLI,ULT,XLI)..(ARL,GCC)200404-200708

WHITE PEARL CS.,073

main76622-12200-B1iCE120,NZE120,ZZE122..LHD..GEN200008-200404

SILVER ME.,199

main76622-12200-B2iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

SILVER ME.GR.,1D9

main76622-12200-B3iCE120,NZE120,ZZE12#..LHD..GEN200008-200708

SILVER M.M.,1E7

main76622-12200-B4iZZE122..ULT200110-200404

GRAY M.M.,1C3

main76622-12200-B5iZZE122..ULT200404-200702

SILVER ME.,1C0

main76622-12200-C0iZZE122;NZE12#,ZZE121..GEN200008-200110

BLACK ME,205

main76622-12200-C1iZZE122..GCC;NZE120..RHD..XLI..GEN;NZE121,ZZE121..RHD..GEN200008-200708

BLACK MC.,209

main76622-12200-D0iZZE122..GLI,ULT,XLI;CE120,NZE12#,ZZE121..GEN200008-200708

SUPER RED II,3E5

main76622-12200-D1iZZE122..ULT200110-200404

RED M.M.,3N8

main76622-12200-D2iCE120,NZE120,ZZE12#..LHD..GEN200008-200404

BORDEAUX MC.,3P2

main76622-12200-D5iZZE122..ULT200404-200702

DK. RED M.M.,3Q3

main76622-12200-E3iZZE122..SED..GCC200507-200509

LIMITED(G.C.C.),BEIGE ME.,4M9

main76622-12200-G0iZZE122..ULT200110-200404

DARK GREEN MC.,6R4

main76622-12200-G2iZZE122..ULT200404-200702

DK.GREEN M.M.,6S3

main76622-12200-H0iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200209

TURQUOISE M.M.,769

main76622-12200-J0iZZE122..GLI,ULT,XLI;CE120,NZE12#,ZZE121..GEN200008-200708

DK.BLUE M.M.,8P4

main76622-12200-J2iZZE122..ULT200110-200404

GRAYISH BLUE M.M.,8Q3

main76622-12200-J4iZZE122..ULT200110-200404

DK.BLUE,8Q4

main76622-12200-J6iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200404-200708

LT.BLUE ME.,8Q6

main76622-12200-J7iZZE122..ULT200404-200702

LT.BLUE M.M.,8S1

main76622-12200-K0iZZE122..WG..XLI200110-200404

DARK PURPLE MC.,946

main76622-12210iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200708

main76622-12210iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

BLACK

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-02090iCE120,NZE120..(20D,GLI,XLI)..PKN200202-200507

main76625-02901iCE120,ZZE121..20DSA,SESAL200202-200507

main76625-12480-A1iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

SUPER WHITE 2,040

main76625-12480-A4iNZE121..ATM..GLI;ZZE122..(GLI,ULT,XLI)..(ARL,GCC)200404-200708

WHITE PEARL CS.,073

main76625-12480-B1iZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..WG..(ARL,GCC);CE120,NZE120,ZZE122..RHD..(GLI,ULT,XLI)..(ARL,GEN)200008-200404

SILVER ME.,199

main76625-12480-B2iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

SILVER ME.GR.,1D9

main76625-12480-B3iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

SILVER M.M.,1E7

main76625-12480-B4iZZE122..ULT;ZZE122..WG..ARL200110-200404

GRAY M.M.,1C3

main76625-12480-B5iZZE122..ULT;ZZE122..WG..ARL200404-200702

SILVER ME.,1C0

main76625-12480-C0iZZE122;NZE12#,ZZE121..GEN200008-200110

BLACK ME,205

main76625-12480-C1iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

BLACK MC.,209

main76625-12480-D0iZZE122..WG..ARL;ZZE122..GLI,ULT,XLI;CE120,NZE12#,ZZE121..GEN200008-200708

SUPER RED II,3E5

main76625-12480-D1iZZE122..ULT;ZZE122..WG..ARL200110-200404

RED M.M.,3N8

main76625-12480-D2iCE120,NZE120,ZZE12#..LHD..GEN200008-200404

BORDEAUX MC.,3P2

main76625-12480-D3iZZE122..ULT;ZZE122..WG..ARL200404-200702

DK. RED M.M.,3Q3

main76625-12480-E1iZZE122..SED..GCC200507-200509

LIMITED(G.C.C.),BEIGE ME.,4M9

main76625-12480-G0iZZE122..ULT;ZZE122..WG..ARL200110-200404

DARK GREEN MC.,6R4

main76625-12480-G2iZZE122..ULT;ZZE122..WG..ARL200404-200702

DK.GREEN M.M.,6S3

main76625-12480-H0iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200209

TURQUOISE M.M.,769

main76625-12480-J0iZZE122..LHD..WG..GEN200008-200708

DK.BLUE M.M.,8P4

main76625-12480-J1iZZE122..ULT;ZZE122..WG..ARL200110-200404

GRAYISH BLUE M.M.,8Q3

main76625-12480-J2iZZE122..ULT;ZZE122..WG..ARL200110-200404

DK.BLUE,8Q4

main76625-12480-J3iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200404-200708

LT.BLUE ME.,8Q6

main76625-12480-J4iZZE122..ULT;ZZE122..WG..ARL200404-200702

LT.BLUE M.M.,8S1

main76625-12480-K0iZZE122..LHD..WG..GEN200110-200404

DARK PURPLE MC.,946

main76625-12490iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200708

main76625-12490iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

BLACK

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-02090iCE120,NZE120..(20D,GLI,XLI)..PKN200202-200507

main76626-02901iCE120,ZZE121..20DSA,SESAL200202-200507

main76626-12480-A1iZZE122..WG..ARL;ZZE122..GLI,ULT,XLI;CE120,NZE12#,ZZE121..GEN200008-200708

SUPER WHITE 2,040

main76626-12480-A4iNZE121..ATM..GLI;ZZE122..(GLI,ULT,XLI)..(ARL,GCC)200404-200708

WHITE PEARL CS.,073

main76626-12480-B1iCE120,NZE120,ZZE122..LHD..GEN200008-200404

SILVER ME.,199

main76626-12480-B2iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

SILVER ME.GR.,1D9

main76626-12480-B3iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200708

SILVER M.M.,1E7

main76626-12480-B4iZZE122..ULT;ZZE122..WG..ARL200110-200404

GRAY M.M.,1C3

main76626-12480-B5iZZE122..ULT;ZZE122..WG..ARL200404-200702

SILVER ME.,1C0

main76626-12480-C0iZZE122;NZE12#,ZZE121..GEN200008-200110

BLACK ME,205

main76626-12480-C1iZZE122..WG..ARL;ZZE122..GLI,ULT,XLI;CE120,NZE12#,ZZE121..GEN200008-200708

BLACK MC.,209

main76626-12480-D0iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200008-200708

SUPER RED II,3E5

main76626-12480-D1iZZE122..ULT;ZZE122..WG..ARL200110-200404

RED M.M.,3N8

main76626-12480-D2iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200404

BORDEAUX MC.,3P2

main76626-12480-D3iZZE122..ULT;ZZE122..WG..ARL200404-200702

DK. RED M.M.,3Q3

main76626-12480-E1iZZE122..SED..GCC200507-200509

LIMITED(G.C.C.),BEIGE ME.,4M9

main76626-12480-G0iZZE122..ULT;ZZE122..WG..ARL200110-200404

DARK GREEN MC.,6R4

main76626-12480-G2iZZE122..ULT;ZZE122..WG..ARL200404-200702

DK.GREEN M.M.,6S3

main76626-12480-H0iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200008-200209

TURQUOISE M.M.,769

main76626-12480-J0iZZE122..LHD..WG..GEN200008-200708

DK.BLUE M.M.,8P4

main76626-12480-J1iZZE122..ULT;ZZE122..WG..ARL200110-200404

GRAYISH BLUE M.M.,8Q3

main76626-12480-J2iZZE122..ULT;ZZE122..WG..ARL200110-200404

DK.BLUE,8Q4

main76626-12480-J3iZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN200404-200708

LT.BLUE ME.,8Q6

main76626-12480-J4iZZE122..ULT;ZZE122..WG..ARL200404-200702

LT.BLUE M.M.,8S1

main76626-12480-K0iZZE122..LHD..WG..GEN200110-200404

DARK PURPLE MC.,946

main76626-12490iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

BLACK

main76626-12490iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200708

76851ACOVER, FRONT SPOILER, RH

main76851-12160iZZE122..ARL200404-200702

TYPE B:REFER TO ILLUSTRATION

main76851-12170iZZE122..ARL200110-200404

TYPE B:REFER TO ILLUSTRATION

main76851-13050-A0iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040

main76851-13050-B1iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,SILVER ME.,199

main76851-13050-B2iZZE122..WG..ARL200208-200401

GRAY M.M.,1C3

main76851-13050-C1iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209

main76851-13050-D0iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,SUPER RED 11,3E5

main76851-13050-D1iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,RED M.M.,3N8

main76851-13050-G0iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,DARK GREEN MC.,6R4

main76851-13050-J0iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,DK. BLUE M.M.,8P4

main76851-13050-J1iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,GRAYISH BLUE M.M.,8Q3

main76851-13050-J2iZZE122..WG..ARL200208-200401

DK.BLUE,8Q4

main76851-13120-A0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,SUPER WHITE 2,040

main76851-13120-A1iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,WHITE PEARL CS.,073

main76851-13120-B0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,SILVER ME.GR.,1D9

main76851-13120-B1iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,SILVER M.M.,1E7

main76851-13120-C0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,BLACK MC.,209

main76851-13120-D0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,SUPER RED II,3E5

main76851-13120-J0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4

main76851-13120-J1iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,LT.BLUE ME.,8Q6

76852ACOVER, FRONT SPOILER, LH

main76852-12120iZZE122..ARL200404-200702

TYPE B:REFER TO ILLUSTRATION

main76852-12130iZZE122..ARL200110-200404

TYPE B:REFER TO ILLUSTRATION

main76852-13040-A0iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040

main76852-13040-B1iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,SILVER ME.,199

main76852-13040-B2iZZE122..WG..ARL200208-200401

GRAY M.M.,1C3

main76852-13040-C1iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209

main76852-13040-D0iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,SUPER RED 11,3E5

main76852-13040-D1iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,RED M.M.,3N8

main76852-13040-G0iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,DARK GREEN MC.,6R4

main76852-13040-J0iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,DK. BLUE M.M.,8P4

main76852-13040-J1iZZE122..WG..ARL200208-200401

TYPE A:REFER TO ILLUSTRATION,GRAYISH BLUE M.M.,8Q3

main76852-13040-J2iZZE122..WG..ARL200208-200401

DK.BLUE,8Q4

main76852-13100-A0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,SUPER WHITE 2,040

main76852-13100-A1iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,WHITE PEARL CS.,073

main76852-13100-B0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,SILVER ME.GR.,1D9

main76852-13100-B1iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,SILVER M.M.,1E7

main76852-13100-C0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,BLACK MC.,209

main76852-13100-D0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,SUPER RED II,3E5

main76852-13100-J0iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4

main76852-13100-J1iZZE122..SED..GCC200607-200708

TYPE C:REFER TO ILLUSTRATION,LT.BLUE ME.,8Q6

76853CRETAINER, FRONT SPOILER, NO.1

main75392-35200iZZE122..WG..ARL200208-200404

main76853-10010iZZE122..WG..ARL200110-200208

76854ARETAINER, FRONT SPOILER, NO.2

main76854-13010iZZE122..WG..ARL200110-200404

NO.1

main76854-44010iZZE122..WG..ARL200110-200404

NO.2

main76854-44010iZZE122..SED..GCC200607

76877DPROTECTOR, FRONT SPOILER SIDE, RH

main76877-13030-B1iZZE122..WG..ARL200208-200401

SILVER ME.,040 ,199

sub76877-13030

main76877-13030-B2iZZE122..WG..ARL200208-200401

DARK GRAY,209 ,3E5 ,3N8 ,6R4 ,8P4 ,8Q3

sub76877-13030

main76877-13080-B0iZZE122..SED..GCC200607-200708

SILVER ME.,040 ,073 ,1D9 ,1E7 ,8Q6

main76877-13080-B1iZZE122..SED..GCC200607-200708

DARK GRAY,209 ,3E5 ,8P4

76878APROTECTOR, FRONT SPOILER SIDE, LH

main76878-13020-B1iZZE122..WG..ARL200208-200401

SILVER ME.,040 ,199

sub76878-13020

main76878-13020-B2iZZE122..WG..ARL200208-200401

DARK GRAY,209 ,3E5 ,3N8 ,6R4 ,8P4 ,8Q3

sub76878-13020

main76878-13070-B0iZZE122..SED..GCC200607-200708

SILVER ME.,040 ,073 ,1D9 ,1E7 ,8Q6

main76878-13070-B1iZZE122..SED..GCC200607-200708

DARK GRAY,209 ,3E5 ,8P4

7539235200RETAINER, OUTSIDE MOULDING

main75392-35200

9015960488

main90159-60488

9015960602

main90159-60602

9018306019

main90183-06019

9018905144

main90189-05144

9018906006

main90189-06006

9046705138

main90467-05138

9046709093

main90467-09093

20 parts on this diagram · 4 diagrams in section
