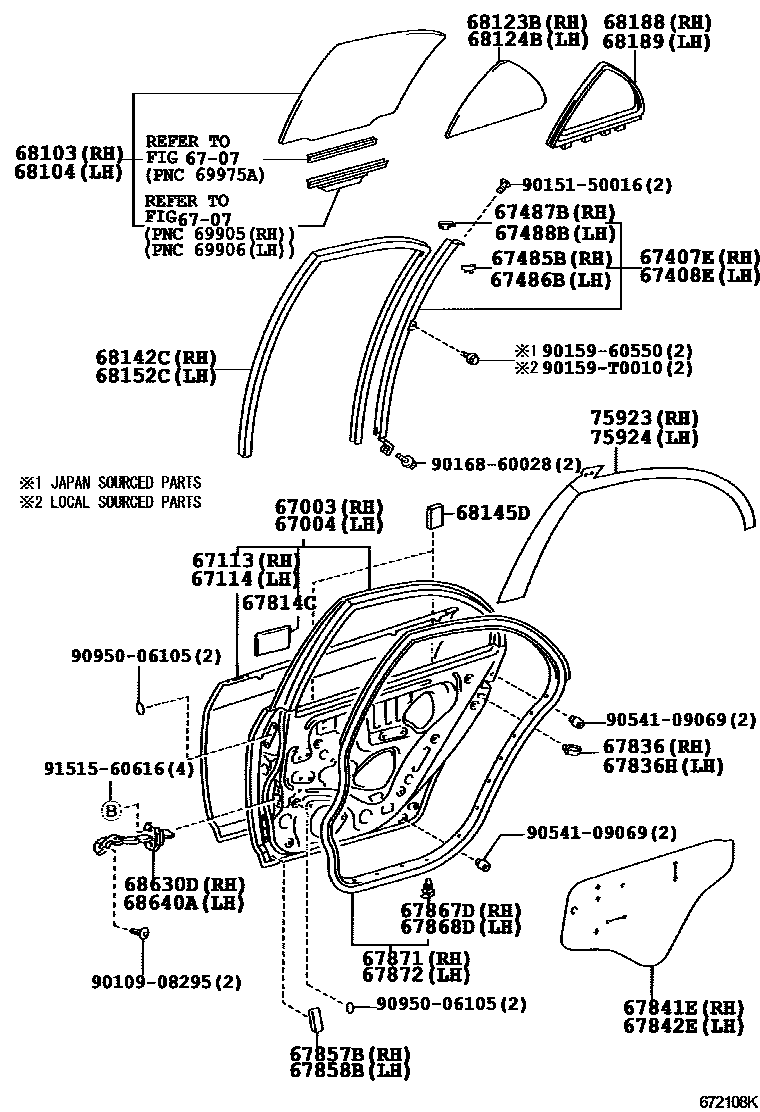

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR PANEL

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12840iZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..SED..(LX,XLI)..(GCC,GEN)200209-200404

main67003-12850iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200404

W(POWER WINDOW)

main67003-13270iNZE120,ZZE122..WG..XLI200209-200404

main67003-13280iNZE120,ZZE122..WG200404-200609

W(POWER WINDOW)

main67003-1A010iCE120,NZE120,ZZE122..(20DSA,GLI,SESAL)..PKN200507

main67003-1A020iCE120,NZE120..(20D,XLI)..PKN200202-200507

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12840iZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..SED..(LX,XLI)..(GCC,GEN)200008-200404

main67004-12850iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200404

W(POWER WINDOW)

main67004-12890iCE120..20D200701

W(POWER WINDOW)

main67004-13270iNZE120,ZZE122..WG..XLI200008-200404

main67004-13280iNZE120,ZZE122..WG..XLI200209-200404

W(POWER WINDOW)

main67004-1A010iCE120,NZE120..(20D,XLI)..PKN200202-200507

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-12270iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

67114PANEL, REAR DOOR, OUTER LH

main67114-12270iCE120,NZE12#,ZZE12#200008-200507

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12260iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

main67407-13060iNZE120,ZZE122..WG200404-200609

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12260iCE120,NZE120,ZZE122..PKN200507

main67408-13060iNZE120,ZZE122..WG200404-200609

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-53010iCE120,NZE12#,ZZE12#..SED200008-200507

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-53010iCE120,NZE12#,ZZE12#..SED200008-200507

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-53010iCE120,NZE12#,ZZE12#..SED200008-200507

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67488-53010iCE120,NZE12#,ZZE12#..SED200008-200507

67814CPACKING, DOOR PROTECTOR

main67817-47010×2iCE120,NZE12#,ZZE12#200008-200507

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02030iCE120,NZE12#,ZZE12#200109-200111

(L)

main67836-12040iCE120,NZE12#,ZZE12#200008-200507

(J)

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02030iCE120,NZE12#,ZZE12#200109-200111

(L)

main67836-12040iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

(J)

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-12310iCE120,NZE12#,ZZE12#200008-200507

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-12310iCE120,NZE12#,ZZE12#200008-200507

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-12090iZZE122..ARL200110-200404

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-12080iZZE122..ARL200110-200404

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×16iZZE122..SED..ARL200404-200702

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×16iZZE122..LHD..WG..GEN200008-200402

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02050iCE120,NZE120,ZZE122..PKN200507

main67871-12500iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200404

main67871-13140iNZE120,ZZE122..WG..XLI200209-200404

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02050iCE120,NZE120,ZZE121..PKN200202-200507

main67872-12500iZZE122..SED..ARL200404-200702

main67872-13130iZZE122..RHD..WG;NZE120,ZZE122..WG..GCC200008-200404

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12680iCE120,NZE120,ZZE121..PKN200110-200507

*TT,T=3.1,GREEN

sub68113-02060

main68113-12690iCE120,NZE12#,ZZE12#..SED..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN)200008-200404

*UVCTT,T=3.1,GREEN

main68113-12720iZZE122..SED..CONQ200404-200702

*TT,T=3.1,GREEN

main68113-13230iNZE120,ZZE122..WG..XLI200008-200404

*UVCTT,T=3.1,GREEN

main68113-13310iZZE122..WG..ARL200404-200609

*TT,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12680iCE120,NZE120,ZZE122..PKN200507

*TT,T=3.1,GREEN

main68114-12690iZZE122..ULT200404-200702

*UVCTT,T=3.1,GREEN

main68114-12720iZZE122..SED..CONQ200301-200404

*TT,T=3.1,GREEN

main68114-13230iNZE120,ZZE122..WG..XLI200404-200609

*UVCTT,T=3.1,GREEN

main68114-13310iNZE120..WG;ZZE122..WG..ARL200108-200404

*TT,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-12720iCE120,NZE120,ZZE122..PKN200507

*TT,T=3.1,GREEN

sub68123-12721

main68123-12730iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

*UVCTT,T=3.1,GREEN

main68123-12760iZZE122..SED..CONQ200301-200404

*TT,T=3.1,GREEN

main68123-13210iNZE120,ZZE122..WG..XLI200008-200404

*UVCTT,T=3.1,GREEN

main68123-13290iZZE122..WG..ARL200404-200609

*TT,T=3.1,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-12720iZZE122..SED..CONQ200110-200301

*TT,T=3.1,GREEN

sub68124-02050

main68124-12730iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

*UVCTT,T=3.1,GREEN

main68124-12760iZZE122..SED..CONQ200301-200404

*TT,T=3.1,GREEN

main68124-13200iNZE120,ZZE122..WG..XLI200404-200609

*UVCTT,T=3.1,GREEN

main68124-13280iZZE122..WG..ARL200404-200609

*TT,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-02050iCE120,NZE120,ZZE122..PKN200507

main68142-12240iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200404

main68142-13110iNZE120,ZZE122..WG..XLI200209-200404

68145DCUSHION, REAR DOOR WINDOW

main69759-12060×4iNZE12#,ZZE12#200008-200012

main69759-12110×4iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

68152CRUN, REAR DOOR GLASS, LH

main68152-02050iCE120,NZE120,ZZE121..PKN200202-200507

main68152-12150iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

main68152-13070iNZE120,ZZE122..WG200404-200609

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12280iZZE122..SED..ARL200404-200702

main68188-13080iZZE122..RHD..WG;NZE120,ZZE122..WG..GCC200008-200404

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12280iCE120,NZE120,ZZE122..PKN200507

main68189-13080iNZE120,ZZE122..WG..XLI200209-200404

68630DCHECK ASSY, REAR DOOR, RH

main68630-12070iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

main68630-12071iZZE122..SED..ARL200404-200702

68640ACHECK ASSY, REAR DOOR, LH

main68640-12040iCE120,NZE12#,ZZE12#200008-200405

main68640-12041iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200404

75923TAPE, BLACK OUT, NO.2 RH

main75923-12010iCE120,NZE12#,ZZE12#..SED200008-200111

main75923-12011iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200111-200305

main75923-12012iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200305-200404

main75923-13010iNZE120,ZZE122..WG200008-200112

main75923-13011iNZE120,ZZE122..WG..XLI200209-200306

main75923-13012iNZE120,ZZE122..WG..XLI200306-200404

75924TAPE, BLACK OUT, NO.2 LH

main75924-12010iCE120,NZE12#,ZZE12#..SED200008-200111

main75924-12011iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200111-200305

main75924-12012iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200305-200404

main75924-13010iNZE120,ZZE122..WG200008-200112

main75924-13011iNZE120,ZZE122..WG..XLI200209-200306

main75924-13012iNZE120,ZZE122..WG..XLI200306-200404

9010908295

main90109-08295

9015150016

main90151-50016

9015960550

main90159-60550

90159T0010

main90159-T0010

9016860028

main90168-60028

9054109069

main90541-09069

9095006105

main90950-06105

9151560616

main91515-60616

43 parts on this diagram · 3 diagrams in section
