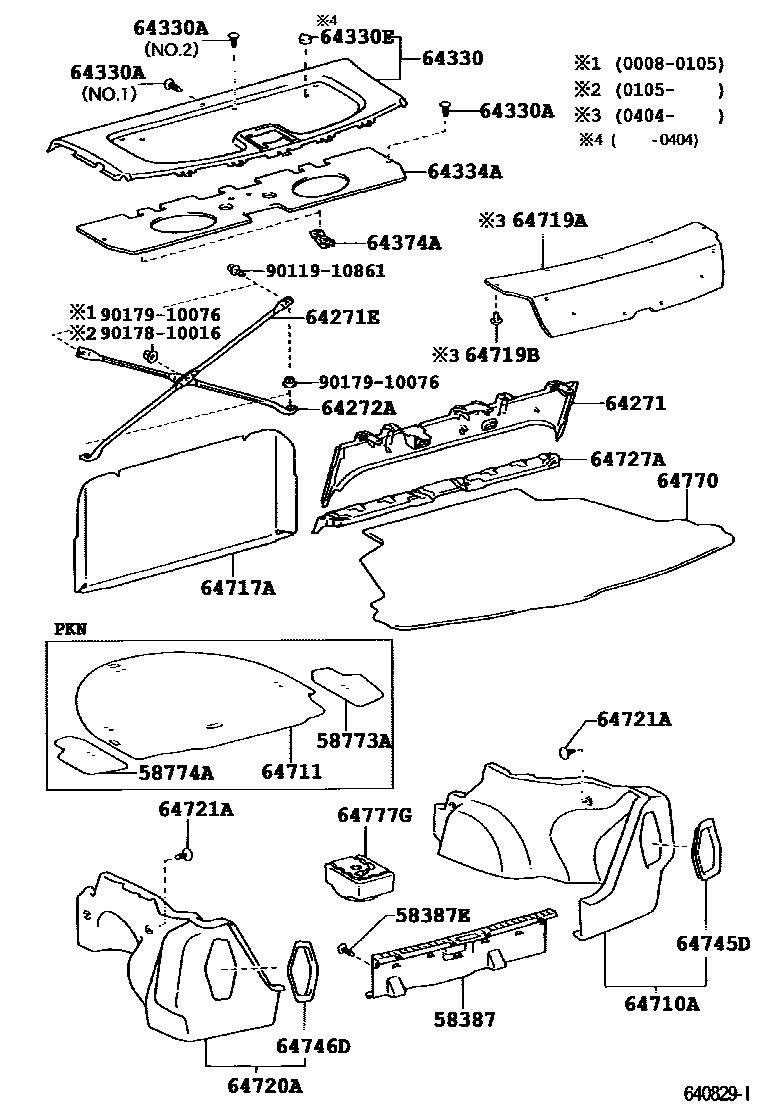

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02030-B0iCE120,NZE120,ZZE121..PKN200202-200507

DK.GRAY,TRIM0#

main58387-12060-B0iZZE122..ULT200110-200702

DK.GRAY,TRIM0#

main58387-12060-B0iNZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200008-200708

DK.GRAY,TRIM0#,1#

main58387-12060-B0iZZE122..ULT200404-200702

DK.GRAY,TRIM1#

main58387-12060-B0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

DK.GRAY,TRIM0#,15,17

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iCE120,NZE120,ZZE122..PKN200404-200708

BLACK

sub90467-05096

main90467-05096-22iNZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN200008-200404

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iNZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN200110-200507

BLACK,TRIM0#

sub90467-05096

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58703-02030iCE120,NZE120,ZZE121..PKN200202-200507

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58704-02010iCE120,NZE120,ZZE122..PKN200202-200507

64271BOARD, ROOM PARTITION, NO.1

main64271-12180-C0iZZE122..SED..CONQ200110-200702

BLACK,TRIM0#

sub64271-12180

main64271-12180-C0iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200008-200708

BLACK,TRIM0#,1#

sub64271-12180

main64271-12180-C0iZZE122..SED..CONQ200404-200702

BLACK,TRIM1#

sub64271-12180

64271EPANEL, ROOM PARTITION

main64241-12030iNZE121..LX;ZZE122..SED..GEN;ZZE122..SED..XLI..GCC;CE120,NZE120,ZZE121..SED200008-200609

64272APANEL, ROOM PARTITION, LH

main64242-12020iNZE12#,ZZE12#..SED..(LX,XLI)200008-200105

sub64242-12021

main64242-12021iNZE121..LX;ZZE122..SED..GEN;ZZE122..SED..XLI..GCC;CE120,NZE120,ZZE121..SED200105-200609

main64242-12030iNZE121..LX;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN200610

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02160-A0iCE120,NZE120,ZZE122..(20DSA,GLI,SESAL)..PKN200202-200507

IVORY,TRIM0#

main64330-02300-A0iCE120,NZE120..(20D,XLI)..PKN200202-200507

IVORY,TRIM0#

main64330-02670-A0iCE120..20D200701

W(HIGH MOUNT STOP LAMP;IN ROOM),IVORY,TRIM0#

main64330-1E100-A0iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200008-200708

IVORY,TRIM0#

main64330-1E100-B0iCE120,NZE120,ZZE122..LHD..SED..GEN200209-200708

DARK GRAY,TRIM1#

main64330-1E100-B0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

DARK GRAY,TRIM15

main64330-1E100-B1iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

STONE,TRIM1#

main64330-1E100-B1iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

STONE,TRIM17

main64330-1E110-A0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200708

W(HIGH MOUNT STOP LAMP;IN ROOM),IVORY,TRIM0#

sub64330-1E110

main64330-1E110-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200708

W(HIGH MOUNT STOP LAMP;IN ROOM),DARK GRAY,TRIM1#

sub64330-1E110

main64330-1E110-B0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

W(HIGH MOUNT STOP LAMP;IN ROOM),DARK GRAY,TRIM15

sub64330-1E110

main64330-1E110-B1iNZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200008-200209

W(HIGH MOUNT STOP LAMP;IN ROOM),STONE,TRIM17

sub64330-1E110

main64330-1E110-B1iNZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200008-200209

W(HIGH MOUNT STOP LAMP;IN ROOM),STONE,TRIM1#

sub64330-1E110

main64330-1E160-A0iZZE122..ULT200404-200702

IVORY,TRIM0#

main64330-1E160-A0iZZE122..SED..ARL200110-200404

W(HIGH MOUNT STOP LAMP;IN ROOM),IVORY,TRIM0#

main64330-1E160-B0iZZE122..SED..CONQ200404-200702

DARK GRAY,TRIM1#

main64330-1E170-A0iZZE122..ULT200110-200702

W(REAR SPOILER),IVORY,TRIM0#

main64330-1E170-B0iZZE122..SED..CONQ200404-200702

W(REAR SPOILER),DARK GRAY,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-A2iCE120,NZE120,ZZE122..LHD..SED..GEN200305-200401

W(FIXED TYPE REAR SEAT) OR W(FOLDING REAR SEAT & HIGH MOUNT STOP LAMP),IVORY,TRIM03

sub90467-06020

main90467-06020-A2iZZE12#..SED..(GCC,GEN);CE120,NZE12#..(GLI,XLI)..GEN200305-200404

W(FIXED TYPE REAR SEAT) OR W(FOLDING REAR SEAT & HIGH MOUNT STOP LAMP),IVORY,TRIM01

sub90467-06020

main90467-06020-A2iZZE12#..SED..(GCC,GEN);CE120,NZE12#..(GLI,XLI)..GEN200305-200404

W(FOLDING REAR SEAT),IVORY,TRIM01

sub90467-06020

main90467-06020-A2iZZE12#..SED..(GCC,GEN);CE120,NZE12#..(GLI,XLI)..GEN200305-200708

W(FIXED TYPE REAR SEAT & HIGH MOUNT STOP LAMP),IVORY,TRIM0#

sub90467-06020

main90467-06020-A2iZZE12#..SED..(GCC,GEN);CE120,NZE12#..(GLI,XLI)..GEN200305-200708

W(FIXED TYPE REAR SEAT) OR W(FOLDING REAR SEAT & HIGH MOUNT STOP LAMP),IVORY,TRIM0#

sub90467-06020

main90467-06020-A2iZZE12#..SED..(GCC,GEN);CE120,NZE12#..(GLI,XLI)..GEN200305-200708

W(FOLDING REAR SEAT),IVORY,TRIM0#

sub90467-06020

main90467-06020-A2iCE120,NZE120,ZZE122..LHD..SED..GEN200305-200401

W(FIXED TYPE REAR SEAT & HIGH MOUNT STOP LAMP),IVORY,TRIM03

sub90467-06020

main90467-06020-A2iCE120,NZE120,ZZE122..LHD..SED..GEN200305-200401

W(FOLDING REAR SEAT),IVORY,TRIM03

sub90467-06020

main90467-06020-A2iZZE122..ULT200404-200702

W(REAR SPOILER),IVORY,TRIM0#

sub90467-06020

main90467-06020-A2iZZE122..ULT200404-200702

IVORY,TRIM0#

sub90467-06020

main90467-06020-B6iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200305-200708

W(FIXED TYPE REAR SEAT & HIGH MOUNT STOP LAMP),DK.GRAY,TRIM1#

sub90467-06020

main90467-06020-B6iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200305-200708

W(FIXED TYPE REAR SEAT) OR W(FOLDING REAR SEAT & HIGH MOUNT STOP LAMP),DK.GRAY,TRIM1#

sub90467-06020

main90467-06020-B6iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200305-200708

W(FOLDING REAR SEAT),DK.GRAY,TRIM1#

sub90467-06020

main90467-06020-B6iCE120,NZE120,ZZE122..LHD..SED..GEN200305-200401

W(FOLDING REAR SEAT),DK.GRAY,TRIM15

sub90467-06020

main90467-06020-B6iCE120,NZE120,ZZE122..LHD..SED..GEN200305-200401

W(FIXED TYPE REAR SEAT & HIGH MOUNT STOP LAMP),DK.GRAY,TRIM15

sub90467-06020

main90467-06020-B6iCE120,NZE120,ZZE122..LHD..SED..GEN200305-200401

W(FIXED TYPE REAR SEAT) OR W(FOLDING REAR SEAT & HIGH MOUNT STOP LAMP),DK.GRAY,TRIM15

sub90467-06020

main90467-06020-B6iZZE122..SED..CONQ200404-200702

W(REAR SPOILER),DK.GRAY,TRIM1#

sub90467-06020

main90467-06020-B6iZZE122..SED..CONQ200404-200702

DK.GRAY,TRIM1#

sub90467-06020

main90467-06061-A0iNZE121..LX200008-200305

W(FOLDING REAR SEAT),IVORY,TRIM0#

sub90467-06061

sub90467-06020

main90467-06061-A0iNZE121..LX200008-200305

W(FIXED TYPE REAR SEAT) OR W(FOLDING REAR SEAT & HIGH MOUNT STOP LAMP),IVORY,TRIM0#

sub90467-06061

sub90467-06020

main90467-06061-A0iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200008-200305

W(FIXED TYPE REAR SEAT & HIGH MOUNT STOP LAMP),IVORY,TRIM0#

sub90467-06061

sub90467-06020

main90467-06061-A0iCE120,NZE120,ZZE121..PKN200202-200507

REFER TO ILLUSTRATION,IVORY,TRIM0#,NO.2

sub90467-06061

sub90467-06020

main90467-06061-A0iCE120,NZE120,ZZE122..PKN200507

IVORY,TRIM0#,NO.2

sub90467-06061

sub90467-06020

main90467-06061-A0iCE120..20D200701

IVORY,TRIM0#,NO.2:REFER ILLUST.

sub90467-06061

sub90467-06020

main90467-06061-B1iZZE121..GEN;NZE120..GLI..GEN;ZZE122..SED..GCC;ZZE122..RHD..SED..GEN;CE120,NZE121..GLI,XLI;ZZE122..LHD..GLI..GEN200008-200209

W/O(HIGH MOUNT STOP LAMP;IN ROOM) & W(SPLIT TYPE REAR SEAT),STONE,TRIM1#

sub90467-06061

sub90467-06020

main90467-06061-B1iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200008-200209

W(FIXED TYPE REAR SEAT & HIGH MOUNT STOP LAMP),STONE,TRIM1#

sub90467-06061

sub90467-06020

main90467-06061-B1iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200008-200209

W(FIXED TYPE REAR SEAT) OR W(FOLDING REAR SEAT & HIGH MOUNT STOP LAMP),STONE,TRIM1#

sub90467-06061

sub90467-06020

main90467-06061-B1iNZE120,ZZE122..GEN200008-200110

W/O(HIGH MOUNT STOP LAMP;IN ROOM) OR W(SPLIT TYPE REAR SEAT),STONE,TRIM1#

sub90467-06061

sub90467-06020

main90467-06061-B2iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200209-200305

W(FIXED TYPE REAR SEAT) OR W(FOLDING REAR SEAT & HIGH MOUNT STOP LAMP),DK.GRAY,TRIM1#

sub90467-06061

sub90467-06020

main90467-06061-B2iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200209-200305

W(FOLDING REAR SEAT),DK.GRAY,TRIM1#

sub90467-06061

sub90467-06020

main90467-06061-B2iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200209-200305

W(FIXED TYPE REAR SEAT & HIGH MOUNT STOP LAMP),DK.GRAY,TRIM1#

sub90467-06061

sub90467-06020

main90467-08104-A4iCE120,NZE120,ZZE122..(20DSA,GLI,SESAL)..PKN200507

IVORY,TRIM0#,NO.1

sub90467-08104

main90467-08104-A4iCE120..20D200701

W(HIGH MOUNT STOP LAMP;IN ROOM),IVORY,TRIM0#,NO.1

sub90467-08104

main90467-08104-A4iCE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN200202-200507

REFER TO ILLUSTRATION,IVORY,TRIM0#,NO.1

sub90467-08104

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01436-A0iZZE122..ULT200110-200702

IVORY,TRIM0#

sub90950-01436

sub64353-50010

main90950-01436-B8iZZE122..SED..CONQ200404-200702

DK.GRAY,TRIM1#

sub90950-01436

sub64353-50010

64334APAD, PACKAGE TRAY TRIM

main64334-02040iCE120,NZE120,ZZE121..PKN200202-200507

main64334-12360iZZE122..SED..ARL200008-200702

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-12020iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..(LX,XLI)..GEN200008-200507

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02010-C0iCE120,NZE120,ZZE121..PKN200202-200307

BLACK,TRIM0#

sub64710-02011

main64710-02011-C0iCE120,NZE120,ZZE121..PKN200307-200507

BLACK,TRIM0#

main64710-12010-C0iCE120,NZE120,ZZE122..LHD..SED..GEN200008-200708

BLACK,TRIM0#,1#

main64710-12010-C0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

BLACK,TRIM0#,15,17

main64710-12010-C0iZZE122..SED..ARL200110-200702

BLACK,TRIM0#

main64710-12010-C0iZZE122..ULT200404-200702

BLACK,TRIM1#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64770-02050iCE120,NZE120,ZZE121..PKN200202-200507

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02030-C0iCE120,NZE120,ZZE121..PKN200202-200507

BLACK,TRIM0#

main64717-12100-C0iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200008-200309

BLACK,TRIM0#,1#

sub64717-12101

main64717-12101-C0iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200309-200708

BLACK,TRIM0#,1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12140-C0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404-200708

BLACK,TRIM0#,1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05096-22iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404-200708

BLACK

sub90467-05096

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02010-C0iCE120,NZE120,ZZE121..PKN200202-200307

BLACK,TRIM0#

sub64720-02011

main64720-02011-C0iCE120,NZE120,ZZE122..PKN200307-200507

BLACK,TRIM0#

main64720-12010-C0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200708

BLACK,TRIM0#,1#

main64720-12010-C0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

BLACK,TRIM0#,15,17

main64720-12010-C0iZZE122..SED..ARL200110-200702

BLACK,TRIM0#

main64720-12010-C0iZZE122..ULT200404-200702

BLACK,TRIM1#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200404

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iCE120,NZE120,ZZE12#..SED..(ARL,PKN)200110-200507

BLACK,TRIM0#

sub90467-05096

main90467-05096-22iCE120,NZE120,ZZE122..PKN200404-200708

BLACK

sub90467-05096

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-12020iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200008-200702

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-02030-C0iCE120,NZE120,ZZE122..PKN200307-200507

BLACK,TRIM0#

main64745-12120-C0iCE120,NZE120,ZZE122..LHD..SED..GEN200008-200708

BLACK,TRIM0#,1#

main64745-12120-C0iZZE122..SED..ARL200110-200702

BLACK,TRIM0#

main64745-12120-C0iZZE122..ULT200404-200702

BLACK,TRIM1#

main64745-12120-C0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

BLACK,TRIM0#,15,17

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64745-02030-C0iCE120,NZE120,ZZE122..PKN200307-200507

BLACK,TRIM0#

main64745-12120-C0iCE120,NZE120,ZZE122..LHD..SED..GEN200008-200708

BLACK,TRIM0#,1#

main64745-12120-C0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

BLACK,TRIM0#,15,17

main64745-12120-C0iZZE122..SED..ARL200110-200702

BLACK,TRIM0#

main64745-12120-C0iZZE122..ULT200404-200702

BLACK,TRIM1#

64770COVER ASSY, SPARE WHEEL

main64711-02050-C0iCE120,NZE120,ZZE122..PKN200202-200507

BLACK,TRIM0#

main64771-12220-C0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200309

BLACK,TRIM0#,1#

sub64771-12221

main64771-12220-C0iZZE122..SED..ARL200110-200309

BLACK,TRIM0#

sub64771-12221

main64771-12221-C0iCE120,NZE120,ZZE122..LHD..SED..GEN200309-200708

BLACK,TRIM0#,1#

main64771-12221-C0iCE120,NZE120,ZZE122..LHD..SED..GEN200309-200702

BLACK,TRIM0#

main64771-12221-C0iZZE122..ULT200404-200702

BLACK,TRIM1#

64777GCUSHION, SPARE WHEEL

main64777-12030iZZE122..SED..GEN;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200404-200607

main64777-12030-B0iCE120,NZE120,ZZE121..PKN200110-200507

SHADOW GRAY,TRIM0#

sub64777-12030

main64777-12030-B0iNZE120,ZZE122..SED..(GCC,GEN);CE120,NZE121,ZZE121..(LX,XLI)..GEN200110-200404

SHADOW GRAY,TRIM0#,1#

sub64777-12030

main64777-12030-C0iNZE12#,ZZE12#..SED200008-200110

BLACK,TRIM0#,1#

sub64777-12030

9011910861

main90119-10861

9017810016

main90178-10016

9017910076

main90179-10076

27 parts on this diagram · 1 diagram in section
