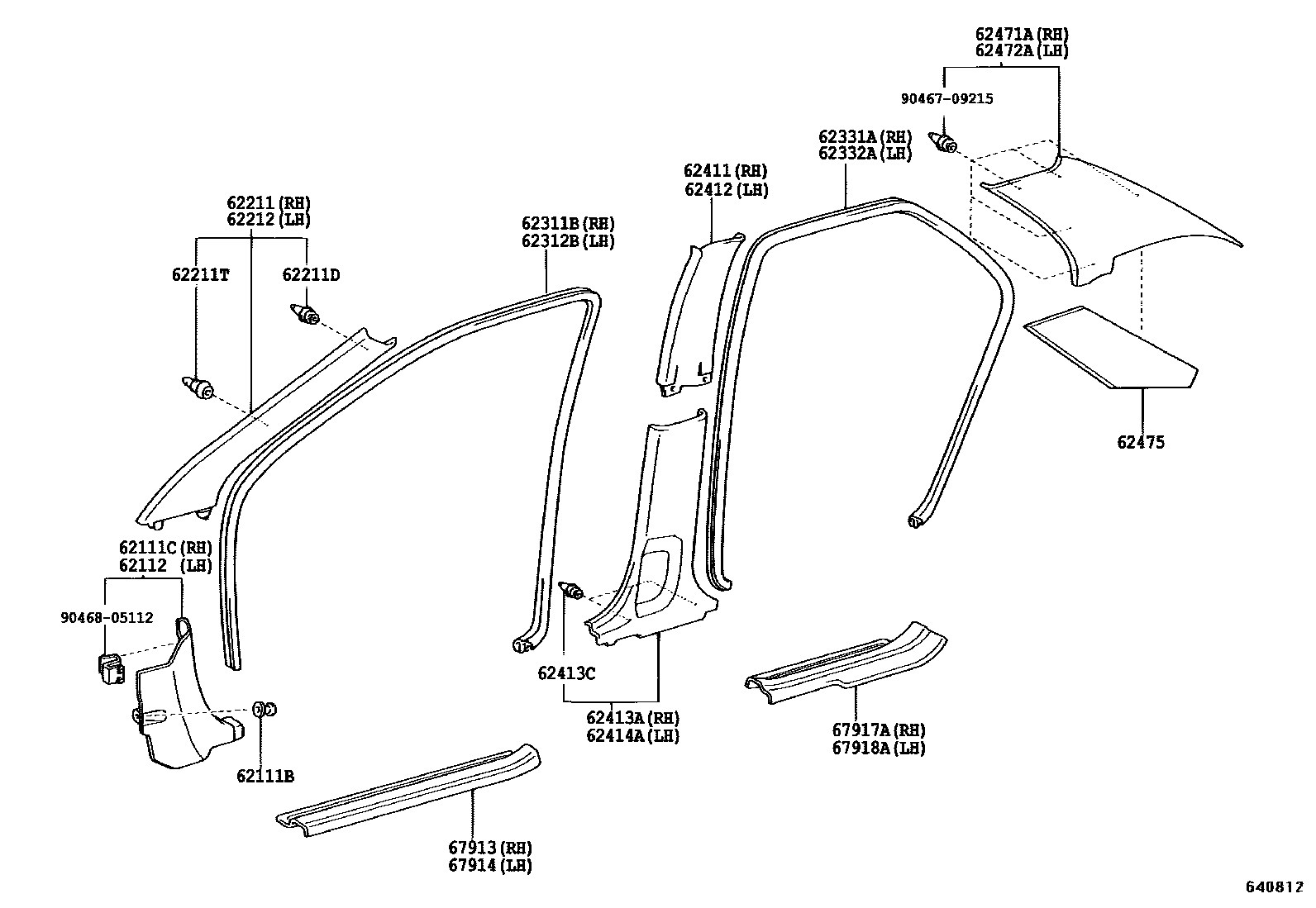

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0005 1MIDDLE SOUTH AMERICA SPEC 0006 1 0007 1W(SRS CURTAIN SHIELD AIR BAG)0008 1 0010 1MIDDLE SOUTH AMERICA SPEC 0011 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06120iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200702

62111CBOARD, COWL SIDE TRIM, RH

main62111-02060-A0iCE120,NZE120,ZZE122..PKN200202-200609

IVORY,TRIM0#

main62111-02061-A0iCE120,NZE120,ZZE122..PKN200610

IVORY,TRIM0#

main62111-12270-A0iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

IVORY,TRIM0#

main62111-12270-B0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

STONE,TRIM1#

main62111-12270-B0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

STONE,TRIM17

main62111-12270-B1iZZE122..WG..ARL200110-200609

DK.GRAY,TRIM1#

main62111-12270-B2iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

MD.GRAY,TRIM15

main62111-12270-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200209-200702

MD.GRAY,TRIM1#

main62111-13070-A0iCE120,NZE12#,ZZE12#..GCC,GEN200209-200708

IVORY,TRIM0#

main62111-13070-B1iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200708

MD.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-02060-A0iCE120,NZE120,ZZE122..PKN200202-200609

IVORY,TRIM0#

main62112-02061-A0iCE120,NZE120,ZZE122..PKN200610

IVORY,TRIM0#

main62112-12290-A0iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

IVORY,TRIM0#

main62112-12290-A0iCE120,NZE120,ZZE122..LHD..GEN200209-200404

MIDDLE SOUTH AMERICA SPEC,IVORY,TRIM0#

main62112-12290-B0iNZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200008-200209

STONE,TRIM1#

main62112-12290-B0iNZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200008-200209

STONE,TRIM17

main62112-12290-B1iZZE122..WG..ARL200110-200609

DK.GRAY,TRIM1#

main62112-12290-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200209-200404

MIDDLE SOUTH AMERICA SPEC,MD.GRAY,TRIM1#

main62112-12290-B2iCE120,NZE120,ZZE122..LHD..SED..GEN200209-200702

MD.GRAY,TRIM1#

main62112-12290-B2iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

MD.GRAY,TRIM15

main62112-13110-A0iCE120,NZE12#,ZZE12#..GCC,GEN200209-200708

IVORY,TRIM0#

main62112-13110-B1iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200708

MD.GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-02050-A0iCE120,NZE120,ZZE121..PKN200202-200611

IVORY,TRIM0#

main62211-02051-A0iCE120,NZE120,ZZE122..PKN200612

IVORY,TRIM0#

main62211-12320-A0iCE120,NZE12#,ZZE12#..GCC,GEN200008-200708

IVORY,TRIM0#

main62211-12320-B0iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200708

LT.GRAY,TRIM1#

main62211-12360-A0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62211-12360-B0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iNZE121..GLI200404

W(CURTAIN SHIELD AIR BAG)

main90467-10188iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10192iCE120,NZE12#,ZZE12#200008-200702

62212GARNISH, FRONT PILLAR, LH

main62212-02050-A0iCE120,NZE120,ZZE122..PKN200202-200611

IVORY,TRIM0#

main62212-02051-A0iCE120,NZE120,ZZE122..PKN200612

IVORY,TRIM0#

main62212-12320-A0iCE120,NZE12#,ZZE12#..GCC,GEN200008-200708

IVORY,TRIM0#

main62212-12320-B0iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200708

LT.GRAY,TRIM1#

main62212-12360-A0iNZE121..GLI200404-200708

IVORY,TRIM0#

main62212-12360-B0iNZE121..GLI200404-200708

LT.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02050-A0iCE120,NZE120,ZZE122..PKN200202-200510

IVORY,TRIM0#

main62311-02051-A0iCE120,NZE120,ZZE122..PKN200511

IVORY,TRIM0#

main62311-12090-A0iZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121..GCC,GEN200008-200303

IVORY,TRIM0#

main62311-12090-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200209

STONE,TRIM1#

main62311-12090-B1iZZE122..WG..ARL200110-200303

DK.GRAY,TRIM1#

main62311-12090-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200209-200303

MD.GRAY,TRIM1#

main62311-12091-A0iZZE121..MTM..XLI;ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN200303-200402

IVORY,TRIM0#

main62311-12091-B1iZZE122..WG..ARL200303-200402

DK.GRAY,TRIM1#

main62311-12091-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200303-200309

MD.GRAY,TRIM1#

main62311-12092iZZE122..WG..ARL;ZZE122..LHD..WG..GEN200402-200404

main62311-12092-A0iZZE122..SED..ARL200309-200702

IVORY,TRIM0#

main62311-12092-B1iZZE122..WG..ARL200404-200609

DK.GRAY,TRIM1#

main62311-12092-B2iZZE122..SED..CONQ200309-200702

MD.GRAY,TRIM1#

main62311-12140-A0iCE120,NZE12#,ZZE12#..GCC,GEN200209-200303

IVORY,TRIM0#

main62311-12140-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200303

MD.GRAY,TRIM1#

main62311-12141-A0iCE120,NZE12#,ZZE12#..GCC,GEN200303-200708

IVORY,TRIM0#

main62311-12141-B1iZZE122..WG..XLI200404-200609

DK.GRAY,TRIM1#

main62311-12141-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200303-200708

MD.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02050-A0iCE120,NZE120,ZZE122..PKN200202-200510

IVORY,TRIM0#

main62312-02051-A0iCE120,NZE120,ZZE122..PKN200511

IVORY,TRIM0#

main62312-12090-A0iZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121..GCC,GEN200008-200303

IVORY,TRIM0#

main62312-12090-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200209

STONE,TRIM1#

main62312-12090-B1iZZE122..WG..ARL200110-200303

DK.GRAY,TRIM1#

main62312-12090-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200209-200303

MD.GRAY,TRIM1#

main62312-12091-A0iZZE121..MTM..XLI;ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN200303-200402

IVORY,TRIM0#

main62312-12091-B1iZZE122..WG..ARL200303-200402

DK.GRAY,TRIM1#

main62312-12091-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200303-200309

MD.GRAY,TRIM1#

main62312-12092iZZE122..WG..ARL;ZZE122..LHD..WG..GEN200402-200404

main62312-12092-A0iZZE122..SED..ARL200309-200702

IVORY,TRIM0#

main62312-12092-B1iZZE122..WG..ARL200404-200609

DK.GRAY,TRIM1#

main62312-12092-B2iZZE122..SED..CONQ200309-200702

MD.GRAY,TRIM1#

main62312-12140-A0iCE120,NZE12#,ZZE12#..GCC,GEN200209-200303

IVORY,TRIM0#

main62312-12140-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200303

MD.GRAY,TRIM1#

main62312-12141-A0iCE120,NZE12#,ZZE12#..GCC,GEN200303-200708

IVORY,TRIM0#

main62312-12141-B1iZZE122..WG..XLI200404-200609

DK.GRAY,TRIM1#

main62312-12141-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200303-200708

MD.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02050-A0iCE120,NZE120,ZZE121..PKN200202-200507

IVORY,TRIM0#

main62331-12050-A0iNZE12#,ZZE12#..SED200008-200101

IVORY,TRIM0#

main62331-12050-B0iNZE12#,ZZE12#..SED200008-200101

STONE,TRIM1#

main62331-12051-A0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200101-200309

IVORY,TRIM0#

main62331-12051-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200101-200209

STONE,TRIM1#

main62331-12051-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200309

MD.GRAY,TRIM1#

main62331-12052-A0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200309-200708

IVORY,TRIM0#

main62331-12052-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200309-200708

MD.GRAY,TRIM1#

main62331-13020-A0iNZE120,ZZE122..WG200008-200102

IVORY,TRIM0#

main62331-13021-A0iNZE120,ZZE122..WG..XLI200102-200402

IVORY,TRIM0#

main62331-13021-B0iZZE122..WG..ARL200110-200402

DK.GRAY,TRIM1#

main62331-13022iZZE122..WG..ARL;ZZE122..LHD..WG..GEN200402-200404

main62331-13022-A0iNZE120,ZZE122..WG..XLI200401-200609

IVORY,TRIM0#

main62331-13022-B0iZZE122..WG..(ARL,GEN)200404-200609

DK.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02050-A0iCE120,NZE120,ZZE122..PKN200202-200507

IVORY,TRIM0#

main62332-12050-A0iNZE12#,ZZE12#..SED200008-200101

IVORY,TRIM0#

main62332-12050-B0iNZE12#,ZZE12#..SED200008-200101

STONE,TRIM1#

main62332-12051-A0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200101-200309

IVORY,TRIM0#

main62332-12051-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200101-200209

STONE,TRIM1#

main62332-12051-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200309

MD.GRAY,TRIM1#

main62332-12052-A0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200309-200708

IVORY,TRIM0#

main62332-12052-B2iCE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN)200309-200708

MD.GRAY,TRIM1#

main62332-13020-A0iNZE120,ZZE122..WG200008-200102

IVORY,TRIM0#

main62332-13021-A0iNZE120,ZZE122..WG..XLI200102-200402

IVORY,TRIM0#

main62332-13021-B0iZZE122..WG..ARL200110-200402

DK.GRAY,TRIM1#

main62332-13022iZZE122..WG..ARL;ZZE122..LHD..WG..GEN200402-200404

main62332-13022-A0iNZE120,ZZE122..WG..XLI200401-200609

IVORY,TRIM0#

main62332-13022-B0iZZE122..WG..(ARL,GEN)200404-200609

DK.GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-12030iZZE122..ULT200404-200408

main62410-12030-A0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62410-12030-B0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62411-02040-A0iCE120,NZE120,ZZE121..PKN200202-200611

IVORY,TRIM0#

main62411-02041-A0iCE120,NZE120,ZZE122..PKN200612

IVORY,TRIM0#

main62411-12510-A0iCE120,NZE12#,ZZE12#..GCC,GEN200008-200708

IVORY,TRIM0#

main62411-12510-B0iNZE120..SED..(GCC,GEN);CE120,NZE121,ZZE12#..CONQ,GLI,LX,XLI200008-200708

LT.GRAY,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62412-02040-A0iCE120,NZE120,ZZE121..PKN200202-200611

IVORY,TRIM0#

main62412-02041-A0iCE120,NZE120,ZZE122..PKN200612

IVORY,TRIM0#

main62412-12510-A0iCE120,NZE12#,ZZE12#..GCC,GEN200008-200708

IVORY,TRIM0#

main62412-12510-B0iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200708

LT.GRAY,TRIM1#

main62420-12030iZZE122..ULT200404-200408

main62420-12030-A0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62420-12030-B0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02061-A0iCE120,NZE120,ZZE121..PKN200202-200507

IVORY,TRIM0#

main62413-12230-A0iNZE12#,ZZE12#200008-200105

IVORY,TRIM0#

main62413-12230-B0iNZE12#,ZZE12#..SED200008-200105

STONE,TRIM1#

main62413-12231iZZE122..ULT200404-200408

main62413-12231-A0iCE120,NZE12#,ZZE12#..GCC,GEN200105-200708

IVORY,TRIM0#

main62413-12231-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200105-200209

STONE,TRIM1#

main62413-12231-B1iZZE122..WG..ARL200110-200609

DK.GRAY,TRIM1#

main62413-12231-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200708

MD.GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09215iCE120,NZE12#,ZZE12#200105-200702

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02061-A0iCE120,NZE120,ZZE122..PKN200202-200507

IVORY,TRIM0#

main62414-12230-A0iNZE12#,ZZE12#200008-200105

IVORY,TRIM0#

main62414-12230-B0iNZE12#,ZZE12#..SED200008-200105

STONE,TRIM1#

main62414-12231iZZE122..ULT200404-200408

main62414-12231-A0iCE120,NZE12#,ZZE12#..GCC,GEN200105-200708

IVORY,TRIM0#

main62414-12231-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200105-200209

STONE,TRIM1#

main62414-12231-B1iZZE122..WG200110-200609

DK.GRAY,TRIM1#

main62414-12231-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200209-200708

MD.GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-13050-A0iNZE120,ZZE122..WG..XLI200008-200609

IVORY,TRIM0#

main62470-13050-B0iZZE122..WG..ARL200110-200609

LT.GRAY,TRIM1#

main62471-02100-A0iCE120,NZE120,ZZE122..PKN200202-200507

IVORY,TRIM0#

main62471-12810-A0iCE120,NZE12#,ZZE12#..SED..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN)200008-200708

IVORY,TRIM0#

main62471-12810-B0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

LT.GRAY,TRIM15,17

main62471-12810-B0iNZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200008-200708

LT.GRAY,TRIM1#

main62471-12870iZZE122..ULT200404-200408

main62471-12870-A0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62471-12870-B0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-02100-A0iCE120,NZE120,ZZE122..PKN200202-200507

IVORY,TRIM0#

main62472-12810-A0iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200708

IVORY,TRIM0#

main62472-12810-B0iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200008-200708

LT.GRAY,TRIM1#

main62472-12810-B0iCE120,NZE120,ZZE12#..LHD..SED..GEN200008-200209

LT.GRAY,TRIM15,17

main62472-12870iZZE122..ULT200404-200408

main62472-12870-A0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62472-12870-B0iNZE121..GLI200404-200708

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62480-13050-A0iNZE120,ZZE122..WG..XLI200008-200609

IVORY,TRIM0#

main62480-13050-B0iZZE122..WG200110-200609

LT.GRAY,TRIM1#

62475PAD, ROOF SIDE INNER GARNISH

main62475-02010iCE120,NZE120,ZZE122..PKN200202-200507

main62475-12140iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200702

main62475-12150iZZE122..ULT200404-200408

W(SRS CURTAIN SHIELD AIR BAG)

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12270-A0iZZE122..SED;ZZE122..WG..GCC;CE120,NZE12#,ZZE121;ZZE122..RHD..WG..GEN200008-200702

IVORY,TRIM0#

main67913-12270-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200209

STONE,TRIM1#

main67913-12270-B1iZZE122..WG..ARL200110-200609

DK.GRAY,TRIM1#

main67913-12270-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200209-200702

MD.GRAY,TRIM1#

main67913-13040-A0iCE120,NZE12#,ZZE12#..GCC,GEN200209-200708

IVORY,TRIM0#

main67913-13040-B0iZZE122..WG..XLI200404-200609

DK.GRAY,TRIM1#

main67913-13040-B1iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200708

MD.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12230-A0iCE120,NZE120,ZZE122..PKN200008-200702

IVORY,TRIM0#

main67914-12230-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200209

STONE,TRIM1#

main67914-12230-B1iZZE122..WG..ARL200110-200609

DK.GRAY,TRIM1#

main67914-12230-B2iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN200209-200702

MD.GRAY,TRIM1#

main67914-13040-A0iCE120,NZE12#,ZZE12#..GCC,GEN200209-200708

IVORY,TRIM0#

main67914-13040-B0iZZE122..WG..XLI200404-200609

DK.GRAY,TRIM1#

main67914-13040-B1iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200708

MD.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12120-A0iCE120,NZE120,ZZE122..PKN200008-200708

IVORY,TRIM0#

main67917-12120-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200209

STONE,TRIM1#

main67917-12120-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200708

MD.GRAY,TRIM1#

main67917-13060-A0iNZE120,ZZE122..WG..XLI200008-200609

IVORY,TRIM0#

main67917-13060-B0iZZE122..WG..ARL200110-200609

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12110-A0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200708

IVORY,TRIM0#

main67918-12110-B0iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200209

STONE,TRIM1#

main67918-12110-B2iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200708

MD.GRAY,TRIM1#

main67918-13060-A0iNZE120,ZZE122..WG..XLI200008-200609

IVORY,TRIM0#

main67918-13060-B0iZZE122..WG..ARL200110-200609

DK.GRAY,TRIM1#

9046709215

main90467-09215

9046805112

main90468-05112

25 parts on this diagram · 7 diagrams in section
