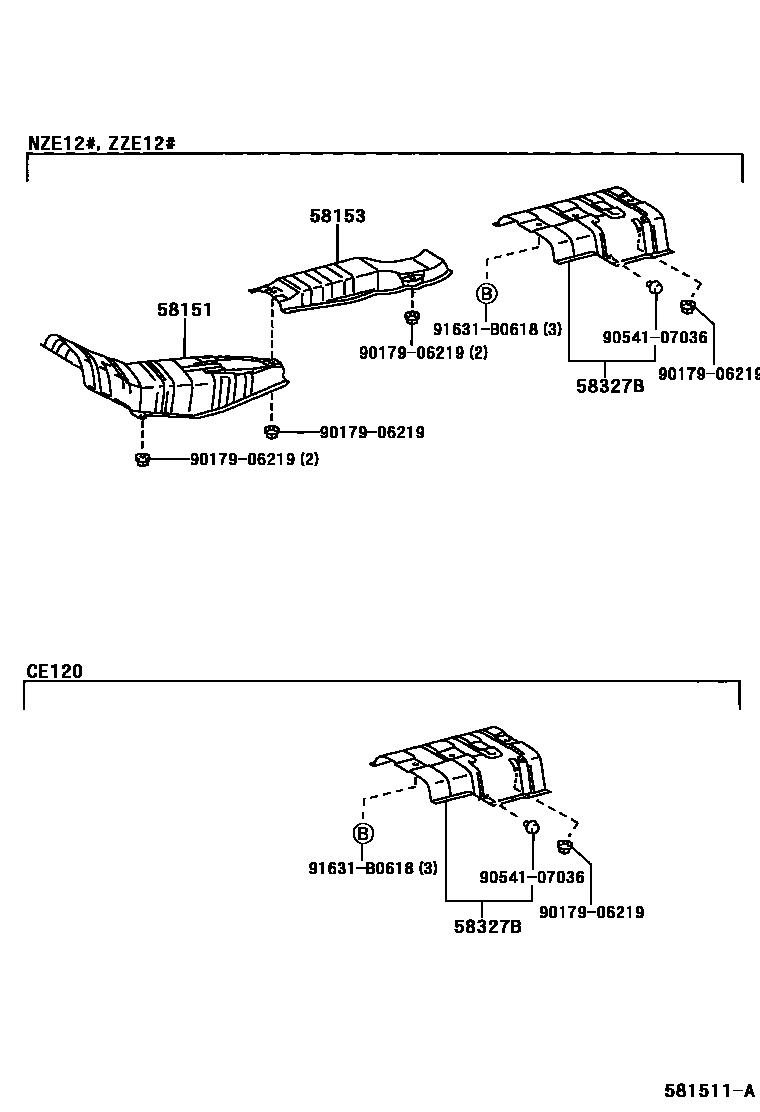

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12210iNZE120,ZZE121..PKN200008-200702

main58151-12220iNZE12#,ZZE12#..GCC,GEN200307-200503

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20141iNZE12#,ZZE12#200008-200702

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-12160iCE120,NZE120,ZZE122..PKN200008-200702

9017906219

main90179-06219

9054107036

main90541-07036

91631B0618

main91631-B0618

6 parts on this diagram · 1 diagram in section
