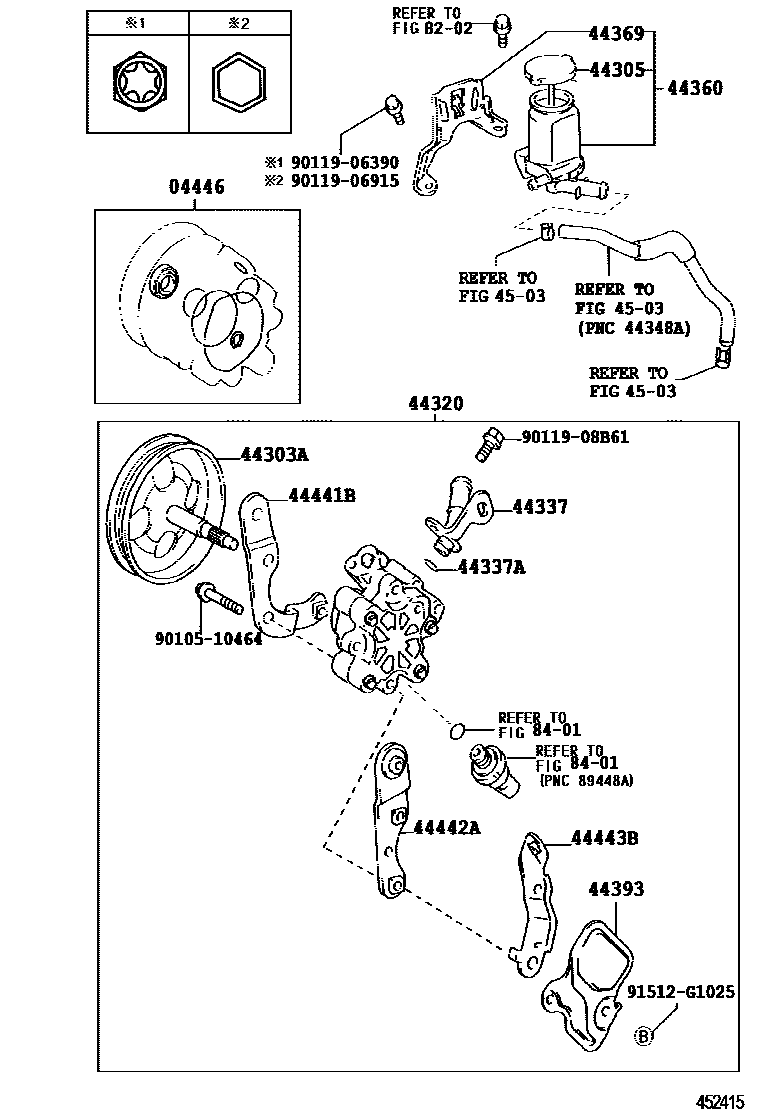

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02060iZZE121..PKN200202-200501

sub04446-0B030

main04446-02100iZZE122..PKN200507

main04446-02150iZZE121..PKN200501-200507

main04446-20170iCE120,NZE120..PKN200510-200708

main04446-32050iCE120,NZE120..PKN200008-200510

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-12030iCE120..GEN200110-200507

main44303-32010iZZE12#..GCC,GEN;ZZE122..WG..ARL200008-200702

main44303-52020iNZE120..PKN200008-200507

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200110-200801

sub44305-28060

main44305-28060iCE120,NZE120,ZZE122200802

sub44305-28061

44320PUMP ASSY, VANE

main44310-12530iNZE120..GCC;NZE120..RHD..GEN200008-200507

sub44310-20850

main44310-12540iZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN200008-200702

main44310-12560iCE120..PKN200110-200507

main44320-02060iZZE122..PKN200202-200507

44337UNION, POWER STEERING SUCTION PORT

main44337-02070iZZE122..PKN200202-200507

main44337-12120iNZE120..GCC;NZE120..RHD..GEN200008-200507

main44337-12130iCE120..LHD200110-200507

main44337-32110iZZE12#..GCC,GEN200008-200702

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30049iZZE122..PKN200202-200507

main90301-11020iCE120,NZE120..PKN200008-200702

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-12080iCE120..PKN200110-200507

main44360-12100iNZE120,ZZE122..PKN200008-200702

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200110-200702

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-52010iNZE120..LHD..GEN200008-200507

44441BBRACKET, PUMP, FRONT

main44441-52010iNZE120..PKN200008-200507

44442ABRACKET, VANE PUMP, REAR

main44442-02050iZZE121..PKN200202-200507

main44442-12040iZZE12#..GCC,GEN200008-200702

main44442-52020iNZE120..GCC,GEN200008-200507

44443BBRACKET, VANE PUMP

main44442-12030iNZE120..GCC;NZE120..RHD..GEN200008-200507

4503

8202

8401

9010510464

main90105-10464

9011906390

main90119-06390

9011906915

main90119-06915

9011908B61

main90119-08B61

91512G1025

main91512-G1025

20 parts on this diagram · 4 diagrams in section
