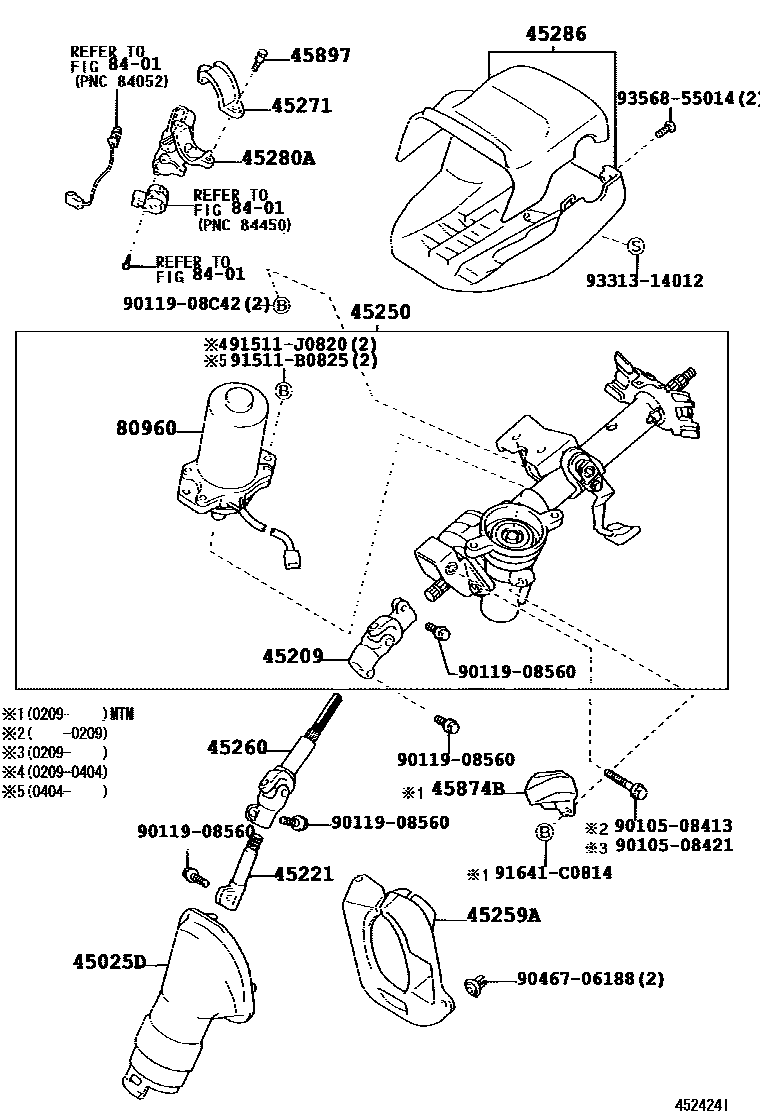

STEERING COLUMN & SHAFT

0001 1 0002 1 0004 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12220iNZE121200209-200404

main45025-12230iCE120,NZE120,ZZE12#..RHD..GEN200008-200209

main45025-12250iZZE121..XLI;NZE120,ZZE122..XLI..GCC200008-200209

main45025-12260iCE120,NZE120,ZZE122..LHD..GEN200008-200404

W(POWER STEERING)

main45025-13020iZZE121..PKN200202-200507

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12150iNZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..RHD..(ARL,GEN)200404-200509

main45209-12151iCE120,NZE120,ZZE122..PKN200510

main45209-12180iCE120,NZE120,ZZE12#..LHD200008-200404

sub45209-12H00

main45209-12181iCE120,NZE120,ZZE12#..LHD200404

45221SHAFT, STEERING INTERMEDIATE

main45221-12280iNZE121;NZE120,ZZE12#..LHD..XLI200008-200404

main45221-12281iNZE121;NZE120..GCC200404

sub45221-47041

main45221-12291iCE120,NZE120,ZZE12#..RHD200008-200507

45250COLUMN ASSY, STEERING

main45250-02400iCE120,NZE120,ZZE122..PKN200507

main45250-1E192iNZE121200008-200209

main45250-1E200iZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN200008-200404

main45250-1E310iNZE121..LX200209-200302

main45250-1E311iNZE121..LX200302-200404

main45250-1E312iNZE121..LX200408-200509

main45250-1E313iNZE121..LX200510

main45250-1E320iNZE121..GLI200209-200302

main45250-1E321iNZE121..GLI200302-200404

main45250-1E322iNZE121..GLI200408-200509

main45250-1E323iNZE121..ATM..GLI200510

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12010iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN200404

main45259-12030iCE120,NZE120,ZZE12#..LHD200209-200404

main45259-12031iCE120,NZE120,ZZE12#..LHD200404

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12460iCE120,NZE120,ZZE12#..RHD..GEN200209-200404

main45260-12461iZZE122..SED..ARL200404-200702

main45260-12480iCE120,NZE120,ZZE12#..LHD200209-200404

main45260-12530iNZE121200209-200404

main45260-12531iNZE121200506

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02030iCE120,NZE120,ZZE121..MTM..PKN200202-200507

main45280-02040iZZE121..ATM..PKN200202-200507

main45280-12390iNZE121..MTM200008-200209

main45280-12400iNZE121..ATM200008-200209

main45280-52020iCE120,NZE120,ZZE12#..MTM..(GCC,GEN)200209-200404

main45280-52030iZZE121..ATM..GEN;ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC200008-200209

45286COVER, STEERING COLUMN

main45286-12968iZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN200311-200312

sub45286-12967

main45286-12968-B0iZZE122..WG..ARL200404

DK.GRAY,TRIM1#

sub45286-12967

main45286-12968-B2iNZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN200404

DK.GRAY,TRIM1#

sub45286-12967

main45286-12968-E0iNZE121..MTM..GLI200404-200512

SANDAL WOOD,TRIM0#

sub45286-12967

main45286-12971-B0iNZE121..GLI200404

W(DISCHARGE HEADLAMP),DK.GRAY,TRIM1#

sub45286-12970

main45286-12971-E0iNZE121..GLI;ZZE121..RHD..GEN200209-200404

W(AUTO AIR CONDITIONER),SANDAL WOOD,TRIM0#

sub45286-12970

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-13020iNZE121..MTM200209-200404

main45874-13021iNZE121..MTM200411

45897BOLT, STEERING LOCK SET

main45897-12020×2iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

80960MOTOR ASSY, POWER STEERING

main80960-12010iNZE121200008-200209

main80960-12040iNZE121..LX200209-200404

main80960-12041iNZE121..LX200408-200708

main80960-12050iNZE121..GLI200404-200407

main80960-12080iNZE121..GLI200407-200708

8401

9010508413

main90105-08413

9010508421

main90105-08421

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

91511B0825

main91511-B0825

91511J0820

main91511-J0820

91641C0814

main91641-C0814

9331314012

main93313-14012

9356855014

main93568-55014

23 parts on this diagram · 3 diagrams in section
