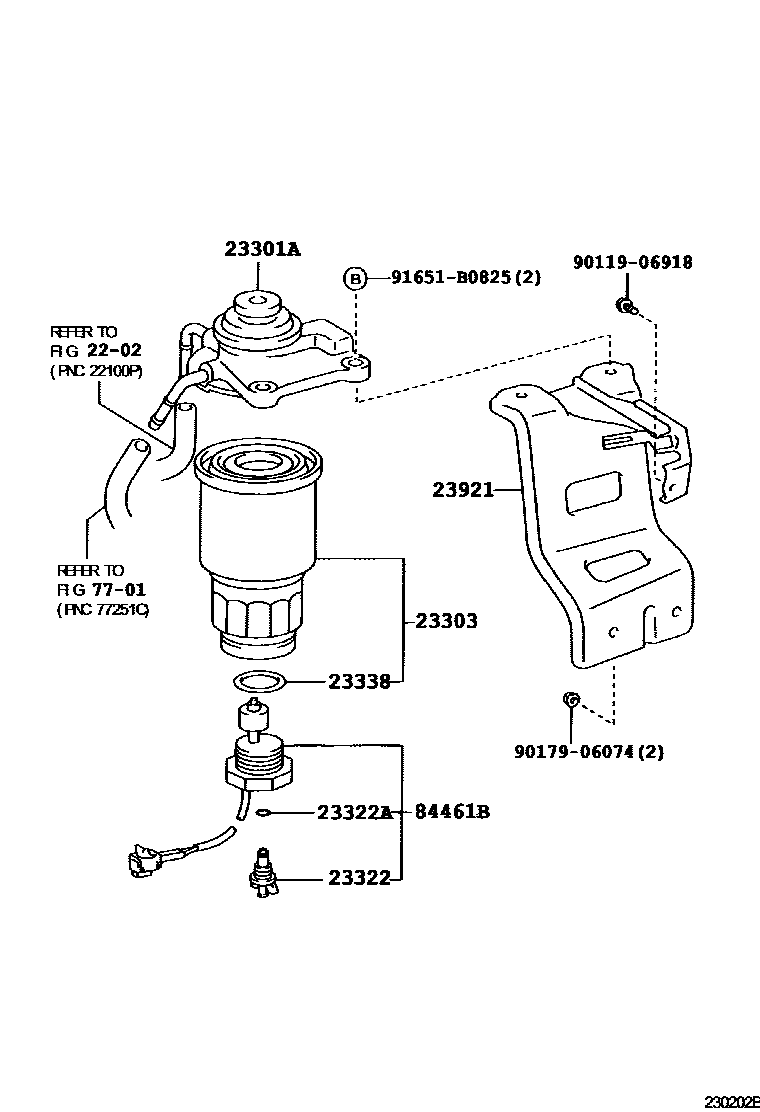

FUEL FILTER

2202

23301ACAP ASSY, FUEL FILTER

main23380-64550i2C..CE120..RHD..GEN200110-200209

sub23380-64551

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i2C..CE120..RHD..GEN200110-200209

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i2C..CE120200110-200507

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2C..CE120200110-200507

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2C..CE120..RHD..GEN200110-200209

23921SUPPORT, FUEL FILTER

main23921-64300i2C..CE120..RHD..GEN200110-200209

7701

84461BSWITCH, LEVEL WARNING

main84461-28040iCE120200110-200507

sub84461-28041

9011906918

main90119-06918

9017906074

main90179-06074

91651B0825

main91651-B0825

12 parts on this diagram · 1 diagram in section
