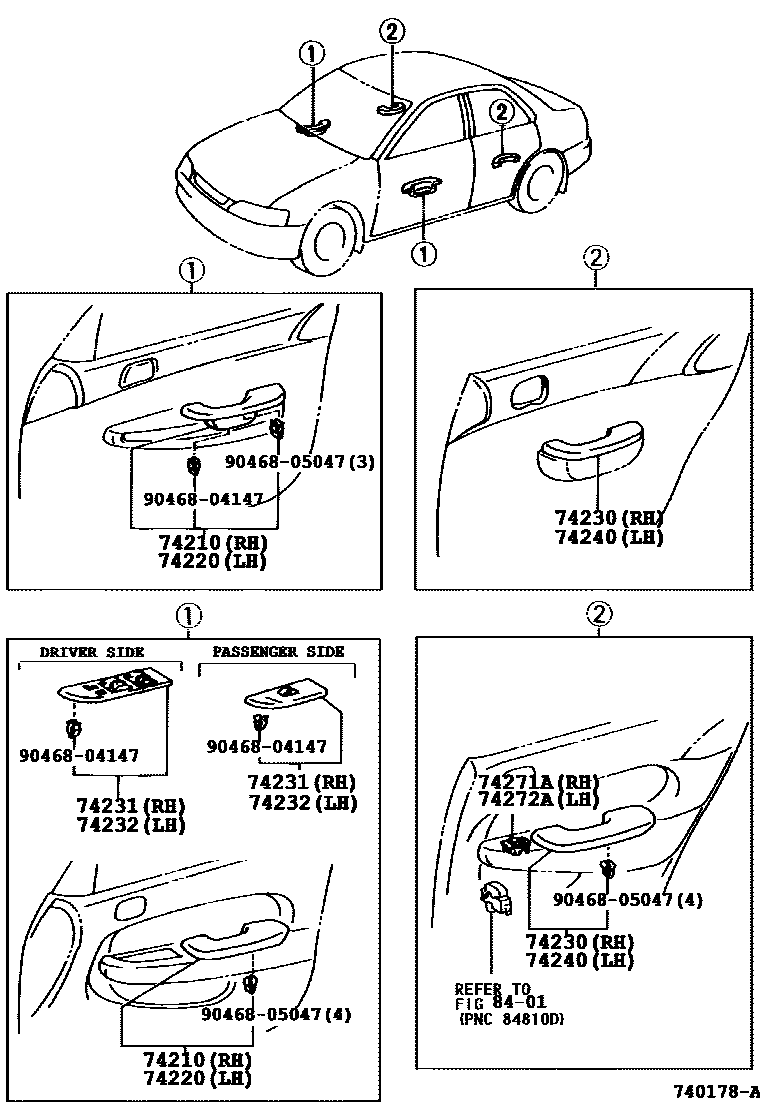

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-12160-B0iEE111..RHD;AE110,112..IDN,TH;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);AE111..5F..(SEG,XLI)..(MA,TH)199704-199812

W(*PW & *EL) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#

main74210-12160-E0iAE110..GLI;AE111..SEG199505-199704

OAK,TRIM4#

main74210-12180-B2iEE110..GCC;AE110..5F..GLI;AE111..RHD..WG;AE111..GCC,TUR;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)199704-199910

W(POWER WINDOW),MD.CHARCOAL,TRIM10,14

main74210-12230-B1iAE111..LHD..WG199704-199808

W(MANUAL WINDOW),MD.CHARCOAL,TRIM1#

main74210-16120-B1iAE110..XLI..GEN;AE111..RHD..5F..GLI..GEN199704-199812

SHADOW GRAY,TRIM1#

main74210-16120-B3iEE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM1#

main74210-16120-E0iAE111..SEG199505-199712

FABRIC & W(POWER WINDOW),OAK,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74210-12160-B0iAE111,112,EE111..IDN,MA,TH199812-200207

W(*PW & *EL) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#

main74220-12100-B0iAE111..RHD..SED..5F..XLI..GEN199704-199910

W(*PW & *EL) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#

main74220-12100-E0iAE111..SEG199704-199712

OAK,TRIM4#

main74220-12160-B2iEE111..GEN;AE111..GCC,TUR;AE110..5F..GLI;AE112,EE110..(GLI,XL,XLI)..(ARL,GCC,VEN)199704-199910

W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#

main74220-12170-B1iAE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN199704-199910

W(MANUAL WINDOW),MD.CHARCOAL,TRIM10,14

main74220-16100-B1iAE110..XLI..GEN;AE111..RHD..5F..GLI..GEN199704-199812

SHADOW GRAY,TRIM1#

main74220-16100-B3iAE111..WG;AE111,EE11#..GCC,VEN;AE112,CE110..XLI..(GCC,GEN)199910-200002

MD.CHARCOAL,TRIM1#

main74220-16100-E0iAE111..SEG199505-199712

FABRIC & W(POWER WINDOW),OAK,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-12160-B0iEE111..GEN;AE111..RHD..5F..GLI..GEN199704-199910

W(*PW & *EL) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#

main74210-12160-E0iAE110..GLI;AE111..SEG199505-199704

OAK,TRIM4#

main74210-12180-B2iAE111,112,EE110..(GLI,XL)..(BZ,GENKD,PHL)200008

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main74210-12230-B1iAE111,CE110,EE110,ZZE11#..LHD..(XL,XLI)..(GEN,TUR)200008-200201

W(MANUAL WINDOW),MD.CHARCOAL,TRIM1#

main74220-12100-B0iAE111,112,EE111..IDN,MA199712-200207

SHADOW GRAY,TRIM1#

main74250-16060-B1iAE110..XLI..GEN;AE111..RHD..5F..GLI..GEN199704-199812

SHADOW GRAY,TRIM1#

main74250-16060-B2iEE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM1#

main74250-16060-E0iAE111..SEG199505-199712

W(*PW) & FABRIC TYPE-*99,OAK,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12140-B0iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199704-199910

SHADOW GRAY,TRIM12

main74231-12140-E0iAE110..GLI;AE111..SEG199505-199704

OAK,TRIM4#

main74231-12240-B0iAE112..IDN;AE111,EE111..MA,TH199812-200207

SHADOW GRAY,TRIM1#

main74231-12240-B2iEE111..GEN;AE111..RHD..WG;AE110,112..GLI..(ARL,GEN)199704-199910

MD.CHARCOAL,TRIM1#

main74231-12250-B0iAE112,CE110..SED..XLI..(ARL,GEN)199910-200109

MD.CHARCOAL,TRIM1#

main74231-12280-B0iEE110..GCC;AE112..GCC,GEN,VEN;AE111,ZZE11#..GCC,TUR,VEN199704-200008

MD.CHARCOAL,TRIM1#

main74231-12350-E2iAE112..TH199812-200207

BROWN,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12120-B0iAE11#,EE111..IDN,MA,TH199711-199812

SHADOW GRAY,TRIM1#

main74232-12120-B2iEE111..GEN;AE111..RHD..WG;AE110,112..RHD..GLI;AE111,CE110..ARL,NZ199704-199910

MD.CHARCOAL,TRIM1#

main74232-12120-E0iAE110..GLI;AE111..SEG199505-199704

OAK,TRIM4#

main74232-12190-B0iAE112,EE110..(XL,XLI)..GCC;AE111,EE111..XLI..(GCC,TUR)199704-200005

W(*PW---FRONT & *EL),MD.CHARCOAL,TRIM1#

main74232-12200-B0iAE112..BZ,PHL200103-200207

MD.CHARCOAL,TRIM1#

main74232-12260-E2iAE112..TH199812-200207

BROWN,TRIM1#

74240ARMREST ASSY, REAR, LH

main74220-12100-B0iAE111..RHD..SED..5F..XLI..GEN199704-199910

CKD SPEC & W(*PW & *EL) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#

main74220-12100-E0iAE110..GLI;AE111..SEG199505-199704

OAK,TRIM4#

main74220-12160-B2iAE111..SED..GEN;CE110,EE110..(GL,XL)..GEN199910-200008

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main74220-12170-B1iAE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN199704-199910

W(MANUAL WINDOW),MD.CHARCOAL,TRIM10,14

main74250-16060-B1iAE111..4FC..TH;AE111..XLI..TH;AE111..RHD..5F..GLI199812-199910

SHADOW GRAY,TRIM1#

main74250-16060-B2iEE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM1#

main74250-16060-E0iAE111..SEG199505-199712

W(*PW) & FABRIC TYPE-*99,OAK,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main84656-12080-E2iAE112..TH199812-200207

WOOD GRAIN,BROWN,TRIM1#

main84656-32020-B0iAE111..SEG199704-199712

SHADOW GRAY,TRIM1#

main84656-32020-B2iAE111,CE110,EE110..SED..(GL,GLI,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM1#

main84656-32020-E0iAE111..SEG199704-199712

OAK,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main84656-12080-E2iAE112..TH199812-200207

WOOD GRAIN,BROWN,TRIM1#

main84656-32020-B0iAE112..IDN;AE110,111,EE111..MA,TH199812-200207

SHADOW GRAY,TRIM1#

main84656-32020-B2iAE111,112,EE110..(4FC,5F)..(BZ,GENKD,PHL)200103

MD.CHARCOAL,TRIM1#

main84656-32020-E0iAE111..SEG199704-199712

OAK,TRIM4#

8401

9046804147

main90468-04147

9046805047

main90468-05047

11 parts on this diagram · 2 diagrams in section
