E
EPC Data

FRONT SEAT & SEAT TRACK

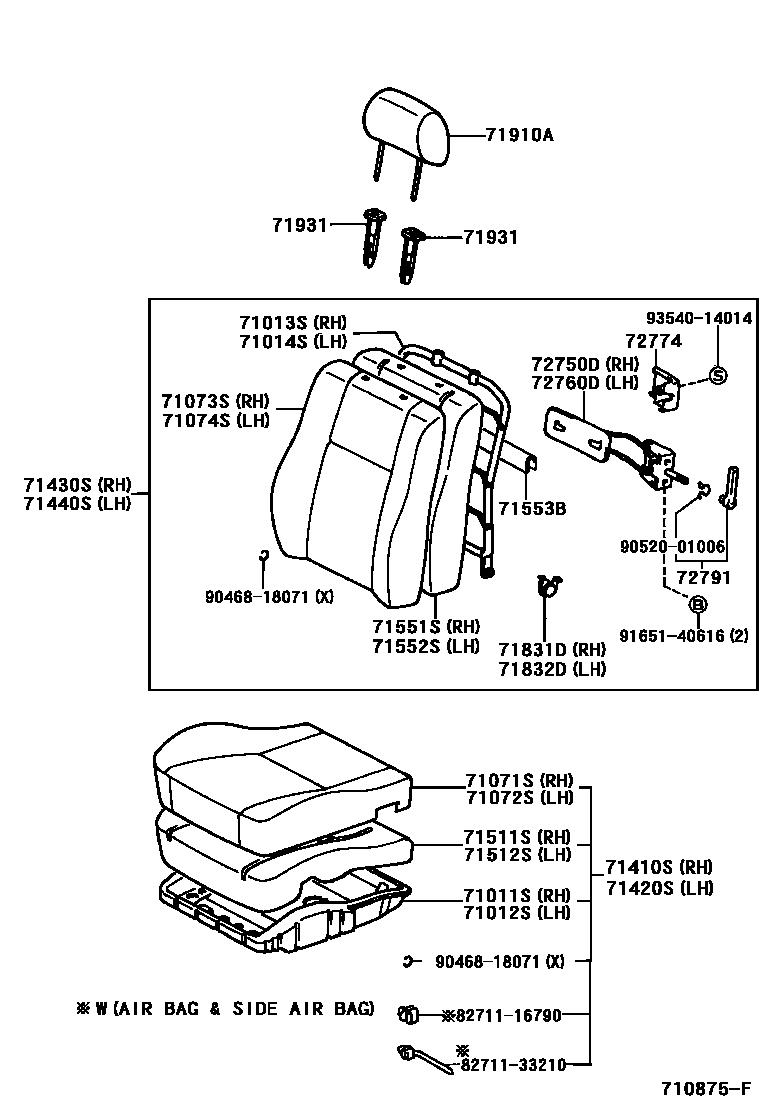

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-12440i199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main71011-12450i199704-199910
MALAYSIA SPEC-*104
main71011-20430i199704-199808
W(VERTICAL SEAT AJDUSTER)
main71011-20440i199704-199901
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-12440i199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main71011-20430i199704-199807
W(2 WAY VERTICAL SEAT)
main71011-20440i199812-199902
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-12500i199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main71013-12630i199704-199801
main71013-12631i200002-200008
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-12630i199704-199801
main71013-12631i200002-200008
main71014-12410i199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1L020-B0i199505-199704
SHADOW GRAY,TRIM1#
main71071-1L020-E0i199505-199704
OAK,TRIM4#
main71071-1L060-B0i199704-199910
THAILAND SPEC-*104,SHADOW GRAY,TRIM1#
main71071-1L070-B0i199705-199910
FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
main71071-1L090-B0i199505-199704
MALAYSIA SPEC-*104,SHADOW GRAY,TRIM1#
main71071-1L160-B0i199511-199704
G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71071-1L160-E0i199511-199704
G PACKAGE-*104,OAK,TRIM4#
main71071-1L270i199711-200207
main71071-1L270-B0i199808-199910
MD. CHARCOAL,TRIM1#
main71071-1L280i199910-200411
main71071-1L280-B0i199704-199910
MD. CHARCOAL,TRIM10
main71071-1L280-B8i199704-199910
MIDIUM CHARCOAL,TRIM14
main71071-1L290-B0i199704-199910
W(FABRIC SEAT),MD. CHARCOAL,TRIM1#
main71071-1L290-B5i199704-199910
MD.CHARCOAL,TRIM1#
main71071-1L300i199711-200207
W(FABRIC SEAT)
main71071-1L300-B0i199807-200005
MD. CHARCOAL,TRIM1#
main71071-1L410i199901-200207
W/O
main71071-1L410-B0i199704-199910
MD. CHARCOAL,TRIM1#
main71071-1L480-B0i199704-199910
MD. CHARCOAL,TRIM10,14
main71071-1L490i199711-200207
W(FABRIC SEAT & VERTICAL SEAT AJDJUSTER)
main71071-1L490-B0i199808-199910
W(VERTICAL SEAT AJDUSTER),MD. CHARCOAL,TRIM1#
main71071-1L620i199711-200207
main71071-1L620-B3i199807-199910
MD.CHARCOAL,TRIM1#
main71071-1L620-K0i199910
MIDIUM CHARCOAL,TRIM9#
main71071-1L660i199711-199901
W(VERTICAL SEAT ADJUSTER)
main71071-1L690-B0i199808-199910
MD. CHARCOAL,TRIM1#
main71071-1L692-B8i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71071-1N150-P1i199910-200008
SEAT = TYPE B-*104 & W(SEPARATE TYPE HEADREST),MEDIUM CHARCOAL,TRIM9#
main71071-1N160-B0i200002-200109
SEAT = TYPE B-*104,MIDIUM CHARCOAL,TRIM1#
main71071-1N170-B0i199910-200008
MIDIUM CHARCOAL,TRIM9#
main71071-1N180-B0i199910-200008
MIDIUM CHARCOAL,TRIM9#
main71071-1N190-B0i199910-200109
SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-1E710-B0i199505-199704
SHADOW GRAY,TRIM1#
main71072-1E710-E0i199505-199704
OAK,TRIM4#
main71072-1E720-B0i199505-199910
MALAYSIA SPEC-*104,SHADOW GRAY,TRIM1#
main71072-1E780-B0i199704-199910
SHADOW GRAY,TRIM1#
main71072-1E790-B0i199505-199910
SHADOW GRAY,TRIM1#
main71072-1E850-B0i199511-199704
G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71072-1E850-E0i199511-199704
G PACKAGE-*104,OAK,TRIM4#
main71072-1H170i199711-200411
main71072-1H170-B0i199805-200002
MD. CHARCOAL,TRIM1#
main71072-1H250-B0i199704-199910
W(FABRIC SEAT & VERTICAL SEAT AJDJUSTER),MD. CHARCOAL,TRIM1#
main71072-1H270-B0i199704-199910
MD. CHARCOAL,TRIM10
main71072-1H310i199711-200207
W(FABRIC SEAT)
main71072-1H310-B0i199710-200005
MD. CHARCOAL,TRIM1#
main71072-1H320i199711-200207
W(VERTICAL SEAT ADJUSTER)
main71072-1H320-B0i199704-199910
MD. CHARCOAL,TRIM10
main71072-1H320-B8i199910-200010
SEAT = TYPE D-*104,MIDIUM CHARCOAL,TRIM1#
main71072-1H450i199711-200207
main71072-1H450-B5i199807-199910
MD.CHARCOAL,TRIM1#
main71072-1H450-K0i199910
MIDIUM CHARCOAL,TRIM9#
main71072-1H480-B0i199808-199910
NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71072-1H482-B8i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71072-1H500i199711-200207
main71072-1H500-B0i199704-199808
MD. CHARCOAL,TRIM1#
main71072-1H800-B6i199910-200008
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM9#
main71072-1H800-P1i199910-200002
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-1H810-B0i199910-200109
MODOUM CHARCOAL,TRIM1#
main71072-1H820-B0i200002-200208
MIDIUM CHARCOAL,TRIM1#
main71072-1H830-B0i199910-200109
MMIDIUM CHARCOAL,TRIM1#
main71072-1H840-B0i199910-200109
SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1K350-B0i199704-199705
SHADOW GRAY,TRIM1#
main71073-1K350-E0i199704-199712
OAK,TRIM4#
main71073-1K360-B0i199704-199910
SHADOW GRAY,TRIM16
main71073-1K370-B0i199505-199910
SHADOW GRAY,TRIM1#
main71073-1K380-B0i199704-199910
SHADOW GRAY,TRIM16
main71073-1K720-B0i199511-199704
G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71073-1K720-E0i199511-199704
G PACKAGE-*104,OAK,TRIM4#
main71073-1K880i199711-199801
W(FABRIC SEAT)
main71073-1K881i199801-199901
W(FABRIC SEAT)
main71073-1K881-B0i199807-199902
MD.CHARCOAL,TRIM1#
main71073-1L010i199711-199801
main71073-1L010-B0i199704-199801
MD. CHARCOAL,TRIM1#
main71073-1L011i199901-200207
main71073-1L011-B0i199801-199902
MD.CHARCOAL,TRIM10,14
main71073-1L011-B5i199805-199902
W(FABRIC SEAT),MD.CHARCOAL,TRIM1#
main71073-1L210-B2i199704-199801
MD.CHARCOAL,TRIM1#
main71073-1L211-B2i199807-199902
MD.CHARCOAL,TRIM1#
main71073-1L340i199711-199801
W(VERTICAL SEAT ADJUSTER)
main71073-1L340-B0i199704-199801
MD. CHARCOAL,TRIM10,14
main71073-1L341i199801-200207
W(VERTICAL SEAT ADJUSTER)
main71073-1L341-B0i199801-199902
MD.CHARCOAL,TRIM10,14
main71073-1L350i199711-199801
main71073-1L350-B0i199704-199801
MD. CHARCOAL,TRIM10
main71073-1L350-B6i199704-199801
MD.CHARCOAL,TRIM1#
main71073-1L351i199801-199902
main71073-1L351-B0i199801-199902
W(FABRIC SEAT),MD.CHARCOAL,TRIM10,14
main71073-1L411-B0i199808-199902
NEW ZEALAND SPEC,MD.CHARCOAL,TRIM1#
main71073-1L611-B7i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71073-1L690i199906-200202
main71073-1L690-B0i199902-199910
MD. CHARCOAL,TRIM10
main71073-1L690-B2i199902-199910
W(*80,DRIVER SIDE & PASSENGER SIDE),MD. CHARCOAL,TRIM1#
main71073-1L700-B0i199902-200005
MD. CHARCOAL,TRIM1#
main71073-1L710×2i199910-200411
main71073-1L710-B1i199902-199910
W(VERTICAL SEAT AJDUSTER),MD. CHARCOAL,TRIM10
main71073-1L720-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71073-1L730i199910-200207
main71073-1L730-B0i199902-199910
MD. CHARCOAL,TRIM10
main71073-1L730-B4i199910-200008
MIDIUM CHARCOAL,TRIM11
main71073-1L740-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71073-1L740-K0i199910
MIDIUM CHARCOAL,TRIM9#
main71073-1L780-B5i199910-200008
MEDIUM CHARCOAL,TRIM9#
main71073-1L790-B0i200002-200208
MIDIUM CHARCOAL,TRIM1#
main71073-1L800-B0i199910-200008
W(SEAT BACK POCKET),MIDIUM CHARCOAL,TRIM9#
main71073-1L810-B0i199910-200109
SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1K880i199711-199801
W(FABRIC SEAT)
main71073-1K880-B0i199710-199801
MD. CHARCOAL,TRIM1#
main71073-1K881-B0i199801-199902
MD.CHARCOAL,TRIM1#
main71073-1L010i199712-199801
main71073-1L010-B0i199705-199801
MD. CHARCOAL,TRIM10,14
main71073-1L011i199801-199906
main71073-1L011-B0i199801-199808
MD.CHARCOAL,TRIM1#
main71073-1L011-B5i199805-199902
MD.CHARCOAL,TRIM1#
main71073-1L340i199711-199801
W(VERTICAL SEAT AJDUSTER)
main71073-1L340-B0i199704-199801
MD. CHARCOAL,TRIM10,14
main71073-1L341-B0i199801-199902
MD.CHARCOAL,TRIM10,14
main71073-1L350i199711-199801
main71073-1L350-B0i199704-199801
MD. CHARCOAL,TRIM1#
main71073-1L350-B6i199704-199801
MD.CHARCOAL,TRIM1#
main71073-1L351i199801-199902
main71073-1L351-B0i199801-199902
W(FABRIC SEAT),MD.CHARCOAL,TRIM10,14
main71073-1L611-B7i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71073-1L690i199906-200202
main71073-1L690-B0i199902-200005
MD. CHARCOAL,TRIM1#
main71073-1L690-B2i199902-199910
W(*80,DRIVER SIDE & PASSENGER SIDE),MD. CHARCOAL,TRIM14
main71073-1L700-B0i199902-200005
W(VERTICAL SEAT AJDUSTER),MD. CHARCOAL,TRIM1#
main71073-1L710i199909-200002
main71073-1L710-B1i199902-199910
MD. CHARCOAL,TRIM10,14
main71073-1L730i199910-200207
main71073-1L730-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71073-1L730-B4i199902-199910
MIDIUM CHARCOAL,TRIM14
main71073-1L780-B5i199910-200008
MEDIUM CHARCOAL,TRIM11,94
main71073-1L790-B0i200002-200208
MIDIUM CHARCOAL,TRIM1#
main71073-1L800-B0i199910-200008
W(SEAT BACK POCKET),MIDIUM CHARCOAL,TRIM9#
main71073-1L810-B0i199910-200109
SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
main71074-1H440-B0i199704-199705
SHADOW GRAY,TRIM1#
main71074-1H440-E0i199505-199704
OAK,TRIM4#
main71074-1H450-B0i199704-199910
SHADOW GRAY,TRIM16
main71074-1H570-B0i199704-199910
FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
main71074-1H580-B0i199505-199704
SHADOW GRAY,TRIM1#
main71074-1H660-B0i199511-199704
G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71074-1H660-E0i199511-199704
G PACKAGE-*104,OAK,TRIM4#
main71074-1K030-B0i199808-199902
SINGAPORE SPEC,MD.CHARCOAL,TRIM1#
main71074-1K150-B4i199704-199801
MD.CHARCOAL,TRIM1#
main71074-1K151-B4i199807-199902
MD.CHARCOAL,TRIM1#
main71074-1K270-B0i199808-199902
MD.CHARCOAL,TRIM1#
main71074-1K340-B0i199808-199902
MEDIUM CHARCOAL,TRIM1#
main71074-1K480-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71074-1K490-B0i199902-199910
W(VERTICAL SEAT AJDUSTER),MD. CHARCOAL,TRIM1#
main71074-1K500-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71074-1K500-K0i199910
MIDIUM CHARCOAL,TRIM9#
main71074-1K510-B0i199902-199910
SINGAPORE SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE),MD. CHARCOAL,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1L010-B0i199704-199712
***,SHADOW GRAY,TRIM1#
main71410-1L010-E0i199505-199704
***,OAK,TRIM4#
main71410-1L020-B0i199704-199910
***,SHADOW GRAY,TRIM1#
main71410-1L040-B0i199505-199910
***,SHADOW GRAY,TRIM1#
main71410-1L050-B0i199505-199704
***,SHADOW GRAY,TRIM1#
main71410-1L170-B0i199704-199910
***,G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71410-1L170-E0i199511-199704
***,G PACKAGE-*104,OAK,TRIM4#
main71410-1L171-B5i199807-199910
***,MD.CHARCOAL,TRIM1#
main71410-1L171-K0i199910
***,MIDIUM CHRACOAL,TRIM9#
main71410-1L590i199901-200207
***
main71410-1L590-B0i199704-199910
***,MD. CHARCOAL,TRIM10
main71410-1L590-B2i199704-199910
***,MD.CHARCOAL,TRIM14
main71410-1L600i199704-199910
***
main71410-1L600-B0i199704-199910
***,MD. CHARCOAL,TRIM10
main71410-1L600-B7i199910-200109
***,SEAT = TYPE D-*104,MIDIUM CHARCOAL,TRIM1#
main71410-1L610i199910-200411
***
main71410-1L610-B0i199910-200002
***,W(FABRIC SEAT),MD. CHARCOAL,TRIM1#
main71410-1L630i199901-200207
***,W/O
main71410-1L630-B0i199704-199910
***,MD. CHARCOAL,TRIM10
main71410-1L670i199704-199910
***,W(FABRIC SEAT & VERTICAL SEAT AJDJUSTER)
main71410-1L670-B0i199704-199910
***,W(FABRIC SEAT & VERTICAL SEAT AJDJUSTER),MD. CHARCOAL,TRIM1#
main71410-1L680-B0i199808-199910
***,MD. CHARCOAL,TRIM1#
main71410-1L730i199808-199910
***
main71410-1L730-B0i199808-199910
***,MD. CHARCOAL,TRIM1#
main71410-1L732-B8i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71410-1N390-B0i199910-200002
***,SEAT = TYPE B-*104 & W(SEPARATE TYPE HEADREST),MIDIUM CHARCOAL,TRIM1#
main71410-1N400-B0i199910-200008
***,SEAT = TYPE B-*104,MIDIUM CHARCOAL,TRIM9#
main71410-1N410-B0i199910-200008
***,MIDIUM CHARCOAL,TRIM9#
main71410-1N420-B0i199910-200109
***,MIDIUM CHARCOAL,TRIM1#
main71410-1N430-B0i199910-200109
***,SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-1E700-B0i199704-199712
***,SHADOW GRAY,TRIM1#
main71420-1E700-E0i199505-199704
***,OAK,TRIM4#
main71420-1E740-B0i199505-199704
***,SHADOW GRAY,TRIM1#
main71420-1E780-B0i199704-199910
***,SHADOW GRAY,TRIM1#
main71420-1E790-B0i199704-199910
***,FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
main71420-1H030-B0i199704-199910
***,G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71420-1H030-E0i199511-199704
***,G PACKAGE-*104,OAK,TRIM4#
main71420-1H031-B7i199807-199910
***,MD.CHARCOAL,TRIM1#
main71420-1H031-K0i199910
***,MIDIUM CHARCOAL,TRIM9#
main71420-1H430i199704-199910
***
main71420-1H430-B0i199704-199910
***,W(FABRIC SEAT & VERTICAL SEAT AJDJUSTER),MD. CHARCOAL,TRIM1#
main71420-1H490-B0i199704-199910
***,MD. CHARCOAL,TRIM10
main71420-1H510i199704-199808
***
main71420-1H510-B0i199704-199910
***,MD. CHARCOAL,TRIM10
main71420-1H510-B7i199910-200109
***,MIDIUM CHARCOAL,TRIM1#
main71420-1H520i199704-200002
***
main71420-1H520-B0i199704-199910
***,W(FABRIC SEAT),MD. CHARCOAL,TRIM10
main71420-1H530-B0i199808-199910
***,MD. CHARCOAL,TRIM1#
main71420-1H570i199808-199910
***
main71420-1H570-B0i199808-199910
***,MD. CHARCOAL,TRIM1#
main71420-1H572-B8i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71420-1H620i199901-200207
***
main71420-1H620-B0i199704-199910
***,MD. CHARCOAL,TRIM1#
main71420-1K170-B0i199910-200002
***,SEAT = TYPE B-*104 & W(SEPARATE TYPE HEADREST),MIDIUM CHARCOAL,TRIM1#
main71420-1K180-B0i199910-200008
***,SEAT = TYPE B-*104,MIDIUM CHARCOAL,TRIM9#
main71420-1K190-B0i199910-200008
***,MIDIUM CHARCOAL,TRIM9#
main71420-1K200-B0i199910-200109
***,MIDIUM CHARCOAL,TRIM1#
main71420-1K210-B0i199910-200109
***,SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-12350i200110-200207
***
main71040-12350-B0i199902-199910
***,MD. CHARCOAL,TRIM10
main71040-12360-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71040-12370×2i199910-200411
***
main71040-12370-B0i199902-199910
***,W(VERTICAL SEAT AJDUSTER),MD. CHARCOAL,TRIM10
main71040-12380-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71040-12401-B7i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71040-12550i199910-200207
***
main71040-12550-B0i199902-199910
***,MD. CHARCOAL,TRIM10
main71040-12550-B4i199902-199910
***,MIDIUM CHARCOAL,TRIM14
main71040-12560-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71040-12560-K0i199910
***,MIDIUM CHARCOAL,TRIM9#
main71040-12620-B0i199910-200002
***,SEAT = TYPE B-*104,MIDIUM CHARCOAL,TRIM1#
main71040-12630-B0i199910-200008
***,MIDIUM CHARCOAL,TRIM9#
main71040-12640-B0i199910-200008
***,W(SEAT BACK POCKET),MIDIUM CHARCOAL,TRIM9#
main71040-12650-B0i199910-200109
***,SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
main71430-1K570-B0i199505-199704
***,SHADOW GRAY,TRIM1#
main71430-1K570-E0i199704-199712
***,OAK,TRIM4#
main71430-1K580-B0i199704-199910
***,SHADOW GRAY,TRIM1#
main71430-1K590-B0i199505-199704
***,FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
main71430-1K610-B0i199505-199704
***,SHADOW GRAY,TRIM1#
main71430-1K750-B0i199704-199910
***,G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71430-1K750-E0i199511-199704
***,G PACKAGE-*104,OAK,TRIM4#
main71430-1K751-B4i199704-199801
***,MD.CHARCOAL,TRIM1#
main71430-1K752-B4i199801-199902
***,MD.CHARCOAL,TRIM1#
main71430-1L300i199704-199801
***
main71430-1L300-B0i199704-199801
***,W(2 WAY VERTICAL SEAT),MD. CHARCOAL,TRIM1#
main71430-1L301i199801-199902
***
main71430-1L301-B0i199801-199902
***,MD.CHARCOAL,TRIM1#
main71430-1L301-B2i199801-199902
***,W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main71430-1L310i199704-199801
***,W(FABRIC SEAT)
main71430-1L310-B0i199704-199801
***,W(FABRIC SEAT),MD. CHARCOAL,TRIM1#
main71430-1L311i199801-199902
***,W(FABRIC SEAT)
main71430-1L311-B0i199801-199902
***,W(FABRIC SEAT),MD.CHARCOAL,TRIM1#
main71430-1L321-B0i199808-199902
***,MD.CHARCOAL,TRIM1#
main71430-1L330-B0i199704-199801
***,MD. CHARCOAL,TRIM1#
main71430-1L331i199805-199902
***
main71430-1L331-B0i199801-199902
***,MD.CHARCOAL,TRIM1#
main71430-1L431i199808-199902
***
main71430-1L431-B0i199808-199902
***,MD.CHARCOAL,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-12350i200110-200207
***
main71040-12350-B0i199902-200002
***,MD. CHARCOAL,TRIM1#
main71040-12370i199902-200002
***
main71040-12370-B0i199910-200002
***,W(VERTICAL SEAT AJDUSTER),MD. CHARCOAL,TRIM1#
main71040-12401-B7i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71040-12550i199910-200207
***
main71040-12550-B0i199902-199910
***,MD. CHARCOAL,TRIM10
main71040-12550-B4i199910-200109
***,SEAT = TYPE D-*104,MIDIUM CHARCOAL,TRIM1#
main71040-12620-B0i200002-200208
***,MIDIUM CHARCOAL,TRIM1#
main71040-12630-B0i200002-200208
***,MIDIUM CHARCOAL,TRIM1#
main71040-12640-B0i199910-200008
***,W(SEAT BACK POCKET),MIDIUM CHARCOAL,TRIM9#
main71040-12650-B0i199910-200109
***,SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
main71070-12120i199808-199902
***
main71070-12120-B0i199808-199902
***,SINGAPORE SPEC,MD.CHARCOAL,TRIM1#
main71070-12180-B0i199808-199902
***,MD.CHARCOAL,TRIM1#
main71070-12250-B0i199808-199902
***,MEDIUM CHARCOAL,TRIM1#
main71070-12300-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71070-12310-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71070-12320i199902-199910
***
main71070-12320-B0i199902-199910
***,NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71070-12440-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71070-12440-K0i199910
***,MIDIUM CHRATCOAL,TRIM9#
main71430-1L300i199704-199801
***
main71430-1L300-B0i199704-199801
***,W(2 WAY VERTICAL SEAT),MD. CHARCOAL,TRIM1#
main71430-1L301i199801-199902
***
main71430-1L301-B0i199801-199902
***,MD.CHARCOAL,TRIM1#
main71430-1L301-B2i199801-199902
***,W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main71430-1L310i199704-199801
***,W(FABRIC SEAT)
main71430-1L310-B0i199704-199801
***,W(FABRIC SEAT),MD. CHARCOAL,TRIM1#
main71430-1L311i199801-199902
***,W(FABRIC SEAT)
main71430-1L311-B0i199801-199902
***,W(FABRIC SEAT),MD.CHARCOAL,TRIM1#
main71430-1L330-B0i199704-199801
***,MD. CHARCOAL,TRIM1#
main71430-1L331i199805-199902
***
main71430-1L331-B0i199801-199902
***,MD.CHARCOAL,TRIM1#
main71440-1K510-B0i199505-199704
***,SHADOW GRAY,TRIM1#
main71440-1K510-E0i199704-199712
***,OAK,TRIM4#
main71440-1K520-B0i199704-199910
***,SHADOW GRAY,TRIM1#
main71440-1K540-B0i199704-199910
***,FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
main71440-1K560-B0i199704-199910
***,SHADOW GRAY,TRIM1#
main71440-1L060-B0i199511-199704
***,G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71440-1L060-E0i199511-199704
***,G PACKAGE-*104,OAK,TRIM4#
main71440-1L061-B6i199704-199801
***,MD.CHARCOAL,TRIM1#
main71440-1L062-B6i199801-199902
***,MD.CHARCOAL,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12860i199704-199910
MALAYSIA SPEC-*104
main71511-12880i199505-199704
main71511-12890i199902-200002
main71511-1A010i200008-200109
W(VERTICAL SEAT AJDUSTER)
main71511-1A030i199808-199910
NEW ZEALAND SPEC
main71511-1A060i199704-200207
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12860i199704-199910
MALAYSIA SPEC-*104
main71511-12880i199505-199704
main71511-12890i200002-200008
W(LEATHER SEAT)
main71511-1A010i199704-199807
W(2 WAY VERTICAL SEAT)
main71511-1A020i199808-200109
main71511-1A050i199704-200207
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-12580i199705-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main71551-12610i199901-199902
main71551-12630i199808-199902
NEW ZEALAND SPEC
main71551-12710i200008
main71551-12730i199902-199910
NEW ZEALAND SPEC
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-12610i199807-199808
main71551-12630i199808-199902
NEW ZEALAND SPEC
main71551-12710i199910-200002
main71551-12730i199902-199910
NEW ZEALAND SPEC
main71552-12150i199705-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
71553BPAD, FRONT SEATBACK, B
main71553-12360×2i199906-199910
71831DCOVER, FRONT SEAT HINGE, RH
main71831-16010i199705-199910
71832DCOVER, FRONT SEAT HINGE, LH
main71831-16010i199705-199910
71910AHEADREST ASSY, FRONT SEAT
main71910-1A310-B1×2i199505-199704
SHADOW GRAY,TRIM1#
main71910-1A510-B0×2i199705-199711
SHADOW GRAY,TRIM1#
main71910-1A510-E0×2i199505-199704
OAK,TRIM4#
main71910-1A520-B0×2i199505-199704
SHADOW GRAY,TRIM1#
main71910-1A540-B0×2i199505-199712
SHADOW GRAY,TRIM1#
main71910-1A540-E0×2i199505-199712
OAK,TRIM4#
main71910-1A550-B0×2i199705-199910
FABRIC TYPE-*104,SHADOW GRAY,TRIM1#
main71910-1A700-B0×2i199704-199910
G PACKAGE-*104,SHADOW GRAY,TRIM1#
main71910-1A700-E0×2i199511-199704
G PACKAGE-*104,OAK,TRIM4#
main71910-1A780-B5×2i199910-200109
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71910-1A790×2i199711-200411
main71910-1A790-B0×2i199704-199910
FABRIC TYPE,MEDIUM CHARCOAL,TRIM10,14
main71910-1A800-B0×2i199804-200207
MD.CHARCOAL,TRIM1#
main71910-1A810×2i199711-200207
main71910-1A810-B0×2i199910
ME. CHARCOAL,TRIM9#
main71910-1A830×2i199711-200207
main71910-1A830-B0×2i199704-199910
MEDIUM CHARCOAL,TRIM1#
main71910-1A840-B0×2i199807-200005
MEDIUM CHARCOAL,TRIM1#
main71910-1A850-B0×2i199807-200005
MEDIUM CHARCOAL,TRIM1#
main71910-1A850-B8×2i200005-200201
MEDIUM CHARCOAL,TRIM1#
main71910-1A860×2i200005-200202
main71910-1A860-B0×2i199910-200005
MEDIUM CHARCOAL,TRIM1#
main71910-1A870-B3×2i200001-200109
MEDIUM CHARCOAL,TRIM1#
main71910-1A881-B3×2i200005-200201
MEDIUM CHARCOAL,TRIM1#
main71910-1E060-B0×2i200002-200008
MEDIUM CHARCOAL,TRIM1#
main71910-1E080-B0×2i199910-200008
MEDIUM CHARCOAL,TRIM1#,9#
main71910-1E120×2i199711-199901
main71910-1E120-B1×2i199704-199910
MD.CHARCOAL,TRIM10,14
71931SUPPORT, FRONT SEAT HEADREST
main71930-32020-B0×2i199505-199704
W(LOCK),SHADOW GRAY,TRIM1#
main71930-32020-E0×2i199704-199712
W(LOCK),OAK,TRIM4#
main71930-44010-B1×2i199711-200207
W(LOCK),SHADOW GRAY,TRIM1#
main71930-44010-B2×2i199704-199910
W(LOCK),DK.CHARCOAL,TRIM10,14
main71930-44010-B3×2i199711-199910
W(LOCK),MD.CHARCOAL,TRIM1#
main71931-32020×2i200005-200202
W/O(LOCK)
main71931-32020-B0×2i199711-199901
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-32020-E0×2i199505-199704
W/O(LOCK),OAK,TRIM4#
main71931-32020-P1×2i199711-200202
W/O(LOCK),MD.CHARCOAL,TRIM1#
main71931-32020-P2×2i199704-199910
W/O(LOCK),DK.CHARCOAL,TRIM1#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12090i199901-199910
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-12100i199711-200207
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-12040i199505-199705
72791LEVER, LUMBAR SUPPORT
main72791-12010-B0i199505-199910
SHADOW GRAY,TRIM1#
main72791-12010-E0i199505-199712
OAK,TRIM4#
main72791-20030-B1i199711-200207
SHADOW GRAY,TRIM1#
main72791-20030-B2i199808-200207
MD.CHARCOAL,TRIM1#
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271133210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33210
9046818071
main90468-18071
9052001006
main90520-01006
9165140616
main91651-40616
9354014014
main93540-14014

31 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
