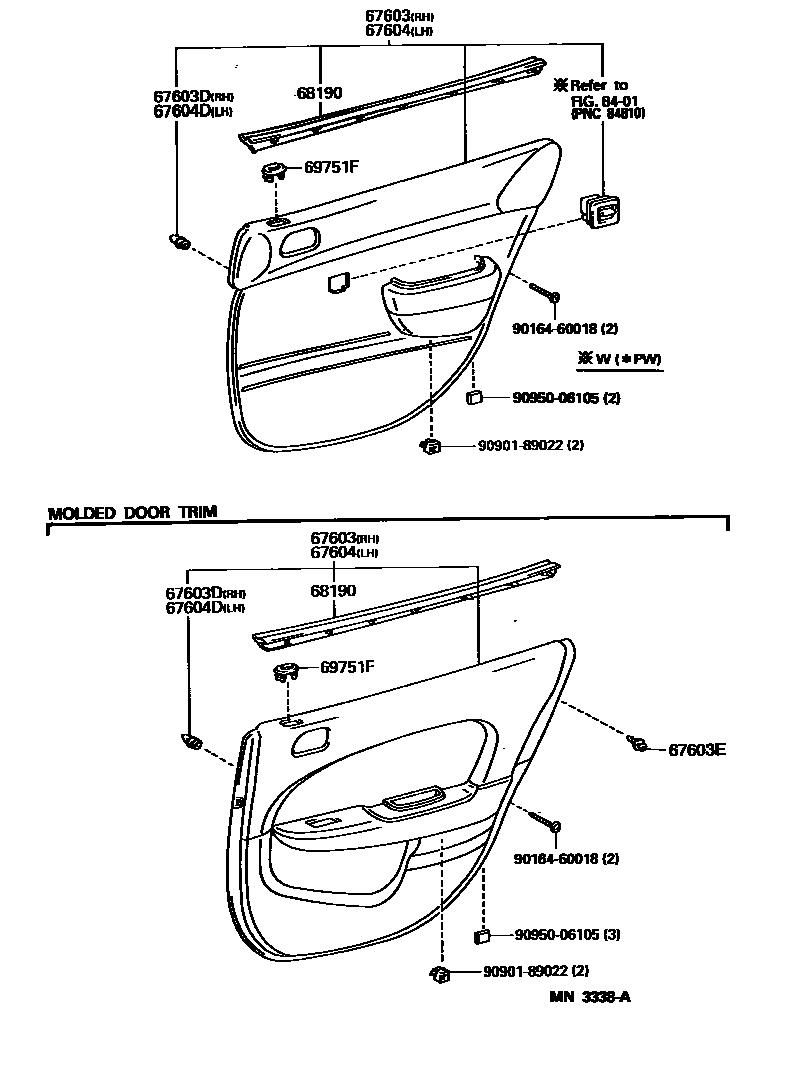

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67010-12070-B0iAE111..ARL199808-199910

MD.CHARCOAL,TRIM1#

main67010-12080-B0iAE111..ARL199808-199910

NEW ZEALAND SPEC & W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main67010-12130-B0iAE111..ARL199808-199910

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main67010-12260-B0iCE110,EE110..XL..(GCC,GEN);AE111,112..(XL,XLI)..(GCC,GEN)200002-200109

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main67010-12270-B0iAE111,CE110,EE110..LHD..(XL,XLI)..GEN199910-200008

DOOR TRIM=TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM9#

main67010-12280-B0iCE110,EE110..XL..GEN;AE111,EE111..SED..(XL,XLI)..GEN199910-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MD.CHARCOAL,TRIM9#

main67010-12290-B0iAE111,EE110..(GL,GLI)..GEN199910-200008

MIDIUM CHARCOAL,TRIM9#

main67010-12310-B0iAE112..ARL199910-200109

DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

main67010-12320-B0iAE112..XLI..ARL199910-200109

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

main67010-12330-B0iAE112..XLI..ARL199910-200109

DOOR TRIM=TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

main67010-12360-B0iAE112..XLI..ARL199910-200109

DOOR TRIM=TYPE B-*104,MD CHARCOAL,TRIM1#

main67630-1H300-B0iAE11#,EE11#..XL,XLI199505-199704

FABRIC TYPE-*104,SHADOW GRAY,TRIM1#

main67630-1H310-B0iAE111..GLI199505-199704

SHADOW GRAY,TRIM1#

main67630-1H320-B0iAE110..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN199704-199910

W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#

main67630-1H330-B0iAE111..RHD..5F..GLI..GEN199704-199910

CKD SPEC & W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#

main67630-1H350-B0iAE110..GLI;AE111..SEG199505-199704

W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#

main67630-1H380-B0iAE111..XLI199605-199704

THAILAND SPEC & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#

main67630-1H410-B0iAE111..SEG199704-199712

SHADOW GRAY,TRIM1#

main67630-1H410-E0iEE110..RHD..5F..XL;AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199704-199712

OAK,TRIM4#

main67630-1H500-B1iAE111..RHD..SED..5F..XLI..GEN199605-199910

CKD SPEC & W(*PW & *EL) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#

main67630-1H560-B0iAE11#..GLI199511-199704

G PACKAGE-*104,SHADOW GRAY,TRIM1#

main67630-1H560-E0iAE110..GLI199511-199704

G PACKAGE-*104,OAK,TRIM4#

main67630-1H610-B3iAE111,CE110,EE110..SED..(XL,XLI)..GEN199704-199910

LEATHER TYPE-*104,MD. CHARCOAL,TRIM10,14

main67630-1H610-B8iEE110..GENKD199910-200002

MIDIUM CHARCOAL,TRIM1#

main67630-1H620-B2iAE111..WG;EE111..GEN;AE111,112,EE110..(XL,XLI)..GCC199704-199910

FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14

main67630-1H630-B1iAE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN199704-199910

W(POWER WINDOW),MD. CHARCOAL,TRIM1#

main67630-1H640-B2iAE112..GEN199808-199910

W(POWER WINDOW),MD. CHARCOAL,TRIM1#

main67630-1H640-B7iEE110..PHL199711-200411

W(POWER WINDOW & POWER DOOR LOCK),XXXX,TRIM1#

main67630-1H650-B3iAE111..GLI..(GENKD,TUR);AE111..RHD..(GL,GLI)..GEN;AE112,EE110..(GL,GLI)..(GCC,GEN,VEN)199704-199910

MD. CHARCOAL,TRIM10

main67630-1H700-B3iAE110..4FC..GEN199807-199910

MD.CHARCOAL,TRIM1#

main67630-1H700-K0iAE110199910

MIDIUM CHARCOAL,TRIM9#

main67630-1H710-B1iAE111..ARL199808-199910

MD.CHARCOAL.,TRIM1#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050×5iAE111..GLI199505-199506

W(*PW & *EL) & MOLDED DOOR TRIM,RED

main67771-16170×2iAE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)199704-199812

SABLE

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-06133-B0×4iAE11#,EE111..IDN,MA,TH199711-199812

SHADOW GRAY,TRIM1#

main90467-06133-B4×4iAE111..WG;EE110..GCC,PHL;AE111..ARL,GCC,GENKD,PHL,TUR;AE110,111..RHD..(GL,GLI)..GEN;AE112,EE11#..(GL,GLI,XLI)..(ARL,BZ,GCC,GEN,TUR,VEN)199704-199910

MD.CHARCOAL,TRIM10,14

main90467-06133-C0×4iEE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910

BLACK,TRIM10,14

main90467-06133-E0×4iAE111..SEG199704-199712

OAK,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67020-12070-B0iAE111..ARL199808-199910

MD.CHARCOAL,TRIM1#

main67020-12080-B0iAE111..ARL199808-199910

NEW ZEALAND SPEC & W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main67020-12130-B0iAE111..ARL199808-199910

NEW ZEALAND SPEC,MD.CHARCOAL,TRIM1#

main67020-12260-B0iCE110,EE110..XL..GEN;AE111..SED..(XL,XLI)..GEN199910-200008

DOOR TRIM=TYPE A-*104,MD.CHARCOAL,TRIM9#

main67020-12270-B0iCE110..XLI;AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN)199910-200109

DOOR TRIM=TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main67020-12280-B0iCE110,EE110..XL..(GCC,GEN);AE111,112..(XL,XLI)..(GCC,GEN)199910-200109

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main67020-12290-B0iAE111..(GL,GLI)..GEN;AE112,EE110,ZZE112..(GL,GLI)..(GCC,GEN,TUR)199910-200201

MIDIUM CHARCOAL,TRIM1#

main67020-12310-B0iAE112..ARL199910-200109

DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

main67020-12320-B0iAE112..XLI..ARL199910-200109

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

main67020-12330-B0iAE112..XLI..ARL199910-200109

DOOR TRIM=TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

main67020-12360-B0iAE112..XLI..ARL199910-200109

DOOR TRIM=TYPE B-*104,MD CHARCOAL,TRIM1#

main67640-1H300-B0iAE110,EE11#..XL,XLI199505-199704

SHADOW GRAY,TRIM1#

main67640-1H310-B0iAE111..GLI199505-199704

SHADOW GRAY,TRIM1#

main67640-1H320-B0iAE110..XLI199704-199711

W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#

main67640-1H330-B0iAE111..RHD..5F..GLI..GEN199505-199910

CKD SPEC & W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#

main67640-1H350-B0iAE111..RHD..5F..GLI..GEN199704-199910

W(*PW & *EL) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#

main67640-1H380-B0iAE111..XLI199605-199704

THAILAND SPEC & FABRIC TYPE-*104,SHADOW GRAY,TRIM1#

main67640-1H410-B0iAE110..GLI;AE111..SEG199505-199704

SHADOW GRAY,TRIM1#

main67640-1H410-E0iAE111..SEG199704-199712

OAK,TRIM4#

main67640-1H500-B1iEE111..GEN199704-199910

CKD SPEC & W(*PW & *EL) & MOLDED DOOR TRIM,SHADOW GRAY,TRIM1#

main67640-1H560-B0iAE111..RHD..5F..GLI..GEN199704-199910

G PACKAGE-*104,SHADOW GRAY,TRIM1#

main67640-1H560-E0iAE110..GLI199511-199704

G PACKAGE-*104,OAK,TRIM4#

main67640-1H610-B3iAE111,CE110,EE110..SED..(STD,XL,XLI)..GEN199704-199910

LEATHER TYPE-*104,MD. CHARCOAL,TRIM10,14

main67640-1H610-B8iAE111..WG..4FC;AE112,EE111..LHD..(STD,XLI)..(GEN,VEN)200002-200208

MIDIUM CHARCOAL,TRIM1#

main67640-1H620-B2iAE111,CE110,EE110..SED..(XL,XLI)..GEN199704-199910

FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14

main67640-1H630-B1iAE111..LHD..WG;AE111,112,EE110..(XL,XLI)..GCC199704-199910

W(POWER WINDOW),MD. CHARCOAL,TRIM1#

main67640-1H640-B2iAE111,CE110,EE110..SED..(XL,XLI)..GEN199704-199910

MOLDED DOOR TRIM,MD. CHARCOAL,TRIM10,14

main67640-1H640-B7iEE110..PHL199711-200411

W(POWER WINDOW & POWER DOOR LOCK),XXXX,TRIM1#

main67640-1H650-B3iAE111..LHD..(GL,GLI)..GEN199704-199910

MD. CHARCOAL,TRIM10

main67640-1H700-B3iAE110..GLI199704-199910

MD.CHARCOAL,TRIM1#

main67640-1H700-K0iAE110199910

MIDIUM CHARCOAL,TRIM9#

main67640-1H710-B1iAE111..ARL199808-199910

MD.CHARCOAL.,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050×5iAE110,111,CE110..GCC,GEN,TUR;AE112,EE110..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN)199910

MOLDED DOOR TRIM

main67771-16170×2iAE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)199704-199812

SABLE

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-12220iAE111..VEN;EE110..RHD..5F..XL;AE112,EE111..(STD,XLI)..(GEN,VEN);AE111..RHD..SED..5F..(GLI,XLI)..GEN199905-199910

RH

main68173-12250iAE111..GLI..TUR;EE110..LHD..XL..GEN;AE111..LHD..SED..(XL,XLI)..(GEN,TUR);AE112,CE110,EE111..LHD..SED..(GEN,TUR,VEN)199704-199905

RH

main68174-12080iAE111..GLI..TH;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN)199901-199905

LH

main68174-12110iAE112..VEN;AE111,EE111..TUR199805-199905

LH

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12070-B0×2iAE11#,EE111..IDN,MA,TH199711-199812

SHADOW GRAY,TRIM1#

main69751-12070-B1×2iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

main69751-12070-E0×2iAE111..SEG199704-199712

OAK,TRIM4#

8401

9016460018

main90164-60018

9090189022

main90901-89022

9095006105

main90950-06105

11 parts on this diagram · 2 diagrams in section
