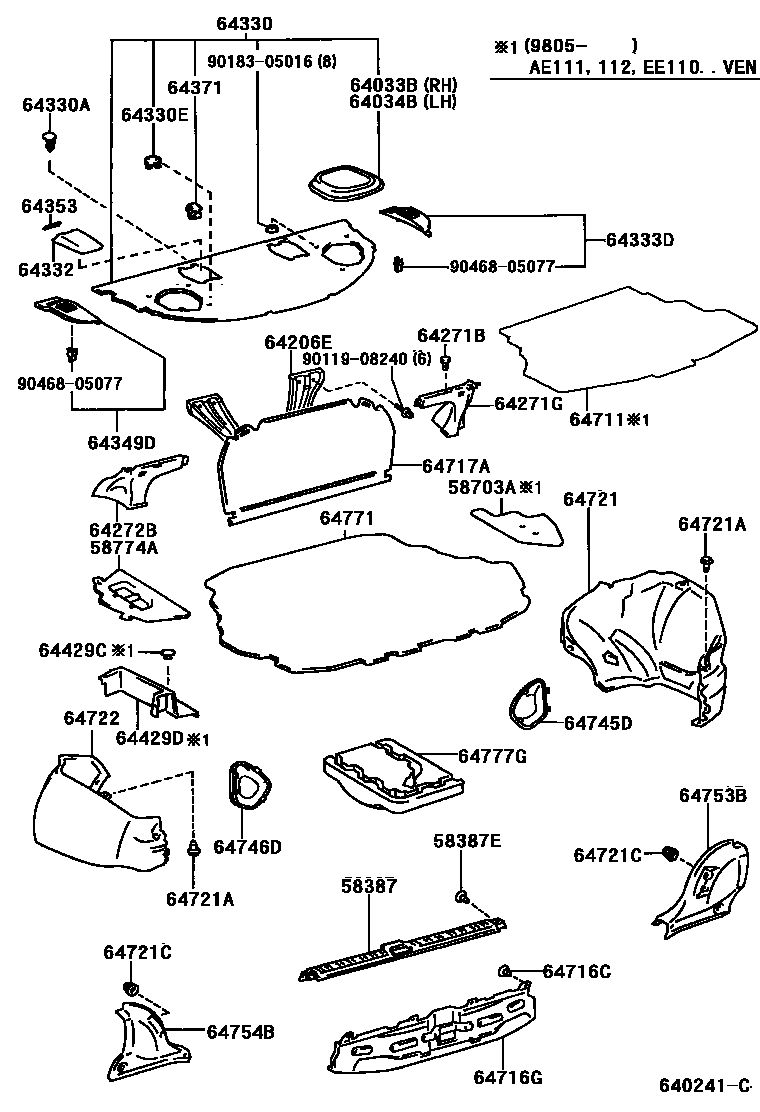

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
MALAYSIA SPEC-*104,SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM9#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK,TRIM1#
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
SHADOW GRAY,TRIM1#,9#
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
SHADOW GRAY,TRIM1#
main64383-12160-B2iEE110..SED..GCC;AE111..GCC,TUR,VEN;AE110,111..RHD..(GL,GLI)..GEN;AE112,EE11#..SED..(GL,GLI,XLI)..(ARL,GCC,GEN,VEN)199704-199910
MD.CHARCOAL,TRIM10,14
OAK,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
SHADOW GRAY,TRIM1#
MD.CHARCOAL,TRIM1#
OAK,TRIM4#
64206EPANEL SUB-ASSY, ROOM PARTITION
main64206-12010iAE112..BZ;CE110..XL..GEN;AE112..SED..XLI..GCC;AE111,EE11#..SED..(STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,VEN)199704
64271BCLIP(FOR ROOM PARTITION BOARD)
BLACK,TRIM9#
sub90467-05027
GRAPHITE,TRIM1#
sub90467-05027
main90467-05020-B7×7iAE110..GLI;EE111..XLI;AE111..ARL,GCC,GENKD,PHL,TUR;AE112,CE110,EE110..SED..(GLI,XL,XLI)..(ARL,GCC,NZ,TUR,VEN)199704-199910
MD.CHARCOAL,TRIM10,14
sub90467-05027
64271GBOARD, ROOM PARTITION, RH
SHADOW GRAY,TRIM1#
main64271-12170-B1iAE110..GLI;EE111..XLI;AE111..ARL,GCC,GENKD,PHL,TUR;AE112,CE110,EE110..SED..(GLI,XL,XLI)..(ARL,GCC,NZ,TUR,VEN)199704-199910
MD.CHARCOAL,TRIM10,14
64272BBOARD, ROOM PARTITION, LH
SHADOW GRAY,TRIM1#
main64272-12100-B1iAE110..GLI;EE111..XLI;AE111..ARL,GCC,GENKD,PHL,TUR;AE112,CE110,EE110..SED..(GLI,XL,XLI)..(ARL,GCC,NZ,TUR,VEN)199704-199910
MD.CHARCOAL,TRIM10,14
64330PANEL ASSY, PACKAGE TRAY TRIM
SHADOW GRAY,TRIM1#
OAK,TRIM4#
W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
W(HIGH MOUNT STOP LAMP),OAK,TRIM4#
W(HIGH MOUNT STOP LAMP & SPEAKER),SHADOW GRAY,TRIM1#
W(HIGH MOUNT STOP LAMP & SPEAKER),OAK,TRIM4#
W(REAR SPOILER & SPEAKER),SHADOW GRAY,TRIM1#
W(REAR SPOILER),OAK,TRIM4#
W(HIGH MOUNT STOP LAMP;IN ROOM),DK. CHARCOAL,TRIM1#
W(HIGH MOUNT STOP LAMP;IN ROOM & 3POINT REAR CENTER SEAT BELT & REAR SPEAKER),DK.CHARCOAL,TRIM1#
main64330-1E030-B0iEE111..GEN,VEN;EE110..(GL,STD)..GEN;AE111,112,EE110..SED..GCC;AE110,111..RHD..(GL,GLI)..GEN199704-199910
DK. CHARCOAL,TRIM10,14
SHADOW GRAY,TRIM1#
OAK,TRIM4#
main64330-1E040-B0iAE111,EE110..SED..(GCC,PHL);AE110,111..RHD..(GL,GLI)..GEN;AE112,EE11#..SED..(GL,GLI,STD,XLI)..(GCC,GEN)199704-199910
W(HIGH MOUNT STOP LAMP;IN ROOM),DK. CHARCOAL,TRIM1#
W(HIGH MOUNT STOP LAMP;IN ROOM),SHADOW GRAY,TRIM1#
W(HIGH MOUNT STOP LAMP;IN ROOM),OAK,TRIM4#
main64330-1E050-B0iAE111,EE110..SED..GCC;AE111..RHD..(GL,GLI)..GEN;AE112,EE11#..SED..(GL,GLI,XLI)..(GCC,GEN,VEN)199704-199910
W(REAR SPEAKER),DK. CHARCOAL,TRIM1#
W(SPEAKER),SHADOW GRAY,TRIM1#
W(REAR SPEAKER),OAK,TRIM4#
W(HIGH MOUNT STOP LAMP;IN ROOM & REAR SPEAKER),DK. CHARCOAL,TRIM1#,9#
W(HIGH MOUNT STOP LAMP;IN ROOM & REAR SPEAKER),SHADOW GRAY,TRIM1#
W(HIGH MOUNT STOP LAMP;IN ROOM & REAR SPEAKER),OAK,TRIM4#
W(REAR SPOILER),DK. CHARCOAL,TRIM1#
DK. CHARCOAL,TRIM1#
DK.CHARCOAL,TRIM1#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90904-67023-B0×2iAE111,EE110..SED..GCC;AE110,111..RHD..(GL,GLI);AE112,EE11#..SED..(GL,GLI,STD,XLI)199704-199708
SHADOW GRAY,TRIM10,14
main90904-67023-B1×2iCE110..XLI;EE11#..SED..(GCC,VEN);AE111,112,ZZE11#..SED..(ARL,GCC,TUR,VEN)199910-200008
DK.CHARCOAL,TRIM1#,9#
OAK,TRIM4#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
64332COVER, PACKAGE TRAY TRIM
DK.CHARCOAL,TRIM1#
64333DCOVER, PACKAGE TRAY TRIM SIDE, RH
SHADOW GRAY,TRIM1#
main64333-12110-B2iEE110..SED..GCC;AE111..GCC,TUR,VEN;EE110..(GL,STD)..GEN;AE110,111..RHD..(GL,GLI)..GEN;AE112,EE111..SED..(ARL,GCC,GEN,VEN)199704-199910
MD.CHARCOAL,TRIM10,14
OAK,TRIM4#
64349DCOVER, PACKAGE TRAY TRIM SIDE, LH
SHADOW GRAY,TRIM1#
MD.CHARCOAL,TRIM9#
OAK,TRIM4#
64353COVER, PACKAGE TRAY TRIM BELT HOLE
MD.CHARCOAL,TRIM1#
64371RETAINER, PACKAGE TRAY TRIM
W(HIGH MOUNT STOP LAMP)
64429CCLIP(FOR LUGGAGE COMPARTMENT SIDE TRAY)
SHADOW GRAY,TRIM1#
BLACK,TRIM1#
64429DTRAY, LUGGAGE COMPARTMENT SIDE
SHADOW GRAY,TRIM1#
64711MAT, LUGGAGE COMPARTMENT FLOOR
SHADOW GRAY,TRIM1#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
BLACK,TRIM1#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
SHADOW GRAY,TRIM1#,4#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
SHADOW GRAY,TRIM1#
BLACK,TRIM9#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
SHADOW GRAY,TRIM1#,4#
SHADOW GRAY,TRIM1#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK,TRIM1#
64721CCLIP(LUGGAGE COMPARTMENT)
W(FOLDING REAR SEAT),BLACK,TRIM1#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
SHADOW GRAY,TRIM1#,4#
SHADOW GRAY,TRIM1#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
main64745-12090-B0iEE111..GEN,MA,VEN;AE111..ARL,GCC,TH,VEN;AE112,EE110..SED..(GLI,STD,XLI)..(BZ,GEN,IDN);AE112,EE110..SED..(STD,XL,XLI)..(GCC,GENKD,PHL,VEN)199812-199910
SHADOW GRAY,TRIM1#
main64745-12100iAE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI)199704-199812
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
SHADOW GRAY,TRIM1#
main64746-12120iAE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI)199704-199812
64753BPLATE, REAR FLOOR FINISH SIDE, RH
SHADOW GRAY,TRIM1#
main64753-12030-B0iAE111..GCC,TUR;EE110..SED..GCC;AE112,CE110..SED..(GLI,XLI)..(ARL,GCC,GEN,VEN)199911-200002
SHADOW GRAY,TRIM1#
64754BPLATE, REAR FLOOR FINISH SIDE, LH
SHADOW GRAY,TRIM1#,4#
main64754-12030-B0iAE111..GCC,TUR;EE110..SED..GCC;AE112,CE110..SED..(GLI,XLI)..(ARL,GCC,GEN,VEN)199910-199911
SHADOW GRAY,TRIM1#
64771COVER, SPARE WHEEL
main64771-12160-B0iAE111..RHD..(GL,GLI,SEG);AE111..GLI..(GENKD,PHL,TUR);AE112..SED..(ARL,BZ,GCC,IDN,TH);AE110,EE11#..(GL,GLI,STD,XLI)..(GEN,MA,TUR);AE111,EE110..SED..(STD,XL,XLI)..(AR199812-199910
SHADOW GRAY,TRIM1#
64777GCUSHION, SPARE WHEEL
SHADOW GRAY,TRIM1#
9011908240
main90119-08240
9018305016
main90183-05016
9046805077
main90468-05077
37 parts on this diagram · 1 diagram in section
