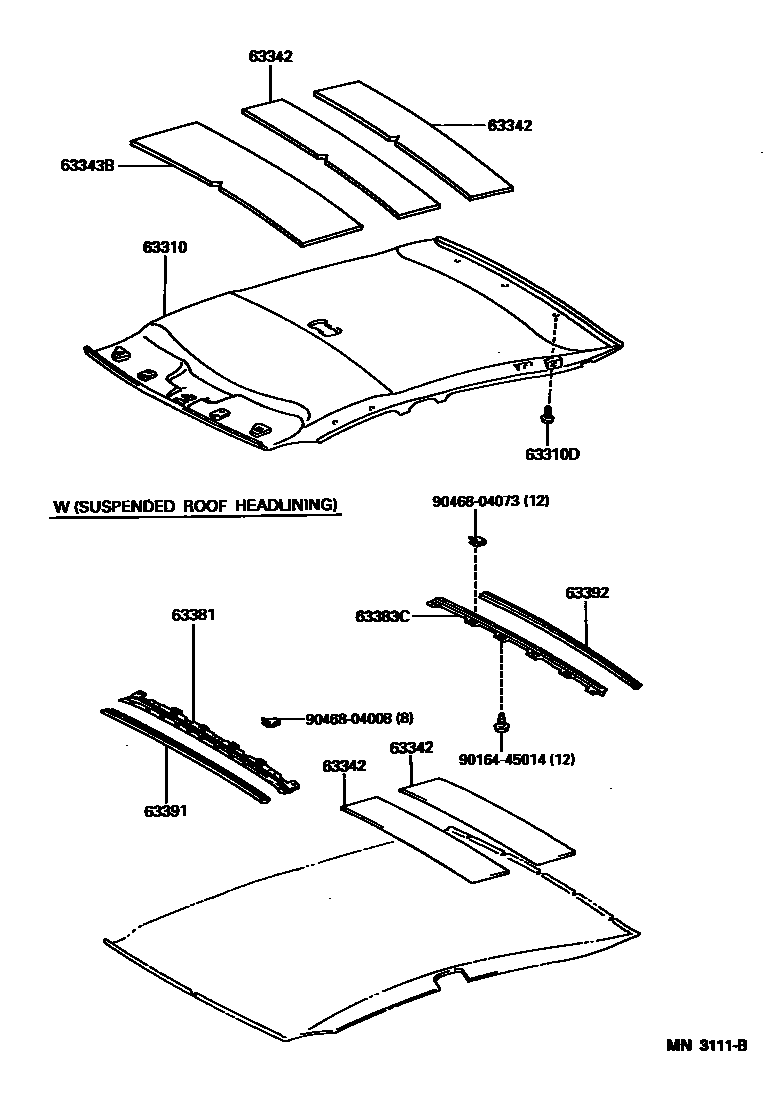

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1MOON ROOF 0003 1MOON ROOF 0004 1 0005 1

63310HEADLINING ASSY, ROOF

main63310-13330-B2iAE111..RHD..WG;AE112,EE110..WG199704-200109

MEDIUM CHARCOAL,TRIM1#

sub63310-13330

main63310-13350-B2iAE111,112,EE110..WG199704-200109

W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#

sub63310-13350

main63310-1A450-A0iAE111..SEG199505-199712

IVORY,TRIM4#

sub63310-1A450

main63310-1A450-B0iAE111..4FC..(MA,TH);AE112,EE111..SED..(GEN,IDN,MA,TH);AE111..RHD..SED..5F..(GLI,SEG,XLI)..(GEN,MA,TH)199505-200207

LT. GRAY,TRIM1#

sub63310-1A450

main63310-1A590-B1iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN199704-199910

MEDIUM CHARCOAL,TRIM10,14

sub63310-1A590

main63310-1A590-B1iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN199704-200109

MEDIUM CHARCOAL,TRIM1#

sub63310-1A590

main63310-1A590-B1iCE110..RHD..XL;AE111,EE110..RHD..SED..GEN199910-200008

MEDIUM CHARCOAL,TRIM1#,9#

sub63310-1A590

main63310-1A590-B1iAE110,EE111..GEN199910

MEDIUM CHARCOAL,TRIM9#

sub63310-1A590

main63310-1A600-B0iEE111..VEN;EE110..SED..GCC;AE111,112,ZZE11#..SED..(GCC,TUR,VEN)199704-200208

MEDIUM CHARCOAL,TRIM1#

main63310-1A600-B0iAE111,CE110,EE110..LHD..SED..GEN199704-199910

MEDIUM CHARCOAL,TRIM10,14

main63310-1A600-B0iAE111,CE110,EE110..LHD..GEN199910-200008

MEDIUM CHARCOAL,TRIM1#,9#

main63310-1A610-B1iAE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN199704-200109

W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#

main63310-1A610-B1iAE111,CE110,EE110..RHD..SED..(XL,XLI)..GEN199704-199910

W(MOON ROOF),MEDIUM CHARCOAL,TRIM10,14

main63310-1A610-B1iAE110,EE111..GEN199910

W(MOON ROOF),MEDIUM CHARCOAL,TRIM9#

main63310-1A610-B1iCE110..RHD..XL;AE111,EE110..RHD..SED..GEN199910-200008

W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#,9#

main63310-1A620-B0iAE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN199704-200109

W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#

main63310-1A620-B0iEE110..LHD..XL..GEN;AE111,CE110..LHD..SED..(GL,XL,XLI)..GEN199704-199910

W(MOON ROOF),MEDIUM CHARCOAL,TRIM10,14

main63310-1A620-B0iAE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN199910-200008

W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#,9#

63310DCLIP, ROOF HEADLINING

main90467-05021-A0iAE110..GLI;AE111..SEG199505-199712

IVORY,TRIM4#

sub90467-05021

sub90467-06177

main90467-05021-B6iCE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub90467-05021

sub90467-06177

main90467-05021-B6iEE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN199704-199910

W(MOON ROOF),MD.CHARCOAL,TRIM10,14

sub90467-05021

sub90467-06177

main90467-05021-B6iEE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN199704-200207

W(MOON ROOF),MD.CHARCOAL,TRIM1#

sub90467-05021

sub90467-06177

main90467-05021-B6iEE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN199704-200208

MD.CHARCOAL,TRIM1#

sub90467-05021

sub90467-06177

main90467-05021-B6iAE111..SED..GEN;CE110,EE110..(GL,XL)..GEN199910-200008

W(MOON ROOF),MD.CHARCOAL,TRIM1#,9#

sub90467-05021

sub90467-06177

main90467-05021-B6iAE111..SED..GEN;CE110,EE110..(GL,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub90467-05021

sub90467-06177

main90467-05021-B6iAE110,EE111..GEN199910

W(MOON ROOF),MD.CHARCOAL,TRIM9#

sub90467-05021

sub90467-06177

main90467-05021-B6iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub90467-05021

sub90467-06177

main90467-05021-B8iAE11#,EE11#199505-200207

LI. GRAY,TRIM1#

sub90467-05021

sub90467-06177

main90467-05021-P0iAE111,112,EE110..WG199704-199910

SHADOW GRAY,TRIM10,14

sub90467-05021

sub90467-06177

main90467-05021-P0iAE111,112,EE110..WG199704-200002

SHADOW GRAY,TRIM1#

sub90467-05021

sub90467-06177

main90467-05021-P0iEE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199910

W(MOON ROOF),SHADOW GRAY,TRIM10,14

sub90467-05021

sub90467-06177

main90467-05021-P0iEE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199910

W(MOON ROOF),SHADOW GRAY,TRIM1#

sub90467-05021

sub90467-06177

main90467-05021-P0iEE110..GENKD199708-199910

SHADOW GRAY,TRIM10

sub90467-05021

sub90467-06177

main90467-05129-B2iAE111,112,EE110..WG199704-199910

MD.CHARCOAL,TRIM1#

main90467-05129-B2iAE111,112,EE110..WG199704-200109

W(MOON ROOF),MD.CHARCOAL,TRIM1#

main90467-05129-B2iAE111,112,EE110..WG199910-200109

MD.CHARCOAL,TRIM11,16

63342PAD, ROOF SILENCER, NO.2

main63341-12160iAE110..4FC..GEN199704

main63341-16010iAE111,112,EE111..IDN,MA,TH199505-200207

PLANT NO. A31,A32

sub63341-12330

main63342-12060iAE111,112,EE111..IDN,MA,TH199711-200207

main63342-12060iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199505-199910

PLANT NO. M12

63343BPAD, ROOF SILENCER, REAR

main63343-12050iAE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENK199505-200109

63381RETAINER, HEADLINING, FRONT

main63381-12160iAE111..RHD..SED..5F..XLI..GEN199510-199910

63383CRETAINER, ROOF HEADLINING TRIM, REAR

main63383-12070iAE111..SEG;AE111..RHD..SED..5F..XLI199510-199910

63391TRIM, ROOF HEADLINING, FRONT

main63391-12140-A0iAE111..SEG199505-199603

IVORY,TRIM4#

sub63391-12141

main63391-12140-B0iAE111..SEG,XLI199505-199603

LT.GRAY,TRIM1#

sub63391-12141

main63391-12141-A0iAE111..SEG199603-199712

IVORY,TRIM4#

main63391-12141-B0iAE111..RHD..SED..5F..XLI..GEN199603-199910

LT.GRAY,TRIM1#

63392TRIM, ROOF HEADLINING, REAR

main63392-12270-A0iAE111..SEG199505-199712

IVORY,TRIM4#

sub63392-12270

main63392-12270-B0iAE111..RHD..SED..5F..XLI..GEN199505-199910

LT.GRAY,TRIM1#

sub63392-12270

9016445014

main90164-45014

9046804008

main90468-04008

9046804073

main90468-04073

11 parts on this diagram · 5 diagrams in section
