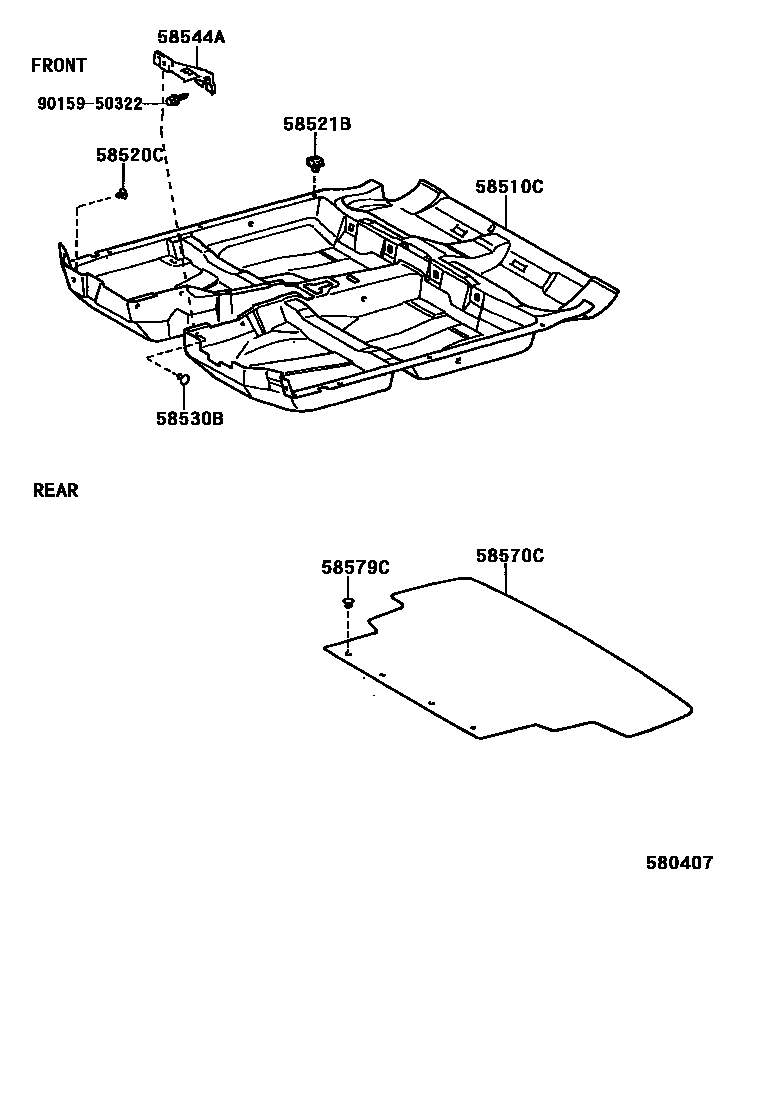

MAT & CARPET

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1E440-B0iAE110..GLI199505-199704

SHADOW GRAY,TRIM1#

main58510-1E440-E2iEE110199505-199704

OAK,TRIM4#

main58510-1E470-B0iAE111..RHD..5F..GLI..GEN199704-199910

W(FOOT REST),SHADOW GRAY,TRIM16

main58510-1E470-B0iAE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199505-199910

SHADOW GRAY,TRIM1#

main58510-1E470-B0iAE11#,EE11#..XL,XLI199505-199704

W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E470-E2iAE111..SEG199505-199712

OAK,TRIM4#

main58510-1E500-B0iEE110..RHD..XL199505-199910

SHADOW GRAY,TRIM1#

main58510-1E750-B0iAE111,112..ARL199808-200109

DARK CHARCOAL,TRIM1#

main58510-1E760-B0iAE111..RHD..(GL,GLI);EE11#..RHD..(GL,GLI,XLI);AE110,112,CE110..IDN,NZ,TH;AE111..(SEG,XLI)..(MA,NZ,TH)199704-199812

W(FOOT REST),DARK CHARCOAL,TRIM10,12,14

main58510-1E760-B0iAE111..XLI..TH;AE111..RHD..(GL,GLI,SEG);AE112,EE11#..RHD..(GL,GLI,SEG,XLI)..(GEN,IDN,MA,TH)199812-200207

W(FOOT REST),DARK CHARCOAL,TRIM1#

main58510-1E760-B0iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN199704-199910

W(FOOT REST),DARK CHARCOAL,TRIM10,14

main58510-1E760-B0iCE110..RHD..XL;AE111,EE110..RHD..SED..GEN199910-200008

W(FOOT REST),DARK CHARCOAL,TRIM1#,9#

main58510-1E760-B0iCE110..RHD..XL;AE111,EE110..RHD..SED..GEN199910-200008

W(FOOT REST),DARK CHARCOAL,TRIM9#

main58510-1E810-B0iAE111..GLI..TUR;AE111,112,EE110..SED..(GLI,SEG,XL,XLI)..(GCC,GENKD,PHL,VEN)199704-200208

W(FOOT REST),DARK CHARCOAL,TRIM1#

main58510-1E810-B0iAE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN199910-200008

W(FOOT REST),DARK CHARCOAL,TRIM1#,9#

main58510-1E810-B0iAE111,CE110,EE110..LHD..SED..(3FC,4FC,5F)..GEN199704-199910

W(FOOT REST),DARK CHARCOAL,TRIM10,14

main58510-1E850-B1iAE110..GLI199704-199910

DARK CHARCOAL,TRIM1#

main58510-1E850-B1iAE110199910

DARK CHARCOAL,TRIM9#

main58510-1E870-B0iCE110..RHD..XL;AE111,EE110..RHD..SED..(XL,XLI)..GEN199910-200008

DARK CHARCOAL,TRIM9#

main58510-1E870-B0iEE111..GEN199704-200207

DARK CHARCOAL,TRIM1#

main58510-1E870-B0iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(XL,XLI)..GEN199704-199910

DARK CHARCOAL,TRIM10,14

main58510-1E870-B0iCE110..XLI199910-200008

DARK CHARCOAL,TRIM1#,9#

main58510-1E880-B0iEE110..SED..GCC;AE111..XLI..(GCC,TUR);AE112,EE111..SED..(STD,XLI)..(GCC,VEN)199704-200208

DARK CHARCOAL,TRIM1#

main58510-1E880-B0iAE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN199704-199910

DARK CHARCOAL,TRIM10,14

main58510-1E880-B0iAE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN199910-200008

DARK CHARCOAL,TRIM1#,9#

main58510-1F250-B1iAE111,112,EE110..LHD..WG199704-200109

DARK CHARCOAL,TRIM1#

main58510-1F350-B1iAE111..RHD..WG199704-200109

DARK CHARCOAL,TRIM1#

main58510-1F360-B1iAE111,112,EE110..LHD..WG199704-200109

W(FOOT REST),DARK CHARCOAL,TRIM1#

main58510-1F370-B1iAE111..RHD..WG199704-200109

W(FOOT REST),DARK CHARCOAL,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-22iAE110..4FC..GEN199505-200208

BLACK,TRIM1#

main90467-09068-22iAE110..GLI;AE111..SEG199505-199712

BLACK,TRIM1#,4#

main90467-09068-22iEE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN199704-199910

BLACK,TRIM10,14

main90467-09068-22iAE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN199910-200008

BLACK,TRIM1#,9#

main90467-09068-22iAE110,EE111..GEN199910

BLACK,TRIM9#

main90467-09068-B4iAE111..RHD..WG;AE112,EE110..WG199704-199910

DK.CHARCOAL,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-12120iAE110..4FC..GEN199505-199812

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09118iAE110..4FC..GEN199505-199812

58544ABRACKET, FLOOR CARPET, LH

main58544-12040iEE110..LHD..(GCC,GEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

main58544-13040iAE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..RHD;AE111..RHD..(GL,GLI,XL,XLI)199704-200207

58570CCARPET ASSY, REAR FLOOR

main58571-13150-B0iAE111,112,EE110..WG199704-200109

MEDIUM CHARCOAL,TRIM1#

58579CCLIP, REAR FLOOR CARPET SET

main90467-06089-B1iAE111..RHD..WG;AE112,EE110..WG199704-200109

DK.CHARCOAL,TRIM1#

9015950322

main90159-50322

8 parts on this diagram · 2 diagrams in section
