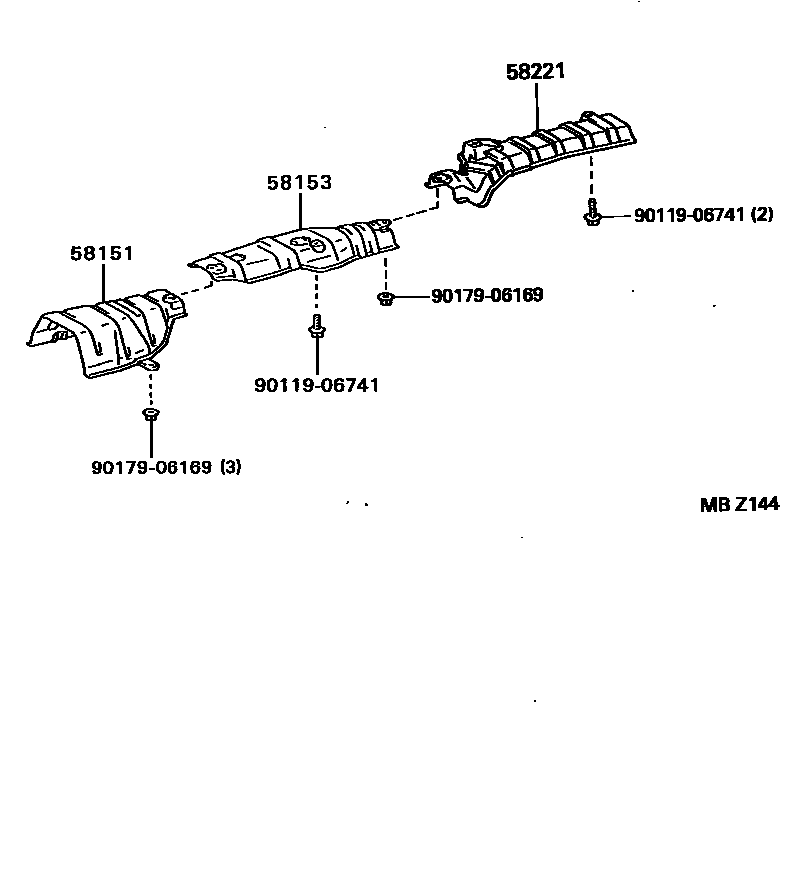

FLOOR INSULATOR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
58153INSULATOR, FRONT FLOOR HEAT, NO.2
MALAYSIA SPEC
MALAYSIA SPEC OR THAILAND SPEC
main58153-12150iAE111..RHD..WG;AE110,112,EE111..ARL,GEN;AE111..LHD..GLI..(GEN,TUR);AE111..SED..4FC..XLI..(GEN,TUR,VEN);AE111..LHD..SED..5F..XLI..(GEN,TUR,VEN)199611-200207
THAILAND SPEC
SINGAPORE SPEC
SINGAPORE SPEC OR THAILAND SPEC
58221INSULATOR, CENTER FLOOR HEAT, NO.1
main58221-12110iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002
9011906741
main90119-06741
9017906169
main90179-06169
5 parts on this diagram · 1 diagram in section
