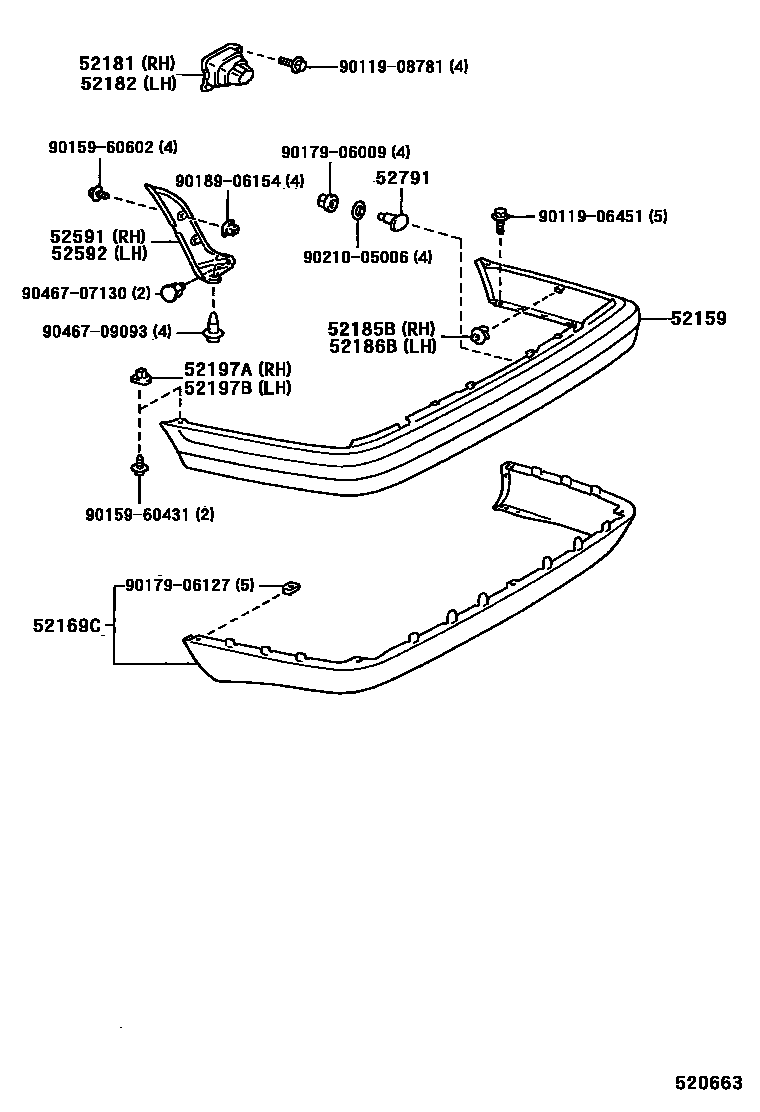

REAR BUMPER & BUMPER STAY

0001 1TYPE A 0002 1TYPE B 0003 1TYPE C 0004 1

52159COVER, REAR BUMPER

main52159-13110iAE111..RHD..WG;AE112,EE110..WG199704-200109

main52159-1A650iAE11#,EE11#199505-199704

BUMPER = TYPE A

main52159-1A750iAE112..LHD..GLI;EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..(GEN,VEN)199704-199808

BUMPER = TYPE B

main52159-1A800iAE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN199910-200008

BUMPER = TYPE C

52169CCOVER, REAR BUMPER, LOWER

main52169-12040iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

BUMPER = TYPE A

main52169-12110iAE112..SED..XLI..GCC;AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,NZ,VEN);AE112,CE110,EE11#..SED..(GL,GLI,STD,XL)..(ARL,GCC,GEN,NZ,VEN)199704-200002

BUMPER = TYPE B

main52169-13030iAE111,112,EE110..WG199704-199910

52181ARM, REAR BUMPER, RH

main52181-12400iAE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)199704-200008

52182ARM, REAR BUMPER, LH

main52182-12320iEE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199505-200008

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-12230iAE112,EE110..WG;AE111..RHD..5F..XLI;AE111..RHD..(GLI,SEG);AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-12230iAE112,EE110..WG;AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..5F..(GLI,XLI)..GEN199705-199910

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-16020iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200008

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-16020iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200008

52591SEAL, REAR BUMPER SIDE, RH

main52591-12100iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

main52591-12110iAE111,112,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN200008-200208

BUMPER = TYPE B

52592SEAL, REAR BUMPER SIDE, LH

main52592-12020iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

main52592-12030iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199704-200008

BUMPER = TYPE B

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12010×4iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

sub90109-06354

main52791-12030×4iEE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC199704-200008

BUMPER = TYPE C

9011906451

main90119-06451

9011908781

main90119-08781

9015960431

main90159-60431

9015960602

main90159-60602

9017906009

main90179-06009

9017906127

main90179-06127

9018906154

main90189-06154

9021005006

main90210-05006

9046707130

main90467-07130

9046709093

main90467-09093

21 parts on this diagram · 4 diagrams in section
