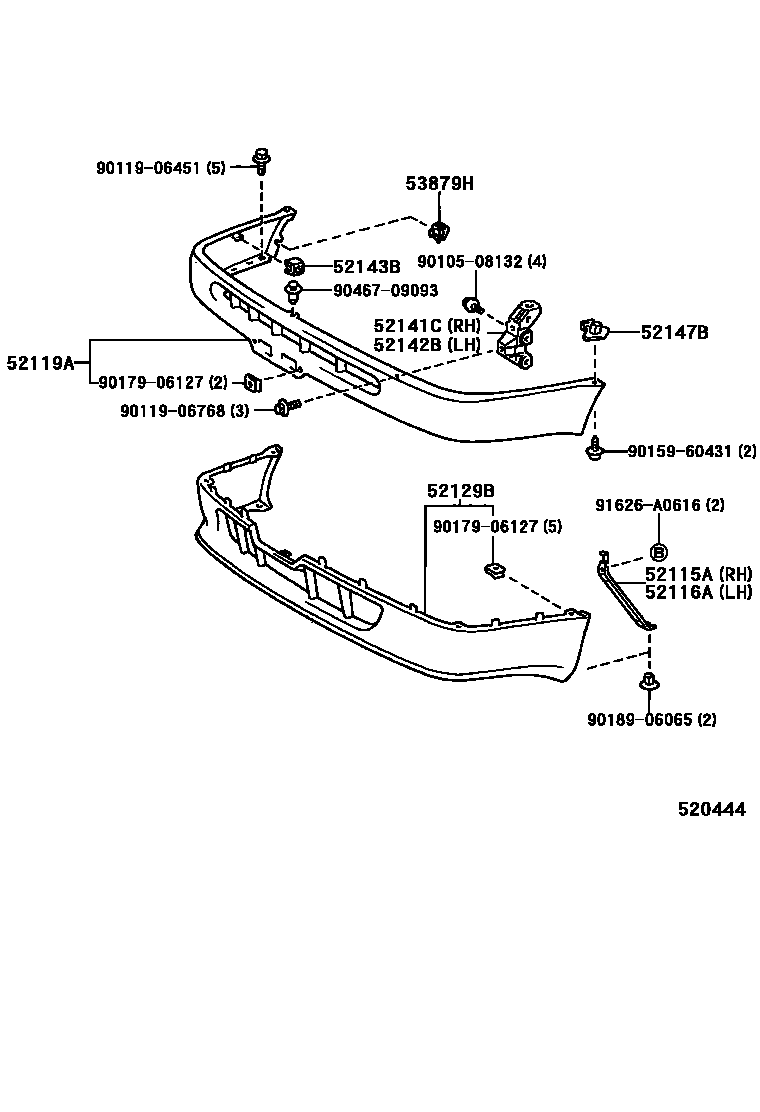

FRONT BUMPER & BUMPER STAY

0001 1TYPE A 0002 1TYPE B 0003 1TYPE C 0004 1TYPE D

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12320iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505-200208

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12290iAE111,112,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN199505-200208

52119ACOVER, FRONT BUMPER

main52119-1E020iAE111..ARL;AE111,112,EE110..(GL,GLI)..(ARL,GCC,GEN)199704-200202

BUMPER = TYPE B

main52119-1E330iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199505-199910

BUMPER = TYPE A

main52119-1E500iEE110..PHL200008

sub52119-1E510

main52119-1E510iEE110..GENKD,PHL199704-200207

BUMPER = TYPE C

main52119-1E610iZZE11#;EE111..VEN;AE111,112,CE110,EE110..ARL,GCC,GEN,VEN199910-200208

BUMPER = TYPE D

main52119-1E630iAE112..GLI..ARL199910-200109

BUMPER = TYPE D & W(FOG LAMP)

sub52119-1E610

52129BCOVER, FRONT BUMPER, LOWER

main52129-12040iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199505-199910

BUMPER = TYPE A

main52129-12070iEE110..GCC;AE111..RHD..WG;AE111,112,EE110..(GL,GLI)..(GCC,GEN)199704-200202

BUMPER = TYPE B

52141CARM, FRONT BUMPER, RH

main52141-12420iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199910

52142BARM, FRONT BUMPER, LH

main52142-12350iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199505-199910

52143BBRACKET, FRONT BUMPER SIDE

main52143-12340iAE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH)199704-200008

BUMPER = TYPE C

main52143-12340iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

main52143-12350iAE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..LHD..(STD,XLI);AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN);AE112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN199704-200208

BUMPER = TYPE B

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-12190iAE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..LHD..(STD,XLI);AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN);AE112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN199704-200208

BUMPER = TYPE B

main52147-16080iAE110..4FC..GEN199704-200008

BUMPER = TYPE C

main52147-16080iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

53879HRETAINER, FRONT FENDER LINER

main53879-12010iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200208

9010508132

main90105-08132

9011906451

main90119-06451

9011906768

main90119-06768

9015960431

main90159-60431

9017906127

main90179-06127

9018906065

main90189-06065

9046709093

main90467-09093

91626A0616

main91626-A0616

17 parts on this diagram · 4 diagrams in section
