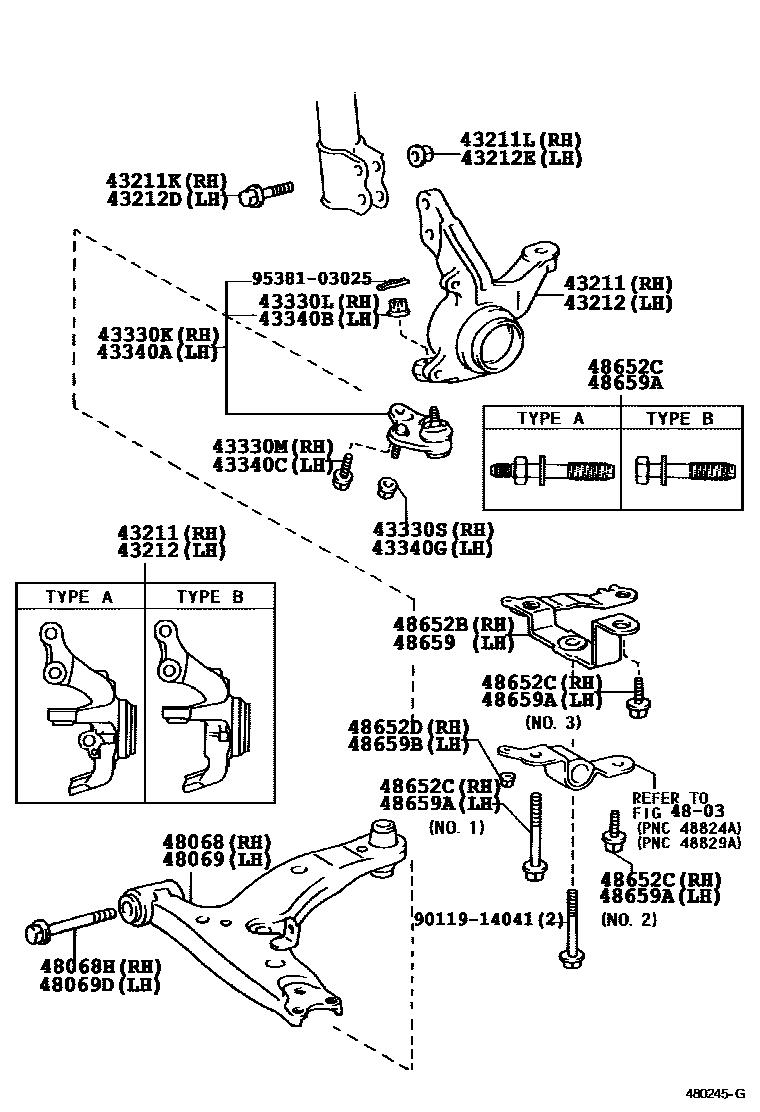

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-12290iAE110..4FC..GEN199809-199910

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

main43211-12290iEE111..GEN,VEN;EE110..LHD..3FC;AE111,CE110..GCC,GEN,TUR,VEN;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN)199505-199910

TYPE A:REFER TO ILLUSTRATION & W(POWER STEERING)

main43211-12300iAE111,112..VEN199505-200005

W(ABS & POWER STEERING)

main43211-12300iAE111..RHD..XLI..GEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)199704-200207

W(POWER STEERING)

main43211-12310iAE111..RHD..WG;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(XL,XLI)..GEN199505-200109

main43211-12320iAE111..RHD..SED..5F..XLI..GEN199704-200207

W(POWER STEERING & *80)

main43211-12320iAE111..RHD..SED..5F..XLI..GEN199505-200109

W(ABS)

main43211-12330iAE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)199910-200002

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

sub43211-12290

main43211-12330iAE112,ZZE11#..ARL,GCC,GEN,TUR;AE110,111,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN,VEN)200002

TYPE B:REFER TO ILLUSTRATION

sub43211-12290

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

OD=15.0

main90105-15004iAE110..4FC..GEN199505

OD=13.9

main90105-15005iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

OD=13.3

main90105-15006iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

OD=12.4

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

43212KNUCKLE, STEERING, LH

main43212-12250iEE111..GEN,VEN;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN);AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-199809

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

main43212-12260iAE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)199505-200207

W(ABS & POWER STEERING)

main43212-12270iAE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)199505-200109

main43212-12280iAE112,EE111..GEN;AE111..RHD..XLI..GEN;AE111..LHD..SED..XLI..(GCC,GEN)199505-200207

W(ABS)

main43212-12290iAE110..4FC199910-200002

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

sub43212-12250

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iAE110..4FC..GEN199505

OD=15.0

main90105-15004iAE110..4FC..GEN199505

OD=13.9

main90105-15005iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

OD=13.3

main90105-15006iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

OD=12.4

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE110..4FC..GEN199505

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12160iAE110..4FC..GEN199505-200005

main48068-12170iAE111;AE110,EE11#..XL,XLI199505-199610

W(STABILIZER BRACKET)

sub48068-12171

main48068-12171iCE110..XL;AE111..MA,TUR;EE111..GLI,XLI;AE111..RHD..WG..5F;AE110,112..IDN,NZ,TH,VEN;AE111..RHD..SED..(GLI,XLI)..(GEN,NZ,TH)199610-200208

W(STABILIZER BRACKET)

main48068-12171iZZE11#200005-200201

main48068-12181iAE112..ARL199808-200109

main48068-12191iAE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE112,EE110..BZ,GCC,GEN,GENKD,PHL;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL)199704-200109

ROUGH ROAD PACKAGE

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14023iAE110..4FC..GEN199505

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12160iAE111..RHD..WG;AE110,112,EE110..GCC,GEN;AE111,EE111..SED..(GCC,GEN,VEN)199505-200005

main48069-12170iAE111;AE110,EE11#..XL,XLI199505-199610

W(STABILIZER BRACKET)

sub48069-12171

main48069-12171iAE111..TUR;AE110..XLI..GEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,CE110,EE111..SED..(GLI,XL,XLI)..(GEN,VEN)199610-200208

W(STABILIZER BRACKET)

main48069-12171iZZE11#200005-200201

main48069-12181iAE111,112..ARL199808-200109

main48069-12191iAE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN)199704-200109

ROUGH ROAD PACKAGE

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14023iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

48652BBRACKET, FRONT LOWER ARM, RH

main48652-12060iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199704-199910

MALAYSIA SPEC

main48652-12060iAE11#,EE11#199505-199704

main48652-12070iAE11#,EE11#199508-200208

W(STABILIZER BRACKET)

main48652-12091iAE112..ARL;AE111,ZZE11#..TUR199807-200201

main48652-12100iAE111..WG..5F;AE112..GCC,GEN;AE111..LHD..WG..4FC;AE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,TUR,VEN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,VEN)199704-200207

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90109-10168iAE110..4FC..GEN199704

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

main90119-10692iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

*10-1.25PX29-23,NO.2

main90119-12125iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

*12-1.25PX31-25.3,NO.3

main90119-12238iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199704

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

main90119-12238iAE11#,EE11#199505-199704

*12-1.25PX75-38,NO.1

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08145iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

sub90179-08123

48659BRACKET, FRONT LOWER ARM, LH

main48659-12060iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199704-199910

MALAYSIA SPEC

main48659-12060iAE11#,EE11#199505-199704

main48659-12070iAE11#,EE11#199508-200208

W(STABILIZER BRACKET)

main48659-12091iAE112..GLI..ARL;AE111,EE111..ARL,TUR199807-200201

main48659-12100iAE110..4FC..GEN199704-200207

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90109-10168iAE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,199704

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

main90119-10692iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

*10-1.25PX29-23,NO.2

main90119-12125iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

*12-1.25PX31-25.3,NO.3

main90119-12238iAE110..4FC..GEN199704

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

main90119-12238iAE11#,EE11#199505-199704

*12-1.25PX75-38,NO.1

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08145iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

sub90179-08123

9011914041

main90119-14041

9538103025

main95381-03025

27 parts on this diagram · 2 diagrams in section
