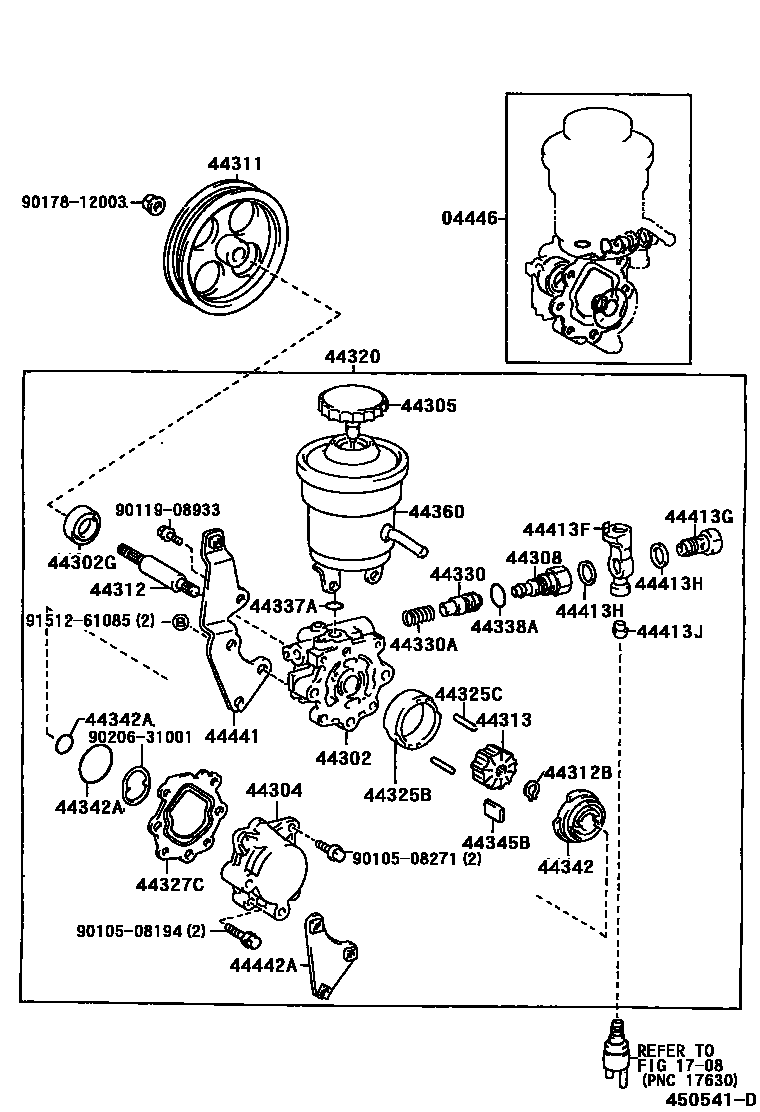

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12080iZZE11#200005-200201

main04446-20120iEE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

main04446-27011iCE110199704-200109

main04446-32011iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-02060iEE111..TUR199907-200005

main44302-12041iCE110199704-200109

main44302-12110iEE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

main44302-12160iAE110..4FC..GEN199505-200207

main44302-12180iZZE11#200005-200201

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90080-31048iEE111..TUR199907-200005

main90311-18007iEE110..LHD..3FC;EE110..5F..(GCC,GEN);CE110,EE111..GEN,VEN199505-200208

main90311-18015iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-32041iZZE11#200005-200201

main44324-02040iEE111..TUR199907-200005

main44324-12031iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

main44324-26031iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-02040iEE111..TUR199907-200005

(L)

main44305-12030iCE110,EE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

sub44305-12040

main44305-12030iEE111..TUR199907-200005

(J)

sub44305-12040

main44305-20041iZZE11#200005-200201

sub44305-20050

main44305-22040iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

sub44305-22060

44308UNION SUB-ASSY, PRESSURE PORT

main44308-02030iEE111..TUR199907-200005

main44308-12032iEE110199505-199509

sub44308-12042

main44308-12042iEE110..GENKD;EE111..GEN,MA,VEN;CE110,EE110..(3FC,5F)..(GL,STD,XL)..(GCC,GEN,PHL,VEN)199509-200208

main44308-12050iEE111199505-199509

sub44308-12042

main44308-12110iAE110,112;AE111..SED;AE111..RHD..WG199505-199705

main44308-28010iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199705-200207

main44308-52010iZZE11#200005-200201

44311PULLEY, VANE PUMP

main44311-02060iEE111..TUR199907-200005

main44311-12030iCE110199704-200109

main44311-12090iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

main44311-12100iEE110..LHD..(GL,XL)..(GCC,GEN)199704-200109

MALAYSIA SPEC

main44311-12100iEE111..VEN199505-200208

main44311-12110iEE110..5F..GEN;EE110..LHD..3FC199704-200207

main44311-12110iEE111..GEN199704-200008

MALAYSIA SPEC

44312SHAFT, VANE PUMP

main44312-02030iEE111..TUR199907-200005

TYPE A:REFER TO ILLUSTRATION

main44312-02040iEE111..TUR199907-200005

TYPE B:REFER TO ILLUSTRATION

main44312-12030iCE110,EE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

main44312-32020iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90080-52097iEE111..TUR199907-200005

main90520-10003iAE110..4FC199505-199907

44313ROTOR, VANE PUMP

main44313-02060iEE111..TUR199907-200005

NO MARK

main44313-02070iEE111..TUR199907-200005

MARK 1

main44313-02080iEE111..TUR199907-200005

MARK 2

main44313-02090iEE111..TUR199907-200005

MARK 3

main44313-02100iEE111..TUR199907-200005

MARK 4

main44313-22040iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

NO MARK

main44313-22050iCE110,EE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

MARK 1

main44313-22060iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

MARK 2

main44313-22070iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

MARK 3

main44313-22080iEE110..LHD..3FC;EE110..5F..(GCC,GEN);CE110,EE111..GEN,VEN199505-200208

MARK 4

main44313-26060iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

NO MARK

main44313-26070iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

MARK 1

main44313-26080iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

MARK 2

main44313-26090iAE110..4FC..GEN199505-200207

MARK 3

main44313-26100iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

MARK 4

main44313-32060iZZE11#200005-200201

NO MARK

main44313-32070iZZE11#200005-200201

MARK 1

main44313-32080iZZE11#200005-200201

MARK 2

main44313-32090iZZE11#200005-200201

MARK 3

main44313-32100iZZE11#200005-200201

MARK 4

44320PUMP ASSY, VANE

main44310-12500iZZE11#200005-200201

main44320-02050iEE111..TUR199907-200005

main44320-12212iEE111..GEN;EE110..LHD..3FC;EE110..5F..(GCC,GEN)199505-200207

main44320-12241iEE111199505-200208

sub44320-12212

main44320-12271iCE110..GEN199704-200109

main44320-12342iAE111..GL,XL199704-200109

main44320-12360iEE110..PHL,VEN199810

main44320-12390iAE11#199505-199704

sub44320-12391

main44320-12391iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GLI,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199704-200207

44325BRING, VANE PUMP CAM

main44325-02110iEE111..TUR199907-200005

NO MARK

main44325-02120iEE111..TUR199907-200005

MARK 1

main44325-02130iEE111..TUR199907-200005

MARK 2

main44325-02140iEE111..TUR199907-200005

MARK 3

main44325-02150iEE111..TUR199907-200005

MARK 4

main44325-12110iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

NO MARK

main44325-12120iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

MARK 1

main44325-12130iEE110..GENKD;EE111..GEN,MA,VEN;CE110,EE110..(3FC,5F)..(GL,STD,XL)..(GCC,GEN,PHL,VEN)199505-200208

MARK 2

main44325-12140iEE110..GENKD;EE111..GEN,MA,VEN;CE110,EE110..(3FC,5F)..(GL,STD,XL)..(GCC,GEN,PHL,VEN)199505-200208

MARK 3

main44325-12150iCE110,EE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

MARK 4

main44325-12270iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

NO MARK

main44325-12280iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

MARK 1

main44325-12290iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

MARK 2

main44325-12300iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

MARK 3

main44325-12310iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

MARK 4

main44325-32340iZZE11#200005-200201

NO MARK

main44325-32350iZZE11#200005-200201

MARK 1

main44325-32360iZZE11#200005-200201

MARK 2

main44325-32370iZZE11#200005-200201

MARK 3

main44325-32380iZZE11#200005-200201

MARK 4

44325CPIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90080-25025iEE111..TUR199907-200005

L=23.3,OD=4.0

main90250-04047iEE110..GENKD;EE111..GEN,MA,VEN;CE110,EE110..(3FC,5F)..(GL,STD,XL)..(GCC,GEN,PHL,VEN)199505-200208

L=28,OD=4.0

main90250-04049iCE110,EE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

L=43,OD=4.0

main90250-04071iAE110..4FC..GEN199505-200207

L=23.3,OD=4.0

44327CGASKET, VANE PUMP HOUSING

main44327-02020iEE111..TUR199907-200005

main44327-26010iAE110..4FC..GEN199505-200207

44330VALVE ASSY, FLOW CONTROL

main44330-02190iEE111..TUR199907-200005

MARK A

main44330-02200iEE111..TUR199907-200005

MARK B

main44330-02210iEE111..TUR199907-200005

MARK C

main44330-02220iEE111..TUR199907-200005

MARK D

main44330-02230iEE111..TUR199907-200005

MARK E

main44330-02240iEE111..TUR199907-200005

MARK F

main44330-12311iEE111..GEN,VEN;EE110..LHD..3FC;EE110..5F..(GCC,GEN)199505-200208

MARK A

main44330-12321iEE11#..(3FC,5F)..(GCC,GEN)199505-200208

MARK B

main44330-12331iEE111..GEN,VEN;EE110..LHD..3FC;EE110..5F..(GCC,GEN)199505-200208

MARK C

main44330-12341iEE110..GENKD;EE11#..(3FC,5F)..(GCC,GEN,MA,PHL,VEN)199505-200208

MARK D

main44330-12351iEE111..GEN,VEN;EE110..LHD..3FC;EE110..5F..(GCC,GEN)199505-200208

MARK E

main44330-12361iEE11#..(3FC,5F)..(GCC,GEN)199505-200208

MARK F

main44330-12570iAE110..4FC..GEN199505-200207

MARK A

sub44330-32191

main44330-12580iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

MARK B

sub44330-32201

main44330-12590iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

MARK C

sub44330-32211

main44330-12600iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

MARK D

sub44330-32221

main44330-12610iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

MARK E

sub44330-32231

main44330-12620iAE110..4FC..GEN199505-200207

MARK F

sub44330-32241

main44330-12630iZZE11#200005-200201

MARK A

main44330-12640iZZE11#200005-200201

MARK B

main44330-12650iZZE11#200005-200201

MARK C

main44330-12660iZZE11#200005-200201

MARK D

main44330-12670iZZE11#200005-200201

MARK E

main44330-12680iZZE11#200005-200201

MARK F

main44330-20070iCE110199704-200109

MARK A

sub44330-32730

main44330-20080iCE110..GEN199704-200109

MARK B

sub44330-32740

main44330-20090iCE110199704-200109

MARK C

sub44330-32750

main44330-20100iCE110199704-200109

MARK D

sub44330-32760

main44330-20110iCE110..GEN199704-200109

MARK E

sub44330-32770

main44330-20120iCE110199704-200109

MARK F

sub44330-32780

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50224iEE111..TUR199907-200005

main90501-12103iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

main90501-13034iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

44337UNION, POWER STEERING SUCTION PORT

main44337-02030iEE111..TUR199907-200005

main44337-12060iEE11#..(3FC,5F)..(GCC,GEN)199505-200208

main44337-12091iCE110199704-200109

main44337-12100iZZE11#200005-200201

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30040iEE111..TUR199907-200005

main90301-11010iAE11#199505-199610

sub90301-11016

main90301-11016iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199610-199910

main90301-11020iZZE11#200005-200201

main90301-12003iEE11#199505-199610

sub90301-11016

44338UNION, PRESSURE PORT

main44338-12160iEE111..TUR199907-200005

44338ARING, O(FOR PRESSURE PORT UNION)

main90080-30039iEE111..TUR199907-200005

OD=22.5,ID=19.5

main90301-18009iZZE11#200005-200201

OD=22,ID=18.6

main90301-19003iAE11#,EE11#199505-199610

ID=19.5,OD=22.5

sub90301-19013

main90301-19013iAE111..SED;EE110..GENKD;AE111..WG..5F;EE111..GEN,MA,VEN;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,P199610-200212

ID=19.2,OD=22.3

sub90301-19018

main90301-19018iEE110200212

ID=19.2,OD=22.3

44342PLATE, VANE PUMP SIDE, REAR

main44342-02020iEE111..TUR199907-200005

main44342-26020iAE110..4FC..GEN199505-200207

main44342-32010iEE110..LHD..3FC;EE110..5F..(GCC,GEN);CE110,EE111..GEN,VEN199505-200208

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90080-30030iEE111..TUR199907-200005

main90301-18007iAE110..4FC..GEN199505-200207

OUTER

main90301-47001iAE110..4FC..GEN199505-200207

INNER

main90301-52001iEE110..LHD..3FC;EE110..5F..(GCC,GEN);CE110,EE111..GEN,VEN199505-200208

44345BPLATE, VANE PUMP

main44345-02060iEE111..TUR199907-200005

NO MARK

main44345-02070iEE111..TUR199907-200005

MARK 1

main44345-02080iEE111..TUR199907-200005

MARK 2

main44345-02090iEE111..TUR199907-200005

MARK 3

main44345-02100iEE111..TUR199907-200005

MARK 4

main44345-12010iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

L=14.997

main44345-12020iCE110,EE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

L=14.995

main44345-12030iCE110,EE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

L=14.993

main44345-12040iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

L=14.991

main44345-12050iCE110,EE11#..(3FC,5F)..(GCC,GEN)199505-200208

L=14.989

main44345-26010iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

L=15.000

main44345-26020iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

L=14.998

main44345-26030iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

L=14.996

main44345-26040iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

L=14.994

main44345-26050iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

L=14.992

main44345-32100iZZE11#200005-200201

ROTOR NO MARK

main44345-32110iZZE11#200005-200201

ROTOR MARK 1

main44345-32120iZZE11#200005-200201

ROTOR MARK 2

main44345-32130iZZE11#200005-200201

ROTOR MARK 3

main44345-32140iZZE11#200005-200201

ROTOR MARK 4

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-12160iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

main44360-02030iEE111..TUR199907-200005

(L)

main44360-12050iCE110,EE111;EE110..GENKD;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN)199505-200208

main44360-12050iEE111..TUR199907-200005

(J)

main44360-12060iZZE11#200005-200201

44413TUBE, PRESSURE FEED, NO.1

main44413-12170iZZE11#200005-200201

44413FTUBE, PRESSURE FEED, NO.2

main44413-12150iAE111..GL,XL199704-200109

main44413-12160iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GLI,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199505-200207

44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)

main90401-16041iZZE11#200005-200201

main96341-41603iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

44413HGASKET(FOR PRESSURE FEED TUBE NO.2)

main44327-12040iZZE11#200005-200201

main90430-16242iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

44413JSEAT, UNION(FOR PRESSURE FEED TUBE NO.2)

main90410-05035iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

44441BRACKET, PUMP, FRONT

main44441-02040iEE111..TUR199907-200005

main44441-12070iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

44442ABRACKET, VANE PUMP, REAR

main44442-02040iEE111..TUR199907-200005

main44442-12020iAE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-200207

9010508194

main90105-08194

9010508271

main90105-08271

9011908933

main90119-08933

9017812003

main90178-12003

9020631001

main90206-31001

9151261085

main91512-61085

38 parts on this diagram · 6 diagrams in section
