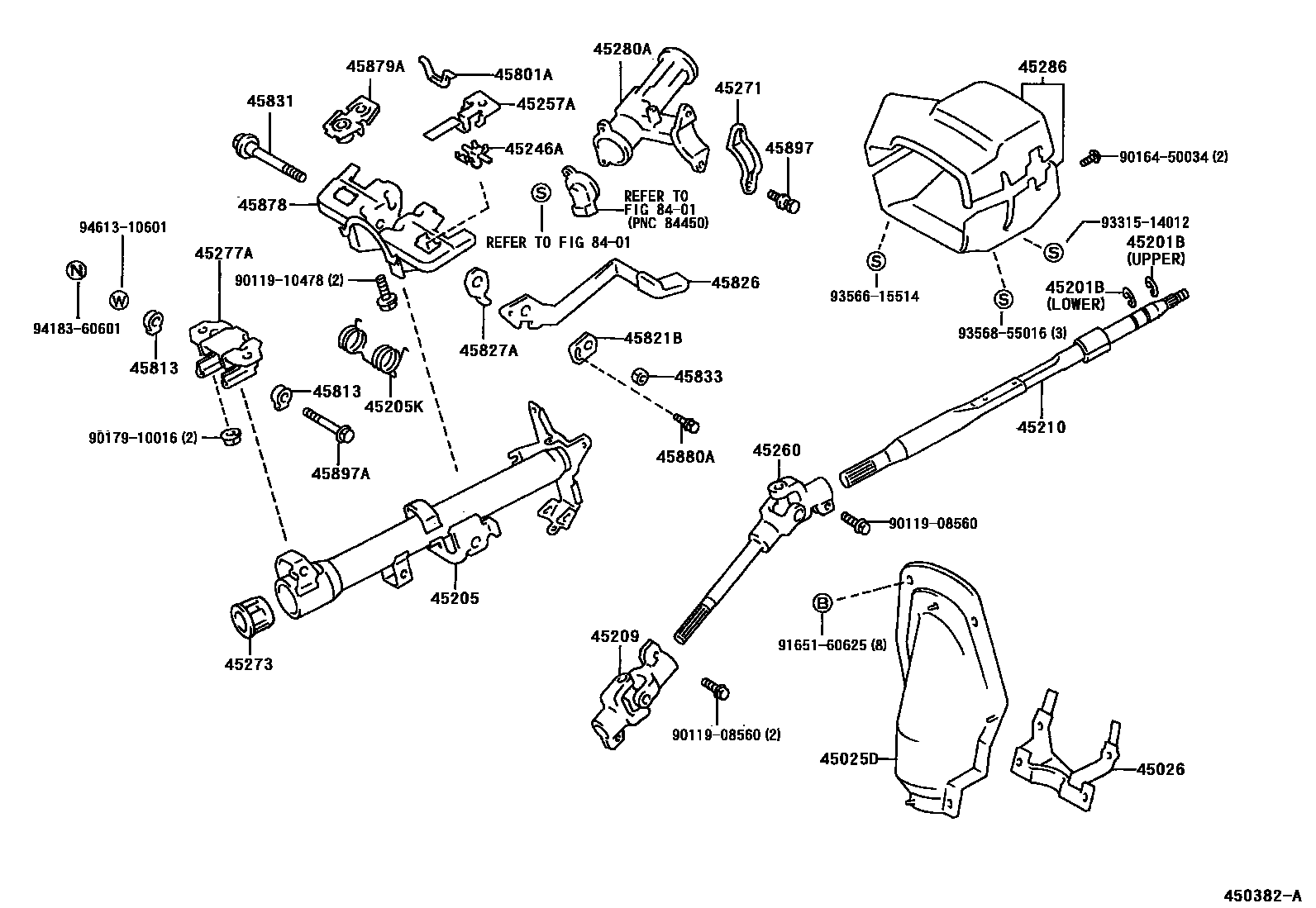

STEERING COLUMN & SHAFT

0001 1W(TILT STEERING) 0002 1RIGID STEERING

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12170iAE110..TH;AE111..RHD..WG..5F;CE110..RHD..XL..GEN;AE111,EE11#..RHD..SED..(XL,XLI)..(GEN,TH)199704-200207

main45025-12180iAE11#,EE11#199505-199704

W(POWER STEERING)

main45025-12190iAE112,CE110..LHD..GEN;EE110..LHD..(STD,XL)..(GCC,GEN);AE111..LHD..SED..(XL,XLI)..(GCC,GEN)199704-200109

main45025-12201iEE110..LHD..(GL,XL)..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN)199704-200208

W(POWER STEERING)

main45025-13010iAE111..MA;AE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE110,112,CE110..RHD..(GLI,SEG,XL);AE111,EE11#..RHD..SED..(GL,GLI,XL,XLI)199704-200207

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12010iAE110,111,CE110,EE11#..RHD..(XL,XLI)..GEN199505-200109

main45026-12020iAE111..MA;AE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE110,112,CE110..RHD..(GLI,SEG,XL);AE111,EE11#..RHD..SED..(GL,GLI,XL,XLI)199704-200207

W(POWER STEERING)

main45026-12030iAE112,CE110..LHD..GEN;AE111..LHD..(XL,XLI)..(GCC,GEN);EE110..LHD..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)199704

main45026-12040iEE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI)199704

W(POWER STEERING)

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAE110..4FC..GEN199807

T=1.20,LOWER

main90520-17269iAE110..4FC..GEN199807

T=1.20,UPPER

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-12350iZZE111;AE111..RHD..WG;AE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(GLI,STD,XL)..(GCC,GEN);AE110,112,CE110,EE111..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)199505-200208

main45205-12360iAE110..4FC..GEN199807

W(TILT STEERING)

45205KSPRING(FOR STEERING COLUMN TUBE)

main90949-03027iAE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199505

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12060iAE111..RHD..WG;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(XL,XLI)..GEN199505-200109

main45209-12080iAE111..RHD..WG;EE110..(GL,XL)..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

W(POWER STEERING)

45210SHAFT ASSY, STEERING MAIN

main45210-02060iAE112..PHL199910-200207

main45210-12480iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-12110×2iAE110..4FC..GEN199807

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-12070×2iAE110..4FC..GEN199807

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12350iAE110..TH;AE111..RHD..WG..5F;CE110..RHD..XL..GEN;AE111,EE11#..RHD..SED..(XL,XLI)..(GEN,TH)199704-200207

main45260-12430iAE110..4FC..GEN199807

W(POWER STEERING)

main45260-12440iAE112,CE110..LHD..GEN;AE111..LHD..(XL,XLI)..(GCC,GEN);EE110..LHD..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)199704

main45260-12450iEE110..LHD..(GL,XL)..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN)199704-200103

W(POWER STEERING)

main45260-12500iAE112..BZ200103-200202

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

45273BUSH, STEERING MAIN SHAFT

main45273-12020iAE11#,EE11#199505-199704

main45273-38010iAE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199704

45277ASUPPORT, TILT STEERING

main45277-12010iEE110..GENKD;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE110..(GL,XL,XLI)..(BZ,GCC,GEN);AE110,112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,NZ,PHL,VEN);AE111,EE111..SED..(199704-200207

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12320iAE111;AE110,EE11#..XL,XLI199505-199605

W/O(UNLOCK WARNING SWITCH)

sub90467-06132

main45280-12321iAE111..(XL,XLI)..GEN;AE112,CE110,EE11#..(STD,XL,XLI)..(GEN,VEN)199910-200002

W/O(UNLOCK WARNING SWITCH)

main45280-12330iAE110..5F..GLI199505-199605

W(UNLOCK WARNING SWITCH)

main45280-12331iAE111..GCC,GEN,TUR,VEN;AE112..4FC..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(3FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199910-200208

W(UNLOCK WARNING SWITCH)

main45280-12340iAE110..4FC..GLI199505-199605

main45280-12341iAE110..4FC199910

45286COVER, STEERING COLUMN

main45286-12955-B0iEE111;AE11#,EE110..(4FC,5F)..(XL,XLI)199505-199704

SHADOW GRAY,TRIM1#

main45286-12956-B0iAE110..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN199704-199910

SHADOW GRAY,TRIM1#

main45286-12956-E0iAE111..SEG199704-199712

OAK,TRIM4#

main45286-12962-B0iAE110,111..XLI..TH199711-200207

SHADOW GRAY,TRIM1#

main45286-12962-B1iEE111..GEN,VEN;AE111..RHD..WG;AE111,EE110..GCC;AE111..LHD..(GL,GLI)..GEN;AE112,EE110..LHD..(GL,GLI,XLI)..(GCC,GEN)199704-199910

DK.CHARCOAL,TRIM1#

main45286-12963-B0iAE11#,EE111..IDN,MA,TH199711-200207

W(TILT STEERING),SHADOW GRAY,TRIM1#

main45286-12963-B1iAE111..SED..GEN;CE110,EE110..(GL,XL)..GEN199910-200008

W(TILT STEERING),DK.CHARCOAL,TRIM1#,9#

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010×2iAE110..4FC..GEN199807

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-12010×2iAE110..4FC..GEN199807

OD=14

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iAE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199505

45826LEVER, STEERING TILT

main45826-12040iAE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199505

45827ALEVER, STEERING TILT SUB

main45827-12030iAE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199505

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12020iAE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199505

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-12010iEE110..GENKD;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE110..(GL,XL,XLI)..(BZ,GCC,GEN);AE110,112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,NZ,PHL,VEN);AE111,EE111..SED..(199704-200207

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-12220iAE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199505

45879ACAPSULE, BREAK AWAY

main45879-12050×2iAE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE112..(GLI,SEG)..(ARL,BZ,GCC,NZ,PHL,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,TUR,VEN);AE111,EE1199704-200207

45880ABOLT(FOR STEERING TILT LEVER)

main45832-12010iAE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199505

45897BOLT, STEERING LOCK SET

main45897-12020×2iAE110..4FC..GEN199807

45897ABOLT, TILT STEERING PAWL SET

main45897-12040iEE110..GENKD;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE110..(GL,XL,XLI)..(BZ,GCC,GEN);AE110,112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,NZ,PHL,VEN);AE111,EE111..SED..(199704-200207

8401

9011908560

main90119-08560

9011910478

main90119-10478

9016450034

main90164-50034

9017910016

main90179-10016

9165160625

main91651-60625

9331514012

main93315-14012

9356615514

main93566-15514

9356855016

main93568-55016

9418360601

main94183-60601

9461310601

main94613-10601

38 parts on this diagram · 2 diagrams in section
