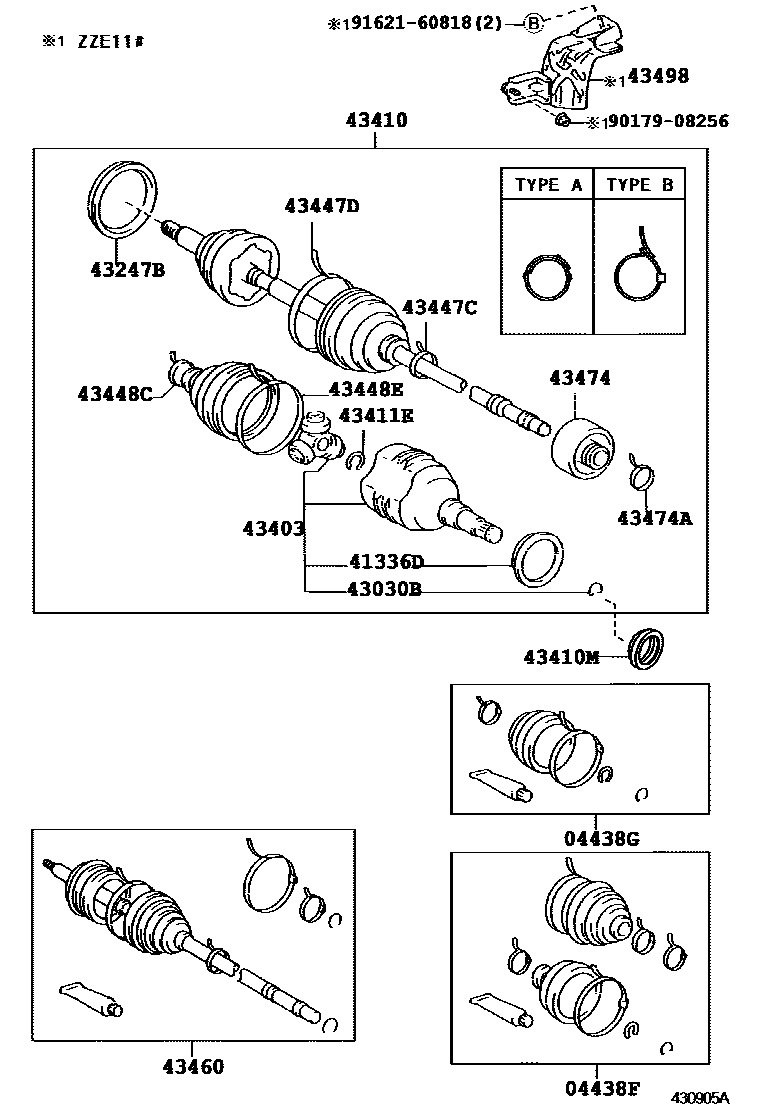

FRONT DRIVE SHAFT

0001 1RH 0003 1RH 0004 1LH 0006 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172iAE110..4FC..GEN199808

sub04428-12270

main04438-12290iCE110199704-199804

main04438-12481iCE110200104-200109

sub04428-12250

main04438-12610iAE112..ARL,GEN,VEN200104-200208

sub04428-12260

main04438-16080iAE111,EE110..PHL199711-199907

main04438-16081iAE111,EE110..PHL199907

sub04428-16020

main04438-20110iAE112..GCC199704-199804

main04438-20131iAE112,CE110199804-199901

sub04438-20134

main04438-20132iAE112,CE110..ARL,GCC,GEN,VEN199901-200104

sub04438-20133

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12162iAE11#,EE11#199505-199511

main04438-12410iAE110..4FC..GEN199808

sub04438-12840

main04438-12420iCE110199704-199804

main04438-12470iCE110200104-200109

sub04438-32240

main04438-16070iAE111,EE110..PHL199711-199907

main04438-16071iAE111,EE110..PHL199907

sub04438-16150

main04438-20121iAE112,CE110..ARL,GCC,GEN,VEN199804-200104

main04438-52051iAE112..BZ,IDN,PHL,TH200104-200207

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,ZZE11#..GCC,GEN,TUR,VEN199808

main41336-12060iCE110200011-200109

main41336-32010iCE110..GEN199704-200011

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,ZZE11#..GCC,GEN,TUR,VEN199808

main90521-27005iCE110199704-199910

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAE110..4FC..GEN199807

W(ABS)

main43247-33010iCE110..XL;AE111..SED;AE110,EE11#;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL)199809

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-20020iCE110..GEN199704-200109

main43403-12040iEE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)199505-199808

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20341iCE110199704-199709

sub90178-22001

main43410-20342iCE110199709-199901

main43410-20343iCE110199901-199910

main43410-20344iCE110200104-200109

main43410-20420iAE112199704-199709

sub90178-22001

main43410-20421iAE112..ARL,BZ,GCC,GEN,IDN199709-199901

main43410-20422iAE112..XLI..(BZ,GCC,GEN,IDN);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL)199901-200104

main43410-20423iAE112..ARL,GEN200104-200109

main43410-20440iAE110,EE110..GL,GLI,STD,XL;AE111,EE111..GL,GLI,XL,XLI199704-199709

sub90178-22001

main43410-20441iAE111..RHD..WG;EE110..LHD..3FC;AE110,EE111..GEN;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN)199709-199808

sub43410-20442

main43410-20450iAE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN)199704-199709

W(ABS)

sub90178-22001

main43410-20451iAE110..TH;AE111..MA;AE110..GLI;AE111,EE111..(GLI,XLI)..(GCC,GEN,MA,TH,TUR,VEN)199709-199808

W(ABS)

sub43410-20452

main43410-20460iAE112199704-199709

W(ABS)

sub90178-22001

main43410-20461iAE112..ARL,GCC,GEN,VEN199709-199901

W(ABS)

main43410-20462iAE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN)199901-200104

W(ABS)

main43410-20463iAE112..BZ,IDN,PHL,TH200104-200207

W(ABS)

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAE110..4FC..GLI199704-199802

main90311-34016iAE110,111..SED..5F..(GCC,GEN,TUR,VEN)199505-199809

main90311-34023iAE111,112,EE11#..MTM..(BZ,GENKD,IDN,MA,PHL,TH)200008-200112

main90311-35033iCE110..GEN199704-200007

main90311-35049iCE110200007-200109

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iAE111,EE110..PHL199711

sub90520-22029

main90520-22005iAE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,TH,TUR,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,199808-200207

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iAE112..BZ,IDN,PHL,TH200104-200207

ID=29.6

sub42345-12190

main42345-16010iAE111..RHD..WG;EE110..LHD..3FC;AE110,EE111..GEN;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN)199704-199808

ID=32.5

main42345-16030iAE112,CE110199704-199901

ID=35.45

main42345-20100iAE112,CE110..ARL,GCC,GEN199910-200002

ID=31.1

main90949-01078iAE110..4FC..GEN199808-199910

ID=32.7

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iAE112..BZ,IDN,PHL,TH200104-200207

ID=92.0

sub42345-12180

main42345-16020iAE110..4FC..GEN199808

ID=88.0

main42345-16040iAE112,CE110..ARL,GCC,GEN,VEN199704-199901

ID=91.9

main42345-20120iAE112..BZ,IDN,PHL,TH200002-200104

ID=90.6

main90949-01080iEE111..GEN;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704-199808

ID=88.2

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iAE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN199910-200002

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iAE111,112,EE111..VEN200202-200208

main90949-01076iAE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,TH,TUR,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,TUR199901-200202

main90949-01146iAE111,EE110..PHL199711-200411

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29098iAE110,EE110..GL,GLI,STD,XL;AE111,EE111..GL,GLI,XL,XLI199704-199709

sub90178-22001

main43460-29099iAE111..RHD..WG;EE110..LHD..3FC;AE110,EE111..GEN;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN)199709-199808

sub43460-80094

main43460-29117iAE112199704-199709

sub90178-22001

main43460-29118iAE112..GCC199709-199804

main43460-29119iAE112..ARL,BZ,GCC,GEN,IDN199804-199901

main43460-29120iAE112..ARL,GCC,GEN,VEN199804-199901

W(ABS)

main43460-29121iAE112..XLI..(BZ,GCC,GEN,IDN);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL)199901-200104

W(ABS)

main43460-29122iAE112..ARL,GEN200104-200109

W(ABS)

main43460-29147iCE110199704-199709

sub90178-22001

main43460-29148iCE110199709-199804

main43460-29149iCE110199804-199901

main43460-29150iCE110199901-199910

main43460-29151iCE110200104-200109

main43460-29167iAE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN)199704-199709

W(ABS)

sub90178-22001

main43460-29168iAE110..TH;AE111..MA;AE110..GLI;AE111,EE111..(GLI,XLI)..(GCC,GEN,MA,TH,TUR,VEN)199709-199808

W(ABS)

sub43460-80095

main43460-29198iAE112199704-199709

W(ABS)

sub90178-22001

main43460-29199iAE112..GCC199709-199804

W(ABS)

main43460-29200iAE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN)199901-200104

main43460-29201iAE112..BZ,IDN,PHL,TH200104-200207

43474DAMPER, DRIVE SHAFT

main43474-12020iCE110199704-199910

main43474-12040iAE110..4FC..GEN199808-200311

main43474-12130iEE110200311

main43474-20050iAE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN)199704-200207

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iEE110..GCC,GEN;AE110,111..GCC,GEN,TUR,VEN;AE112,EE111..SED..(GEN,VEN)199910-200002

TYPE B:REFER TO ILLUSTRATION

main42345-16030iAE110..4FC..GEN199808-199910

TYPE A:REFER TO ILLUSTRATION

main90949-01947iAE112,CE110..ARL,GCC,GEN199910-200002

TYPE B:REFER TO ILLUSTRATION

43498INSULATOR, DRIVE SHAFT HEAT

main43409-12050iZZE11#200005-200201

sub43409-12051

9017908256

main90179-08256

9162160818

main91621-60818

19 parts on this diagram · 4 diagrams in section
