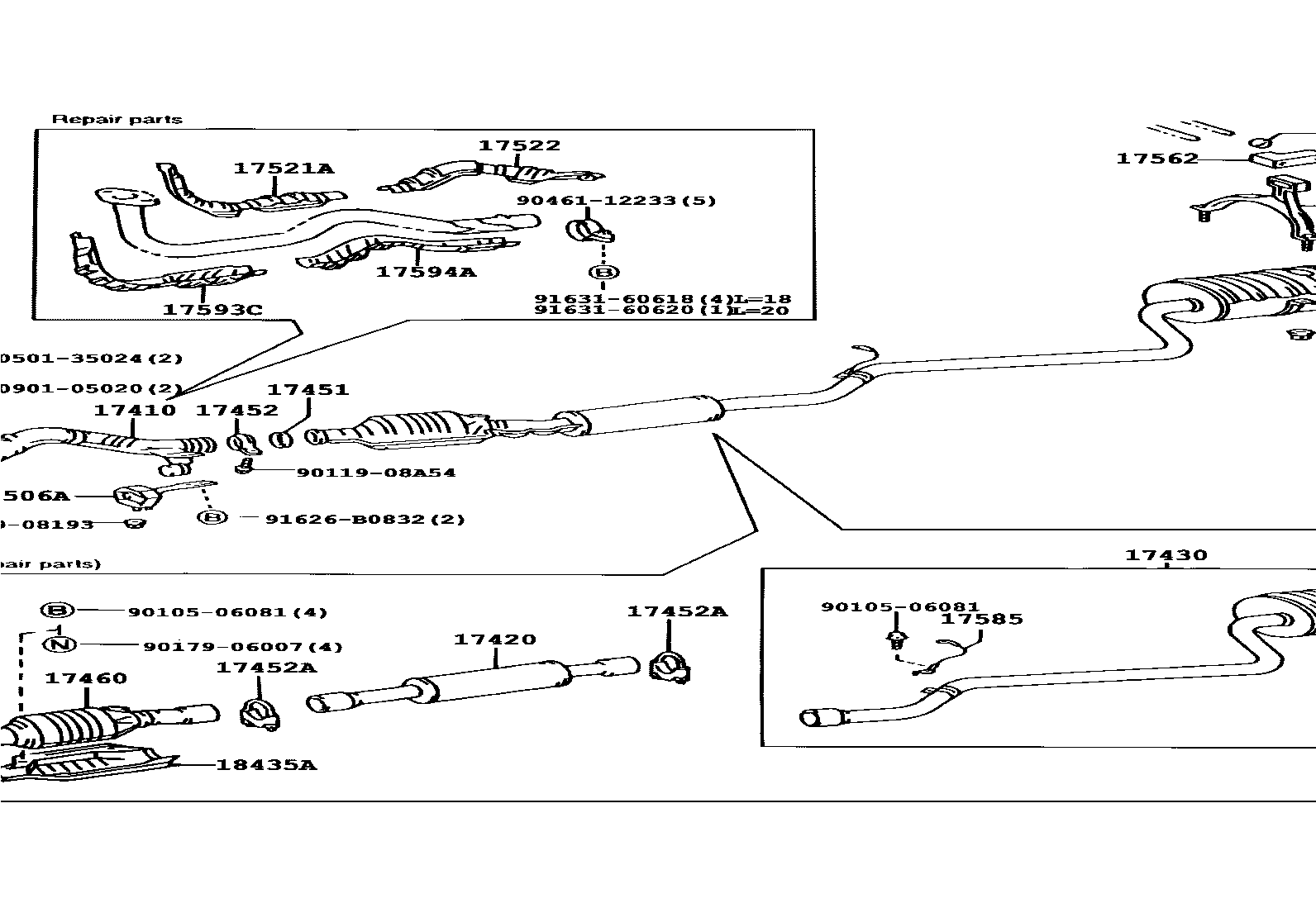

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17401-11391
MALAYSIA SPEC
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,W/O(CONVERTER),REAR
sub17410-1A550
W(CONVERTER)
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,W(CONVERTER)
FRONT
main17410-1A330i4AFE..AE111..RHD..WG..5F;4AFE..AE111..SED..(GCC,GEN);4AF,7AFE..AE111,112..GCC,GEN199505-200109
W/O(CONVERTER),FRONT
W(CONVERTER)
sub17410-1A481
W(CONVERTER)
W(CONVERTER)
W/O(CONVERTER)
W/O(CONVERTER),REAR
W/O(CONVERTER),REAR
REAR
W(CONVERTER)
17420PIPE ASSY, EXHAUST, CENTER
sub17420-15160
W/O(CONVERTER)
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,W(CONVERTER)
W(CONVERTER)
TYPE B:REFER TO ILLUSTRATION & W(CONVERTER)
W(CONVERTER)
TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)
sub17420-64291
17430PIPE ASSY, EXHAUST, TAIL
main17430-11820i2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505-199811
W/O(CONVERTER)
sub17430-11821
W/O(CONVERTER)
sub17430-15591
sub17430-15621
TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)
sub17430-1A601
main17430-1A601i4AFE..AE111..WG..5F;7AFE..AE112..GLI..ARL;4AFE,7AFE..AE111,112..LHD..GEN199811-200109
W(CONVERTER)
sub17430-1A602
TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)
sub17430-1A602
W(CONVERTER)
TYPE B:REFER TO ILLUSTRATION & W(CONVERTER)
sub17430-1D011
sub17430-6A231
17451GASKET, EXHAUST PIPE
W/O(CONVERTER)
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,W(CONVERTER),FRONT
FRONT
W(CONVERTER),FRONT
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,W(CONVERTER),REAR
W(CONVERTER),REAR
REAR
W/O(CONVERTER)
main90917-06084i7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GEN,TUR,VEN)199704-200208
W(CONVERTER)
17452CLAMP, EXHAUST PIPE
main90461-15013i2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);5AFE,2C,4EFE..AE110,CE110,EE111..GEN199704-200207
W/O(CONVERTER)
W(CONVERTER)
17452ACLAMP, EXHAUST PIPE
REAR
FRONT
main17452-16120i4AFE..AE111..VEN;2E..EE110..LHD..3FC;7AFE..AE112..GEN,VEN;2E..EE110..MTM..(GCC,GEN)199505-199909
W/O(CONVERTER)
main17452-16120i7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN199704-200109
W(CONVERTER),REAR
W(CONVERTER)
REAR
main17452-16160i7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN199704-200109
W(CONVERTER),FRONT
FRONT
17460CONVERTER ASSY, CATALYTIC W/PIPE
MALAYSIA SPEC
TYPE B:REFER TO ILLUSTRATION & W(CONVERTER)
main17460-16180i4AFE..AE111..WG;4AFE..AE111..ARL;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN199808-200109
TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)
*115=TOYOTA/99-01/Y
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17562SUPPORT, EXHAUST PIPE, NO.2
main17562-16240i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE199505
17570BRACKET ASSY, EXHAUST PIPE SUPPORT
main17570-16020i4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110.199505-200306
17578ACLAMP, MUFFLER
TYPE B:REFER TO ILLUSTRATION & W(CONVERTER)
main17578-11030i2E..EE110..LHD..3FC;4AFE..AE111..WG..4FC;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LHD..(GCC,GEN,VEN);4AF,7AFE,3ZZFE,4ZZFE..AE111,112,ZZE11#..ARL,GCC,GEN,TUR,VEN199811-200208
main17578-16040i4AFE..AE111..4FC..TUR;4AFE..AE111..ARL,GCC,GENKD,MA,NZ,PHL,VEN;4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,VEN199808-199811
TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)
sub17578-11030
main17578-16040i2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..4FC..TUR;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505-199808
sub17578-11030
sub17578-11020
17585HANGER, EXHAUST PIPE
17588ASPACER, EXHAUST PIPE HANGER
main17588-16020i2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199505
17591ASTOPPER, EXHAUST PIPE SUPPORT
main17591-16020i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE199505
17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1
17594APROTECTOR, EXHAUST PIPE, LOWER NO.2
18435APROTECTOR, MONOLITHIC CONVERTER
sub18435-11040
main18435-16170i7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GEN,TUR,VEN)199704-199901
sub18435-20020
main18435-16170i4AFE..AE111..WG;4AFE..AE111..LHD..GEN;7AFE..AE112..ARL,BZ,GEN;4AFE..AE111..ARL,TUR,VEN199901-199907
TYPE A:REFER TO ILLUSTRATION
sub18435-20020
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
9010506081
main90105-06081
9011908A54
main90119-08A54
9017906007
main90179-06007
9017908193
main90179-08193
9046112233
main90461-12233
91626B0832
main91626-B0832
9163160618
main91631-60618
9163160620
main91631-60620
26 parts on this diagram · 18 diagrams in section
