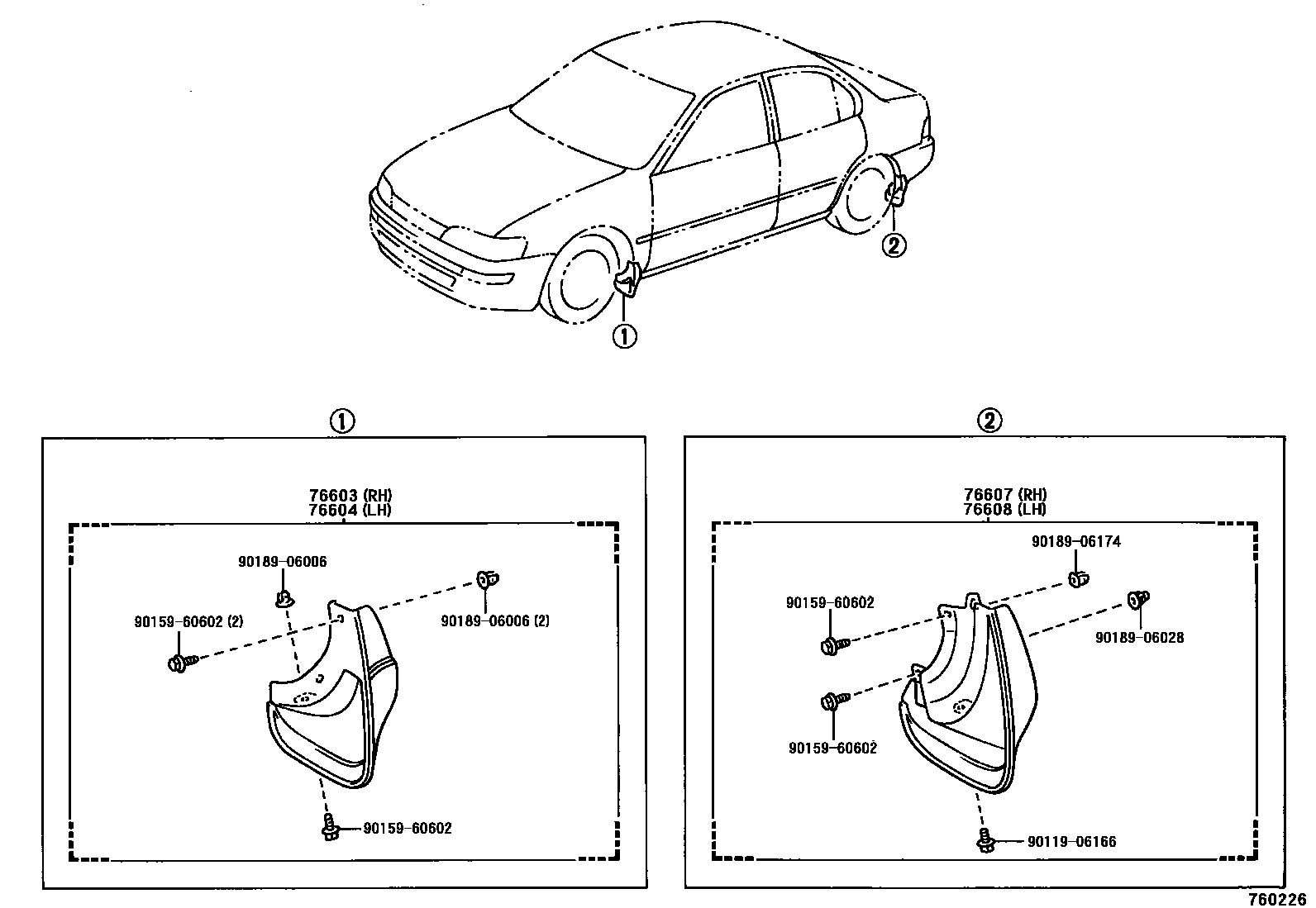

MUDGUARD & SPOILER

0001 1 0002 1 0003 1 0004 1

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19215iAE101,102..SED,WG;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199108-200111

BLACK TYPE

main76621-19225-03iEE101;AE101,102,EE100..GL,GLI199108-199508

COLORED TYPE,DARK BLUEISH GRAY M,183

sub76621-19225

sub76621-09070

main76621-19225-03iAE100..GLI;AE101..SEG199108-199508

DARK BLUEISH GRAY M,183

sub76621-19225

sub76621-09070

main76621-19225-03iAE100,EE104..L,LX199110-199508

LX LIMITED,DARK BLUEISH GRAY M,183

sub76621-19225

sub76621-09070

main76621-19225-04iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,DARK BLUE MICA M,8J7

sub76621-19225

sub76621-09070

main76621-19225-04iEE101;AE101,EE100..GL,GLI199108-199210

DARK BLUE MICA M,8J7

sub76621-19225

sub76621-09070

main76621-19225-04iAE100..LX199110-199210

LX LIMITED,DARK BLUE MICA M,8J7

sub76621-19225

sub76621-09070

main76621-19225-05iEE101;AE101,EE100..GL,GLI199108-199210

LIGHT BEIGE M,3K9

sub76621-19225

sub76621-09070

main76621-19225-05iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,LIGHT BEIGE M,3K9

sub76621-19225

sub76621-09070

main76621-19225-05iAE100..LX199110-199210

LX LIMITED,LIGHT BEIGE M,3K9

sub76621-19225

sub76621-09070

main76621-19225-07iAE100..GLI;AE101..SEG199108-199510

GRAYISH GREEN M,6M3

sub76621-19225

sub76621-09070

main76621-19225-07iEE101;AE101..GLI..GCC199108-199511

COLORED TYPE,GRAYISH GREEN M,6M3

sub76621-19225

sub76621-09070

main76621-19225-07iAE100..LX199110-199505

LX LIMITED,GRAYISH GREEN M,6M3

sub76621-19225

sub76621-09070

main76621-19225-08iAE100..LX199110-199210

LX LIMITED,SUPER WHITE 2,040

sub76621-19225

sub76621-09070

main76621-19225-08iAE100..GLI;AE101..SEG199108-199210

SUPER WHITE 2,040

sub76621-19225

sub76621-09070

main76621-19225-08iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,SUPER WHITE 2,040

sub76621-19225

sub76621-09070

main76621-19225-12iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,RED MICA M,3K4

sub76621-19225

sub76621-09070

main76621-19225-12iAE100..GLI;AE101..SEG199108-199210

RED MICA M,3K4

sub76621-19225

sub76621-09070

main76621-19225-12iAE100..LX199110-199210

LX LIMITED,RED MICA M,3K4

sub76621-19225

sub76621-09070

main76621-19225-13iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,SILVER MICA M,192

sub76621-19225

sub76621-09070

main76621-19225-13iAE100..GLI;AE101..SEG199205-199210

LX LIMITED,SILVER MICA M,192

sub76621-19225

sub76621-09070

main76621-19225-13iAE100..LX199108-199210

SILVER MICA M,192

sub76621-19225

sub76621-09070

main76621-19225-22iAE101..SEG199108-199210

ROSE MICA M.GRAPHITE,3K5

sub76621-19225

sub76621-09070

main76621-19225-22iAE100..LX199110-199205

LX LIMITED,ROSE MICA M.GRAPHITE,3K5

sub76621-19225

sub76621-09070

main76621-19225-22iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,ROSE MICA M.GRAPHITE,3K5

sub76621-19225

sub76621-09070

main76621-19225-A0iEE101;AE101,102,EE100..GL,GLI199210-199505

LX LIMITED,SUPER WHITE 2,040

sub76621-19225

sub76621-09070

main76621-19225-A0iEE101;AE101,102,EE100..GL,GLI199210-199505

COLORED TYPE,SUPER WHITE 2,040

sub76621-19225

sub76621-09070

main76621-19225-A0iAE100,EE104..L,LX199210-199505

SUPER WHITE 2,040

sub76621-19225

sub76621-09070

main76621-19225-B0iAE100..LX199210-199505

LX LIMITED,SILVER MICA M,192

sub76621-19225

sub76621-09070

main76621-19225-B0iEE101;AE101,102,EE100..GL,GLI199210-199508

COLORED TYPE,SILVER MICA M,192

sub76621-19225

sub76621-09070

main76621-19225-B0iEE104199401-199508

LX LIMITED,SILVER MICA M,192 ,24T

sub76621-19225

sub76621-09070

main76621-19225-B0iAE100..GLI;AE101..SEG199210-199508

SILVER MICA M,192

sub76621-19225

sub76621-09070

main76621-19225-B1iEE104199508-199605

LX LIMITED,SILVER PEARL M,2AK

sub76621-19225

sub76621-09070

main76621-19225-B2iEE104199508-199704

LX LIMITED,BLUISH GRAY ME,182

sub76621-19225

sub76621-09070

main76621-19225-B2iAE101,EE100..(GL,GLI)..(GEN,TUR)199505-200111

COLORED TYPE,BLUISH GRAY ME,182

sub76621-19225

sub76621-09070

main76621-19225-B3iEE104199605-199704

LX LIMITED,SILVER ME,2CC

sub76621-19225

sub76621-09070

main76621-19225-B3iAE101,EE100..GL,GLI199605-200111

COLORED TYPE,SILVER ME,199

sub76621-19225

sub76621-09070

main76621-19225-C0iAE101..RHD..GLI199303-199304

THAILAND,BLACK METALLIC,205

sub76621-19225

sub76621-09070

main76621-19225-D1iAE101..SEG199305-199510

SUPER RED 2,3E5

sub76621-19225

sub76621-09070

main76621-19225-D1iEE101;AE101..GL;EE100..LHD..GL;AE101..LHD..GLI199205-199710

COLORED TYPE,SUPER RED 2,3E5

sub76621-19225

sub76621-09070

main76621-19225-D3iEE101;AE101,EE100..GL,GLI199210-199308

COLORED TYPE,ROSE GRAPHITE MI ME,3K5

sub76621-19225

sub76621-09070

main76621-19225-D3iAE101..SEG199210-199305

ROSE GRAPHITE MI ME,3K5

sub76621-19225

sub76621-09070

main76621-19225-D4iAE100..LX199210-199508

COLORED TYPE,LT BEIGE ME,3K9

sub76621-19225

sub76621-09070

main76621-19225-D4iEE101;AE101,102,EE100..GL,GLI199210-199505

LX LIMITED,LT BEIGE ME,3K9

sub76621-19225

sub76621-09070

main76621-19225-D4iAE100..GLI;AE101..SEG199210-199508

LT BEIGE ME,3K9

sub76621-19225

sub76621-09070

main76621-19225-G1iEE101199305-199511

COLORED TYPE,MD.GRAISHGREEN MC.GR,6N1

sub76621-19225

sub76621-09070

main76621-19225-G1iEE104199401-199704

LX LIMITED,MD.GRAISHGREEN MC.GR,6N1

sub76621-19225

sub76621-09070

main76621-19225-G1iAE100;AE101..SEG199305-199510

MD.GRAISHGREEN MC.GR,6N1

sub76621-19225

sub76621-09070

main76621-19225-G2iAE101,EE100..GL,GLI199505-199611

COLORED TYPE,MD.GREEN M.M,6P0

sub76621-19225

sub76621-09070

main76621-19225-G5iAE101..5F..GLI..TUR;AE101,EE100..(4FC,5F)..(GL,GLI)..(GCC,GEN)199611-200111

COLORED TYPE,GREEN MC.,6P6

sub76621-19225

sub76621-09070

main76621-19225-H1iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,TURQUOISE M.M,746

sub76621-19225

sub76621-09070

main76621-19225-J0iAE101..SEG199305-199405

LIGHT BLUE M M,8J6

sub76621-19225

sub76621-09070

main76621-19225-J0iEE101;AE101,102,EE100..GL,GLI199305-199405

COLORED TYPE,LIGHT BLUE M M,8J6

sub76621-19225

sub76621-09070

main76621-19225-J2iAE100199305-199510

DARK BLUE MICA M.,8G5

sub76621-19225

sub76621-09070

main76621-19225-J2iAE101..SEG199210-199405

DARK BLUE MICA M.,8J7

sub76621-19225

sub76621-09070

main76621-19225-J2iEE101;AE101,102,EE100..GL,GLI199405-199511

COLORED TYPE,DARK BLUE MICA M.,8G5

sub76621-19225

sub76621-09070

main76621-19225-J2iEE101;AE101,102,EE100..GL,GLI199210-199405

COLORED TYPE,DARK BLUE MICA M.,8J7

sub76621-19225

sub76621-09070

main76621-19225-J2iAE100..LX199210-199305

LX LIMITED,DARK BLUE MICA M.,8J7

sub76621-19225

sub76621-09070

main76621-19225-J3iAE101,EE100..GL,GLI199505-199605

COLORED TYPE,LT PURPLISH BLUE M.M,8K1

sub76621-19225

sub76621-09070

main76621-19225-J4iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,DK.BLUE MC.,8K8

sub76621-19225

sub76621-09070

main76621-19225-J5iAE101,EE100..GL,GLI199605-200111

COLORED TYPE,STRONG BLUE M,8B6

sub76621-19225

sub76621-09070

main76621-19235-01iAE101..SJ199108-199505

BLACK 2,205

main76621-19235-02iAE101..SJ199108-199505

RED MICA M,3K4

main76621-19235-07iAE101..SJ199405-199505

GRAYISH GREEN M,20W

main76621-19235-07iAE101..SJ199305-199405

GRAYISH GREEN M,20W ,6M3

main76621-19235-07iAE101..SJ199108-199305

GRAYISH GREEN M,6M3

main76621-19235-08iAE101..SJ199108-199505

SUPER WHITE 2,040

main76621-19235-12iAE101..SJ199108-199305

LAVENDER MICA M,925

main76621-19235-17iAE101..SJ199108-199205

LIGHT AQUA OPAL M,748

main76621-19235-B0iAE101..SJ199305-199505

SILVER MICA M,192

main76621-19235-B0iAE101..SJ199205-199305

SILVER MICA M,192 ,28V

main76621-19235-B1iAE101..SJ199305-199505

BLUEISH GRAY ME.,23V

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19215iAE101,102..SED,WG;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199108-200111

BLACK TYPE

main76622-19225-03iAE100..GLI;AE101..SEG199108-199508

DARK BLUEISH GRAY M,183

sub76622-19225

sub76622-09070

main76622-19225-03iAE100,EE104..L,LX199110-199508

LX LIMITED,DARK BLUEISH GRAY M,183

sub76622-19225

sub76622-09070

main76622-19225-03iEE101;AE101..GLI..GCC199108-199508

COLORED TYPE,DARK BLUEISH GRAY M,183

sub76622-19225

sub76622-09070

main76622-19225-04iAE100..GLI;AE101..SEG199108-199210

DARK BLUE MICA M,8J7

sub76622-19225

sub76622-09070

main76622-19225-04iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,DARK BLUE MICA M,8J7

sub76622-19225

sub76622-09070

main76622-19225-04iAE100..LX199110-199210

LX LIMITED,DARK BLUE MICA M,8J7

sub76622-19225

sub76622-09070

main76622-19225-05iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,LIGTH BEIGE M,3K9

sub76622-19225

sub76622-09070

main76622-19225-05iEE101;AE101,EE100..GL,GLI199108-199210

LIGTH BEIGE M,3K9

sub76622-19225

sub76622-09070

main76622-19225-05iAE100..LX199110-199210

LX LIMITED,LIGTH BEIGE M,3K9

sub76622-19225

sub76622-09070

main76622-19225-07iAE100..GLI;AE101..SEG199108-199510

GRAYISH GREEN M,6M3

sub76622-19225

sub76622-09070

main76622-19225-07iEE101;AE101,102,EE100..GL,GLI199108-199511

COLORED TYPE,GRAYISH GREEN M,6M3

sub76622-19225

sub76622-09070

main76622-19225-07iAE100..LX199110-199505

LX LIMITED,GRAYISH GREEN M,6M3

sub76622-19225

sub76622-09070

main76622-19225-08iEE101;AE101,EE100..GL,GLI199108-199210

SUPER WHITE 2,040

sub76622-19225

sub76622-09070

main76622-19225-08iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,SUPER WHITE 2,040

sub76622-19225

sub76622-09070

main76622-19225-08iAE100..LX199110-199210

LX LIMITED,SUPER WHITE 2,040

sub76622-19225

sub76622-09070

main76622-19225-12iAE100..GLI;AE101..SEG199108-199210

RED MICA 2,3K4

sub76622-19225

sub76622-09070

main76622-19225-12iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,RED MICA 2,3K4

sub76622-19225

sub76622-09070

main76622-19225-12iAE100..LX199110-199210

LX LIMITED,RED MICA 2,3K4

sub76622-19225

sub76622-09070

main76622-19225-13iAE100..GLI;AE101..SEG199108-199210

SILVER MICA M,192

sub76622-19225

sub76622-09070

main76622-19225-13iAE100..GLI;AE101..SEG199205-199210

LX LIMITED,SILVER MICA M,192

sub76622-19225

sub76622-09070

main76622-19225-13iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,SILVER MICA M,192

sub76622-19225

sub76622-09070

main76622-19225-22iAE101..SEG199108-199210

ROSE MICA M.GRAPHITE,3K5

sub76622-19225

sub76622-09070

main76622-19225-22iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,ROSE MICA M.GRAPHITE,3K5

sub76622-19225

sub76622-09070

main76622-19225-22iAE100..LX199110-199205

LX LIMITED,ROSE MICA M.GRAPHITE,3K5

sub76622-19225

sub76622-09070

main76622-19225-A0iAE100,EE104..L,LX199210-199505

LX LIMITED,SUPER WHITE 2,040

sub76622-19225

sub76622-09070

main76622-19225-A0iEE101;AE101,102,EE100..GL,GLI199210-199505

SUPER WHITE 2,040

sub76622-19225

sub76622-09070

main76622-19225-A0iAE100,EE104..L,LX199210-199505

COLORED TYPE,SUPER WHITE 2,040

sub76622-19225

sub76622-09070

main76622-19225-B0iEE101;AE101,102,EE100..GL,GLI199210-199508

COLORED TYPE,SILVER MICA M,192

sub76622-19225

sub76622-09070

main76622-19225-B0iEE101;AE101,102,EE100..GL,GLI199210-199505

LX LIMITED,SILVER MICA M,192

sub76622-19225

sub76622-09070

main76622-19225-B0iAE100..GLI;AE101..SEG199210-199508

SILVER MICA M,192

sub76622-19225

sub76622-09070

main76622-19225-B0iEE104199401-199508

LX LIMITED,SILVER MICA M,192 ,24T

sub76622-19225

sub76622-09070

main76622-19225-B1iEE104199508-199605

LX LIMITED,SILVER PEARL M,2AK

sub76622-19225

sub76622-09070

main76622-19225-B2iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,BLUISH GRAY ME,182

sub76622-19225

sub76622-09070

main76622-19225-B2iEE104199508-199704

LX LIMITED,BLUISH GRAY ME,182

sub76622-19225

sub76622-09070

main76622-19225-B3iAE101,EE100..GL,GLI199605-200111

COLORED TYPE,SILVER ME,199

sub76622-19225

sub76622-09070

main76622-19225-B3iEE104199605-199704

LX LIMITED,SILVER ME,2CC

sub76622-19225

sub76622-09070

main76622-19225-C0iAE101..RHD..GLI199303-199304

THAILAND,BLACK METALLIC,205

sub76622-19225

sub76622-09070

main76622-19225-D1iEE101;AE101,102,EE100..GL,GLI199205-199710

COLORED TYPE,SUPER RED 2,3E5

sub76622-19225

sub76622-09070

main76622-19225-D1iAE101..SEG199305-199510

SUPER RED 2,3E5

sub76622-19225

sub76622-09070

main76622-19225-D3iEE101;AE101,EE100..GL,GLI199210-199305

ROSE GRAPHITE MI ME,3K5

sub76622-19225

sub76622-09070

main76622-19225-D3iAE101..SEG199210-199308

COLORED TYPE,ROSE GRAPHITE MI ME,3K5

sub76622-19225

sub76622-09070

main76622-19225-D4iAE100..LX199210-199508

COLORED TYPE,LT BEIGE ME,3K9

sub76622-19225

sub76622-09070

main76622-19225-D4iAE100..LX199210-199505

LX LIMITED,LT BEIGE ME,3K9

sub76622-19225

sub76622-09070

main76622-19225-D4iAE100..GLI;AE101..SEG199210-199508

LT BEIGE ME,3K9

sub76622-19225

sub76622-09070

main76622-19225-G1iEE104199401-199704

LX LIMITED,MD.GRAISHGREEN MC.GR,6N1

sub76622-19225

sub76622-09070

main76622-19225-G1iEE101;AE101..GLI..GCC199305-199511

COLORED TYPE,MD.GRAISHGREEN MC.GR,6N1

sub76622-19225

sub76622-09070

main76622-19225-G1iAE100;AE101..SEG199305-199510

MD.GRAISHGREEN MC.GR,6N1

sub76622-19225

sub76622-09070

main76622-19225-G2iAE101,EE100..(GL,GLI)..(GEN,TUR)199505-199611

COLORED TYPE,MD.GREEN M.M,6P0

sub76622-19225

sub76622-09070

main76622-19225-G5iAE101..5F..GLI..TUR;AE101,EE100..(4FC,5F)..(GL,GLI)..(GCC,GEN)199611-200111

COLORED TYPE,GREEN MC.,6P6

sub76622-19225

sub76622-09070

main76622-19225-H1iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,TURQUOISE M.M,746

sub76622-19225

sub76622-09070

main76622-19225-J0iEE100,101..GL,XLI;AE101..(GL,GLI)..GEN199305-199405

COLORED TYPE,LIGHT BLUE M M,8J6

sub76622-19225

sub76622-09070

main76622-19225-J0iAE101..SEG199305-199405

LIGHT BLUE M M,8J6

sub76622-19225

sub76622-09070

main76622-19225-J2iAE100..LX199210-199305

LX LIMITED,DARK BLUE MICA M.,8J7

sub76622-19225

sub76622-09070

main76622-19225-J2iAE101..SEG199210-199405

DARK BLUE MICA M.,8J7

sub76622-19225

sub76622-09070

main76622-19225-J2iAE101..SEG199305-199510

DARK BLUE MICA M.,8G5

sub76622-19225

sub76622-09070

main76622-19225-J2iEE101;AE101,102,EE100..GL,GLI199405-199511

COLORED TYPE,DARK BLUE MICA M.,8G5

sub76622-19225

sub76622-09070

main76622-19225-J2iEE101;AE101,102,EE100..GL,GLI199210-199405

COLORED TYPE,DARK BLUE MICA M.,8J7

sub76622-19225

sub76622-09070

main76622-19225-J3iAE101,EE100..(GL,GLI)..(GEN,TUR)199505-199605

COLORED TYPE,LT PURPLISH BLUE M.M,8K1

sub76622-19225

sub76622-09070

main76622-19225-J4iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,DK.BLUE MC.,8K8

sub76622-19225

sub76622-09070

main76622-19225-J5iAE101,EE100..GL,GLI199605-200111

COLORED TYPE,STRONG BLUE M,8B6

sub76622-19225

sub76622-09070

main76622-19235-01iAE101..SJ199108-199505

BLACK M,205

main76622-19235-02iAE101..SJ199108-199505

RED MICA M,3K4

main76622-19235-07iAE101..SJ199405-199505

GRAYISH GREEN M,20W

main76622-19235-07iAE101..SJ199305-199405

GRAYISH GREEN M,20W ,6M3

main76622-19235-07iAE101..SJ199108-199305

GRAYISH GREEN M,6M3

main76622-19235-08iAE101..SJ199108-199505

SUPER WHITE 2,040

main76622-19235-12iAE101..SJ199108-199305

LAVENDER MICA M,925

main76622-19235-17iAE101..SJ199108-199205

LIGHT AQUA OPAL M,748

main76622-19235-B0iAE101..SJ199205-199305

SILVER MICA M,192 ,28V

main76622-19235-B0iAE101..SJ199305-199505

SILVER MICA M,192

main76622-19235-B1iAE101..SJ199305-199505

BLUEISH GRAY ME.,23V

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19445iEE100,101..GL,XLI;AE101..(GL,GLI,SEG)..(GCC,GEN)199108-200111

BLACK TYPE

main76625-19455-03iEE101199108-199511

COLORED TYPE,DARK BLUEISH GRAY M,183

sub76625-19455

sub76625-09090

main76625-19455-03iAE100..GLI;AE101..SEG199108-199510

DARK BLUEISH GRAY M,183

sub76625-19455

sub76625-09090

main76625-19455-03iAE100..LX199110-199505

LX LIMITED,DARK BLUEISH GRAY M,183

sub76625-19455

sub76625-09090

main76625-19455-04iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,DARK BLUE MICA M,8J7

sub76625-19455

sub76625-09090

main76625-19455-04iAE100..GLI;AE101..SEG199108-199210

DARK BLUE MICA M,8J7

sub76625-19455

sub76625-09090

main76625-19455-04iAE100..LX199110-199210

LX LIMITED,DARK BLUE MICA M,8J7

sub76625-19455

sub76625-09090

main76625-19455-05iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,LIGHT BEIGE M,3K9

sub76625-19455

sub76625-09090

main76625-19455-05iAE100..GLI;AE101..SEG199108-199210

LIGHT BEIGE M,3K9

sub76625-19455

sub76625-09090

main76625-19455-05iAE100..LX199110-199210

LX LIMITED,LIGHT BEIGE M,3K9

sub76625-19455

sub76625-09090

main76625-19455-07iAE100..GLI;AE101..SEG199108-199510

GRAYISH GREEN M,6M3

sub76625-19455

sub76625-09090

main76625-19455-07iEE101199108-199511

COLORED TYPE,GRAYISH GREEN M,6M3

sub76625-19455

sub76625-09090

main76625-19455-07iAE100..LX199110-199505

LX LIMITED,GRAYISH GREEN M,6M3

sub76625-19455

sub76625-09090

main76625-19455-08iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,SUPER WHITE 2,040

sub76625-19455

sub76625-09090

main76625-19455-08iAE100..LX199110-199210

LX LIMITED,SUPER WHITE 2,040

sub76625-19455

sub76625-09090

main76625-19455-08iEE101;AE101,EE100..GL,GLI199108-199210

SUPER WHITE 2,040

sub76625-19455

sub76625-09090

main76625-19455-12iAE100..GLI;AE101..SEG199108-199210

RED MICA M,3K4

sub76625-19455

sub76625-09090

main76625-19455-12iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,RED MICA M,3K4

sub76625-19455

sub76625-09090

main76625-19455-12iAE100..LX199110-199210

LX LIMITED,RED MICA M,3K4

sub76625-19455

sub76625-09090

main76625-19455-13iAE100..LX199205-199210

LX LIMITED,SILVER MICA M,192

sub76625-19455

sub76625-09090

main76625-19455-13iAE100..LX199108-199210

SILVER MICA M,192

sub76625-19455

sub76625-09090

main76625-19455-13iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,SILVER MICA M,192

sub76625-19455

sub76625-09090

main76625-19455-22iAE100..LX199110-199205

LX LIMITED,ROSE MICA M.GRAPHITE,3K5

sub76625-19455

sub76625-09090

main76625-19455-22iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,ROSE MICA M.GRAPHITE,3K5

sub76625-19455

sub76625-09090

main76625-19455-22iAE101..SEG199108-199210

ROSE MICA M.GRAPHITE,3K5

sub76625-19455

sub76625-09090

main76625-19455-A0iAE100..LX199210-200111

COLORED TYPE,SUPER WHITE 2,040

sub76625-19455

sub76625-09090

main76625-19455-A0iEE101;AE101,102,EE100..GL,GLI199210-199505

LX LIMITED,SUPER WHITE 2,040

sub76625-19455

sub76625-09090

main76625-19455-A0iAE100..GLI;AE101..SEG199210-199510

SUPER WHITE 2,040

sub76625-19455

sub76625-09090

main76625-19455-B0iAE100..LX199210-199505

LX LIMITED,SILVER MICA M,192

sub76625-19455

sub76625-09090

main76625-19455-B0iAE100..GLI;AE101..SEG199210-199510

SILVER MICA M,192

sub76625-19455

sub76625-09090

main76625-19455-B0iEE101199210-199511

COLORED TYPE,SILVER MICA M,192

sub76625-19455

sub76625-09090

main76625-19455-B1iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,BLUISH GRAY ME,182

sub76625-19455

sub76625-09090

main76625-19455-B2iAE101,EE100..GL,GLI199605-200111

COLORED TYPE,SILVER ME,199

sub76625-19455

sub76625-09090

main76625-19455-C0iAE101..RHD..GLI199303-199304

THAILAND,BLACK METALLIC,205

sub76625-19455

sub76625-09090

main76625-19455-D1iAE101..SEG199305-199510

SUPER RED 2,3E5

sub76625-19455

sub76625-09090

main76625-19455-D1iEE101;AE101..GL;EE100..LHD..GL;AE101..LHD..GLI199205-200111

COLORED TYPE,SUPER RED 2,3E5

sub76625-19455

sub76625-09090

main76625-19455-D2iAE100..GLI;AE101..SEG199210-199510

RED MICA M,3K4

sub76625-19455

sub76625-09090

main76625-19455-D2iAE100..GLI;AE101..SEG199210-199305

LX LIMITED,RED MICA M,3K4

sub76625-19455

sub76625-09090

main76625-19455-D2iEE101;AE101,EE100..GL,GLI199210-200111

COLORED TYPE,RED MICA M,3K4

sub76625-19455

sub76625-09090

main76625-19455-D3iAE101..GLI..GCC199210-199308

COLORED TYPE,ROSE GRAPHITE MI ME,3K5

sub76625-19455

sub76625-09090

main76625-19455-D3iEE101;AE101,EE100..GL,GLI199210-199305

ROSE GRAPHITE MI ME,3K5

sub76625-19455

sub76625-09090

main76625-19455-D4iEE101;AE101..GLI..GCC199210-199508

COLORED TYPE,LT BEIGE ME,3K9

sub76625-19455

sub76625-09090

main76625-19455-D4iAE100..LX199210-199505

LX LIMITED,LT BEIGE ME,3K9

sub76625-19455

sub76625-09090

main76625-19455-D4iAE100..GLI;AE101..SEG199210-199508

LT BEIGE ME,3K9

sub76625-19455

sub76625-09090

main76625-19455-G1iEE101;AE101,102,EE100..GL,GLI199305-199511

COLORED TYPE,MD.GRAISHGREEN MC.GR,6N1

sub76625-19455

sub76625-09090

main76625-19455-G1iAE100;AE101..SEG199305-199510

MD.GRAISHGREEN MC.GR,6N1

sub76625-19455

sub76625-09090

main76625-19455-G3iAE101,EE100..(GL,GLI)..(GEN,TUR)199505-199611

COLORED TYPE,MD.GREEN M.M,6P0

sub76625-19455

sub76625-09090

main76625-19455-G5iAE101..5F..GLI..TUR;AE101,EE100..(4FC,5F)..(GL,GLI)..(GCC,GEN)199611-200111

COLORED TYPE,GREEN MC.,6P6

sub76625-19455

sub76625-09090

main76625-19455-H1iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,TURQUOISE M.M,746

sub76625-19455

sub76625-09090

main76625-19455-J0iEE101;AE101,102,EE100..GL,GLI199305-199405

COLORED TYPE,LIGHT BLUE M M,8J6

sub76625-19455

sub76625-09090

main76625-19455-J0iAE101..SEG199305-199405

LIGHT BLUE M M,8J6

sub76625-19455

sub76625-09090

main76625-19455-J1iAE100..GLI;AE101..SEG199210-199305

LX LIMITED,DARK BLUE MICA M,8J7

sub76625-19455

sub76625-09090

main76625-19455-J1iEE101;AE101,102,EE100..GL,GLI199210-199405

COLORED TYPE,DARK BLUE MICA M,8J7

sub76625-19455

sub76625-09090

main76625-19455-J1iAE100..LX199210-199405

DARK BLUE MICA M,8J7

sub76625-19455

sub76625-09090

main76625-19455-J2iAE100;AE101..SEG199305-199510

DARK BLUE MICA M.,8G5

sub76625-19455

sub76625-09090

main76625-19455-J2iEE101199405-199511

COLORED TYPE,DARK BLUE MICA M.,8G5

sub76625-19455

sub76625-09090

main76625-19455-J3iAE101,EE100..GL,GLI199505-199605

COLORED TYPE,LT PURPLISH BLUE M.M,8K1

sub76625-19455

sub76625-09090

main76625-19455-J4iAE101,EE100..(GL,GLI)..(GEN,TUR)199505-200111

COLORED TYPE,DARK BLUE MC.,8K8

sub76625-19455

sub76625-09090

main76625-19455-J5iAE101,EE100..GL,GLI199605-200111

COLORED TYPE,STRONG BLUE M,8B6

sub76625-19455

sub76625-09090

main76625-19485-01iAE101..CP199108-199305

BLACK M,205

main76625-19485-02iAE101..CP199108-199305

RED MICA M,3K4

main76625-19485-07iAE101..CP199108-199305

GRAYISH GREEN M,6M3

main76625-19485-08iAE101..CP199108-199305

SUPER WHITE 2,040

main76625-19485-12iAE101..CP199108-199305

LAVENDER MICA M,925

main76625-19485-17iAE101..CP199108-199205

LIGTH AQUA M.OPAL,748

main76625-19485-B0iAE101..CP199205-199305

SILVER MICA M,192 ,28V

main76625-19495-A0iEE104199401-199704

LX LIMITED,SUPER WHITE 2,040

sub76625-19495

main76625-19495-B0iEE104199401-199508

LX LIMITED,DARK BLUEISH GRAY M,183

sub76625-19495

main76625-19495-B1iEE104199401-199508

LX LIMITED,SILVER MICA M,192 ,24T

sub76625-19495

main76625-19495-B2iEE104199508-199704

LX LIMITED,BLUISH GRAY ME,182

sub76625-19495

main76625-19495-B3iEE104199508-199605

LX LIMITED,LT.GRAY PEARL MICA,2AK

sub76625-19495

main76625-19495-B4iEE104199605-199704

LX LIMITED,SILVER ME,2CC

sub76625-19495

main76625-19495-G1iEE104199401-199704

LX LIMITED,MD.GRAISHGREEN MC.GR,6N1

sub76625-19495

main76625-19505iEE104199401-199704

BLACK TYPE

main76625-19505iAE101,EE100,105,108..WG199109-199910

main76625-19515iAE101..CP199305-199505

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19445iEE100,101..GL,XLI;AE101..(GL,GLI,SEG)..(GCC,GEN)199108-200111

BLACK TYPE

main76626-19455-03iEE101;AE101,102,EE100..GL,GLI199108-199511

COLORED TYPE,DARK BLUEISH GRAY M,183

sub76626-19455

sub76626-09090

main76626-19455-03iAE100..GLI;AE101..SEG199108-199510

DARK BLUEISH GRAY M,183

sub76626-19455

sub76626-09090

main76626-19455-03iAE100..LX199110-199505

LX LIMITED,DARK BLUEISH GRAY M,183

sub76626-19455

sub76626-09090

main76626-19455-04iAE100..LX199110-199210

LX LIMITED,DARK BLUE MICA M,8J7

sub76626-19455

sub76626-09090

main76626-19455-04iAE100..GLI;AE101..SEG199108-199210

DARK BLUE MICA M,8J7

sub76626-19455

sub76626-09090

main76626-19455-04iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,DARK BLUE MICA M,8J7

sub76626-19455

sub76626-09090

main76626-19455-05iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,LIGHT BEIGE M,3K9

sub76626-19455

sub76626-09090

main76626-19455-05iEE101;AE101,EE100..GL,GLI199108-199210

LIGHT BEIGE M,3K9

sub76626-19455

sub76626-09090

main76626-19455-05iAE100..LX199110-199210

LX LIMITED,LIGHT BEIGE M,3K9

sub76626-19455

sub76626-09090

main76626-19455-07iEE101;AE101..GLI..GCC199108-199511

COLORED TYPE,GRAYISH GREEN M,6M3

sub76626-19455

sub76626-09090

main76626-19455-07iAE100..LX199110-199505

LX LIMITED,GRAYISH GREEN M,6M3

sub76626-19455

sub76626-09090

main76626-19455-07iAE100..GLI;AE101..SEG199108-199510

GRAYISH GREEN M,6M3

sub76626-19455

sub76626-09090

main76626-19455-08iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,SUPER WHITE 2,040

sub76626-19455

sub76626-09090

main76626-19455-08iEE101;AE101,EE100..GL,GLI199108-199210

SUPER WHITE 2,040

sub76626-19455

sub76626-09090

main76626-19455-08iAE100..LX199110-199210

LX LIMITED,SUPER WHITE 2,040

sub76626-19455

sub76626-09090

main76626-19455-12iEE101;AE101,EE100..GL,GLI199108-199210

RED MICA M,3K4

sub76626-19455

sub76626-09090

main76626-19455-12iAE100..GLI;AE101..SEG199108-199210

COLORED TYPE,RED MICA M,3K4

sub76626-19455

sub76626-09090

main76626-19455-12iAE100..LX199110-199210

LX LIMITED,RED MICA M,3K4

sub76626-19455

sub76626-09090

main76626-19455-13iAE100..LX199108-199210

SILVER MICA M,192

sub76626-19455

sub76626-09090

main76626-19455-13iAE100..LX199205-199210

LX LIMITED,SILVER MICA M,192

sub76626-19455

sub76626-09090

main76626-19455-13iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,SILVER MICA M,192

sub76626-19455

sub76626-09090

main76626-19455-22iAE101..SEG199108-199210

ROSE MICA M.GRAPHITE,3K5

sub76626-19455

sub76626-09090

main76626-19455-22iAE100..LX199110-199205

LX LIMITED,ROSE MICA M.GRAPHITE,3K5

sub76626-19455

sub76626-09090

main76626-19455-22iEE101;AE101,EE100..GL,GLI199108-199210

COLORED TYPE,ROSE MICA M.GRAPHITE,3K5

sub76626-19455

sub76626-09090

main76626-19455-A0iEE101;AE101,102,EE100..GL,GLI199210-200111

COLORED TYPE,SUPER WHITE 2,040

sub76626-19455

sub76626-09090

main76626-19455-A0iAE100..LX199210-199505

LX LIMITED,SUPER WHITE 2,040

sub76626-19455

sub76626-09090

main76626-19455-A0iAE100..GLI;AE101..SEG199210-199510

SUPER WHITE 2,040

sub76626-19455

sub76626-09090

main76626-19455-B0iEE101;AE101,102,EE100..GL,GLI199210-199511

COLORED TYPE,SILVER MICA M,192

sub76626-19455

sub76626-09090

main76626-19455-B0iEE101;AE101,102,EE100..GL,GLI199210-199505

LX LIMITED,SILVER MICA M,192

sub76626-19455

sub76626-09090

main76626-19455-B0iAE100..GLI;AE101..SEG199210-199510

SILVER MICA M,192

sub76626-19455

sub76626-09090

main76626-19455-B1iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,BLUISH GRAY ME,182

sub76626-19455

sub76626-09090

main76626-19455-B2iAE101,EE100..GL,GLI199605-200111

COLORED TYPE,SILVER ME,199

sub76626-19455

sub76626-09090

main76626-19455-C0iAE101..RHD..GLI199303-199304

THAILAND,BLACK METALLIC,205

sub76626-19455

sub76626-09090

main76626-19455-D1iAE101..SEG199305-199510

SUPER LED 2,3E5

sub76626-19455

sub76626-09090

main76626-19455-D1iEE101;AE101,EE100..GL,GLI199205-200111

COLORED TYPE,SUPER LED 2,3E5

sub76626-19455

sub76626-09090

main76626-19455-D2iAE100..GLI;AE101..SEG199210-199510

RED MICA M,3K4

sub76626-19455

sub76626-09090

main76626-19455-D2iAE100..GLI;AE101..SEG199210-199305

LX LIMITED,RED MICA M,3K4

sub76626-19455

sub76626-09090

main76626-19455-D2iEE101;AE101,102,EE100..GL,GLI199210-200111

COLORED TYPE,RED MICA M,3K4

sub76626-19455

sub76626-09090

main76626-19455-D3iEE101;AE101,EE100..GL,GLI199210-199305

ROSE MICA M GRAPHITE,3K5

sub76626-19455

sub76626-09090

main76626-19455-D3iAE101..SEG199210-199308

COLORED TYPE,ROSE MICA M GRAPHITE,3K5

sub76626-19455

sub76626-09090

main76626-19455-D4iEE101;AE101..GLI..GCC199210-199508

COLORED TYPE,LT BEIGE ME,3K9

sub76626-19455

sub76626-09090

main76626-19455-D4iEE101;AE101,102,EE100..GL,GLI199210-199505

LX LIMITED,LT BEIGE ME,3K9

sub76626-19455

sub76626-09090

main76626-19455-D4iAE100..GLI;AE101..SEG199210-199508

LT BEIGE ME,3K9

sub76626-19455

sub76626-09090

main76626-19455-G1iEE100,101..GL,XLI;AE101..(GL,GLI)..GEN199305-199511

COLORED TYPE,MD.GRAISHGREEN MC.GR,6N1

sub76626-19455

sub76626-09090

main76626-19455-G1iAE100;AE101..SEG199305-199510

MD.GRAISHGREEN MC.GR,6N1

sub76626-19455

sub76626-09090

main76626-19455-G2iAE101,EE100..(GL,GLI)..(GEN,TUR)199505-199611

COLORED TYPE,MD.GREEN M.M,6P0

sub76626-19455

sub76626-09090

main76626-19455-G5iAE101..5F..GLI..TUR;AE101,EE100..(4FC,5F)..(GL,GLI)..(GCC,GEN)199611-200111

COLORED TYPE,GREEN MC.,6P6

sub76626-19455

sub76626-09090

main76626-19455-H1iAE101,EE100..(GL,GLI)..(GEN,TUR)199505-200111

COLORED TYPE,TURQUOISE M.M,746

sub76626-19455

sub76626-09090

main76626-19455-J0iEE101;AE101,102,EE100..GL,GLI199305-199405

COLORED TYPE,LIGHT BLUE M M,8J6

sub76626-19455

sub76626-09090

main76626-19455-J0iAE101..SEG199305-199405

LIGHT BLUE M M,8J6

sub76626-19455

sub76626-09090

main76626-19455-J1iAE100..LX199210-199305

LX LIMITED,DARK BLUE MICA M,8J7

sub76626-19455

sub76626-09090

main76626-19455-J1iEE101;AE101,102,EE100..GL,GLI199210-199405

COLORED TYPE,DARK BLUE MICA M,8J7

sub76626-19455

sub76626-09090

main76626-19455-J1iAE100..LX199210-199405

DARK BLUE MICA M,8J7

sub76626-19455

sub76626-09090

main76626-19455-J2iEE101199405-199511

COLORED TYPE,DARK BLUE MICA M.,8G5

sub76626-19455

sub76626-09090

main76626-19455-J2iAE100;AE101..SEG199305-199510

DARK BLUE MICA M.,8G5

sub76626-19455

sub76626-09090

main76626-19455-J3iAE101,EE100..GL,GLI199505-199605

COLORED TYPE,LT PURPLISH BLUE M.M,8K1

sub76626-19455

sub76626-09090

main76626-19455-J4iAE101,EE100..GL,GLI199505-200111

COLORED TYPE,DARK BLUE MC.,8K8

sub76626-19455

sub76626-09090

main76626-19455-J5iAE101,EE100..(GL,GLI)..(GEN,TUR)199605-200111

COLORED TYPE,STRONG BLUE M,8B6

sub76626-19455

sub76626-09090

main76626-19485-01iAE101..CP199108-199305

BLACK M,205

main76626-19485-02iAE101..CP199108-199305

RED MICA M,3K4

main76626-19485-07iAE101..CP199108-199305

GRAYISH GREEN M,6M3

main76626-19485-08iAE101..CP199108-199305

SUPER WHITE 2,040

main76626-19485-12iAE101..CP199108-199305

LAVENDER MICA M,925

main76626-19485-17iAE101..CP199108-199205

LIGTH AQUA M.OPAL,748

main76626-19485-B0iAE101..CP199205-199305

SILVER MICA M,192 ,28V

main76626-19495-A0iEE104199401-199704

LX LIMITED,SUPER WHITE 2,040

sub76626-19495

main76626-19495-B0iEE104199401-199508

LX LIMITED,DARK BLUEISH GRAY M,183

sub76626-19495

main76626-19495-B1iEE104199401-199508

LX LIMITED,SILVER MICA M,192 ,24T

sub76626-19495

main76626-19495-B2iEE104199508-199704

LX LIMITED,BLUISH GRAY ME,182

sub76626-19495

main76626-19495-B3iEE104199508-199605

LX LIMITED,LT.GRAY PEARL MICA,2AK

sub76626-19495

main76626-19495-B4iEE104199605-199704

LX LIMITED,SILVER ME,2CC

sub76626-19495

main76626-19495-G1iEE104199401-199704

LX LIMITED,MD.GRAISHGREEN MC.GR,6N1

sub76626-19495

main76626-19505iAE101,EE100,105,108..WG199109-199910

main76626-19505iEE104199401-199704

BLACK TYPE

main76626-19515iAE101..CP199305-199505

9011906166

main90119-06166

9015960602

main90159-60602

9018906006

main90189-06006

9018906028

main90189-06028

9018906174

main90189-06174

9 parts on this diagram · 4 diagrams in section
