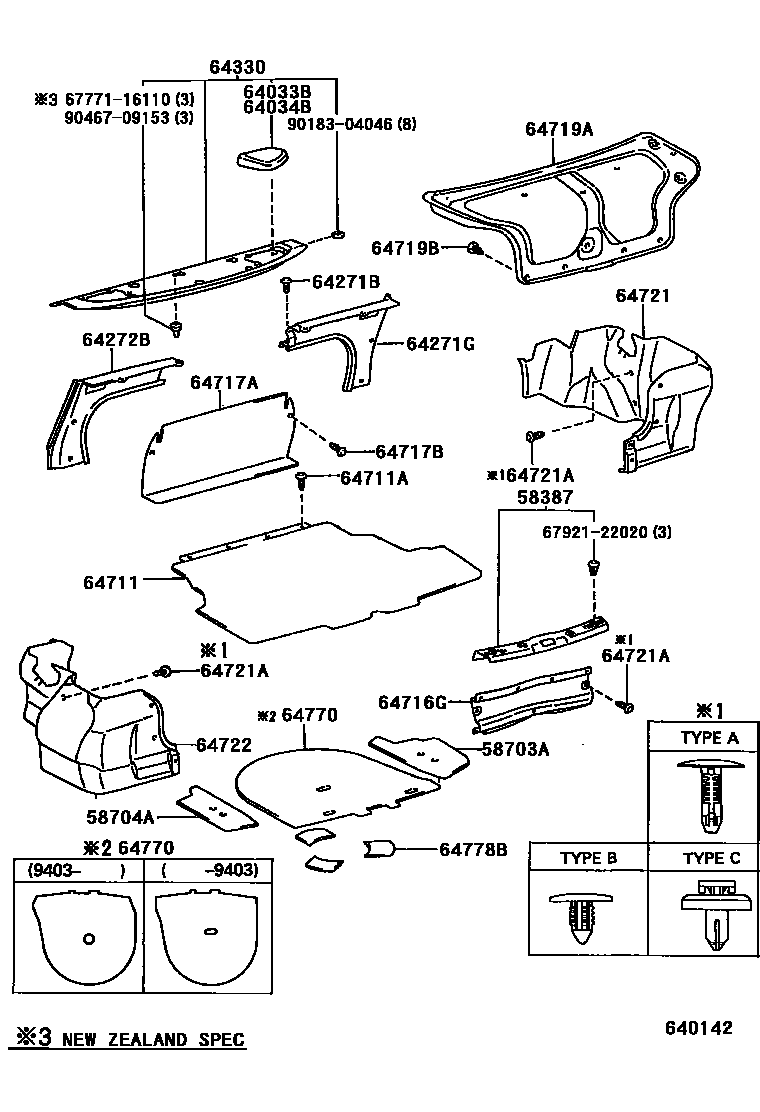

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-12010-22iEE101;AE101,EE100..SED..GCC199505-199508

BLACK,TRIM1#,8#,9#

main58387-12020-22iAE101..CP199305-199505

BLACK,TRIM2#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12030iAE10#,CE100,EE100,101..SED199108-199409

main58703-12040iAE101..CP199108-199505

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-12030iAE10#,CE100,EE100,101..SED199108-199409

main58704-12040iAE101..CP199108-199505

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-12110-K0iAE100..GLI199108-199505

W(LIVE SOUND SPEAKER),TAUPE,TRIM9#

main64033-12110-P0iAE100..GLI199108-199505

W(LIVE SOUND SPEAKER),SHADOW GRAY,TRIM1#

main64033-12110-W3iAE100..GLI199108-199305

W(LIVE SOUND SPEAKER),DARK BLUE,TRIM8#

main64033-12120-K0iAE10#,CE100,EE100,101..SED..(GL,GLI,SEG,XL,XLI)199108-199405

TAUPE,TRIM9#

main64033-12120-P0iAE10#,CE100,EE100..SED199704

SHADOW GRAY,TRIM1#

main64033-12120-W3iAE102,CE100..LHD;AE101,EE100,101..SED..(GL,GLI,STD,XL,XLI)199405-199704

DARK BLUE,TRIM8#

main64033-12130-22iAE101..GTAPX199108-199505

BLACK,TRIM2#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-12050-K0iAE100..GLI199108-199505

W(LIVE SOUND SPEAKER),TAUPE,TRIM9#

main64034-12050-P0iAE100..GLI199108-199505

W(LIVE SOUND SPEAKER),SHADOW GRAY,TRIM1#

main64034-12050-W3iAE100..GLI199108-199305

W(LIVE SOUND SPEAKER),DARK BLUE,TRIM8#

main64034-12060-K0iAE10#,CE100,EE100,101..SED..(GL,GLI,SEG,STD,XL,XLI)199405-199505

TAUPE,TRIM9#

main64034-12060-P0iAE10#,CE100,EE100,101..SED..(GL,GLI,SEG,XL,XLI)199108-199405

SHADOW GRAY,TRIM1#

main64034-12060-W3iAE10#,EE100..SED199704

DARK BLUE,TRIM8#

main64034-12070-22iAE101..SJ199108-199305

BLACK,TRIM20,21,22

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05020-22×5iAE101..SEG199405-199510

GRAPHITE,TRIM1#,9#

main90467-05110-B0×5iAE101,EE100..GL,GLI,SEG199108-199205

SHADOW GRAY,TRIM1#

main90467-05110-C0×5iAE101,102,CE100,EE100,101..SED..(GL,GLI,XL,XLI)199308-199405

BLACK,TRIM1#,9#

main90467-05110-J0×5iAE101,CE100,EE100,101..SED..(GL,GLI,XL,XLI)199305-199308

DARK BLUE,TRIM8#

main90467-05110-K0×5iAE101,CE100,EE100,101..SED..(GL,GLI,SEG,XL,XLI)199205-199308

TAUPE,TRIM9#

64271GBOARD, ROOM PARTITION, RH

main64271-12130-C0iEE101199508-199511

BLACK,TRIM1#,8#,9#

main64271-12130-K0iAE101,CE100,EE100,101..SED..(GL,GLI,SEG,XL,XLI)199205-199308

TAUPE,TRIM9#

main64271-12130-P0iAE101,EE100..GL,GLI,SEG199108-199205

SHADOW GRAY,TRIM1#

main64271-12130-W3iAE101,CE100,EE100,101..SED..(GL,GLI,XL,XLI)199305-199308

DARK BLUE,TRIM8#

64272BBOARD, ROOM PARTITION, LH

main64272-12070-C0iAE101..GLI..TUR;AE102,CE100..LHD;AE101,EE100..SED..(GL,GLI,XL,XLI)..(GCC,GEN)199508-199704

BLACK,TRIM1#,8#

main64272-12070-K0iAE101,CE100,EE100,101..SED..(GL,GLI,SEG,XL,XLI)199205-199308

TAUPE,TRIM9#

main64272-12070-P0iAE101,EE100..GL,GLI,SEG199108-199205

SHADOW GRAY,TRIM1#

main64272-12070-W3iAE101,EE100..GL,GLI,SEG199108-199205

DARK BLUE,TRIM8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1A430iAE101,EE100..SED..(XL,XLI)..TUR199704-199706

main64330-1A430-J0iAE10#,EE100..SED199108-199205

DARK BLUE,TRIM8#

main64330-1A430-J1iAE10#,CE100,EE100,101..SED199205-199305

DARK BLUE,TRIM8#

main64330-1A430-K0iEE101;AE101..SEG199508-199511

TAUPE,TRIM9#

main64330-1A430-P0iAE10#,CE100,EE100..GEN199704

SHADOW GRAY,TRIM1#

main64330-1A440iAE101,EE100..SED..(XL,XLI)..TUR199704-199706

W(SPEAKER)

main64330-1A440-J0iEE100..3FC199108-199205

W(SPEAKER),DARK BLUE,TRIM8#

main64330-1A440-J1iAE101,102,CE100,EE100,101..SED..(GL,GLI,XL,XLI)199305-199405

W(SPEAKER),DARK BLUE,TRIM8#

main64330-1A440-K0iEE100..RHD..3FC199108-199505

W(4 SPEAKER),TAUPE,TRIM9#

main64330-1A440-P0iAE101..GLI..TUR199409-199704

SHADOW GRAY,TRIM1#

main64330-1A470-J0iAE100..GLI199108-199205

W(LIVE SOUND SPEAKER),DARK BLUE,TRIM8#

main64330-1A470-J1iAE100..GLI199205-199305

W(LIVE SOUND SPEAKER),DARK BLUE,TRIM8#

main64330-1A470-K0iAE100..GLI199108-199405

W(LIVE SOUND SPEAKER),TAUPE,TRIM9#

main64330-1A470-P0iAE100..GLI199405-199505

W/O(HIGH MOUNT STOP LAMP) & W(LIVE SOUND SPEAKER),SHADOW GRAY,TRIM1#

main64330-1A500-J0iAE10#,EE100..SED199108-199205

W(HIGH MOUNT STOP LAMP),DARK BLUE,TRIM8#

main64330-1A500-J1iAE101..GLI..GCC;AE10#,CE100,EE100,101..SED..GEN199205-199305

W(HIGH MOUNT STOP LAMP),DARK BLUE,TRIM8#

main64330-1A500-K0iEE101;AE101..SEG;AE101..SED..GCC199505-199508

W(HIGH MOUNT STOP LAMP),TAUPE,TRIM9#

main64330-1A500-P0iAE10#,CE100,EE100..GEN199704

W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#

main64330-1A510-J0iAE10#,EE100..GL,GLI,SEG,XL199108-199205

W(HIGH MOUNT STOP LAMP & SPEAKER),DARK BLUE,TRIM8#

main64330-1A510-J1iAE101..GLI..GCC;AE101,102,CE100,EE100,101..SED..(GL,GLI,STD,XL,XLI)..GEN199405-199408

W(HIGH MOUNT STOP LAMP & SPEAKER),DARK BLUE,TRIM8#

main64330-1A510-K0iAE101..GLI..GCC;AE10#,CE100,EE100,101..SED..(GL,GLI,SEG,STD,XL,XLI)..GEN199405-199408

W(HIGH MOUNT STOP LAMP & SPEAKER),TAUPE,TRIM9#

main64330-1A510-P0iAE101,EE100..SED..(XL,XLI)..TUR199706-199807

SHADOW GRAY,TRIM1#

main64330-1A560-B0iAE101..XLI..GEN199709-199710

NEW ZEALAND SPEC & W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#

main64330-1A560-J1iEE100..RHD..5F..XL;AE101..RHD..4FC..GLI;AE101..RHD..SED..XLI199505-199709

NEW ZEALAND SPEC & W(HIGH MOUNT STOP LAMP),DARK BLUE,TRIM8#

main64330-1A590-22iAE101..GTAPX199305-199505

W(REAR WINDOW WIPER & LIVE SOUND SPEAKER);HONG KONG SPEC & W(REAR WINDOW WIPER),BLACK,TRIM2#

main64330-1A600-22iAE101..GTAPX199108-199205

W(SUPER LIVE SOUND SPEAKER),BLACK,TRIM2#

main64330-1A610-22iAE101..GTAPX199205-199305

W/O(HIGH MOUNT STOP LAMP),BLACK,TRIM2#

main64330-1A620-22iAE101..GTAPX199205-199505

BLACK,TRIM2#

main64330-1A630-22iAE101..SJ199108-199305

W(SUPER LIVE SOUND SPEAKER),BLACK,TRIM20,21,22

main64330-1A640-22iAE101..SJ199108-199305

W(REAR WINDOW WIPER),BLACK,TRIM20,21,22

main64330-1A650-22iAE101..SJ199305-199505

W(HIGH MOUNT STOP LAMP & LIVE SOUND SPEAKER),BLACK,TRIM2#

main64330-1A660-22iAE101..SJ199108-199305

W(HIGH MOUNT STOP LAMP),BLACK,TRIM20,21,22

main64330-1A670-J0iAE100..GLI199108-199205

W(LIVE SOUND SPEAKER & HIGH MOUNT STOP LAMP),DARK BLUE,TRIM8#

main64330-1A670-J1iAE100..GLI199205-199305

W(HIGH MOUNT STOP LAMP & LIVE SOUND SPEAKER),DARK BLUE,TRIM8#

main64330-1A670-K0iAE100..GLI199405-199505

W(LIVE SOUND SPEAKER),TAUPE,TRIM9#

main64330-1A670-P0iAE100..GLI199205-199405

W(HIGH MOUNT STOP LAMP & LIVE SOUND SPEAKER),SHADOW GRAY,TRIM1#

main64330-1A680-B0iAE101..XLI..GEN199709-199710

NEW ZEALAND SPEC & W(HIGH MOUNT STOP LAMP & SPEAKER),SHADOW GRAY,TRIM1#

main64330-1A680-J1iAE101..XLI..GEN199709-199710

NEW ZEALAND SPEC & W(HIGH MOUNT STOP LAMP & SPEAKER),DARK BLUE,TRIM8#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-12250-22iAE10#,EE100..LX,STD199108-199305

BLACK,TRIM1#,8#,9#

main64711-12290-C0iAE101,EE100..SED..(XL,XLI)199704-199805

BLACK,TRIM1#,8#

main64711-12300iCE100199709-199805

W(4 WAY SPLIT FOLD DOWN SEAT)

main64711-12300-C0iAE101..GLI..TUR;AE10#,CE100,EE100..SED..(GL,GLI,XL,XLI)..GEN199505-199508

W(4 WAY SPLIT FOLD DOWN SEAT),BLACK,TRIM1#,8#,9#

main64711-12340-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-06037-01×2iAE101..GTAPX199108-199208

BLACK,TRIM2#,NO.1

main90467-06037-C0×2iAE101..GTAPX199208-199305

BLACK,TRIM2#,NO.1

main90467-09066-22×4iAE101..GTAPX199108-199201

BLACK,TRIM2#,NO.2

main90467-09156×4iCE100199709-199805

main90467-09156-C0×4iAE101..GLI..TUR;AE10#,EE100..GEN199704-199709

BLACK,TRIM1#,8#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-12130-C0iAE101..GLI..TUR;AE10#,CE100,EE100..SED..(GL,GLI,XL,XLI)..GEN199505-199508

BLACK,TRIM1#,8#,9#

main64716-12190-22iAE101..GTAPX199108-199305

BLACK,TRIM2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12050-C0iAE101..SED..(SEG,STD,XL,XLI);AE100,CE100,EE100,101..SED..(GLI,LX,STD,XL,XLI)199108-199305

BLACK,TRIM1#,8#,9#

main64717-12060-C0iAE101,CE100,EE100,101..SED..(STD,XL,XLI)199305-199505

BLACK,TRIM1#,9#

main64717-12080-C1iEE100..RHD..GL;AE101..RHD..5F..GLI199505-199711

PAKISTAN SPEC,BLACK,TRIM1#,8#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05027×2iAE101..SED..(SEG,STD,XL,XLI);AE100,CE100,EE100,101..SED..(GLI,LX,STD,XL,XLI)199108-199209

main90467-05027-22×2iAE101..SED..(SEG,STD,XL,XLI);AE100,CE100,EE100,101..SED..(GLI,LX,STD,XL,XLI)199209-199305

BLACK,TRIM1#,8#,9#

main90467-05096-22×2iAE101,CE100,EE100,101..SED..(STD,XL,XLI)199308-199505

BLACK,TRIM1#,9#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12010-C0iAE100199305-199505

COLD AREA SPEC,BLACK,TRIM1#,9#

main64719-12030-22iAE101..GTAPX199108-199305

COLD AREA SPEC,BLACK,TRIM20,21,22

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07072-11×5iAE101..GTAPX199108-199203

COLD AREA SPEC,BLACK,TRIM2#&040 ,205 ,3K4 ,6M3 ,748 ,925

main90467-07138×16iAE100199211-199402

COLD AREA SPEC

main90467-07146×5iAE101..CP199203-199212

COLD AREA SPEC

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12110-C0iAE10#,EE100..SED199711

BLACK,TRIM1#,8#

main64721-12140-22iAE101..GTAPX199108-199305

BLACK,TRIM2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-01×11iAE101..4FC..GLI199201-199202

BLACK,TRIM1#,8#,9#,TYPE A

main90467-05096-22×9iAE101,CE100,EE100..SED..(XL,XLI)..GEN199505-199508

BLACK,TRIM1#,8#,9#,TYPE A

main90467-05105-C0×5iEE101;AE101,EE100..SED..GCC199505-199508

BLACK,TRIM1#,8#,9#,TYPE C

main90467-06146×4iAE101..CP199202-199308

TYPE B

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12150-C0iAE100;AE101..SEG199305-199510

BLACK,TRIM1#,9#

main64722-12170-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

64770COVER ASSY, SPARE WHEEL

main64770-12161iAE100;AE101..CP199108-199505

main64770-12171iAE10#,CE100,EE100..SED199704

64778BPROTECTOR, SPARE WHEEL

main64778-12030×3iAE101..CP;AE100,EE101199108-199511

6777116110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16110

6792122020RETAINER, FRONT DOOR SCUFF PLATE

main67921-22020

9018304046

main90183-04046

9046709153

main90467-09153

25 parts on this diagram · 2 diagrams in section
