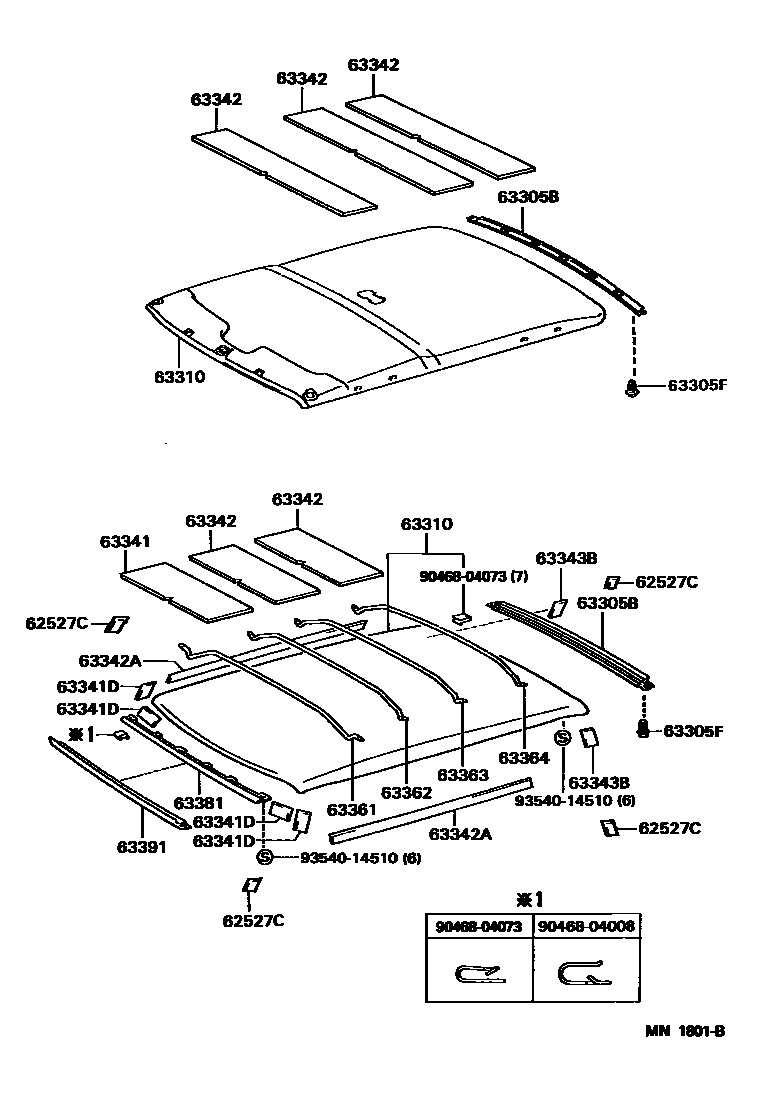

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

62527CPAD, QUARTER TRIM

main62527-89103iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE101..RHD..SED..5F..(GLI,SEG,XLI);AE101,102,CE100..LHD..(4FC,5F)..(GL,GLI,XL)..199209-199704

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12140-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub63305-12140

main63305-12140-P0iAE10#,CE100,EE100..SED199108-199704

SHADOW GRAY,TRIM1#

sub63305-12140

main63305-12140-W3iAE10#,EE100..SED199108-199704

DARK BLUE,TRIM8#

sub63305-12140

63305FCLIP(FOR ROOF HEADLINING TRIM)

main90467-05062-B0iAE10#,CE100,EE100,101..SED199108-199704

SHADOW GRAY,TRIM1#

sub90467-05062

main90467-05062-B0iAE101..SEG199305-199510

SHADOW GRAY,TRIM1#,9#

sub90467-05062

main90467-05062-J1iAE102,CE100..LHD;AE101,EE100,101..SED..(GL,GLI,STD,XL,XLI)199206-199704

DARK BLUE,TRIM8#

sub90467-05062

main90467-05062-K0iAE101..GLI..GCC;AE101,CE100,EE100,101..SED..(STD,XL,XLI)199206-199505

TAUPE,TRIM9#

sub90467-05062

63310HEADLINING ASSY, ROOF

main63310-13170-S3iEE105199205-199910

LIGHT GRAY,TRIM1#

main63310-13170-W5iEE105199205-199408

LIGHT BLUE,TRIM8#

main63310-13180-B0iAE101,EE100..WG..(GCC,GEN)199205-199704

W(3-POINT REAR SEAT BELT),LIGHT GRAY,TRIM1#

main63310-13180-B0iAE101,EE100..WG..TUR199509-199905

LIGHT GRAY,TRIM1#

main63310-13180-J0iAE101,EE100..WG..(GCC,GEN)199205-199704

W(3-POINT REAR SEAT BELT),LIGHT BLUE,TRIM8#

main63310-13230-B0iEE105199205-199409

W(3-POINT REAR SEAT BELT),LIGHT GRAY,TRIM1#

sub63310-13170

main63310-13230-B0iEE104,108199109-199409

LIGHT GRAY,TRIM1#

sub63310-13170

main63310-13230-J0iEE105199205-199408

W(3-POINT REAR SEAT BELT),LIGHT BLUE,TRIM8#

sub63310-13170

main63310-13280-B1iAE101,EE100..WG..(GCC,GEN)199205-199704

LIGHT GRAY,TRIM1#

main63310-13280-J1iAE101,EE100..WG..(GCC,GEN)199205-199704

LIGHT TAUPE,TRIM8#

main63310-1A020-K1iAE100,EE100..LX,STD,XL199108-199111

MOULDED,LIGHT TAUPE,TRIM9#

sub63310-1A021

main63310-1A020-K1iAE100,EE100..LX,STD,XL199108-199111

LIGHT TAUPE,TRIM9#

sub63310-1A021

main63310-1A020-S3iAE100,EE100..LX,STD,XL199108-199111

MOULDED,LIGHT GRAY,TRIM1#

sub63310-1A021

main63310-1A020-S3iAE100,EE100..LX,STD,XL199108-199111

LIGHT GRAY,TRIM1#

sub63310-1A021

main63310-1A020-W5iAE101..GLI199108-199111

LIGHT BLUE,TRIM8#

sub63310-1A021

main63310-1A020-W5iAE100,EE100..LX,STD,XL199108-199111

MOULDED,LIGHT BLUE,TRIM8#

sub63310-1A021

main63310-1A021-K1iEE101;AE101,EE100..SED..GCC199111-199511

LIGHT TAUPE,TRIM9#

sub63310-1A021

main63310-1A021-K1iAE101..GLI..GCC;AE100,101,CE100,EE100,101..SED..(LX,STD,XL,XLI)199111-199505

MOULDED,LIGHT TAUPE,TRIM9#

sub63310-1A021

main63310-1A021-S3iAE101..GLI..GCC;AE100,101,CE100,EE100,101..SED..(LX,STD,XL,XLI)199111-200111

LIGHT GRAY,TRIM1#

sub63310-1A021

main63310-1A021-S3iAE101..RHD..GLI199111-200111

MOULDED,LIGHT GRAY,TRIM1#

sub63310-1A021

main63310-1A021-W5iCE100..LHD;AE101..GLI..GCC;AE101,EE100,101..SED..(STD,XL,XLI)199111-200111

LIGHT BLUE,TRIM8#

sub63310-1A021

main63310-1A021-W5iAE101..RHD..GLI199111-200111

MOULDED,LIGHT BLUE,TRIM8#

sub63310-1A021

main63310-1A220-K1iAE10#,EE100..GL,GLI,SEG199108-199111

LIGHT TAUPE,TRIM9#

sub63310-1A221

main63310-1A220-S3iAE10#,EE100..GL,GLI,SEG199108-199111

LIGHT GRAY,TRIM1#

sub63310-1A221

main63310-1A220-W5iAE10#,EE100..GL,GLI,SEG199108-199111

LIGHT BLUE,TRIM8#

sub63310-1A221

main63310-1A221-K1iAE101..LHD..XL199309-199505

MOULDED,LIGHT TAUPE,TRIM9#

sub63310-1A221

main63310-1A221-K1iAE10#,EE100..(GL,GLI,SEG)..(GEN,TUR)199111-199510

LIGHT TAUPE,TRIM9#

sub63310-1A221

main63310-1A221-S3iAE10#,EE100..(GL,GLI,SEG)..(GEN,TUR)199111-200111

LIGHT GRAY,TRIM1#

sub63310-1A221

main63310-1A221-S3iAE101..LHD..XL199309-199805

MOULDED,LIGHT GRAY,TRIM1#

sub63310-1A221

main63310-1A221-W5iAE101,102,EE100..(GL,GLI)..(GEN,TUR)199111-200111

LIGHT BLUE,TRIM8#

sub63310-1A221

main63310-1A221-W5iAE101..LHD..XL199309-199805

MOULDED,LIGHT BLUE,TRIM8#

sub63310-1A221

main63310-1A230-K1iAE100..GLI199108-199511

W(SUN ROOF),LIGHT TAUPE,TRIM9#

main63310-1A230-S3iAE100,101,CE100,EE100,101..RHD..SED..(GL,GLI,SEG,XL,XLI)199108-199710

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A230-W5iAE10#,EE100,101..RHD..SED..(GL,GLI,SEG,XL,XLI)199108-199710

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A240-B0iAE101..RHD..SED..XLI;EE100..LHD..5F..XL..GEN;CE100,EE100..RHD..(STD,XL)199108-200111

SUSPENDED,LIGHT GRAY,TRIM1#

main63310-1A240-J0iAE101..RHD..SED..XLI;EE100..RHD..(STD,XL);CE100,EE100..LHD..5F..XL..GEN199108-200111

SUSPENDED,LIGHT BLUE,TRIM8#

main63310-1A240-K0iAE101..RHD..SED..XLI;EE100..RHD..(STD,XL);CE100,EE100..LHD..5F..XL..GEN199108-199505

SUSPENDED,LIGHT TAUPE,TRIM9#

main63310-1A250-B0iAE101..3FC..XL;EE100..RHD..GL;AE101..RHD..5F..(GLI,SEG);AE101..RHD..4FC..(GL,GLI,SEG);AE101,102..LHD..(4FC,5F)..(GL,GLI,XL)..GEN199108-200111

SUSPENDED,LIGHT GRAY,TRIM1#

main63310-1A250-J0iAE101..3FC..XL;EE100..RHD..GL;AE101..RHD..5F..GLI;AE101..RHD..4FC..(GL,GLI);AE101,102..LHD..(4FC,5F)..(GL,GLI,XL)..GEN199108-200111

SUSPENDED,LIGHT BLUE,TRIM8#

main63310-1A250-K0iAE101..SEG199108-199510

SUSPENDED,LIGHT TAUPE,TRIM9#

main63310-1A280-B0iAE101..SJ199108-199305

LIGHT GRAY,TRIM20,21,22

main63310-1A280-B0iAE101..CP199108-199505

LIGHT GRAY,TRIM2#

main63310-1A290-B0iAE101..GTAPX199108-199305

W(SUN ROOF),LIGHT GRAY,TRIM20,21,22

main63310-1A290-B0iAE101..SJ199108-199505

W(SUN ROOF),LIGHT GRAY,TRIM2#

main63310-1A300-B0iAE101..4FC..SJ199305-199308

FOR HANDICAPPED PERSON,LIGHT GRAY,TRIM2#

main63310-1A300-B0iAE101..4FC..SJ199108-199305

FOR HANDICAPPED PERSON,LIGHT GRAY,TRIM20,21,22

main63310-1A400-B0iEE100..LHD..GEN;AE101..LHD..GLI..GEN199205-199711

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A400-J0iEE100..LHD..GEN;AE101..LHD..GLI..GEN199205-199711

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A400-K0iAE101,CE100,EE100..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN)199205-199508

W(SUN ROOF),LIGHT TAUPE,TRIM9#

63341PAD, ROOF SILENCER, NO.1

main63341-12100iAE10#,CE100,EE100..GEN199108-199704

main63341-13100iAE101,EE100,104,105..WG199109-199910

sub63341-52110

63341DPAD, ROOF SILENCER, FRONT

main63341-12150iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE10#..LHD..(4FC,5F)..(GL,GLI,XL)..GEN;AE101,CE100..RHD..SED..5F..(GLI,SEG,XL,XL199110-199704

63342PAD, ROOF SILENCER, NO.2

main63341-16010iAE10#,CE100,EE100..SED199601-199704

150 X 860

sub63341-12330

main63342-12060iAE101..RHD..GLI;AE101..GLI..GCC;AE101,CE100,EE100,101..SED..(STD,XL,XLI)199108-199601

main63342-12060iAE102,EE100..GL,GLI;AE101..4FC..(GL,GLI)..(GEN,TUR);AE101..(3FC,5F)..(GL,GLI,XL)..(GEN,TUR)199510-199704

140 X 700

main63343-12050iAE10#,CE100,EE100..SED199601-199704

275 X 820

63342ASILENCER, ROOF, NO.2

main63341-12110iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE10#..LHD..(4FC,5F)..(GL,GLI,XL)..GEN;AE101,CE100..RHD..SED..5F..(GLI,SEG,XL,XL199110-199704

63343BPAD, ROOF SILENCER, REAR

main63343-12050iAE101..CP199108-199505

main63343-12090iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE10#..LHD..(4FC,5F)..(GL,GLI,XL)..GEN;AE101,CE100..RHD..SED..5F..(GLI,SEG,XL,XL199110-199704

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-12240iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE101..RHD..SED..5F..(GLI,SEG,XLI);AE101,102,CE100..LHD..(4FC,5F)..(GL,GLI,XL)..199205-199704

RED

main63361-12240iAE101,EE100..SED199108-199205

main63361-12250iAE10#,CE100,EE100..GEN199205-199704

LIGHT GREEN

main63361-12260iAE10#,CE100,EE100..GEN199205-199704

PURPLE

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-12200iAE10#,CE100,EE100..GEN199205-199704

WHITE

main63362-12200iAE101,EE100..SED199108-199205

main63362-12210iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE10#..LHD..(4FC,5F)..(GL,GLI,XL)..GEN;AE101,CE100..RHD..SED..5F..(GLI,SEG,XL,XL199205-199704

GREEN

main63362-12220iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE101..RHD..SED..5F..(GLI,SEG,XLI);AE101,102,CE100..LHD..(4FC,5F)..(GL,GLI,XL)..199205-199704

PINK

63363SUPPORT, ROOF HEADLINING, NO.3

main63363-12040iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE10#..LHD..(4FC,5F)..(GL,GLI,XL)..GEN;AE101,CE100..RHD..SED..5F..(GLI,SEG,XL,XL199205-199704

BLUE

main63363-12040iAE101,EE100..SED199108-199205

main63363-12060iAE10#,CE100,EE100..GEN199205-199704

ORANGE

main63363-12070iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE10#..LHD..(4FC,5F)..(GL,GLI,XL)..GEN;AE101,CE100..RHD..SED..5F..(GLI,SEG,XL,XL199205-199704

BLACK

63364SUPPORT, ROOF HEADLINING, NO.4

main63364-12020iAE10#,CE100,EE100..GEN199205-199704

YELLOW

main63364-12020iAE101,EE100..SED199108-199205

main63364-12030iAE10#,CE100,EE100..GEN199205-199704

GRAY

main63364-12040iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE10#..LHD..(4FC,5F)..(GL,GLI,XL)..GEN;AE101,CE100..RHD..SED..5F..(GLI,SEG,XL,XL199205-199704

BROWN

63381RETAINER, HEADLINING, FRONT

main63381-12130iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,SEG,XLI);AE101..RHD..SED..5F..(GLI,SEG,XLI);AE101,102,CE100..LHD..(4FC,5F)..(GL,GLI,XL)..199108-199704

63391TRIM, ROOF HEADLINING, FRONT

main63391-12130-B0iAE10#,CE100,EE100..GEN199108-199704

LIGHT GRAY,TRIM1#

main63391-12130-J1iEE100..RHD;AE101..3FC..XL;EE100..LHD..5F..XL..GEN;AE101..RHD..4FC..(GL,GLI,XLI);AE101..RHD..SED..5F..(GLI,XLI);AE101,102,CE100..LHD..(4FC,5F)..(GL,GLI,XL)..GEN199108-199704

DARK BLUE,TRIM8#

main63391-12130-K0iAE101..SEG199108-199510

LIGHT TAUPE,TRIM9#

9046804008

main90468-04008

9046804073

main90468-04073

9354014510

main93540-14510

18 parts on this diagram · 4 diagrams in section
