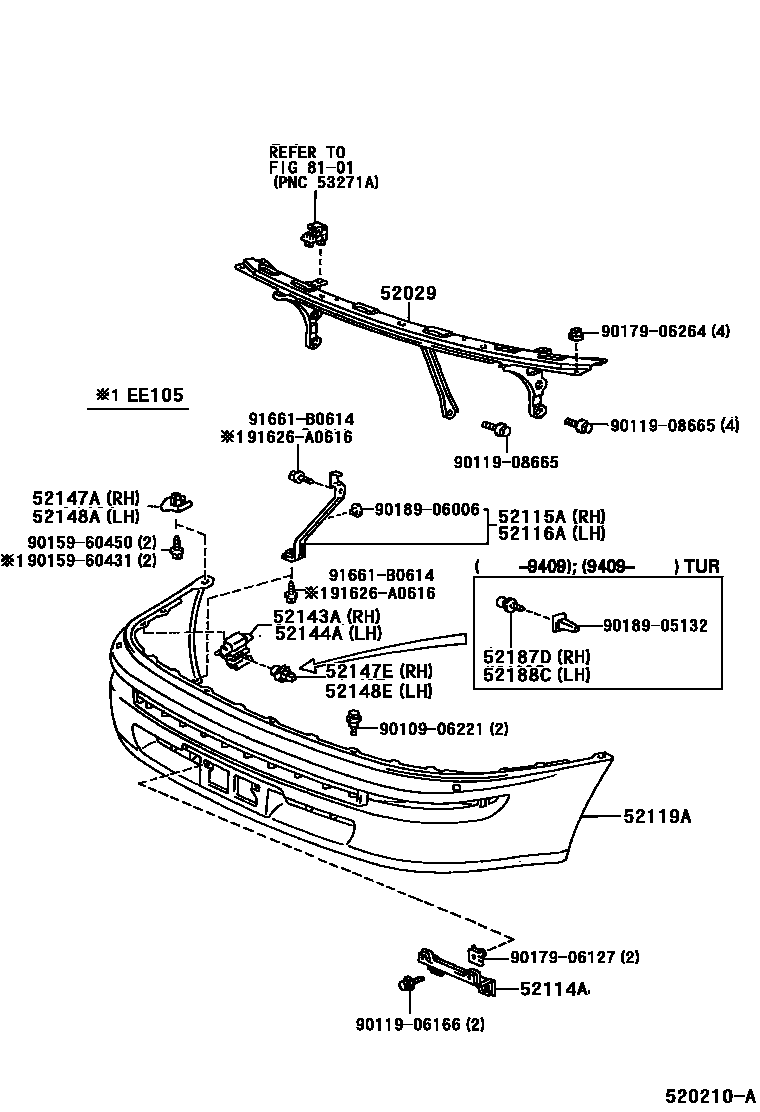

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-12010iAE10#,CE100,EE10#..SED,WG199108-199702

sub52029-13010

main52029-12030iAE101..CP199108-199505

main52029-13010iAE10#,CE100,EE10#199702-199704

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-30050iEE100,101..RHD;AE101..RHD..(GLI,SEG)199305-199910

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12330iAE101..CP199108-199505

main52115-12340iAE10#,CE100,EE10#199108-199704

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12260iAE101..CP199108-199505

main52116-12270iAE10#,CE100,EE10#..SED,WG199108-199704

52119ACOVER, FRONT BUMPER

main52119-1A910iAE101..RHD..GLI199301-199304

THAILAND,W/O(GRAIN)

main52119-1A910iAE100199108-199305

main52119-1A911iAE100..GLI199108-199205

W(CORNER SONAR)

main52119-1E010iAE10#,CE100,EE100,101,105..GEN199108-200111

main52119-1E260iEE104199508-199605

2AK

main52119-1E260iEE100,101..RHD;AE101..RHD..(GLI,SEG)199305-199711

PP BLACK

main52119-1E260iAE101..RHD..SED..5F..XLI199312-199505

INDONESIA SPEC & PP BLACK

main52119-1E260iEE104199401-199910

main52119-1E260iAE101..RHD..WG;EE100..RHD..5F..XL199505-199704

NEW ZEALAND SPEC

main52119-1E260iAE101..LHD..GLI..GEN199505-199711

PHILIPPINES SPEC

main52119-1E901iAE101..CP199108-199305

main52119-1E903iAE101..RHD..(GLI,SEG);EE100,101..RHD..(3FC,5F)199305-199307

PP COLOR

sub52119-1E260

main52119-1E904iAE101..CP199305-199505

main52119-1E905iAE100199305-199505

52143AARM, FRONT BUMPER, INNER RH

main52143-12300iAE10#,CE100,EE10#..SED,WG199108-199304

sub52143-12330

main52143-12330iAE10#,CE100,EE10#..SED,WG199304-199704

52144AARM, FRONT BUMPER, INNER LH

main52143-12300iAE10#,CE100,EE10#..SED,WG199108-199304

sub52143-12330

main52143-12330iAE10#,CE100,EE10#..SED,WG199304-199704

52147ABRACKET, FRONT BUMPER STAY, RH

main52147-12170iAE10#,CE100,EE10#..SED,WG199108-199812

main52147-16080iEE105199812-199910

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52148-12130iAE10#,CE100,EE10#199409-199704

52148ABRACKET, FRONT BUMPER STAY, LH

main52147-12170iAE10#,CE100,EE10#..SED,WG199108-199812

main52147-16080iEE105199812-199910

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52148-12130iAE10#,CE100,EE10#..SED,WG199409-199704

52187DGUIDE, FRONT BUMPER LOCATION, RH

main52187-12140iAE10#,CE100,EE10#..SED,WG199108-199409

52188CGUIDE, FRONT BUMPER LOCATION, LH

main52187-12140iAE101,EE100..SED..TUR199108-199409

8101

9010906221

main90109-06221

9011906166

main90119-06166

9011908665

main90119-08665

9015960431

main90159-60431

9015960450

main90159-60450

9017906127

main90179-06127

9017906264

main90179-06264

9018905132

main90189-05132

9018906006

main90189-06006

91626A0616

main91626-A0616

91661B0614

main91661-B0614

25 parts on this diagram · 2 diagrams in section
