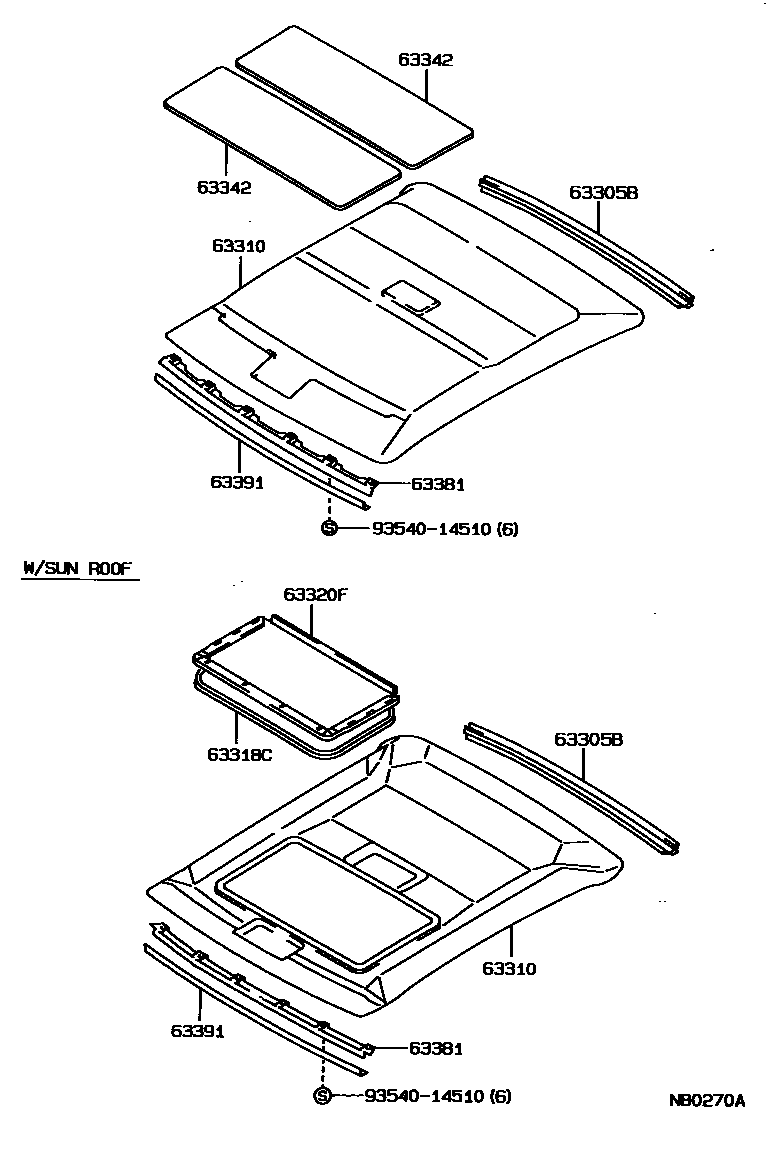

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12080-02iAE9#,EE90..RHD..SED..(GL,XL)..GEN198705-198809

MAROON,TRIM3#

sub63305-12080

main63305-12080-03iAE9#,CE90,EE90..SED198705-199009

SHADOW GRAY,TRIM1#

sub63305-12080

main63305-12080-04iAE9#,CE90,EE90..LHD..SED..(GL,XL)198705-198809

DARK BLUE,TRIM8#

sub63305-12080

main63305-12080-05iAE9#,CE90,EE90..SED..(GL,SE,STD,XL)198705-198809

DARK BEIGE,TRIM4#

sub63305-12080

main63305-12080-06iAE92,EE90..(GL,SE,STD,XL)..SA;AE92,CE90,EE90..LHD..SED..(GL,XL)198908-198909

BROWN,TRIM4#

sub63305-12080

main63305-12080-B0iAE92,CE90,EE90..SED..(GCC,GEN)199009-199207

SHADOW GRAY,TRIM1#

sub63305-12080

main63305-12080-D0iAE9#,EE90..RHD..SED..(GL,XL)..GEN198809-199207

MAROON,TRIM3#

sub63305-12080

main63305-12080-E0iAE9#,CE90,EE90..SED..(GL,SE,STD,XL)198809-198908

DARK BEIGE,TRIM4#

sub63305-12080

main63305-12080-E1iAE92,EE90..(GL,SE,STD,XL)..SA;AE92,CE90,EE90..LHD..SED..(GL,XL)198909-199308

BROWN,TRIM4#

sub63305-12080

main63305-12080-J0iAE9#,CE90,EE90..LHD..SED..(GL,XL)198809-199207

DARK BLUE,TRIM8#

sub63305-12080

main63305-12100-02iAE92,EE90..RHD..LB..(GL,XL)198705-198908

MAROON,TRIM3#

sub63305-12100

main63305-12100-03iAE92..LB;EE90..RHD..LB199009-199205

CKD SPEC,SHADOW GRAY,TRIM1#

sub63305-12100

main63305-12100-03iEE90..LHD..LB199009-199205

W(SUSPENDED TYPE, FABRIC),SHADOW GRAY,TRIM1#

sub63305-12100

main63305-12100-03iAE92,EE90..LB198705-199009

SHADOW GRAY,TRIM1#

sub63305-12100

main63305-12100-04iAE92,EE90..LHD..LB198705-198811

DARK BLUE,TRIM8#

sub63305-12100

main63305-12100-05iAE92,EE90..LB..(GL,XL)198705-198908

DARK BEIGE,TRIM4#

sub63305-12100

main63305-12100-06iAE92,EE90..LHD..LB198908-199008

BROWN,TRIM4#

sub63305-12100

main63305-12100-B1iAE92,EE90..LB199009-199205

SHADOW GRAY,TRIM1#

sub63305-12100

main63305-12100-J0iAE92,EE90..LHD..LB198811-199109

DARK BLUE,TRIM8#

sub63305-12100

main63305-12130-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

main63305-12130-04iAE95..WG198802-199009

DARK BLUE,TRIM8#

main63305-12130-05iAE95..WG198802-198908

DARK BEIGE,TRIM4#

main63305-12130-06iAE95..LHD198908-199009

BROWN,TRIM4#

main63305-13010-03iAE92,EE90..WG198708-199207

SHADOW GRAY,TRIM1#

main63305-13010-04iAE92..WG;EE90..WG..GCC198710-199207

DARK BLUE,TRIM8#

main63305-13010-05iEE90..WG198708-198908

DARK BEIGE,TRIM4#

main63305-13010-06iAE92,EE90..WG..GCC198908-199207

BROWN,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-12750iAE92..(GL,SE)..SA198808-199308

main63310-12750-02iAE92,EE90..RHD..SED..GL..GEN198705-199205

MAROON,TRIM3#

sub63310-12750

main63310-12750-03iAE92..GT..SA;AE92,EE90..SED..(GL,GT)..GEN198705-199209

LIGHT GRAY,TRIM1#

sub63310-12750

main63310-12750-04iAE92,EE90..SED..GL..GEN198705-199205

LIGHT BLUE,TRIM8#

sub63310-12750

main63310-12750-05iAE92,EE90..SED..GL..GEN198705-198908

LIGHT BEIGE,TRIM4#

sub63310-12750

main63310-12750-06iAE92,EE90..LHD..SED..GL198908-199205

LIGHT BROWN,TRIM4#

sub63310-12750

main63310-12840-02iAE9#,EE90..RHD..SED..(GL,XL)..GEN198705-198809

W(SUN ROOF),MAROON,TRIM3#

sub63310-12840

main63310-12840-03iAE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN)198705-198809

W(SUN ROOF),LIGHT GRAY,TRIM1#

sub63310-12840

main63310-12840-04iAE9#,CE90,EE90..LHD..SED..(GL,XL)198705-198809

W(SUN ROOF),LIGHT BLUE,TRIM8#

sub63310-12840

main63310-12840-05iAE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN)198705-198809

W(SUN ROOF),LIGHT BEIGE,TRIM4#

sub63310-12840

main63310-12840-06iAE92,CE90,EE90..LHD..SED..(GL,XL)198908-199207

W(SUN ROOF),LIGHT BROWN,TRIM4#

sub63310-12840

main63310-12840-B0iAE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN)198809-199207

W(SUN ROOF),LIGHT GRAY,TRIM1#

sub63310-12840

main63310-12840-D0iAE92,EE90..RHD..SED..(GL,XL)..GEN198908-199207

W(SUN ROOF),MARRON,TRIM3#

sub63310-12840

main63310-12840-D0iAE92..LHD..SED..3FC..GL;AE9#,CE90,EE90..SED..XL..(GCC,GEN)198809-198908

W(SUN ROOF),MARRON,TRIM4#

sub63310-12840

main63310-12840-E0iAE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN)198809-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

sub63310-12840

main63310-12840-J0iAE92,CE90,EE90..SED..(GL,SE,XL)..(GCC,GEN)198809-199207

W(SUN ROOF),LIGHT BLUE,TRIM8#

sub63310-12840

main63310-12850-03iEE90..RHD..SED..(STD,XL)..GEN198901-199205

CKD COUNTRIES,LIGHT GRAY,TRIM1#

main63310-12850-03iEE90..RHD..SED..(STD,XL)..GEN198905-198908

VENEZUELA SPEC OR CKD COUNTRIES,LIGHT GRAY,TRIM1#

main63310-12850-03iEE90..LHD..SED..MTM..XL..GEN198908-199205

CKD COUNTRIES OR PHILIPPINES SPEC,LIGHT GRAY,TRIM1#

main63310-12850-03iEE90..LHD..SED..MTM..XL..GEN198905-199205

W(SUSPENDED HEADLINING),LIGHT GRAY,TRIM1#

main63310-12850-05iAE92..RHD..XL..GEN;CE90,EE90..LHD..SED..(STD,XL)..GEN198901-198908

CKD COUNTRIES,LIGHT BEIGE,TRIM4#

main63310-12850-05iAE92..RHD..XL..GEN;CE90,EE90..LHD..SED..(STD,XL)..GEN198905-198908

W(SUSPENDED HEADLINING),LIGHT BEIGE,TRIM4#

main63310-12850-05iAE92..RHD..XL..GEN;CE90,EE90..LHD..SED..(STD,XL)..GEN198905-198908

VENEZUELA SPEC OR CKD COUNTRIES,LIGHT BEIGE,TRIM4#

main63310-12850-06iCE90;EE90..LHD..3FC..GEN198908-199205

W(SUSPENDED HEADLINING),LIGHT BROWN,TRIM4#

main63310-12850-06iCE90;EE90..LHD..3FC..GEN198908-199205

CKD COUNTRIES,LIGHT BROWN,TRIM4#

main63310-12850-06iEE90..LHD..SED..MTM..XL..GEN198908-199205

CKD COUNTRIES OR PHILIPPINES SPEC,LIGHT BROWN,TRIM4#

main63310-12860-03iAE92,EE90..SED..GL198705-198707

CKD COUNTRIES,LIGHT GRAY,TRIM1#

main63310-12860-05iAE92,EE90..SED..GL198705-198707

CKD COUNTRIES,LIGHT BEIGE,TRIM4#

main63310-12880-02iAE92,EE90..RHD..LB..(GL,XL)198705-198908

MAROON,TRIM3#

main63310-12880-03iAE92,EE90..LB198705-199205

LIGHT GRAY,TRIM1#

main63310-12880-04iAE92,EE90..LB198705-199205

LIGHT BLUE,TRIM8#

main63310-12880-05iAE92,EE90..LB..(GL,XL)198705-198908

LIGHT BEIGE,TRIM4#

main63310-12880-06iAE92,EE90..LHD..LB198908-199008

LIGHT BROWN,TRIM4#

main63310-13140-03iAE92,EE90..WG198708-199207

LIGHT GRAY,TRIM1#

main63310-13140-04iAE92..WG;EE90..WG..GCC198710-199207

LIGHT BLUE,TRIM8#

main63310-13140-05iEE90..WG198708-198908

LIGHT BEIGE,TRIM4#

main63310-13140-06iAE92,EE90..WG..GCC198908-199207

LIGHT BROWN,TRIM4#

main63310-13150-03iEE97198708-199108

LIGHT GRAY,TRIM1#

main63310-13150-04iEE97198708-199108

LIGHT BLUE,TRIM8#

main63310-13150-05iEE97198708-198908

LIGHT BEIGE,TRIM4#

main63310-1A010-02iAE92,EE90..RHD..LB..(GL,XL)198705-198908

W(SUN ROOF),MAROON,TRIM3#

main63310-1A010-03iAE92,EE90..LB198705-199205

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A010-04iAE92,EE90..LB198705-199205

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A010-05iAE92,EE90..LB..(GL,XL)198705-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A010-06iAE92,EE90..LHD..LB198908-199008

W(SUN ROOF),LIGHT BROWN,TRIM4#

main63310-1A080iAE92,EE90..(STD,XL)..SA198808-199308

main63310-1A080-02iAE9#,EE90..RHD..SED..XL..GEN198705-198809

MAROON,TRIM3#

sub63310-1A080

main63310-1A080-03iAE9#,CE90,EE90..SED..(STD,XL)..(GCC,GEN)198705-198809

LIGHT GRAY,TRIM1#

sub63310-1A080

main63310-1A080-04iAE9#,CE90,EE90..LHD..SED..XL198708-198809

LIGHT BLUE,TRIM8#

sub63310-1A080

main63310-1A080-05iAE9#,CE90,EE90..SED..(STD,XL)..(GCC,GEN)198705-198809

LIGHT BEIGE,TRIM4#

sub63310-1A080

main63310-1A080-B1iAE9#,CE90,EE90..SED..(SE,STD,XL)..(GCC,GEN)198809-199207

LIGHT GRAY,TRIM1#

sub63310-1A080

main63310-1A080-D1iAE92..SE..GCC;AE92,EE90..RHD..SED..XL..GEN198809-199207

MAROON,TRIM3#

sub63310-1A080

main63310-1A080-E1iAE92,CE90,EE90..LHD..SED..XL198909-199207

LIGHT BROWN,TRIM4#

sub63310-1A080

main63310-1A080-E2iAE9#,CE90,EE90..SED..(STD,XL)..(GCC,GEN)198809-198908

LIGHT BROWN,TRIM4#

sub63310-1A080

main63310-1A080-J1iAE92,CE90,EE90..SED..(SE,STD,XL)..(GCC,GEN)198809-199207

LIGHT BLUE,TRIM8#

sub63310-1A080

main63310-1A100-03iAE92,EE90..LB198705-198707

CKD COUNTRIES,LIGHT GRAY,TRIM1#

main63310-1A100-05iAE92,EE90..LB..GL198705-198707

CKD COUNTRIES,LIGHT BEIGE,TRIM4#

main63310-1A120-03iAE95..WG..XL198802-199009

W(ROOF INNER RACK),LIGHT GRAY,TRIM1#

main63310-1A120-03iAE95..SR5198802-199009

LIGHT GRAY,TRIM1#

main63310-1A120-04iAE95..XL198802-199009

W(ROOF INNER RACK),LIGHT BLUE,TRIM8#

main63310-1A120-04iAE95..SR5198802-199009

LIGHT BLUE,TRIM8#

main63310-1A120-05iAE95..SR5198802-198908

LIGHT BEIGE,TRIM4#

main63310-1A120-05iAE95..SR5198802-198908

W(ROOF INNER RACK),LIGHT BEIGE,TRIM4#

main63310-1A120-06iAE95..LHD198908-199009

W(ROOF INNER RACK),LIGHT BROWN,TRIM4#

main63310-1A130-03iAE95..SR5198802-199009

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A130-03iAE95..WG..XL198802-199009

W(ROOF INNER RACK & SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A130-04iAE95..SR5198802-199009

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A130-04iAE95..WG..XL198802-199009

W(ROOF INNER RACK & SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A130-05iAE95..SR5198802-198908

W(ROOF INNER RACK & SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A130-05iAE95..SR5198802-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A130-06iAE95..LHD198908-199009

W(ROOF INNER RACK & SUN ROOF),LIGHT BROWN,TRIM4#

main63310-1A140-03iAE95..WG..XL198802-199009

LIGHT GRAY,TRIM1#

main63310-1A140-04iAE95..WG..XL198802-199009

LIGHT BLUE,TRIM8#

main63310-1A140-05iAE95..WG..XL198802-198908

LIGHT BEIGE,TRIM4#

main63310-1A140-06iAE95..LHD198908-199009

LIGHT BROWN,TRIM4#

main63310-1A150-03iAE95..WG..XL198802-199009

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A150-04iAE95..WG..XL198802-199009

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A150-05iAE95..WG..XL198802-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A150-06iAE95..LHD198908-199009

W(SUN ROOF),LIGHT BROWN,TRIM4#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12030-02iAE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN198705-198901

MAROON,TRIM3#

sub63318-12030

main63318-12030-03iAE9#,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN)198705-198908

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-04iAE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL)198705-198908

LIGHT BLUE,TRIM8#

sub63318-12030

main63318-12030-05iAE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN)198705-198908

LIGHT BEIGE,TRIM4#

sub63318-12030

main63318-12030-06iAE92,CE90,EE90..LHD..(LB,SED)..(GL,XL)198908-198909

LIGHT BROWN,TRIM4#

sub63318-12030

main63318-12030-B3iAE92,CE90,EE90..(LB,SED)..(GL,SE,XL)..(GCC,GEN)198908-199207

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-D1iAE92,EE90..RHD..SED..(GL,XL)..GEN198901-199207

MARRON,TRIM3#

sub63318-12030

main63318-12030-E4iAE92,CE90,EE90..LHD..(LB,SED)..(GL,XL)198909-199207

LIGHT BROWN,TRIM4#

sub63318-12030

main63318-12030-J2iAE92,CE90,EE90..(LB,SED)..(GL,SE,XL)..(GCC,GEN)198908-199207

LIGHT BLUE,TRIM8#

sub63318-12030

main63318-12040-03iAE95..WG198802-199009

LIGHT GRAY,TRIM1#

main63318-12040-04iAE95..WG198802-199009

LIGHT BLUE,TRIM8#

main63318-12040-05iAE95..WG198802-198908

LIGHT BEIGE,TRIM4#

main63318-12040-06iAE95..LHD198908-199009

LIGHT BROWN,TRIM4#

63320FHEADLINING ASSY, SUN ROOF

main63320-12070-02iAE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN198705-198809

MAROON,TRIM3#

sub63320-12070

main63320-12070-03iAE9#,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN)198705-198809

LIGHT GRAY,TRIM1#

sub63320-12070

main63320-12070-04iAE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL)198705-198809

LIGHT BLUE,TRIM8#

sub63320-12070

main63320-12070-05iAE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN)198705-198809

LIGHT BEIGE,TRIM4#

sub63320-12070

main63320-12070-06iAE92,CE90,EE90..LHD..(LB,SED)..(GL,XL)198908-199207

LIGHT BROWN,TRIM4#

sub63320-12070

main63320-12070-B1iAE92,CE90,EE90..(LB,SED)..(GL,SE,XL)..(GCC,GEN)198809-199207

LIGHT GRAY,TRIM1#

sub63320-12070

main63320-12070-D1iAE92,EE90..RHD..SED..(GL,XL)..GEN198809-199207

MARRON,TRIM3#

sub63320-12070

main63320-12070-E1iAE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN)198809-198908

LIGHT BEIGE,TRIM4#

sub63320-12070

main63320-12070-J1iAE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL)198809-199207

LIGHT BLUE,TRIM8#

sub63320-12070

main63320-12090-03iAE95..WG198802-199009

LIGHT GRAY,TRIM1#

main63320-12090-04iAE95..WG198802-199009

LIGHT BLUE,TRIM8#

main63320-12090-05iAE95..WG198802-198908

LIGHT BEIGE,TRIM4#

main63320-12090-06iAE95..LHD198908-199009

LIGHT BROWN,TRIM4#

63342PAD, ROOF SILENCER, NO.2

main63342-12040iAE92..LHD..LB..GL198705-199205

CKD COUNTRIES

sub63341-22H92

main63342-12040iAE92..LHD..LB..GL198905-199205

W(SUSPENDED HEADLINING)

sub63341-22H92

main63342-12040iAE92..LHD..LB..GL198905-198908

VENEZUELA SPEC OR CKD COUNTRIES

sub63341-22H92

main63342-16010iEE90..RHD..SED..(STD,XL)..GEN198905-198908

VENEZUELA SPEC OR CKD COUNTRIES

sub63341-22H92

main63342-16010iEE90..RHD..SED..GL198705-199205

CKD COUNTRIES

sub63341-22H92

main63342-16010iEE90..RHD..SED..GL198905-199205

W(SUSPENDED HEADLINING)

sub63341-22H92

main63342-16010iCE90;AE92..SED..3FC..GL;EE90..LHD..3FC..GEN;EE90..LHD..(GL,STD)..GEN198908-199205

CKD COUNTRIES OR PHILIPPINES SPEC

sub63341-22H92

main63343-12050iAE95;AE92,CE90,EE90..LB,SED198705-199308

63381RETAINER, HEADLINING, FRONT

main63381-12190iEE9#;AE9#,CE90..LB,SED198705-199308

63391TRIM, ROOF HEADLINING, FRONT

main63391-12060-02iAE9#,EE90..RHD..SED..(GL,XL)..GEN198705-198809

MAROON,TRIM3#

sub63391-12060

main63391-12060-03iAE92,CE90,EE90..SED,WG198705-199009

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-04iAE9#,CE90..LHD..SED..(GL,XL);EE90..LHD..(SED,WG)..(GL,XL)198705-198809

DARK BLUE,TRIM8#

sub63391-12060

main63391-12060-05iEE90..SED,WG;AE9#,CE90..SED..(GL,SE,STD,XL)198705-198809

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-06iAE92,EE90..(GL,SE,STD,XL)..SA;AE92,CE90,EE90..LHD..(SED,WG)..(GL,XL)198908-198909

BROWN,TRIM4#

sub63391-12060

main63391-12060-B0iAE92,CE90,EE90..(SED,WG)..(GCC,GEN)199009-199207

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-D0iAE92..SE..GCC;AE92,EE90..RHD..SED..(GL,XL)..GEN198809-199207

MAROON,TRIM3#

sub63391-12060

main63391-12060-E0iEE90..SED,WG;AE9#,CE90..SED..(GL,SE,STD,XL)198809-198908

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-E1iAE92,EE90..(GL,SE,STD,XL)..SA;AE92,CE90,EE90..LHD..(SED,WG)..(GL,XL)198909-199308

BROWN,TRIM4#

sub63391-12060

main63391-12060-J0iAE92,CE90,EE90..(SED,WG)..(GL,SE,STD,XL)..(GCC,GEN)198809-199207

DARK BLUE,TRIM8#

sub63391-12060

main63391-12080-02iAE92,EE90..RHD..LB..(GL,XL)198705-198908

MAROON,TRIM3#

sub63391-12080

main63391-12080-03iAE95..WG;AE92,EE90..LB198705-199009

SHADOW GRAY,TRIM1#

sub63391-12080

main63391-12080-04iAE95..WG;AE92,EE90..LHD..LB198705-198811

DARK BLUE,TRIM8#

sub63391-12080

main63391-12080-05iEE90..LB;AE9#..(LB,WG)..(GL,SR5,XL)198705-198908

DARK BEIGE,TRIM4#

sub63391-12080

main63391-12080-06iAE95..LHD198908-199009

BROWN,TRIM4#

sub63391-12080

main63391-12080-B1iAE92,EE90..LB199009-199205

SHADOW GRAY,TRIM1#

sub63391-12080

main63391-12080-J0iAE95;AE92,EE90..LB198811-199205

DARK BLUE,TRIM8#

sub63391-12080

main63391-12110-03iAE92,EE90..RHD..SED..(GL,GT)..GEN198905-199205

W(SUSPENDED HEADLINING),SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12110-03iAE92..GT..GEN198910-199008

SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12110-03iCE90;AE92..SED..3FC..GL;EE90..LHD..3FC..GEN;EE90..LHD..(GL,STD)..GEN198904-199205

CKD COUNTRIES,SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12110-03iCE90;AE92..SED..3FC..GL;EE90..LHD..3FC..GEN;EE90..LHD..(GL,STD)..GEN198908-199205

CKD COUNTRIES OR PHILIPPINES SPEC,SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12110-03iAE92..SED..GL..GEN;AE92..RHD..XL..GEN;CE90,EE90..LHD..SED..GEN198905-198908

VENEZUELA SPEC OR CKD COUNTRIES,SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12110-06iAE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN198908-199205

CKD COUNTRIES OR PHILIPPINES SPEC,BROWN,TRIM4#

sub63391-12110

main63391-12110-06iCE90;EE90..LHD..GL;AE92..SED..3FC..GL;EE90..LHD..3FC..GEN198908-199205

CKD COUNTRIES,BROWN,TRIM4#

sub63391-12110

main63391-12110-06iCE90;EE90..LHD..GL;AE92..SED..3FC..GL;EE90..LHD..3FC..GEN198908-199205

W(SUSPENDED HEADLINING),BROWN,TRIM4#

sub63391-12110

main63391-12110-D0iAE92..RHD..SED..GEN198905-199205

W(SUSPENDED HEADLINING),MAROON,TRIM3#

sub63391-12110

main63391-12110-D0iAE92..RHD..SED..GEN198904-198908

CKD COUNTRIES,MAROON,TRIM3#

sub63391-12110

main63391-12110-E0iEE90..RHD..SED..GL198905-198908

W(SUSPENDED HEADLINING),DARK BEIGE,TRIM4#

sub63391-12110

main63391-12110-E0iEE90..RHD..SED..GL198904-198908

CKD COUNTRIES,DARK BEIGE,TRIM4#

sub63391-12110

main63391-12110-E0iEE90..RHD..SED..(STD,XL)..GEN198905-198908

VENEZUELA SPEC OR CKD COUNTRIES,DARK BEIGE,TRIM4#

sub63391-12110

main63391-12110-J0iAE92..LHD..SED..XL198905-198908

VENEZUELA SPEC OR CKD COUNTRIES,DARK BLUE,TRIM8#

sub63391-12110

main63391-12110-J0iAE92..LHD..SED..XL198904-198908

CKD COUNTRIES,DARK BLUE,TRIM8#

sub63391-12110

main63391-12120-02iAE92..RHD..LB..GL198904-198908

CKD COUNTRIES,MAROON,TRIM3#

sub63391-12110

main63391-12120-02iAE92..RHD..LB..GL198905-198908

W(SUSPENDED HEADLINING),MAROON,TRIM3#

sub63391-12110

main63391-12120-03iEE90..RHD..LB198904-199205

CKD COUNTRIES,SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12120-03iAE92..RHD..LB;AE92,EE90..LHD..LB..XL198905-199205

W(SUSPENDED HEADLINING),SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12120-03iAE92..RHD..LB;AE92,EE90..LHD..LB..XL198905-198908

VENEZUELA SPEC OR CKD COUNTRIES,SHADOW GRAY,TRIM1#

sub63391-12110

main63391-12120-05iAE92..LHD..LB..GL198905-198908

VENEZUELA SPEC OR CKD COUNTRIES,DARK BEIGE,TRIM4#

sub63391-12110

main63391-12120-05iAE92..LHD..LB..GL198905-198908

W(SUSPENDED HEADLINING),DARK BEIGE,TRIM4#

sub63391-12110

main63391-12120-05iAE92..LHD..LB..GL198904-198908

CKD COUNTRIES,DARK BEIGE,TRIM4#

sub63391-12110

main63391-12120-06iEE90..LHD..LB198908-199008

W(SUSPENDED HEADLINING),BROWN,TRIM4#

sub63391-12110

main63391-12120-06iEE90..LHD..LB198908-199008

CKD COUNTRIES,BROWN,TRIM4#

sub63391-12110

main63391-12120-J0iAE92..LB;EE90..RHD..LB198908-199205

W(SUSPENDED HEADLINING),DARK BLUE,TRIM8#

sub63391-12110

main63391-12120-J0iAE92,EE90..LHD..LB..XL198904-199205

CKD COUNTRIES,DARK BLUE,TRIM8#

sub63391-12110

main63391-12120-J0iAE92..LHD..LB..GL198905-198908

VENEZUELA SPEC OR CKD COUNTRIES,DARK BLUE,TRIM8#

sub63391-12110

main63391-13040-03iEE97198708-199004

SHADOW GRAY,TRIM1#

sub63391-13041

main63391-13040-04iEE97..LHD..XL198708-199004

DARK BLUE,TRIM8#

sub63391-13041

main63391-13040-05iEE97198708-198908

DARK BEIGE,TRIM4#

sub63391-13041

main63391-13041-03iEE97199004-199108

SHADOW GRAY,TRIM1#

main63391-13041-04iEE97199004-199108

DARK BLUE,TRIM8#

9354014510

main93540-14510

8 parts on this diagram · 7 diagrams in section
