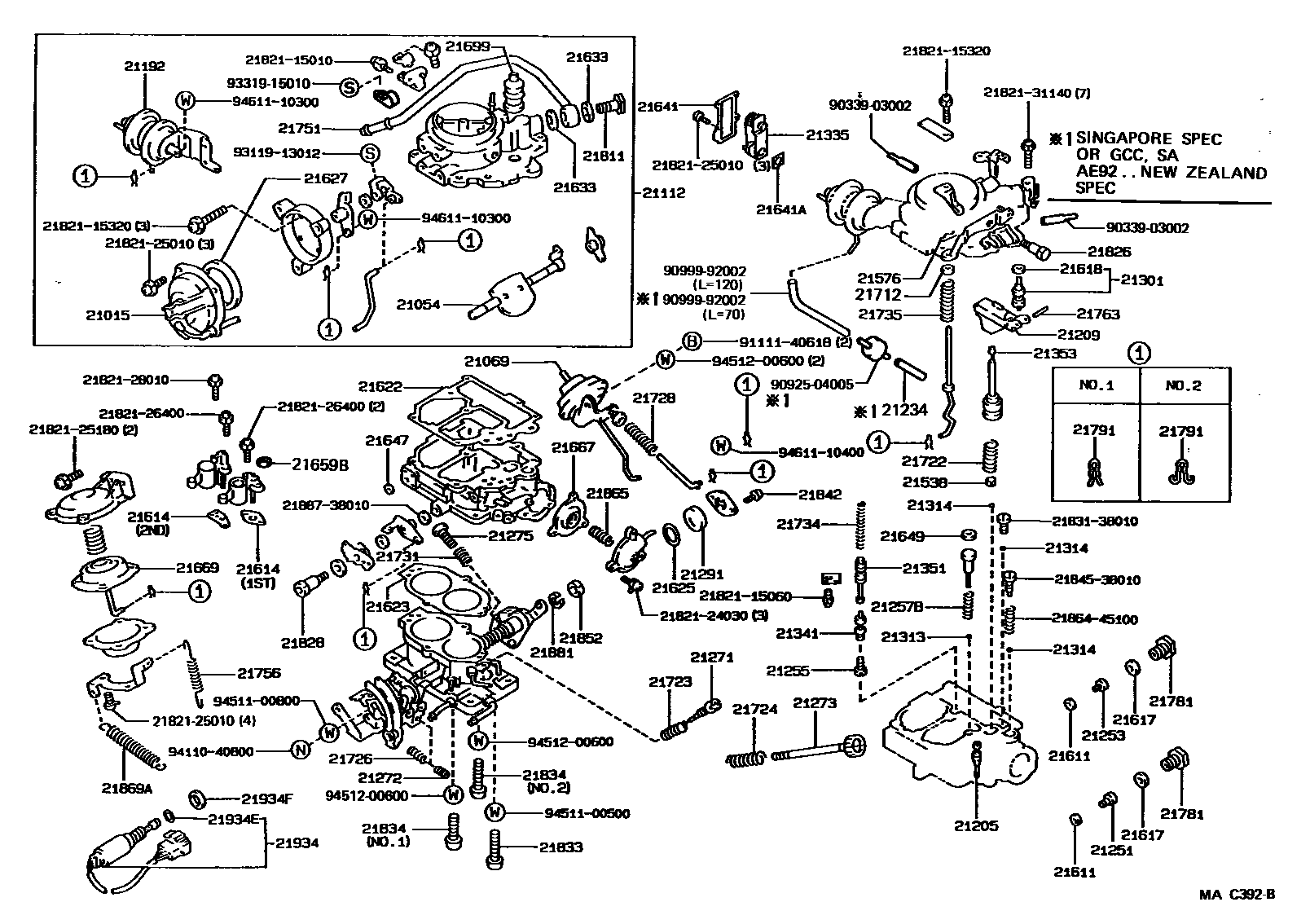

CARBURETOR

0001 1 0002 1 0003 1NEW ZEALAND SPEC 0004 1NEW ZEALAND SPEC

21015HOUSING SUB-ASSY, COIL

main21015-11631i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21015-16140i4AF..AE9#198705-199008

sub21015-15050

21054SHAFT, CHOKE

main21054-15050i4AF..AE9#198705-199008

main21054-16510i4AF..AE92..SA199011-199308

21069DASH POT SUB-ASSY

main21069-15040i4AF..AE9#..RHD198705-198712

SINGAPORE SPEC

21112HORN, AIR

main21112-10050i2E..EE9#..GEN,SA198908-199011

main21112-11190i2E..EE90..5F..GCC199006-199207

main21112-11450i2E..EE9#..GEN198705-199205

W(POWER STEERING)

main21112-11480i2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN198705-199205

SINGAPORE SPEC

main21112-11720i2E..EE90..SA199011-199308

main21112-16300i4AF..AE92..GEN199008-199205

main21112-16360i4AF..AE92..5F..GCC198908-198912

main21112-16460i4AF..AE92..3FC..GCC198908-198912

main21112-16510i4AF..AE92..SA198908-199011

main21112-16511i4AF..AE92..SA199011-199308

21192BREAKER

main21192-10050i2E..EE9#198705-198908

sub21192-13680

sub90079-10007

main21192-10060i2E..EE90..SA198912-199308

main21192-11610i2E..EE90..RHD..5F..XL..GEN199008-199205

NEW ZEALAND SPEC & W(POWER STEERING)

sub21192-11612

main21192-11630i2E..EE90..RHD..5F..XL..GEN198908-198912

NEW ZEALAND SPEC,NO.1

sub21192-11632

main21192-11631i2E..EE90..RHD..5F..XL..GEN198912-199205

NEW ZEALAND SPEC,NO.1

main21192-11680i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC,NO.2

main21192-14130i4AF..AE92199008-199308

21205JET SUB-ASSY, SLOW

main21205-14010i4AF..AE9#198705-199008

main21205-24510i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC199006-199308

21209FLOAT SUB-ASSY

main21209-11090i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21209-13310i2E..EE9#198705-198908

main21209-15020i4AF..AE9#198705-199008

21234PIPE OR HOSE

main21234-61020i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

sub90079-70004

main21235-11190i2E..EE90..GCC198708-199006

sub90079-71001

main21249-13090i4AF..AE92..RHD..5F..XL..GEN198908-199205

SINGAPORE SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE)

main90999-92002i4AF..AE92199208-199308

21251JET, 1ST MAIN

main21251-11540i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main90999-41101i4AF..AE92..LHD..SED..5F..GL198908-199205

SINGAPORE SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE)

main90999-41103i4AF..AE92..SA198908-199308

main90999-41104i2E..EE9#..GEN,SA;2E..EE90..SED..XL..GCC199006-199008

21253JET, 2ND MAIN

main21253-11720i2E..EE90..SA199011-199308

main21253-16510i4AF..AE92..SA199011-199308

main90999-42153i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC199006-199011

main90999-42156i4AF..AE92..RHD..5F..XL..GEN198908-199205

SINGAPORE SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE)

main90999-42159i4AF..AE9#..GEN198908-199008

main90999-42162i4AF..AE92..LHD..SED..5F..GL198908-199205

SINGAPORE SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE)

main90999-42165i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

21255JET, POWER

main21255-16300i4AF..AE92..GEN199008-199205

main90999-43050i4AF..AE92..SA198908-199308

main90999-43055i4AF..AE92..RHD..5F..XL..GEN198908-199205

SINGAPORE SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE)

main90999-43058i2E..EE9#198908-199006

main90999-43068i2E..EE9#198705-198808

main90999-44145i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

21257BSPRING(FOR PUMP JET)

main21864-26020i4AF..AE9#198705-199008

21271SCREW, IDLE ADJUSTING

main21271-10060i2E..EE90..SA198912-199308

sub21271-11840

main21271-11630i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21271-24100i2E..EE9#..GEN,SA198705-198908

main21271-24390i2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN198705-199205

SINGAPORE SPEC

main21271-26371i4AF..AE92..GEN,SA199008-199308

sub21271-31590

main21271-26440i4AF..AE92..LHD..SED..5F..GL198908-199205

SINGAPORE SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE)

21272SCREW, 1ST IDLE ADJUSTING

main21828-25180i4AF..AE9#198705-199008

main90079-13001i2E..EE9#..GEN,SA;2E..EE90..5F..GCC199006-199308

21273SCREW, THROTTLE ADJUSTING

main21273-11090i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21273-15500i4AF..AE92199008-199308

main21273-24231i2E..EE9#198908-199006

21275SCREW, ADJUSTING

main21275-10050i2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN198705-199205

SINGAPORE SPEC OR W(POWER STEERING)

main21275-11630i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21842-28090i4AF..AE92..LHD..SED..5F..GL198908-199205

SINGAPORE SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE)

main21844-33010i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

21291GLASS, LEVEL GAGE

main21291-34320i4AF..AE9#198705-199008

21301VALVE SUB-ASSY, NEEDLE

main21301-11140i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21301-11620i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21301-13310i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC199006-199308

main21301-15160i4AF..AE9#198705-199008

21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

main21313-11020i4AF..AE9#198705-198908

21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)

main21314-11020×3i4AF..AE9#198705-199008

main21314-60010i2E..EE9#198908-199006

21335VALVE, THERMOSTATIC

main21335-37040i4AF..AE9#198705-198910

21341VALVE, POWER

main21304-30010i4AF..AE9#198705-198908

21351PISTON, POWER

main21351-16510i2E..EE90..SA199011-199308

main21351-24230i2E..EE90..LHD..SED..MTM..XL..GEN198908-199205

PHILIPPINES SPEC

main21351-33080i2E..EE9#..GEN,SA198908-199008

21353PLUNGER, PUMP

main21305-22011i2E..EE9#198705-198808

main21353-11540i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21353-11610i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21353-11720i2E..EE90..SA199011-199308

main21353-13590i2E..EE9#198908-199006

main21353-16510i4AF..AE92..SA199011-199308

main21353-33010i4AF..AE92..GCC,GEN199011-199207

21538RETAINER, BALL CHECK

main21538-31010i2E..EE9#199008-199308

21576CLIP, PUMP STRAINER

main21576-27010i4AF..AE9#198705-199008

21611GASKET, MAIN JET

main21611-15250i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21611-22010×2i4AF..AE9#198908-198912

main21611-30010×2i2E..EE90..SA199011-199308

21614GASKET, VENTURI

main21614-13430i2E..EE9#198912-199006

1ST

main21614-16280i4AF..AE9#..GCC,GEN198912-199008

1ST

main21614-22010i2E..EE9#198705-198912

1ST

main21614-24360i2E..EE9#198705-198912

2ND

main21614-24580i2E..EE9#198912-199006

2ND

main21614-33010i4AF..AE92..SA198912-199308

1ST

main21614-33080i4AF..AE92..SA198912-199308

2ND

main21615-16280i4AF..AE92..GCC,GEN199008-199207

2ND

21617GASKET, MAIN PASSAGE PLUG

main21617-10010i2E..EE90..SA199011-199308

NO.1

main21617-30010×2i4AF..AE9#198908-199006

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i4AF..AE9#198705-198908

21622GASKET, AIR HORN

main21622-13430i2E..EE9#198912-199006

main21622-15330i4AF..AE92..LHD..SED..5F..GL198908-198912

PHILIPPINES SPEC

main21622-16090i4AF..AE9#..GEN,SA198705-198912

main21622-16280i4AF..AE92..GEN199008-199205

main21622-16440i4AF..AE92..GCC198912-199207

main21622-24360i2E..EE9#198705-198912

21623GASKET, BODY FLANGE

main21623-11610i2E..EE90..RHD..5F..XL..GEN198908-198912

NEW ZEALAND SPEC

main21623-11611i2E..EE90..RHD..5F..XL..GEN198912-199205

NEW ZEALAND SPEC

main21623-13080i2E..EE9#198705-198912

main21623-13430i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC199006-199308

main21623-16280i4AF..AE9#..GCC,GEN198912-199008

main21623-25180i4AF..AE9#198705-198912

21625GASKET, LEVEL GAGE

main21655-60200i4AF..AE9#198705-199008

21627GASKET, COIL HOUSING

main21627-28090i4AF..AE9#198705-199008

sub21627-28150

21633GASKET, UNION NIPPLE

main21633-24030×2i4AF..AE9#198705-199008

21641GASKET(FOR THERMOSTATIC VALVE COVER)

main21641-23012i4AF..AE9#198705-198910

21641AGASKET(FOR THERMOSTATIC VALVE COVER NO.2)

main21641-24030i4AF..AE9#198705-198910

21647GASKET, DIAPHRAGM HOUSING CAP

main21649-33080i4AF..AE9#198705-199008

21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)

main21641-33011i4AF..AE9#198705-199008

21659BRING(FOR CARBURETOR)

main21659-38110×2i4AF..AE92..SA198908-199308

21667DIAPHRAGM

main21667-11150i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21667-11630i2E..EE90..RHD..5F..XL..GEN198908-199004

NEW ZEALAND SPEC

main21667-11631i2E..EE90..RHD..5F..XL..GEN199004-199205

NEW ZEALAND SPEC

main21667-13010i2E..EE9#198705-198908

sub21667-13090

main21667-13290i2E..EE9#..GCC,GEN198908-198912

main21667-72080i4AF..AE9#198705-198912

main21675-35510i4AF..AE92..GCC,GEN199008-199207

21669DIAPHRAGM

main21669-15320i4AF..AE9#198705-199008

21699BOOT(FOR PUMP PLUNGER)

main21699-28150i4AF..AE9#199006-199008

21712BUSH, SLIDING ROD

main21712-38010i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

sub21712-61020

21722SPRING, PUMP DAMPING

main21722-22010i4AF..AE9#198705-198908

21723SPRING, IDLE ADJUSTING

main21723-21030i4AF..AE9#198705-198908

main21723-38010i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

21724SPRING, THROTTLE ADJUSTING

main21723-21030i4AF..AE92199008-199308

main21723-38010×2i2E..EE90..RHD..5F..XL..GEN198908-198910

NEW ZEALAND SPEC

main21724-11340i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21864-24010i2E..EE90..RHD..5F..XL..GEN199008-199205

NEW ZEALAND SPEC & W(POWER STEERING)

main21864-24230i2E..EE9#198908-199006

21726SPRING, 1ST IDLE ADJUSTING

main21723-21030i4AF..AE9#198912-199006

21728SPRING, THROTTLE VALVE RETURN

main21756-25181i4AF..AE9#198705-199008

21731SPRING, DASH POT OR POSITIONER ADJUSTING

main21723-21030i2E..EE9#..LHD..MTM;2E..EE90..LHD..3FC..GEN198705-198908

NEW ZEALAND SPEC OR W(POWER STEERING)

main21864-24010i2E..EE90..MTM..GCC198708-198908

W(POWER STEERING)

21734SPRING, POWER PISTON

main21734-11630i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21734-13440i2E..EE97..RHD;2E..EE90..RHD..(LB,SED)..MTM..GEN198705-199205

SINGAPORE SPEC

main21734-18010i4AF..AE9#..GEN,SA;4AF..AE92..5F..GCC198705-199008

main21734-33080i4AF..AE92..4FC..GL198908-199205

SINGAPORE SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE)

main21734-33081i2E..EE9#..GEN,SA198908-199308

21735SPRING, PUMP ARM

main21735-11340i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21735-15270i4AF..AE9#198705-199008

main21735-22010i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21735-23010i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC199006-199308

21751UNION, NIPPLE

main21751-10050i2E..EE9#198908-199006

main21894-11150i2E..EE90..RHD198705-198706

NEW ZEALAND SPEC

main21894-11151i2E..EE90..RHD198706-198804

NEW ZEALAND SPEC

main21894-11540i2E..EE90..RHD..GEN198804-198908

NEW ZEALAND SPEC

main21894-15081i4AF..AE9#198705-199008

21756SPRING, BACK(FOR THROTTLE SHAFT)

main21756-15080i4AF..AE92199008-199308

main21756-15250i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

sub21756-15251

main21864-13290i2E..EE9#198705-198908

21763PIN, FLOAT LEVER

main21763-16510i4AF..AE92..SA199011-199308

main21763-26350i4AF..AE92199008-199011

main21763-38010i2E..EE9#..GCC,GEN199011-199207

main21763-61330i2E..EE90..SA199011-199308

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-15230×2i4AF..AE92..GCC,GEN199011-199207

main21781-15461i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21781-16510×2i2E..EE90..SA199011-199308

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010×5i4AF..AE92..RHD..5F..XL..GEN199008-199205

NEW ZEALAND SPEC & W(HOT AIR INTAKE),NO.2

main21791-13011×4i2E..EE90199208-199308

NO.1

main21791-60010×3i4AF..AE92..RHD..5F..XL..GEN198908-199205

PHILIPPINES SPEC,NO.1

21811BOLT, UNION NIPPLE

main21811-11060i4AF..AE9#198705-199008

21826SCREW, PUMP ARM SET

main21826-24470i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21826-31012i4AF..AE9#198705-198908

21828SCREW, 1ST IDLE SET

main21828-13310i2E..EE9#198705-198908

main21845-15230i4AF..AE9#198705-199008

main90079-12002i4AF..AE92199105-199308

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21833-31012i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21833-33010×2i4AF..AE92199008-199308

main21835-40010i2E..EE9#..GCC,GEN198912-199006

21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

main21834-31010×2i2E..EE90..SA198912-199308

main21834-31140i4AF..AE9#198705-199008

NO.2

main21844-26400i4AF..AE9#198705-199008

NO.1

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-33010×2i4AF..AE9#198705-199008

21852NUT, THROTTLE LEVER SET

main21852-30010i4AF..AE9#198705-198908

W(POWER STEERING)

21865SPRING

main21865-15230i4AF..AE9#198705-199008

21869SPRING(FOR MAIN JET)

main21869-11540i2E..EE90..RHD..GEN198708-198908

NEW ZEALAND SPEC

sub21756-15251

main21869-11610i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21869-15250i2E..EE90..RHD198705-198708

NEW ZEALAND SPEC

21869ASPRING(FOR THROTTLE)

main21869-16120i4AF..AE9#198705-199008

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i4AF..AE9#198705-198908

21934SOLENOID, THROTTLE VALVE

main21062-11450i2E..EE9#198808-198908

sub21062-38011

main21062-11500i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

sub21062-11501

main21062-11630i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main21062-11640i2E..EE90..RHD..5F..XL..GEN199008-199205

NEW ZEALAND SPEC & W(POWER STEERING)

main21062-13100i2E..EE9#198705-198808

sub21062-38011

main21062-13310i4AF..AE9#198705-198803

sub21062-14090

main21062-16300i4AF..AE9#198803-198808

main21062-16301i4AF..AE9#198808-199008

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i4AF..AE9#199006-199008

main21656-15250i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

21934FGASKET

main21617-10010i4AF..AE92..SA199011-199308

main21633-15250i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main21649-38010i4AF..AE9#198705-198908

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182115060SCREW, 2ND THROTTLE VALVE SET

main21821-15060

2182115320SCREW, 2ND THROTTLE VALVE SET

main21821-15320

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

2182126400SCREW, 2ND THROTTLE VALVE SET

main21821-26400

2182128010SCREW, 2ND THROTTLE VALVE SET

main21821-28010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2183138010SCREW, POWER PISTON STOP

main21831-38010

2184538010SCREW(FOR LEVER SET)

main21845-38010

2186445100SPRING(FOR 1ST THROTTLE ARM)

main21864-45100

2188738010WASHER(FOR CONNECTING LINK SETTING)

main21887-38010

9033903002

main90339-03002

9092504005

main90925-04005

9099992002

main90999-92002

9111140618

main91111-40618

9311913012

main93119-13012

9331915010

main93319-15010

9411040800

main94110-40800

9451100500

main94511-00500

9451100800

main94511-00800

9451200600

main94512-00600

9461110300

main94611-10300

9461110400

main94611-10400

96 parts on this diagram · 4 diagrams in section
