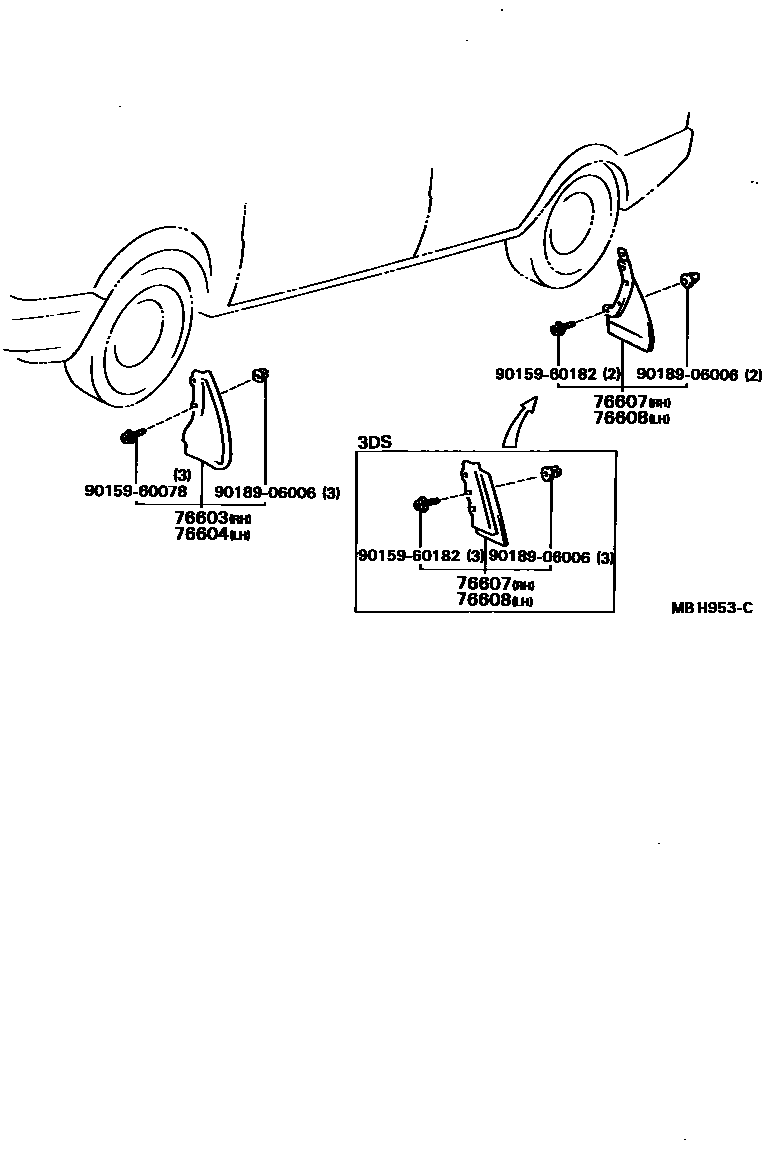

MUDGUARD & SPOILER

0001 1 0002 1

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19085iAE8#,CE80..EUR198305-198410

main76621-19086iAE82,CE80,EE80..(3DS,5DS)..(DX,GL,STD,XL)..(EUR,GEN)198410-198704

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19085iAE8#,CE80..EUR198305-198410

main76622-19086iAE8#,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN)198410-198605

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19025iAE8#,CE80..EUR198305-198410

main76625-19026iAE8#,EE80..(4DS,5D)..(DX,GL,GT)..SA198410-198605

main76625-19045iAE80,EE80..(DX,GL,XL)..SAA198308-198707

main76625-19055iAE82..3DS..GT198410-198704

BLACK

main76625-19085iAE82..GT..EUG198410-198704

WHITE

main76625-19115iAE82,EE80..(4DS,5D)..(ARL,SA)198605-198807

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19035iAE8#,CE80..EUR198305-198410

main76626-19036iAE8#,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN)198410-198605

main76626-19055iAE80,EE80..(DX,GL,XL)..SAA198308-198707

main76626-19065iAE8#..5DS..ARL198605-198807

main76626-19095iAE82..GT..EUG198410-198704

WHITE

main76626-19125iAE82,EE80..(4DS,5D)..(ARL,SA)198605-198807

9015960078

main90159-60078

9015960182

main90159-60182

9018906006

main90189-06006

7 parts on this diagram · 2 diagrams in section
