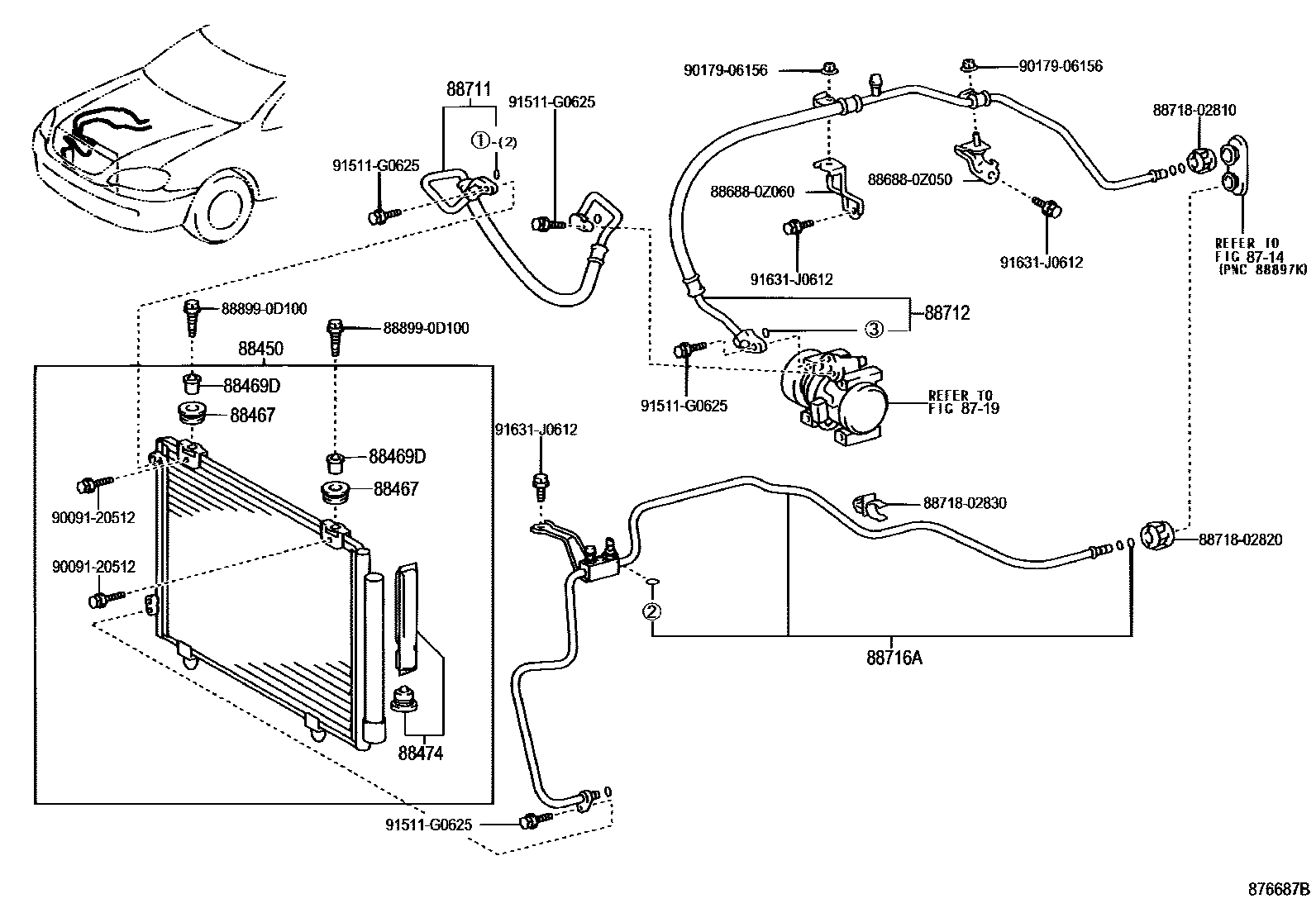

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

8714

8719

88450CONDENSER ASSY, W/RECEIVER

main88450-02270iZZE122200402-200705

main88450-02340iZRE120200705-201210

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iZZE122200402-201210

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iZZE122200402-201210

88474DRYER, COOLER

main88474-17010iZZE122200402-201210

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-02300iZZE122200402-200705

main88703-02480iZRE120200705-201210

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-02550iZZE122200402-200705

main88704-02730iZRE120200705-201210

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-02710iZZE122200402-200705

main88710-0Z050iZRE120200705-201210

886880Z050BRACKET, COOLER DIAPHRAGM

main88688-0Z050

886880Z060BRACKET, COOLER DIAPHRAGM

main88688-0Z060

8871802810PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02810

8871802820PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02820

8871802830PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02830

888990D100COVER, EVAPORATOR

main88899-0D100

9009120512

main90091-20512

9017906156

main90179-06156

91511G0625

main91511-G0625

91631J0612

main91631-J0612

19 parts on this diagram · 3 diagrams in section
