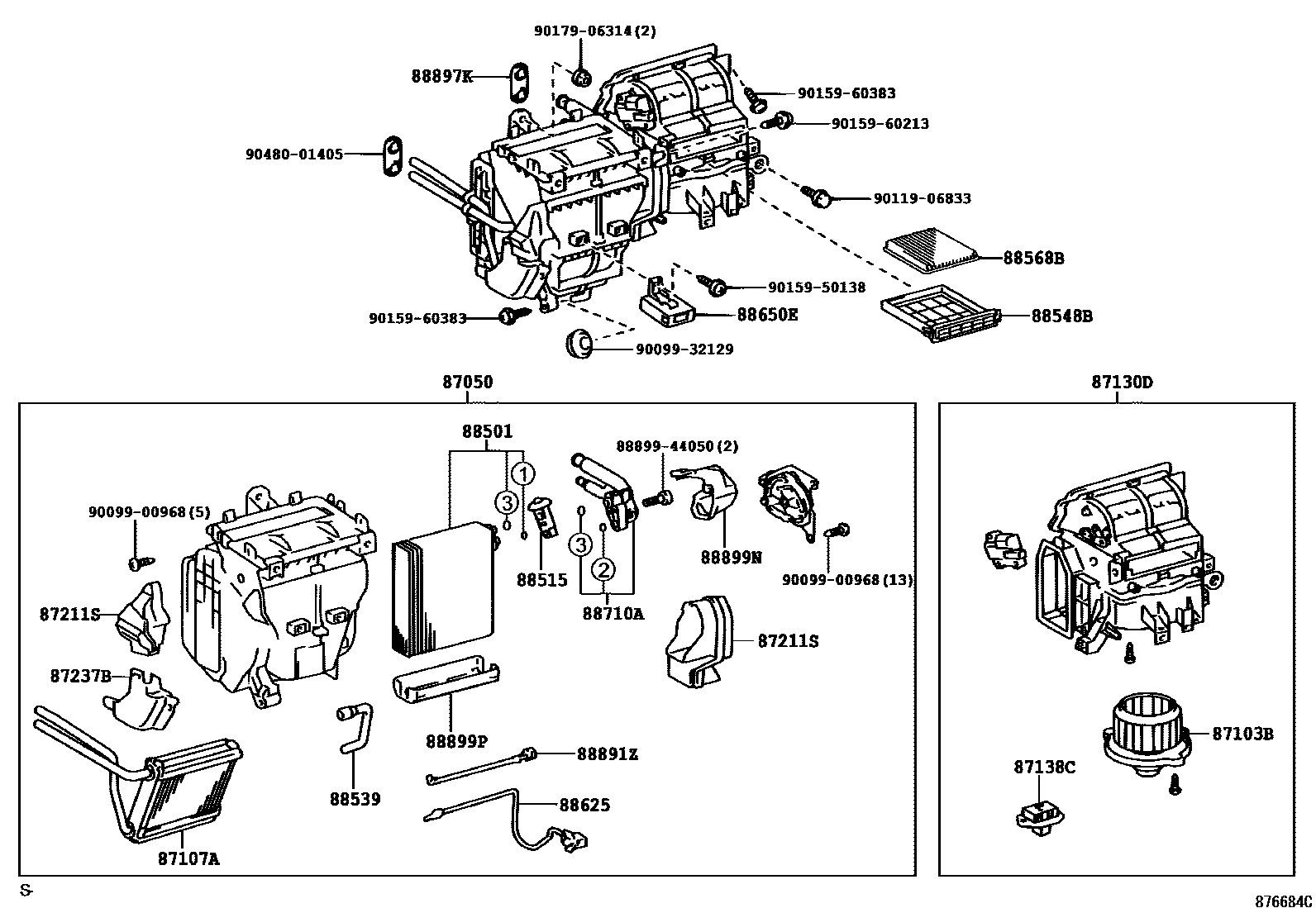

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1 0004 1 0005 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02670iZZE122..GLI200402-200705

main87050-02680iZZE122..GLXI,GLXS200402-200705

main87050-02C00iZRE120200705-201210

sub87050-02C01

main87050-02C01iZRE120201210-201506

main87050-02C01iZRE120201506

COLD SPEC

main87050-02P10iZRE120201506

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02220iZRE120200705-201009

sub87103-02221

main87103-02221iZRE120201010-201210

main87103-02500iZRE120201210

main87103-12070iZZE122200402-200705

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02240iZRE120200705-201210

main87107-12560iZZE122200402-200705

87130DBLOWER ASSY

main87130-02210iZZE122..GLI200402-200705

main87130-02220iZZE122..GLXI,GLXS200402-200705

main87130-02510iZRE120200705-201210

main87130-02800iZRE120201210

87138CRESISTOR, BLOWER

main87138-20360iZRE120200402-201210

87211SDUCT, AIR

main87211-12280iZRE120200402-201210

DRIVER SIDE

main87211-12290iZRE120200402-201210

PASSENGER SIDE

87237BCOVER, HEATER PIPING

main87237-02040iZRE120200705-201210

main87237-12010iZZE122200402-200705

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02230iZRE120200705-200811

sub88501-02231

main88501-02231iZRE120200812-201204

sub88501-02232

main88501-02232iZRE120201205-201210

main88501-12450iZZE122200402-200705

88515VALVE, COOLER EXPANSION

main88515-02280iZRE120200705-201210

main88515-0N030iZRE120201210

main88515-60150iZZE122200402-200705

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-02240iZRE120200705-201210

main88539-12180iZZE122200402-200705

88548BCASE, AIR FILTER

main88548-02190iZRE120200806-201210

main88548-52010iZZE122200402-200805

88568BFILTER, AIR

main88568-02040iZRE120200402-201210

88625THERMISTOR, COOLER, NO.1

main88620-02060iZRE120200705-200811

sub88620-02090

main88620-02090iZRE120200812-201210

main88625-60140iZZE122200402-200705

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-02510iZRE120200705-201210

main88650-1E410iZZE122..GLI200402-200705

88710ATUBE ASSY, AIR CONDITIONER

main88710-0Z040iZRE120200705-201210

main88710-0Z041iZRE120201210

main88710-12550iZZE122200402-200705

88891ZBRACKET, COOLER THERMISTOR

main88891-50060iZZE122200402-200705

88897KGROMMET, (FOR COOLER PIPE)

main90480-01434iZZE122200402-201210

88899NPLATE, COVER

main88899-12440iZZE122200402-200602

main88899-12510iZZE122200603-201210

88899PPLATE, COVER

main88899-02230iZRE120200705-201210

main88899-12450iZZE122200402-200705

8889944050COVER, EVAPORATOR

main88899-44050

9009900968

main90099-00968

9009932129

main90099-32129

9011906833

main90119-06833

9015950138

main90159-50138

9015960213

main90159-60213

9015960383

main90159-60383

9017906314

main90179-06314

9048001405

main90480-01405

28 parts on this diagram · 5 diagrams in section
