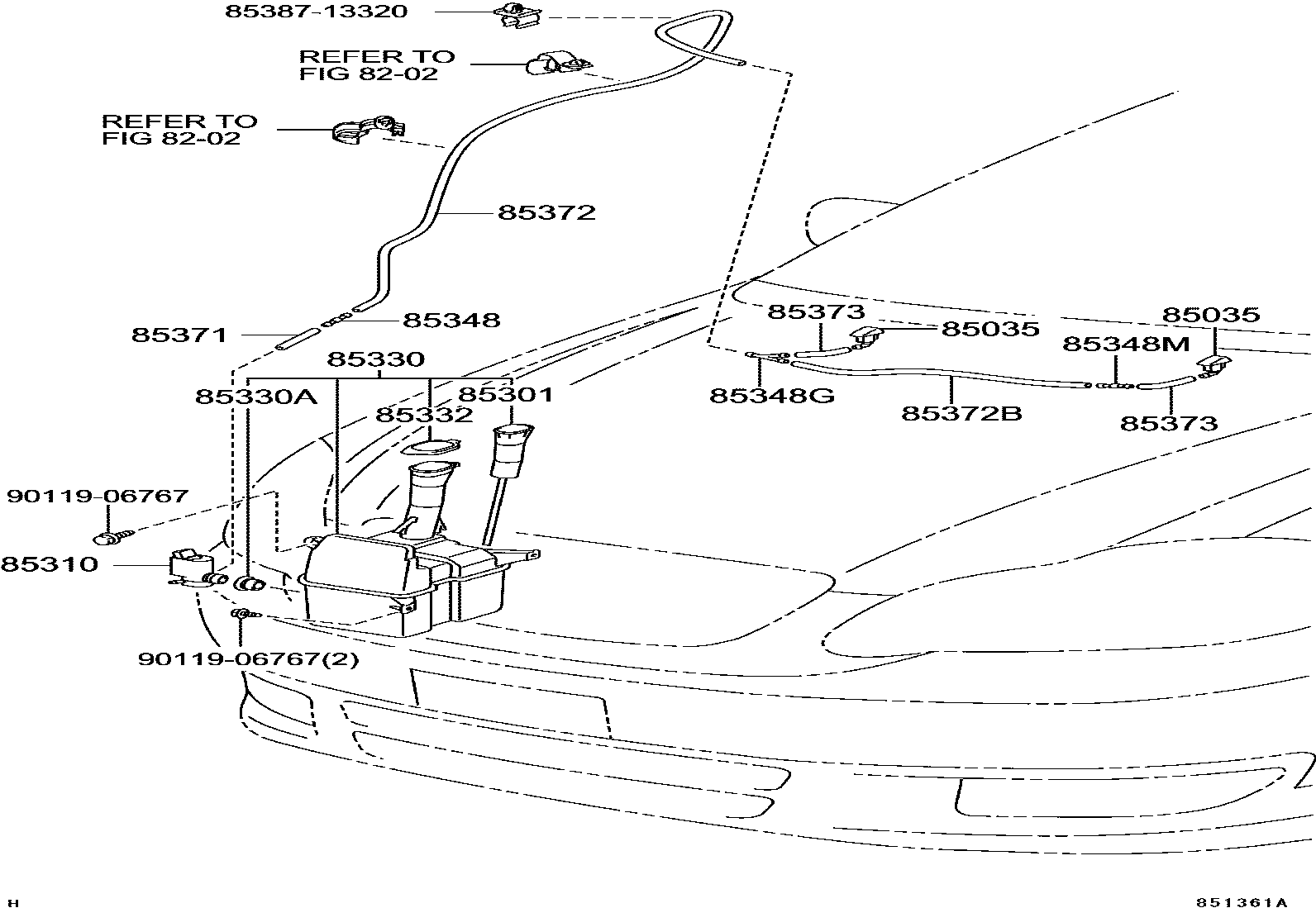

WINDSHIELD WASHER

8202

85035NOZZLE SUB-ASSY, WASHER

main85381-12280iZRE120200704-201210

main85381-44010iZZE122200402-200703

85301INLET SUB-ASSY, WASHER

main85318-12450iZZE122200402-201210

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02020iZRE120200402-201210

85330JAR ASSY, WINDSHIELD WASHER

main85315-02200iZZE122200402-201210

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32006iZZE122200402-201210

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iZZE122200402-201210

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D030iZRE120200402-201210

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-02230iZZE122200402-201210

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-0D030iZZE122200402-201210

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33044iZZE122200402-201210

L=90

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59046iZZE122200402-201210

L=1510

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59045iZZE122200402-201210

L=480

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33043iZZE122200402-201210

L=50

8538713320CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-13320

9011906767

main90119-06767

16 parts on this diagram · 1 diagram in section
