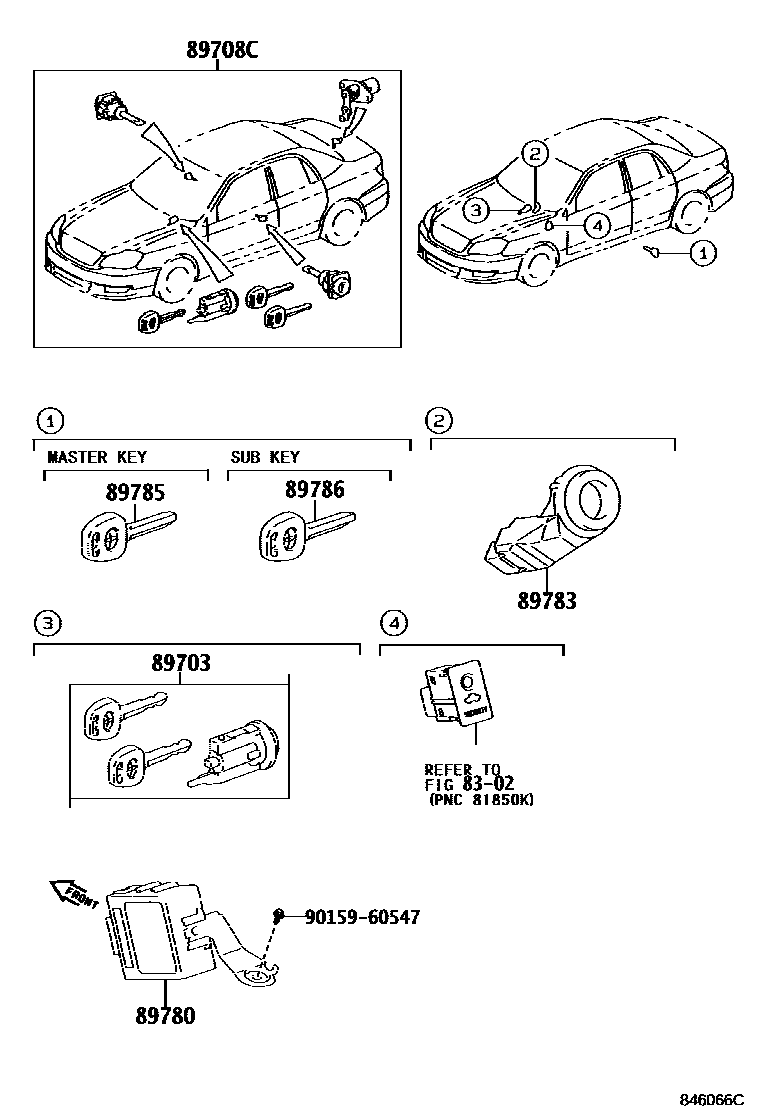

ANTI-THEFT DEVICE

8302

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89708-02110iZZE122200402-201005

main89708-02240iZRE120201005-201210

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-02220iZZE122200402-201005

main89708-02230iZRE120201005-201210

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-02280iZRE120201005-201210

main89780-12140iZZE122200506-201005

89783AMPLIFIER, TRANSPONDER KEY

main89783-02130iZRE120201005-201210

sub89783-02131

main89783-12040iZZE122200402-200705

sub89783-12041

main89783-12080iZRE120200705-201005

sub89783-12081

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iZZE122200402-201005

main89785-60210iZRE120201005-201210

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iZZE122200402-201005

main89786-60220iZRE120201005-201210

9015960547

main90159-60547

8 parts on this diagram · 1 diagram in section
