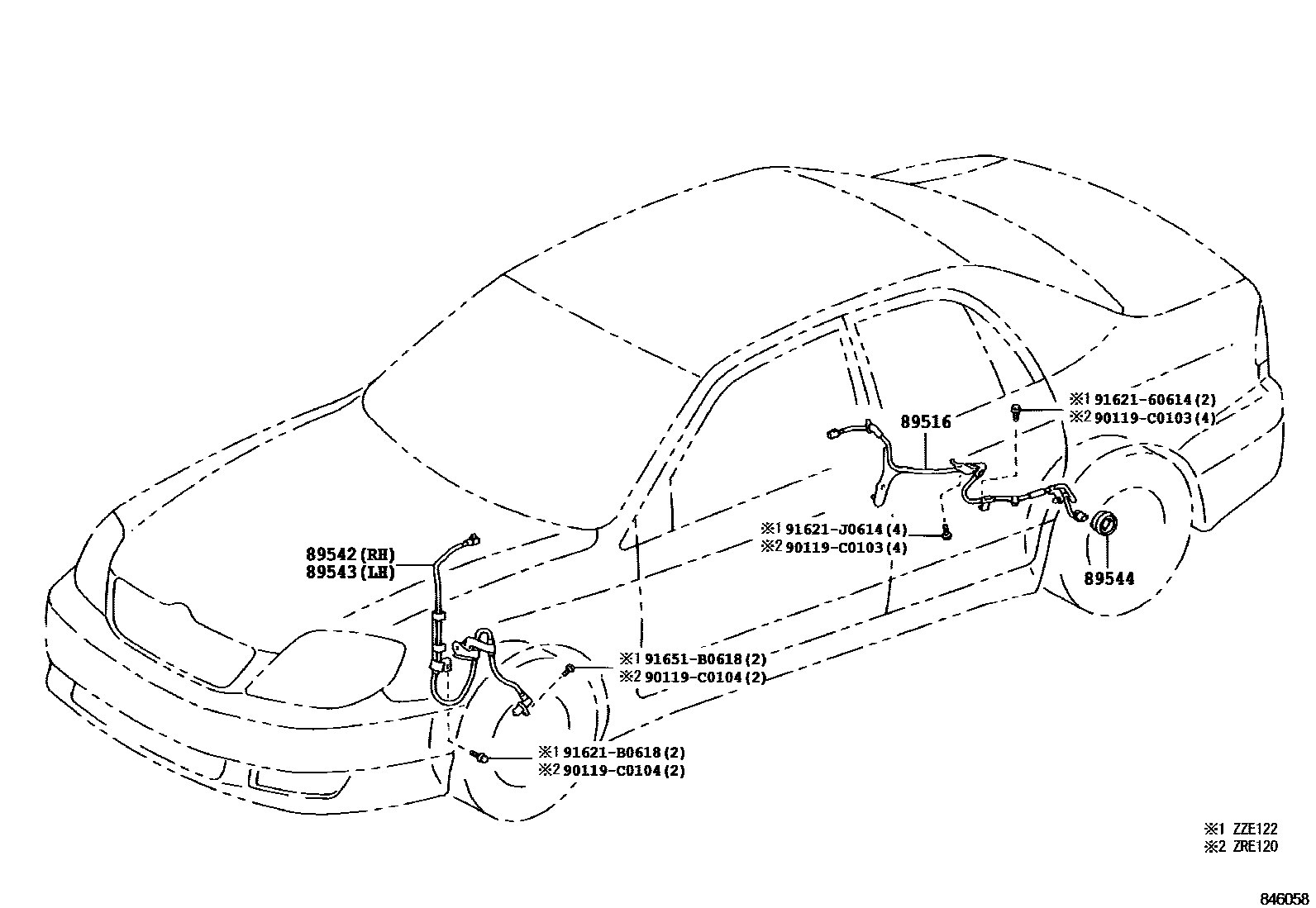

ABS & VSC

0001 1 0002 1

89516WIRE, SKID CONTROL SENSOR

main89516-12010iZZE122200402-201702

RH

main89516-12020iZZE122200402-201702

LH

89542SENSOR, SPEED, FRONT RH

main89542-02100iZRE120200705-201210

main89542-12070iZZE122200402-200705

89543SENSOR, SPEED, FRONT LH

main89543-02100iZRE120200705-201210

main89543-12070iZZE122200402-200705

89544SENSOR, SKID CONTROL

main89544-20010iZRE120200402-201210

90119C0103

main90119-C0103

90119C0104

main90119-C0104

9162160614

main91621-60614

91621B0618

main91621-B0618

91621J0614

main91621-J0614

91651B0618

main91651-B0618

10 parts on this diagram · 2 diagrams in section
