REAR COMBINATION LAMP

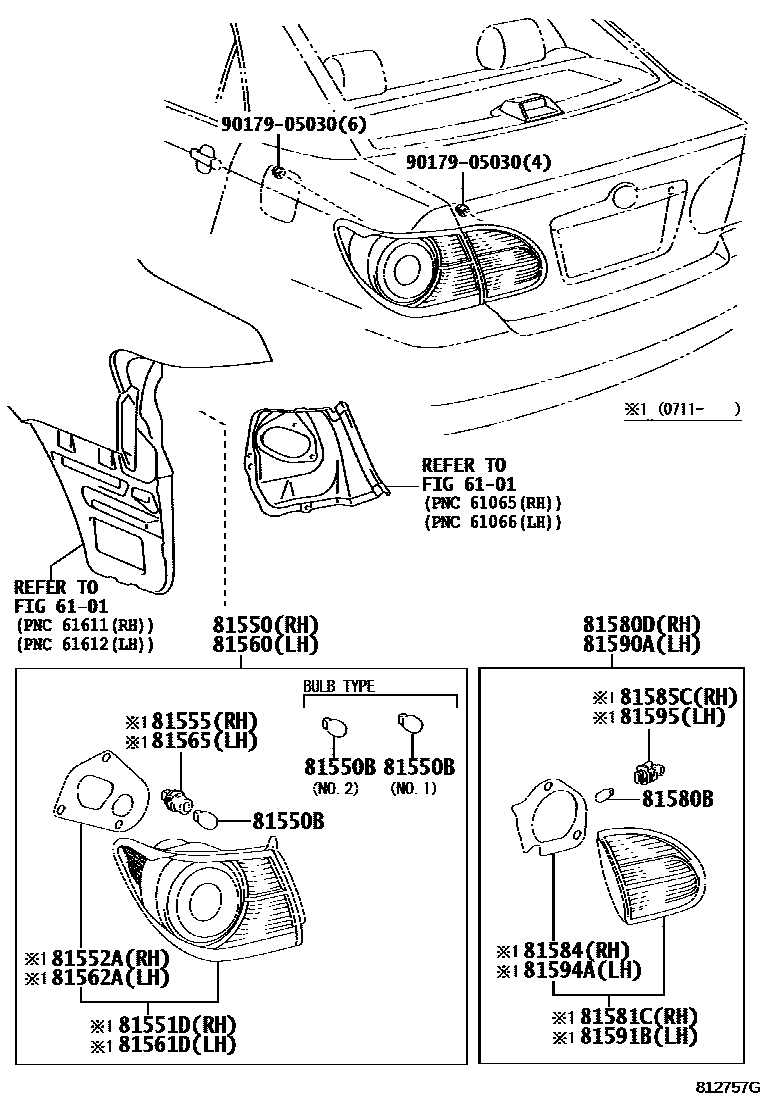

Parts diagram

6101

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02330i200402-200610

main81550-02331i200611-200705

main81550-02430i200601-200610

BULB TYPE

main81550-02431i200705-200710

main81550-02490i200711-201005

main81550-YK010i201005-201210

main81550-YK020i201210

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-15009×2i200402-200610

12V 21W,AMBER

main99132-11210×2i200601-200610

12V 21W,NO.1

main99132-21210×2i200611-200705

12V 21/5W,NO.2

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-02490i200711-201005

main81551-YK010i201005-201210

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-02490i200711-201005

main81552-YK010i201005-201210

main81552-YK020i201210

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-02490i200711-201005

main81555-YK010i201005-201210

main81555-YK020i201210

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02330i200402-200610

main81560-02331i200611-200705

main81560-02430i200601-200610

BULB TYPE

main81560-02431i200611-200705

BULB TYPE

main81560-02490i200711-201005

main81560-YK010i201005-201210

main81560-YK020i201210

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-02490i200711-201005

main81561-YK010i201005-201210

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-02490i200711-201005

main81552-YK010i201005-201210

main81562-YK020i201210

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-02490i200711-201005

main81555-YK010i201005-201210

main81565-YK020i201210

81580BBULB (FOR REAR LAMP)

main90981-11059i201210

12V 16W

main90981-13043i200611-200705

12V 21W,LH

main90981-15009i200402-200705

12V 21W,AMBER,RH

81580DLAMP ASSY, REAR, RH

main81580-02100i200402-200610

main81580-02101i200611-200705

main81580-02170i200601-200610

BULB TYPE

main81580-02171i200611-200705

BULB TYPE

main81580-02240i200711-201005

main81580-YK010i201005-201210

main81580-YK020i201210

81581CLENS AND BODY, REAR LAMP, RH

main81581-02240i200711-201005

main81581-YK010i201005-201210

main81581-YK020i201210

81584PACKING, REAR LAMP RH

main81584-02240i200711-201005

main81584-YK010i201005-201210

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-02240i200711-201005

main81585-YK010i201005-201210

81590ALAMP ASSY, REAR, LH

main81590-02120i200402-200610

main81590-02121i200611-200705

main81590-02170i200601-200610

BULB TYPE

main81590-02171i200611-200705

BULB TYPE

main81590-02230i200711-201005

main81590-YK010i201005-201210

main81590-YK020i201210

81591BLENS AND BODY, REAR LAMP, LH

main81591-02230i200711-201005

main81591-YK010i201005-201210

main81591-YK020i201210

81594AGASKET, REAR LAMP LH

main81584-02240i200711-201005

main81584-YK010i201005-201210

81595SOCKET & WIRE, REAR LAMP, LH

main81595-02230i200711-201005

main81595-YK010i201005-201210

9017905030

main90179-05030

20 parts on this diagram · 3 diagrams in section
