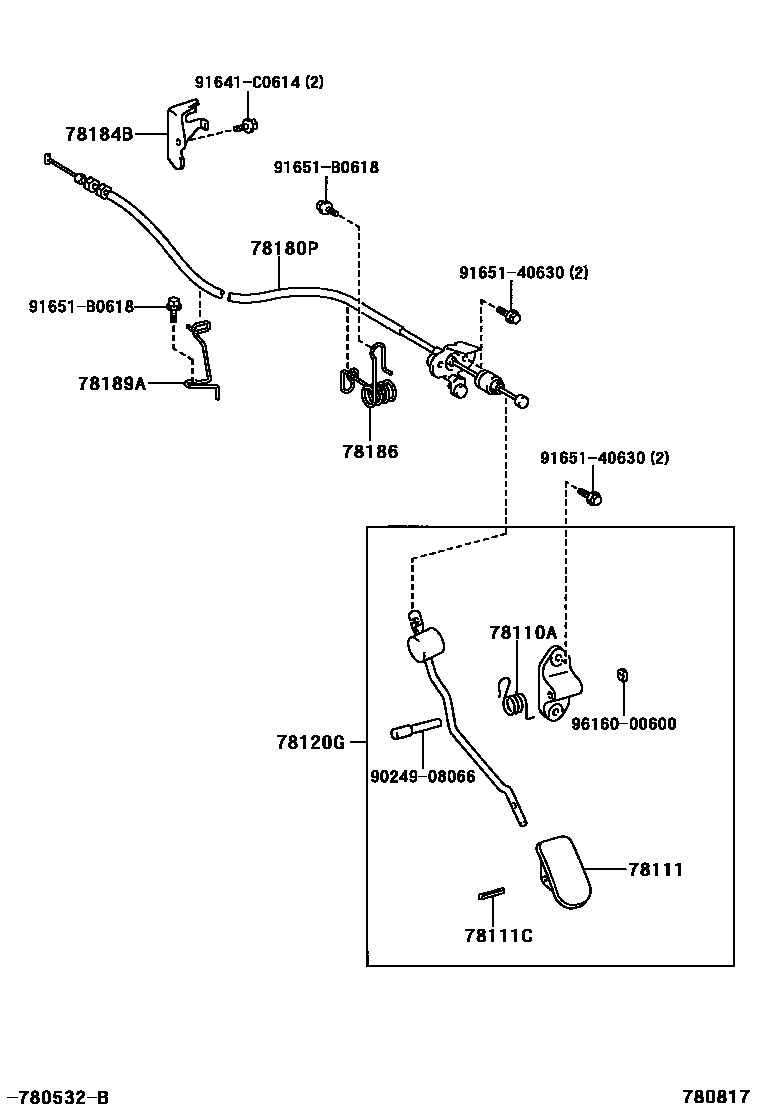

ACCELERATOR LINK

0001 1 0002 1(0506-0606) BEIJING SPEC

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26036iZZE122200402-200606

78111PEDAL, ACCELERATOR

main78111-12180iZRE120201306

main78111-20060iZZE122200402-200606

main78111-35030iZRE120201210-201306

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iZZE122200402-200705

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12310iZZE122200402-200606

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-02330iZZE122200402-200606

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-02090iZZE122200402-200606

(L)

main78184-12360iZZE122200402-200606

(J)

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-13040iZZE122200402-200606

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12100iZZE122200402-200606

9024908066

main90249-08066

91641C0614

main91641-C0614

9165140630

main91651-40630

91651B0618

main91651-B0618

9616000600

main96160-00600

13 parts on this diagram · 2 diagrams in section
