MUDGUARD & SPOILER

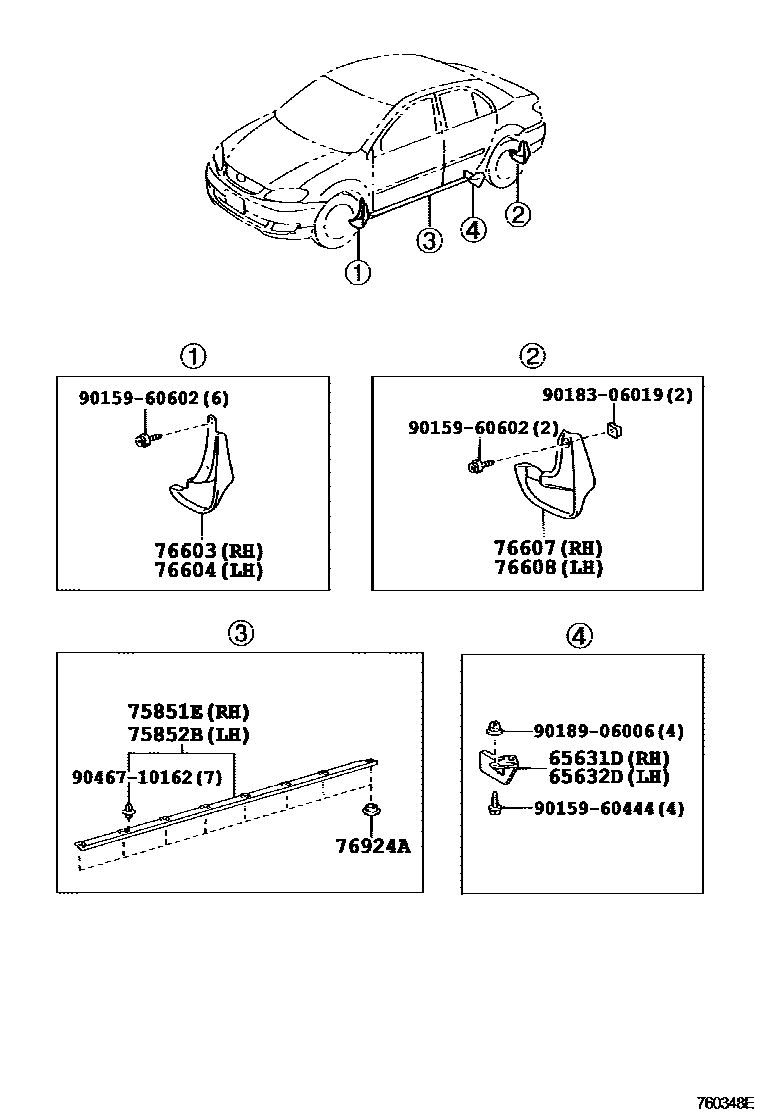

Parts diagram
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-02060i200408-200705
main65631-02070i200402-200705
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-02060i200408-200705
main65632-02070i200402-200705
75851EMOULDING, BODY ROCKER PANEL, RH
main75851-02070i200402-200705
sub75851-02120
main75851-02120i200705-201210
75852BMOULDING, BODY ROCKER PANEL, LH
main75852-02070i200402-200705
sub75852-02120
main75852-02120i200705-201210
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-02090-A1i200402-200705
WHITE,056
sub76621-02912
main76621-02090-B0i200402-200705
SILVER ME.,1C0
sub76621-02912
main76621-02090-C0i200402-200705
BLACK MC.,209
sub76621-02912
main76621-02090-D0i200402-200705
RED M.M.,3P1
sub76621-02912
main76621-02090-F0i200402-200705
CHAMPAGNE ME.,586
sub76621-02912
main76621-02090-F1i200511-200608
GOLD ME.,585
sub76621-02912
main76621-02090-J0i200402-200511
DK.BLUE M.M.,8P4
sub76621-02912
main76621-02090-J1i200511-200705
STRONG BLUE M,8B6
sub76621-02912
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-02090-A1i200402-200705
WHITE,056
sub76622-02912
main76622-02090-B0i200402-200705
SILVER ME.,1C0
sub76622-02912
main76622-02090-C0i200402-200705
BLACK MC.,209
sub76622-02912
main76622-02090-D0i200402-200705
RED M.M.,3P1
sub76622-02912
main76622-02090-F0i200402-200705
CHAMPAGNE ME.,586
sub76622-02912
main76622-02090-F1i200511-200608
GOLD ME.,585
sub76622-02912
main76622-02090-J0i200402-200511
DK.BLUE M.M.,8P4
sub76622-02912
main76622-02090-J1i200511-200705
STRONG BLUE M,8B6
sub76622-02912
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-02100-A1i200402-200705
PAINT REQ.,WHITE,056
sub76625-02917
main76625-02100-B0i200402-200705
PAINT REQ.,SILVER ME.,1C0
sub76625-02917
main76625-02100-C0i200402-200705
PAINT REQ.,BLACK MC.,209
sub76625-02917
main76625-02100-D0i200402-200705
PAINT REQ.,RED M.M.,3P1
sub76625-02917
main76625-02100-F0i200402-200705
PAINT REQ.,CHAMPAGNE ME.,586
sub76625-02917
main76625-02100-F1i200511-200608
PAINT REQ.,GOLD ME.,585
sub76625-02917
main76625-02100-J0i200402-200511
PAINT REQ.,DK.BLUE M.M.,8P4
sub76625-02917
main76625-02100-J1i200511-200705
PAINT REQ.,STRONG BLUE M,8B6
sub76625-02917
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-02100-A1i200402-200705
WHITE,056
sub76626-02917
main76626-02100-B0i200402-200705
SILVER ME.,1C0
sub76626-02917
main76626-02100-C0i200402-200705
BLACK MC.,209
sub76626-02917
main76626-02100-D0i200402-200705
RED M.M.,3P1
sub76626-02917
main76626-02100-F0i200402-200705
CHAMPAGNE ME.,586
sub76626-02917
main76626-02100-F1i200511-200608
GOLD ME.,585
sub76626-02917
main76626-02100-J0i200402-200511
DK.BLUE M.M.,8P4
sub76626-02917
main76626-02100-J1i200511-200705
STRONG BLUE M,8B6
sub76626-02917
76924ARETAINER, SIDE MUDGUARD, NO.2
main76924-52021i200402-201210
9015960444
main90159-60444
9015960602
main90159-60602
9018306019
main90183-06019
9018906006
main90189-06006
9046710162
main90467-10162

14 parts on this diagram · 2 diagrams in section
