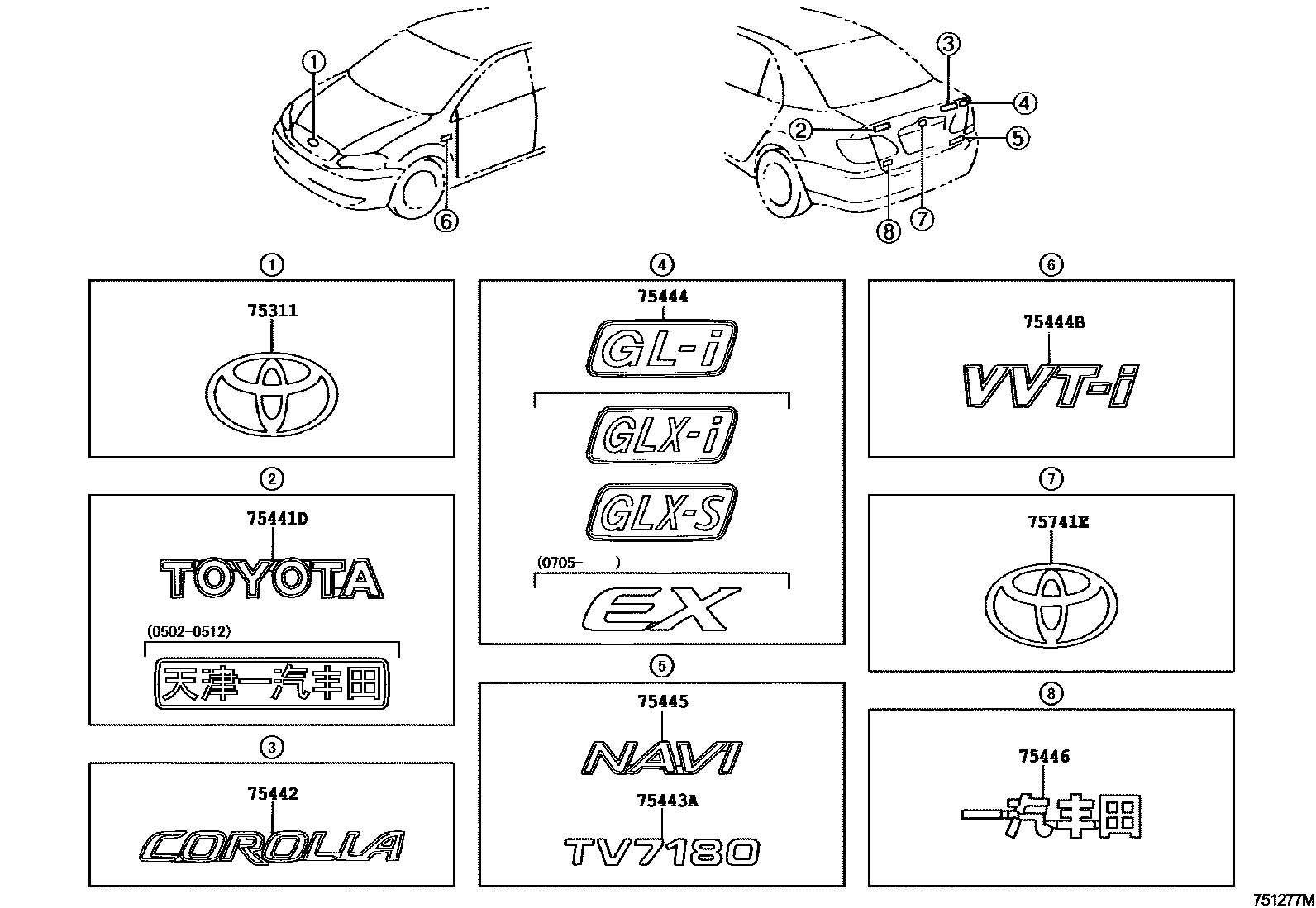

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-02090iZZE122200402-200705

main75311-02240iZRE120200705-201005

main75431-02060iZRE120201005-201210

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-02100iZZE122200402-201210

TOYOTA

main75441-02130iZRE120201210

TOYOTA

main75441-12890iZZE122200502-200512

sub75441-02150

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-02120iZZE122200402-200705

COROLLA

main75442-02190iZRE120200705-201210

COROLLA

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75446-12180iZZE122200402-200502

TV7180

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75443-02290iZRE120200705-201210

EX

main75444-02280iZZE122..GLI200402-200705

GL-I

main75444-02290iZZE122..GLXI200402-200705

GLX-I

main75444-02300iZZE122..GLXS200408-200705

GLX-S

75444BPLATE, FRONT FENDER

main75444-02310iZZE122200402-201102

VVT-I

sub75447-0D090

main75447-0D090iZRE120201103-201210

VVT-I

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75445-02050iZZE122..GLXI,GLXS200402-200705

NAVI

75446PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.6

main75441-02150iZZE122200604-201210

75741EEMBLEM, SYMBOL

main75431-YK010iZRE120201005-201210

main90975-02009iZZE122200402-201005

9 parts on this diagram · 1 diagram in section
