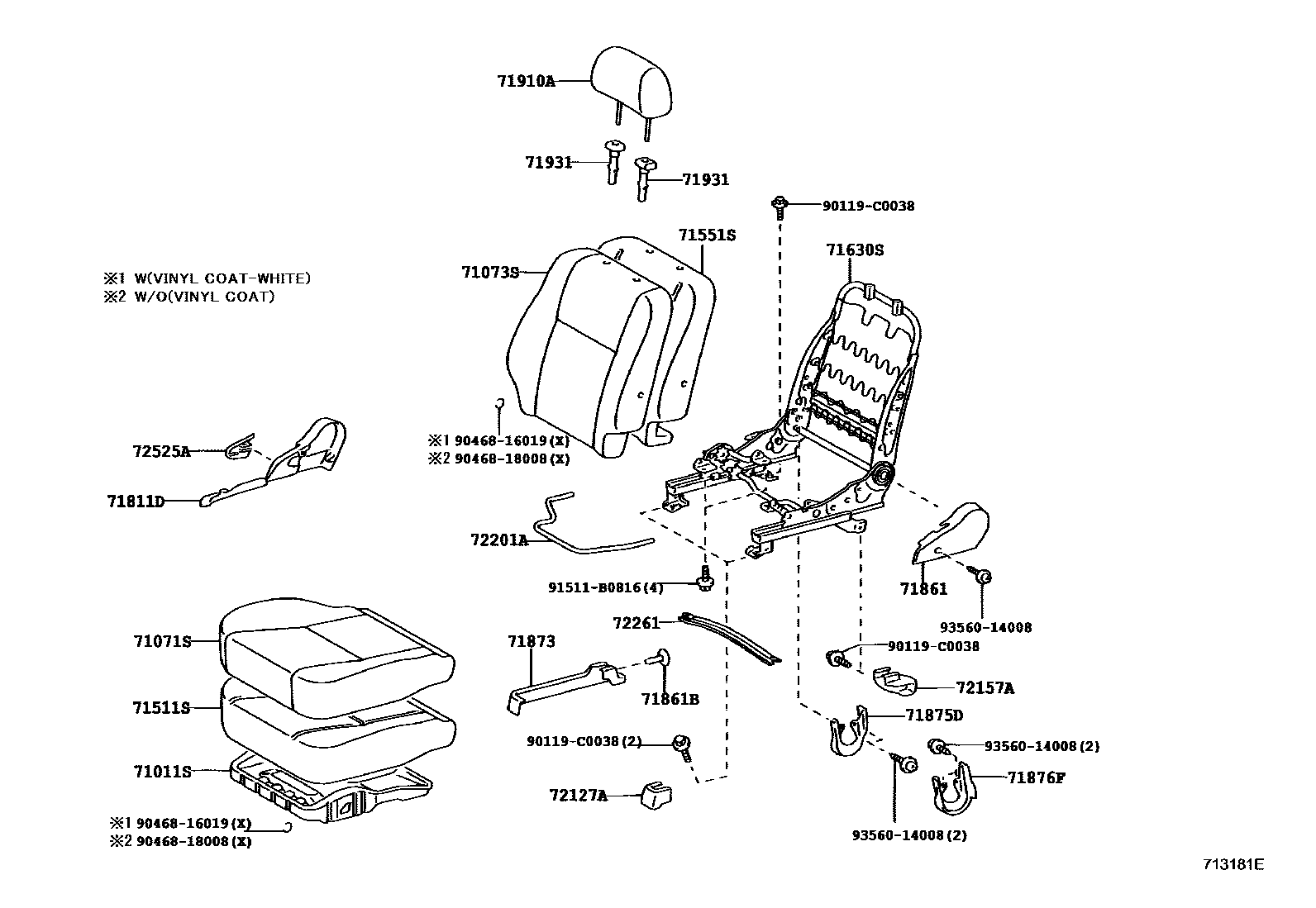

FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH SEAT 0003 1SEAT SET

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-0D010iZZE122200402-201210

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-02D50-A0iZZE122..5F..GLI200507-200601

SEAT = TYPE A-*104,IVORY,TRIM05

main71071-02D50-A0iZZE122..4FC..GLI200402-200606

SEAT = TYPE A-*104,IVORY,TRIM0#

main71071-02D50-A1iZZE122..5F..GLI200507-200601

SEAT = TYPE B-*104,IVORY,TRIM05

main71071-02D51-A3iZZE122..GLI,GLXI200606-200705

SEAT = TYPE A-*104,IVORY,TRIM0#

main71071-02D60-A0iZRE120200402-201210

SEAT = TYPE C-*104,IVORY,TRIM0#

main71071-02D60-B0iZZE122..GLXS200408-200705

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71071-02N50-A1iZZE122..5F..GLI200601-200705

SEAT = TYPE B-*104,IVORY,TRIM0#

main71071-02Q20-A3iZRE120200705-201005

SEAT = TYPE A-*104,IVORY,TRIM0#

sub71071-02Q21

main71071-0Z410-A1iZRE120201005-201012

SEAT = TYPE A-*104,IVORY,TRIM0#

sub71071-0Z411

main71071-0Z411-A1iZRE120201101-201210

SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0#

main71071-YK010-A0iZRE120201210-201702

IVORY,TRIM0#

main71071-YK020-A0iZRE120201210-201506

LEATHER SEAT,IVORY,TRIM0#

main71071-YK030-A0iZRE120201506-201702

LEATHER SEAT,IVORY,TRIM0#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-02E30-A0iZZE122..5F..GLI200402-200606

SEAT = TYPE A-*104,IVORY,TRIM0#

main71073-02E30-A0iZZE122..5F..GLI200507-200601

SEAT = TYPE A-*104,IVORY,TRIM05

main71073-02E30-A1iZZE122..5F..GLI200507-200601

SEAT = TYPE B-*104,IVORY,TRIM05

main71073-02E31-A2iZZE122..GLI,GLXI200606-200705

SEAT = TYPE A-*104,IVORY,TRIM0#

main71073-02E40-A0iZZE122..GLXI200402-200705

SEAT = TYPE C-*104,IVORY,TRIM0#

main71073-02E40-A2iZRE120200910-201210

SEAT = TYPE C-*104,IVORY,TRIM0#

main71073-02E40-B0iZZE122..GLXS200408-200705

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71073-02P70-A1iZZE122..5F..GLI200601-200705

SEAT = TYPE B-*104,IVORY,TRIM0#

main71073-02Q70-A2iZRE120200705-201005

SEAT = TYPE A-*104,IVORY,TRIM0#

sub71073-02Q71

main71073-0Z360-A1iZRE120201005-201012

SEAT = TYPE A-*104,IVORY,TRIM0#

sub71073-0Z361

main71073-0Z361-A1iZRE120201101-201210

SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0#

main71073-YK010-A0iZRE120201210-201702

IVORY,TRIM0#

main71073-YK020-A0iZRE120201210-201506

LEATHER SEAT,IVORY,TRIM0#

main71073-YK030-A0iZRE120201506-201702

LEATHER SEAT,IVORY,TRIM0#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-02270iZRE120200402-201210

main71511-02290iZZE122..GLXI,GLXS200402-200705

LEATHER SEAT

main71511-YK010iZRE120201210

main71511-YK030iZRE120201210

LEATHER SEAT

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-02390iZZE122..GLI200402-200701

sub71551-02391

main71551-02391iZRE120200702-201210

main71551-02400iZZE122..GLXI,GLXS200402-200701

LEATHER SEAT

sub71551-02401

main71551-02401iZZE122..GLXI,GLXS200702-200705

LEATHER SEAT

main71551-YK010iZRE120201210

main71551-YK020iZRE120201210

LEATHER SEAT

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-02130iZZE122200402-200701

sub71630-02131

main71630-02131iZRE120200702-201210

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-0D030-A0iZZE122..GLI,GLXI200402-201702

IVORY,TRIM0#

main71811-0D030-B1iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-0D010-A0iZZE122..GLI,GLXI200402-201702

IVORY,TRIM0#

main71861-0D010-B1iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main90467-07161-A0iZRE120200402-201702

IVORY,TRIM0#

sub90467-07161

main90467-07161-B2iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

sub90467-07161

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-02010-A0iZZE122..GLI,GLXI200402-201402

IVORY,TRIM0#

main71873-02010-B1iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

main71873-YK010-A0iZRE120201403-201702

IVORY,TRIM0#

71875DCOVER, RECLINING ADJUSTER OUTSIDE, RH

main71875-0D010-A0iZRE120200402-201702

IVORY,TRIM0#

main71875-0D010-B1iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-0D010-A0iZZE122..GLI,GLXI200402-201702

IVORY,TRIM0#

main71876-0D010-B1iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-02650-A0iZZE122..4FC..GLI200402-200606

SEAT = TYPE A-*104,IVORY,TRIM0#

main71910-02650-A0iZZE122..5F..GLI200507-200601

SEAT = TYPE A-*104,IVORY,TRIM05

main71910-02650-A1iZZE122..5F..GLI200507-200601

SEAT = TYPE B-*104,IVORY,TRIM05

main71910-02651-A2iZZE122..GLI,GLXI200606-200705

SEAT = TYPE A-*104,IVORY,TRIM0#

main71910-02660-A0iZZE122..GLXI200402-200705

SEAT = TYPE C-*104,IVORY,TRIM0#

main71910-02660-B0iZZE122..GLXS200408-200705

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71910-02B20-A1iZZE122..5F..GLI200601-200705

SEAT = TYPE B-*104,IVORY,TRIM0#

main71910-02B60-A2iZRE120200705-201005

SEAT = TYPE A-*104,IVORY,TRIM0#

main71910-02E80-A0iZRE120201005-201012

SEAT = TYPE A-*104,IVORY,TRIM0#

sub71910-02E81

main71910-02E81-A0iZRE120201101-201210

SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0#

main71910-02F10-A0iZRE120200910-201210

SEAT = TYPE C-*104,IVORY,TRIM0#

main71910-YK010-A0iZRE120201210-201501

IVORY,TRIM0#

sub71910-YK011

main71910-YK011-A0iZRE120201501-201702

IVORY,TRIM0#,TRIM = F***

main71910-YK020-A0iZRE120201210-201501

IVORY,TRIM0#,TRIM = L***

sub71910-YK021

main71910-YK021-A0iZRE120201501

IVORY,TRIM0#,TRIM = L***

71931SUPPORT, FRONT SEAT HEADREST

main71930-02340iZRE120200910-201210

W(LOCK)

main71930-0D090-A0iZZE122..GLI,GLXI200402-200706

W(LOCK),IVORY,TRIM0#

sub71930-0D110

main71930-0D090-B1iZZE122..GLXS200408-200705

W(LOCK),DK.GRAY,TRIM1#

sub71930-0D110

main71930-0D110iZRE120201210-201702

W(LOCK)

main71930-0D110-A0iZRE120200706-201210

W(LOCK),IVORY,TRIM0#

main71931-0D110-A0iZRE120200402-201702

W/O(LOCK),IVORY,TRIM0#

main71931-0D110-B1iZZE122..GLXS200408-200705

W/O(LOCK),DK.GRAY,TRIM1#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-02020-A0iZZE122..GLI,GLXI200402-201402

IVORY,TRIM0#

main72127-02020-B1iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

main72127-YK010-A0iZRE120201403-201702

IVORY,TRIM0#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-02030-A0iZZE122..GLI,GLXI200402-201402

IVORY,TRIM0#

main72157-02030-B1iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

main72157-YK010-A0iZRE120201403-201702

IVORY,TRIM0#

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72211-0D030iZRE120200402-201210

72261REINFORCEMENT, SEAT TRACK, RH

main72261-0D010iZZE122200402-201210

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-0D030-A0iZZE122..GLI,GLXI200402-201702

IVORY,TRIM0#

main72525-0D030-B1iZZE122..GLXS200408-200705

DK.GRAY,TRIM1#

90119C0038

main90119-C0038

9046816019

main90468-16019

9046818008

main90468-18008

91511B0816

main91511-B0816

9356014008

main93560-14008

24 parts on this diagram · 3 diagrams in section
