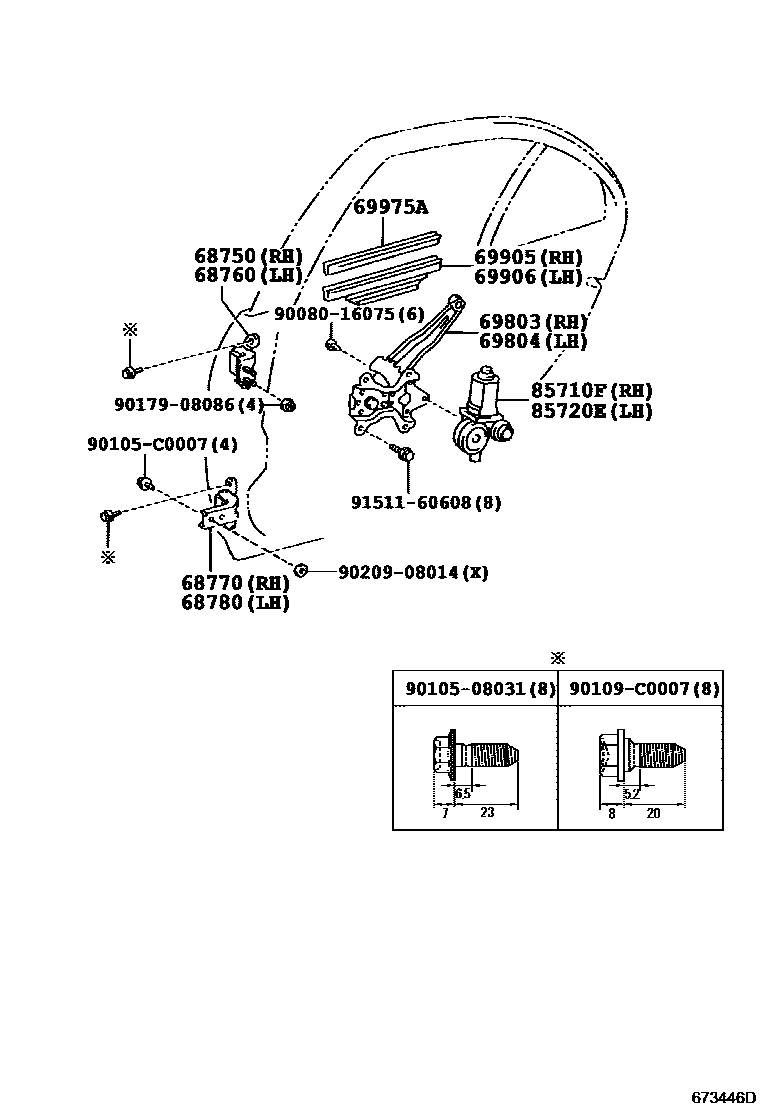

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D020iZZE122200402-200610

sub68750-0D021

main68750-0D021iZZE122200611-201210

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D020iZZE122200402-200610

sub68760-0D021

main68760-0D021iZZE122200611-201210

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D020iZZE122200402-200610

sub68770-0D021

main68770-0D021iZZE122200611-201210

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D020iZZE122200402-200610

sub68780-0D021

main68780-0D021iZZE122200611-201210

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-02140iZRE120200705-201210

main69803-12140iZZE122200402-200705

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-02140iZRE120200705-201210

main69804-12140iZZE122200402-200705

69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-02120iZRE120200712-201210

main69905-0D020iZZE122200402-200712

sub69905-02120

69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-02120iZRE120200712-201210

main69906-0D020iZZE122200402-200712

sub69906-02120

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iZZE122200402-201210

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-12300iZZE122200402-201210

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-12310iZZE122200402-201210

9008016075

main90080-16075

9010508031

main90105-08031

90105C0007

main90105-C0007

90109C0007

main90109-C0007

9017908086

main90179-08086

9020908014

main90209-08014

9151160608

main91511-60608

18 parts on this diagram · 1 diagram in section
