REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,CLEAR
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,CLEAR
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,CLEAR
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,CLEAR
68145DCUSHION, REAR DOOR WINDOW
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
74219REINFORCEMENT, DOOR ARMREST, REAR RH
74219AREINFORCEMENT, DOOR ARMREST, REAR LH
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
90105C0244
main90105-C0244
90109C0028
main90109-C0028
9015150016
main90151-50016
90151C0002
main90151-C0002
9015960550
main90159-60550
9016860028
main90168-60028
9018906018
main90189-06018
9054109069
main90541-09069
9095001841
main90950-01841
9354056018
main93540-56018

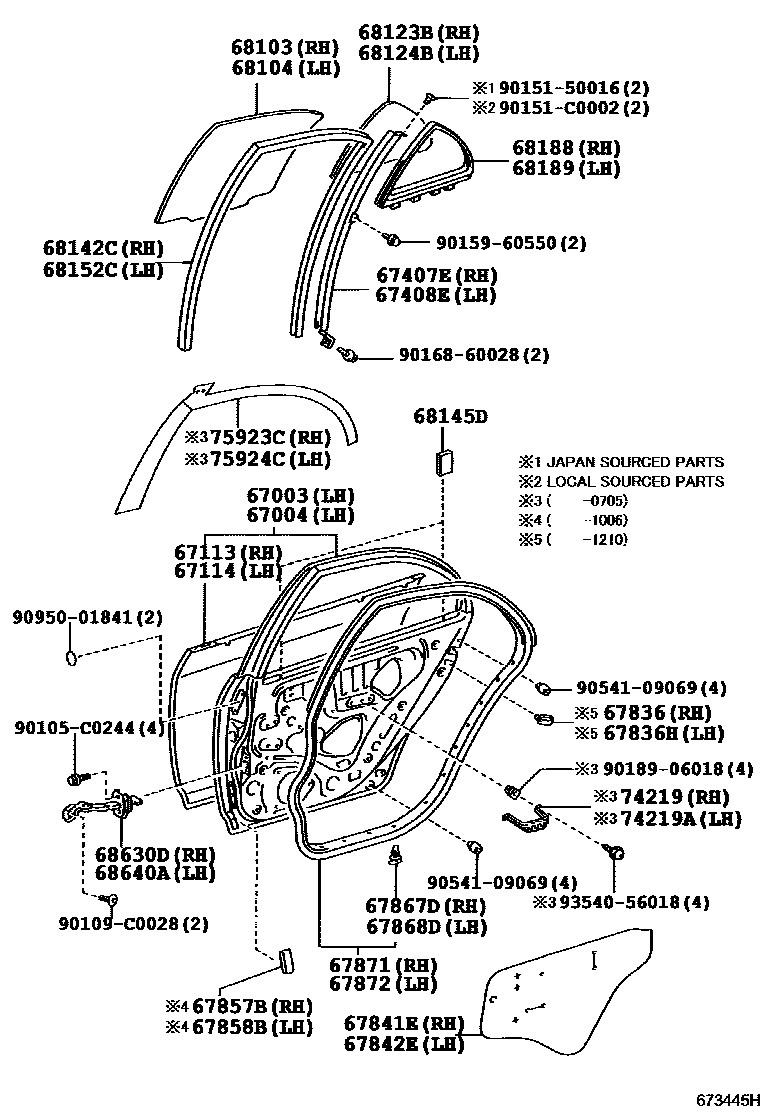

41 parts on this diagram · 3 diagrams in section
