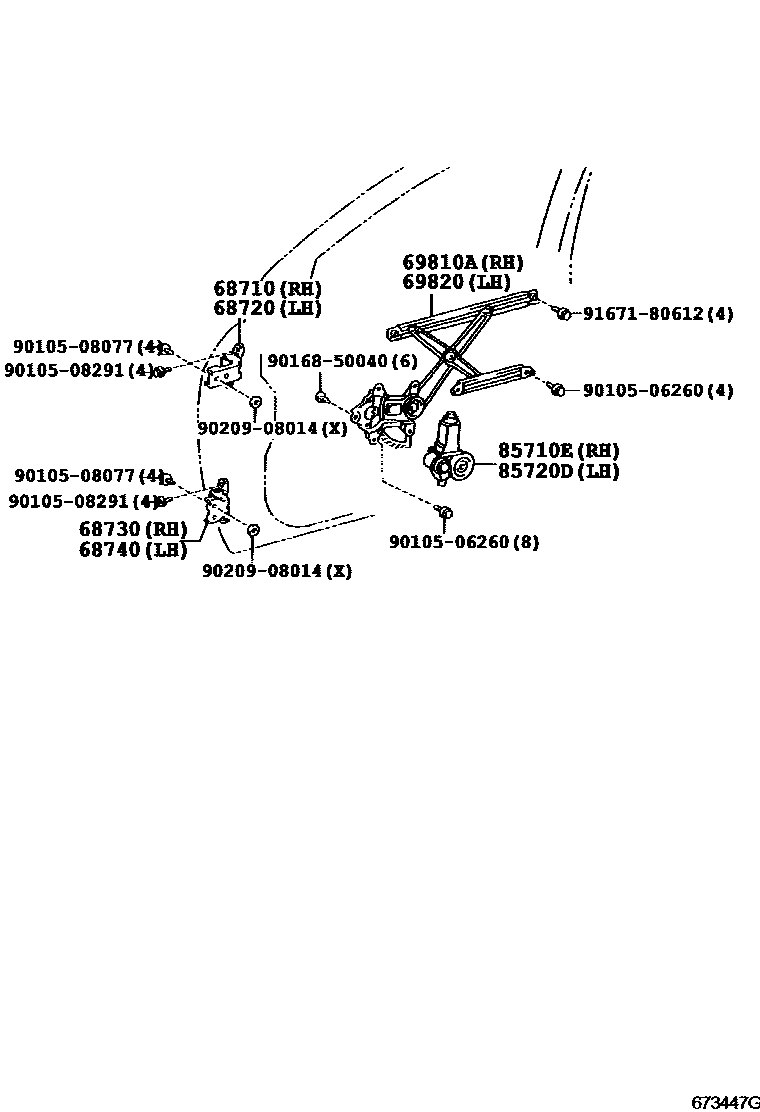

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02030iZZE122200402-200610

sub68710-02031

main68710-02031iZZE122200611-201210

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02030iZZE122200402-200610

sub68720-02031

main68720-02031iZZE122200611-201210

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D020iZZE122200402-200610

sub68730-0D021

main68730-0D021iZZE122200611-201210

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D020iZZE122200402-200610

sub68740-0D021

main68740-0D021iZZE122200611-201210

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-02120iZZE122200402-201210

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-02130iZZE122200402-201210

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02170iZZE122200402-201210

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02170iZZE122200402-201210

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9020908014

main90209-08014

9167180612

main91671-80612

14 parts on this diagram · 2 diagrams in section
