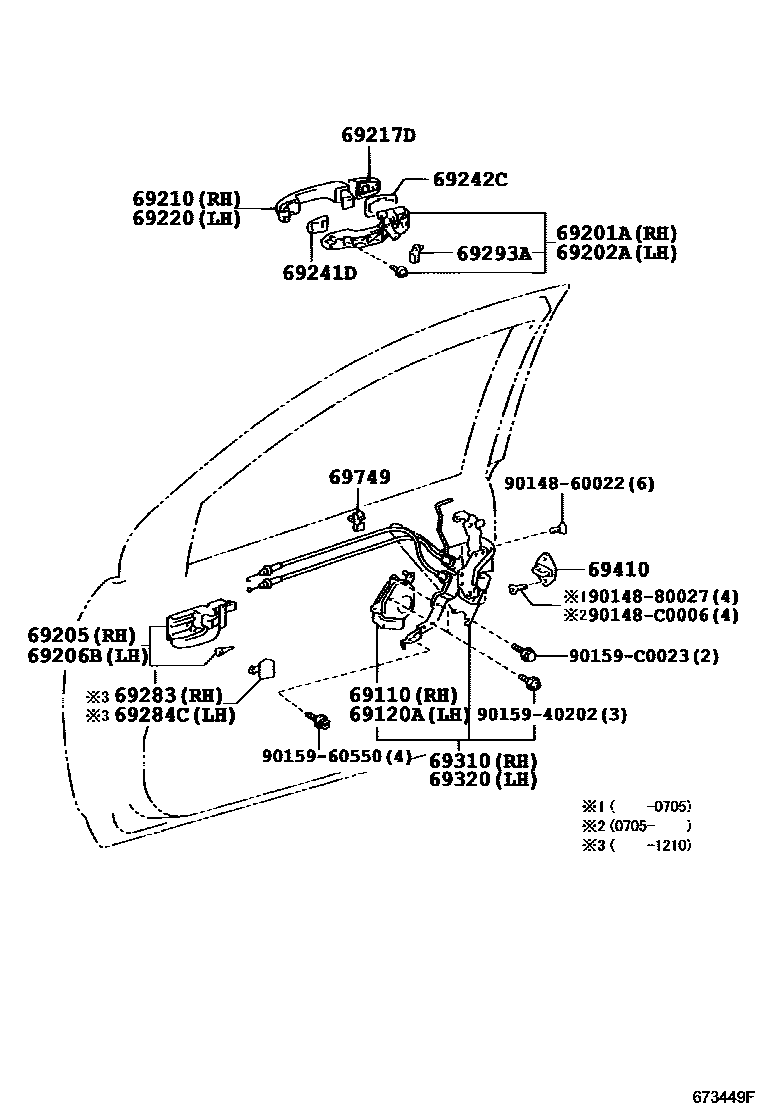

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
W(CHROME PLATED),IVORY,TRIM0#
W(CHROME PLATED),DK.GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
W(CHROME PLATED),IVORY,TRIM0#
W(CHROME PLATED),DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
9014860022
main90148-60022
9014880027
main90148-80027
90148C0006
main90148-C0006
9015940202
main90159-40202
9015960550
main90159-60550
90159C0023
main90159-C0023
24 parts on this diagram · 1 diagram in section
