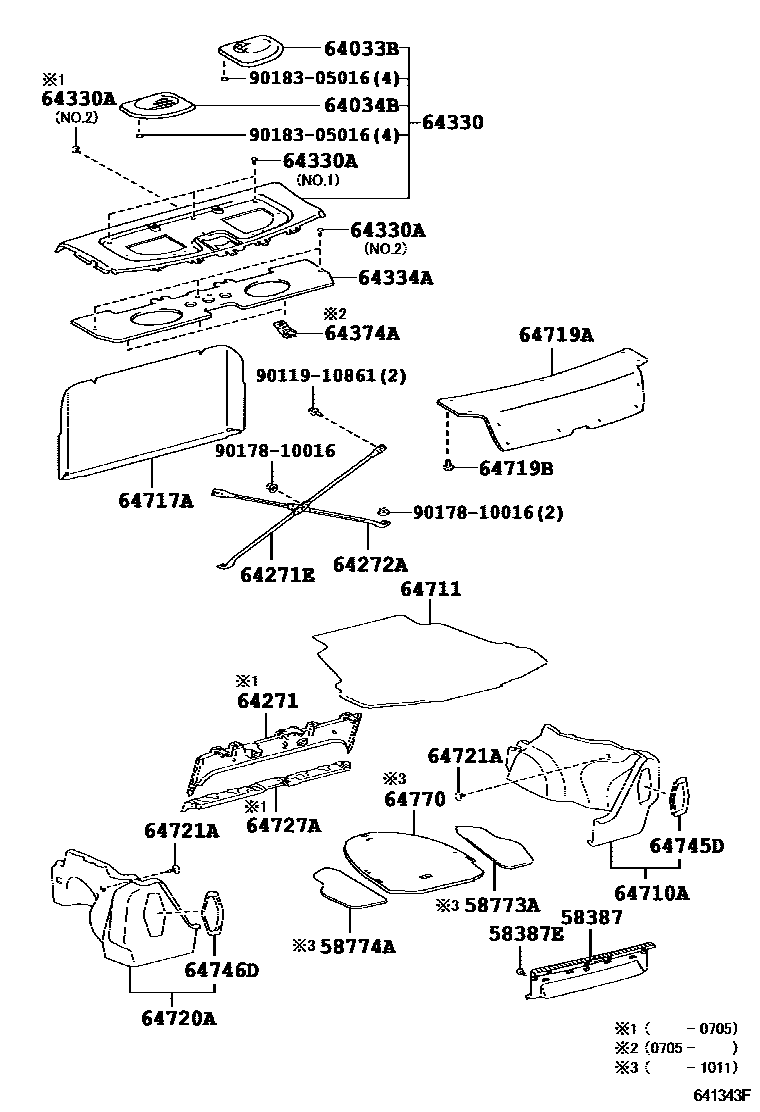

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
DK.GRAY,TRIM0#
DK.GRAY,TRIM1#
DK.GRAY,TRIM0#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
W(REAR SUN SHADE),IVORY,TRIM0#
DK.GRAY,TRIM1#
IVORY,TRIM0#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
W(REAR SUN SHADE),IVORY,TRIM0#
DK.GRAY,TRIM1#
IVORY,TRIM0#
64271BOARD, ROOM PARTITION, NO.1
64271EPANEL, ROOM PARTITION
64272APANEL, ROOM PARTITION, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#
DARK GRAY,TRIM1#
IVORY,TRIM0#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64334APAD, PACKAGE TRAY TRIM
64374ASUPPORT, PACKAGE TRAY TRIM
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#
BLACK,TRIM0#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
DK.GRAY,TRIM0#
DK.GRAY,TRIM1#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#
BLACK,TRIM1#
BLACK,TRIM0#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#
BLACK,TRIM1#
BLACK,TRIM0#
64770COVER ASSY, SPARE WHEEL
9011910861
main90119-10861
9017810016
main90178-10016
9018305016
main90183-05016
27 parts on this diagram · 2 diagrams in section
