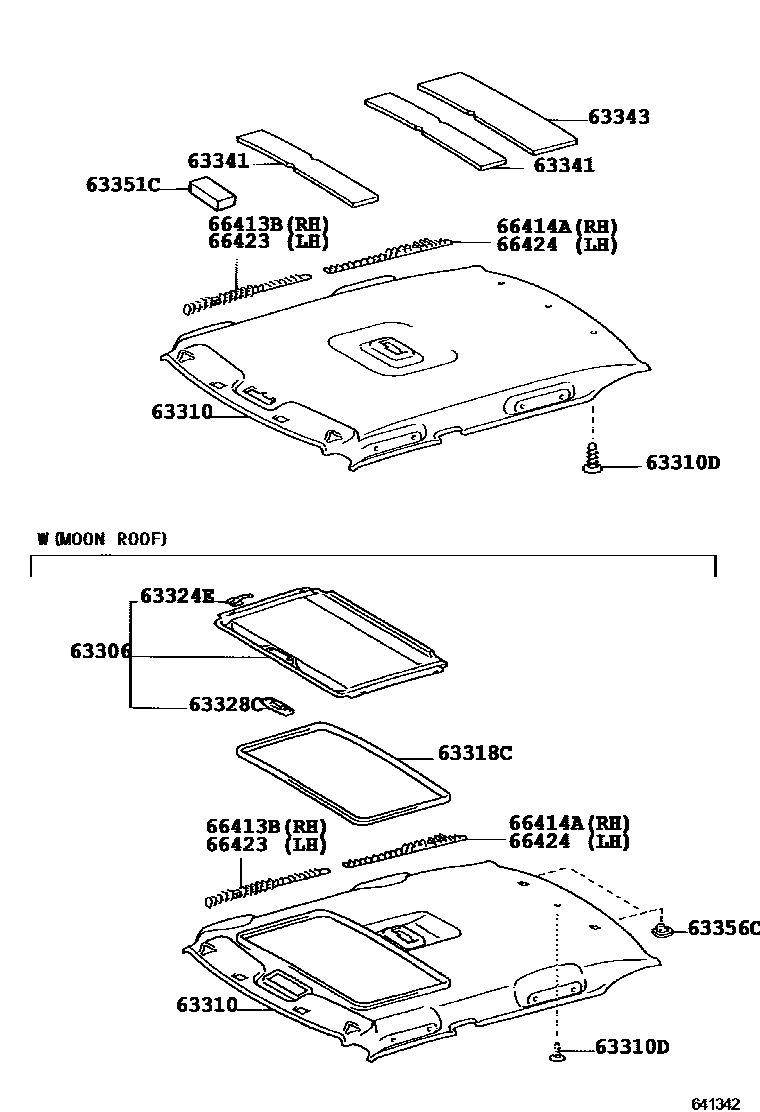

ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
IVORY,TRIM0#
LT. GRAY,TRIM1#
IVORY,TRIM0#
63310HEADLINING ASSY, ROOF
W(MOON ROOF),IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
LT. GRAY,TRIM1#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),IVORY,TRIM0#
IVORY,TRIM0#
63310DCLIP, ROOF HEADLINING
63318CMOULDING, SUN ROOF OPENING TRIM
L=2185,IVORY,TRIM0#
L=2185,LT.GRAY,TRIM1#
L=2205,IVORY,TRIM0#
63324ESPRING, SUNSHADE LOCK
63328CKNOB, SUNSHADE TRIM
IVORY,TRIM0#
LT.GRAY,TRIM1#
63341PAD, ROOF SILENCER, NO.1
63343PAD, ROOF SILENCER, NO.3
63356CHOLDER, SUNSHADE TRIM
IVORY,TRIM0#
LT.GRAY,TRIM1#
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
66423SPACER, SIDE RAIL, FRONT LH
66424SPACER, SIDE RAIL, REAR LH
14 parts on this diagram · 1 diagram in section
