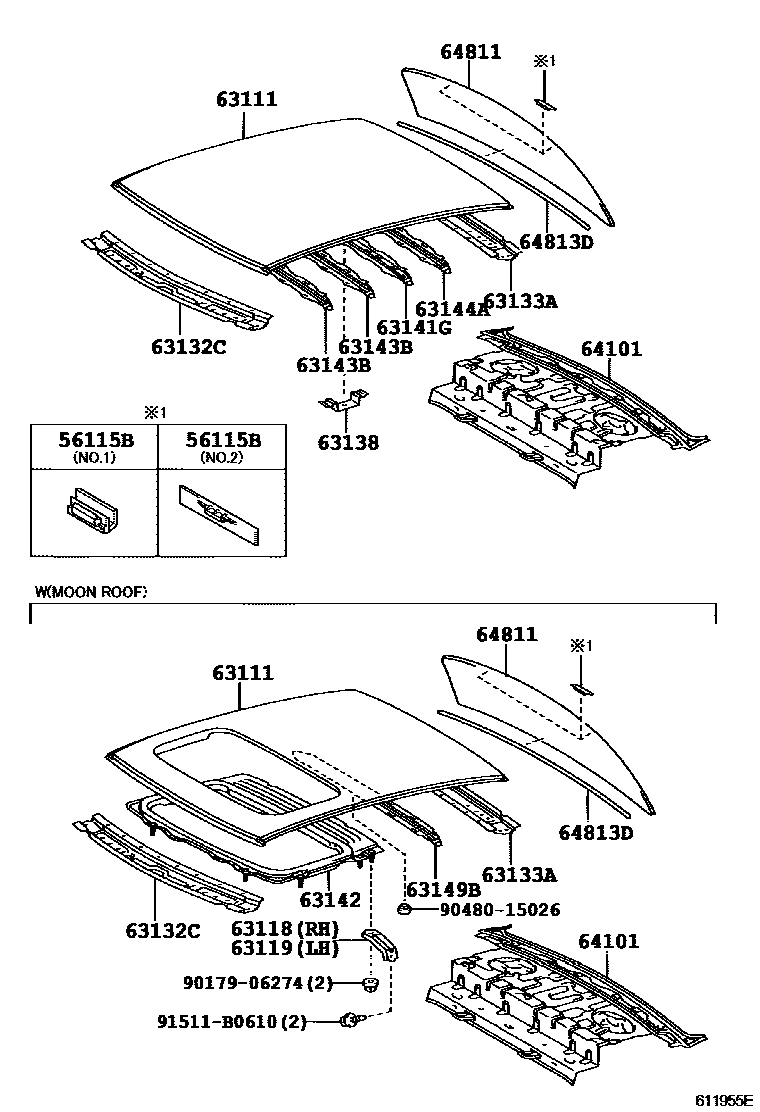

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
NO.1
NO.2
63111PANEL, ROOF
W(MOON ROOF)
W(MOON ROOF)
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63132CPANEL, WINDSHIELD HEADER, INNER
63133AFRAME, BACK WINDOW, UPPER
63138BRACKET, DOME LAMP, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR
64101PANEL SUB-ASSY, UPPER BACK
W(FIXED TYPE REAR SEAT)
W(FIXED TYPE REAR SEAT)
64811GLASS, BACK WINDOW
*EHTT,T=3.1,GREEN
*EHTT,T=3.1,GREEN
*EHTT,T=3.1,CLEAR
64813DDAM, BACK WINDOW GLASS ADHESIVE
9017906274
main90179-06274
9048015026
main90480-15026
91511B0610
main91511-B0610
18 parts on this diagram · 3 diagrams in section
