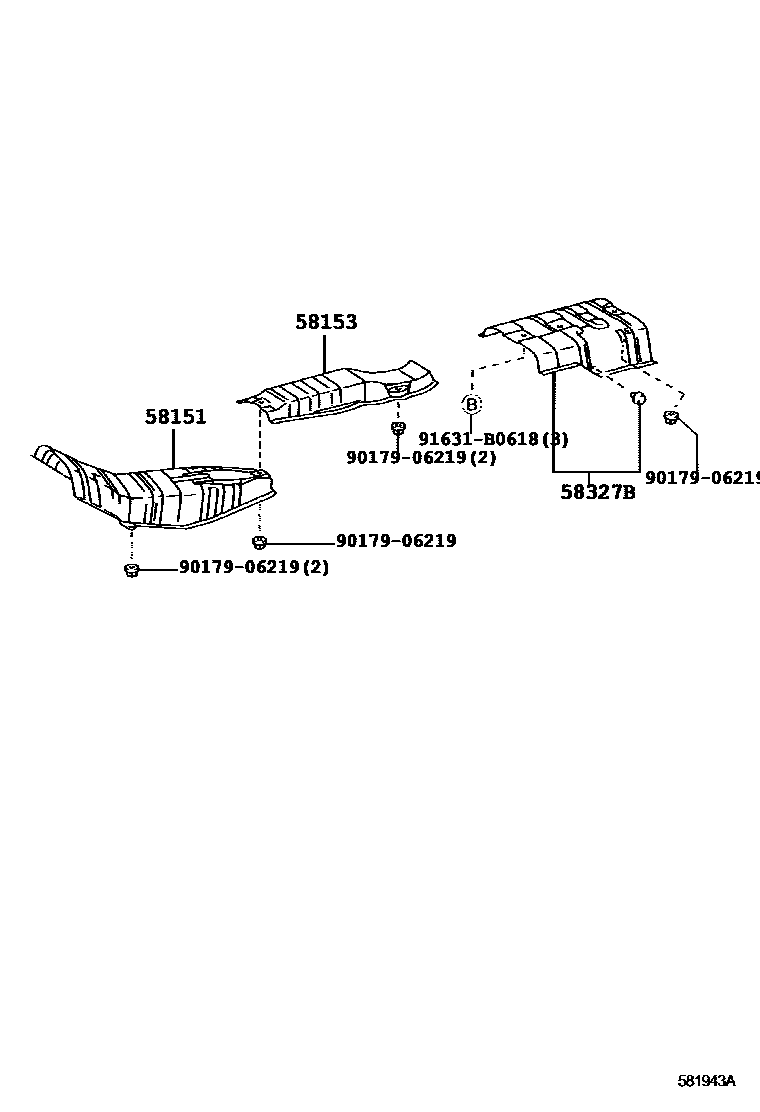

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-02180iZRE120200705-201210

main58151-12210iZZE122200402-200705

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-02170iZRE120200705-201210

main58153-20141iZZE122200402-200705

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-02180iZRE120200705-201210

main58327-12160iZZE122200402-200705

9017906219

main90179-06219

91631B0618

main91631-B0618

5 parts on this diagram · 1 diagram in section
