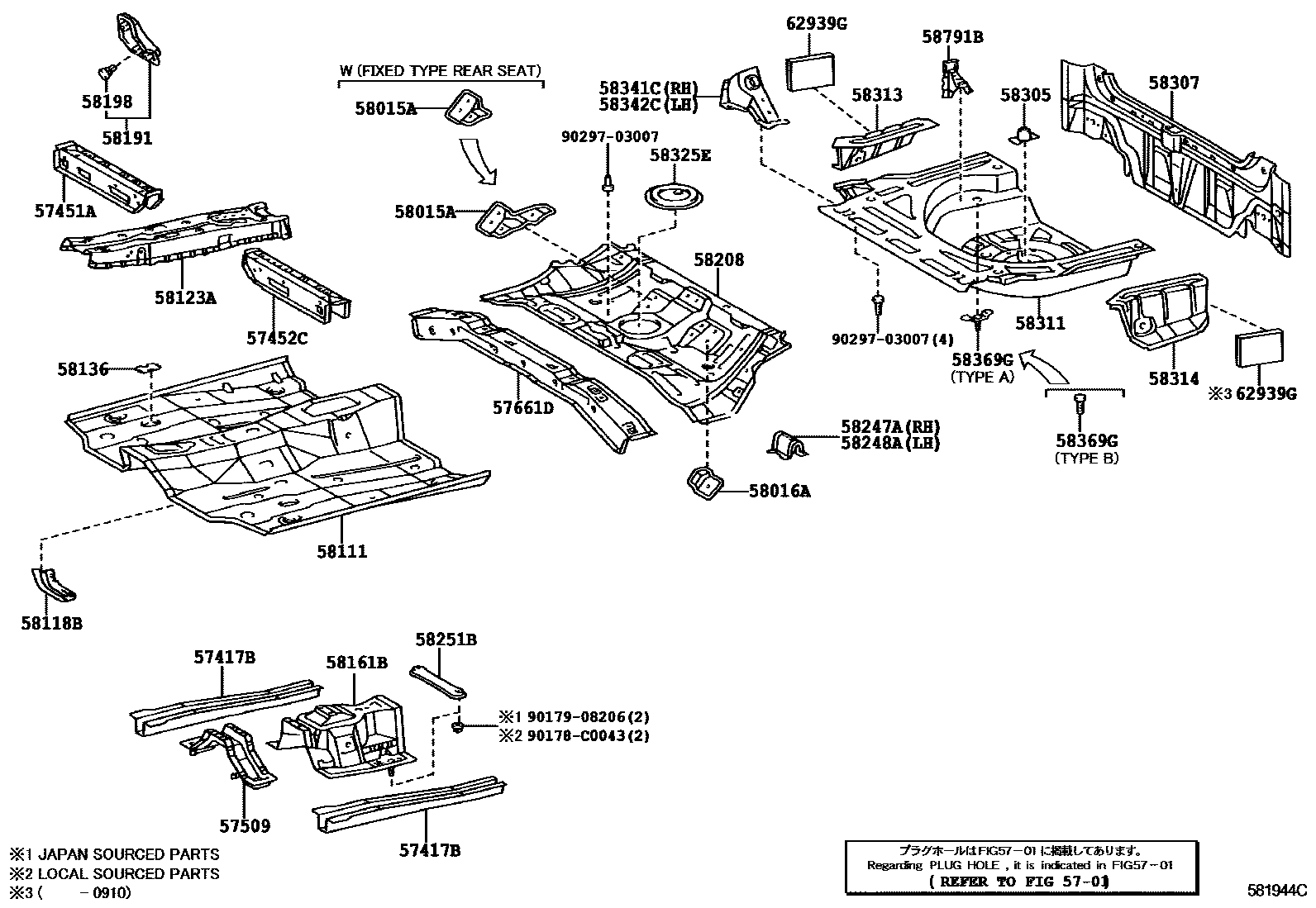

FLOOR PAN & LOWER BACK PANEL
5701
57417BREINFORCEMENT, FRONT FLOOR UNDER
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
W(FIXED TYPE REAR SEAT)
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
(L)
(J)
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
(L)
(J)
58251BBRACE, FLOOR PANEL, FRONT
(L)
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
(L)
(J)
58307PANEL SUB-ASSY, BODY LOWER BACK
1TH ANNIVERSARY PACKAGE
W(CLEARANCE & BACK SONAR)
1TH ANNIVERSARY PACKAGE
W(CLEARANCE & BACK SONAR)
58311PAN, REAR FLOOR
W(FIXED TYPE REAR SEAT)
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
(L)
(J)
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369GBRACKET, FUEL TUBE, NO.3
TYPE A:REFER ILLUST.
(L),T/P A:REFER ILL.
TYPE A:REFER ILLUST.
(J),T/P A:REFER ILL.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
58791BCARRIER, JACK
(L)
(J)
62939GSILENCER, QUARTER VENT
90178C0043
main90178-C0043
9017908206
main90179-08206
9029703007
main90297-03007
33 parts on this diagram · 2 diagrams in section
